535542-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 535542-7

535542-7: Description14 MODIV VRT DR CE 100/130; CategoryThe connector The connector; File Size287KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

535542-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	535542-7	-	-	View	Buy Now

535542-7 Overview

14 MODIV VRT DR CE 100/130

535542-7 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1422826192
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	25 weeks 1 day
Samacsys Description	14 MODIV VRT DR CE 100/130
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25
YTEOL	6.83
Other features	LOW PROFILE
body width	0.198 inch
subject depth	0.198 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.1 inch
Match contact row spacing	0.15 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	CSA, LR, U
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	.417 N

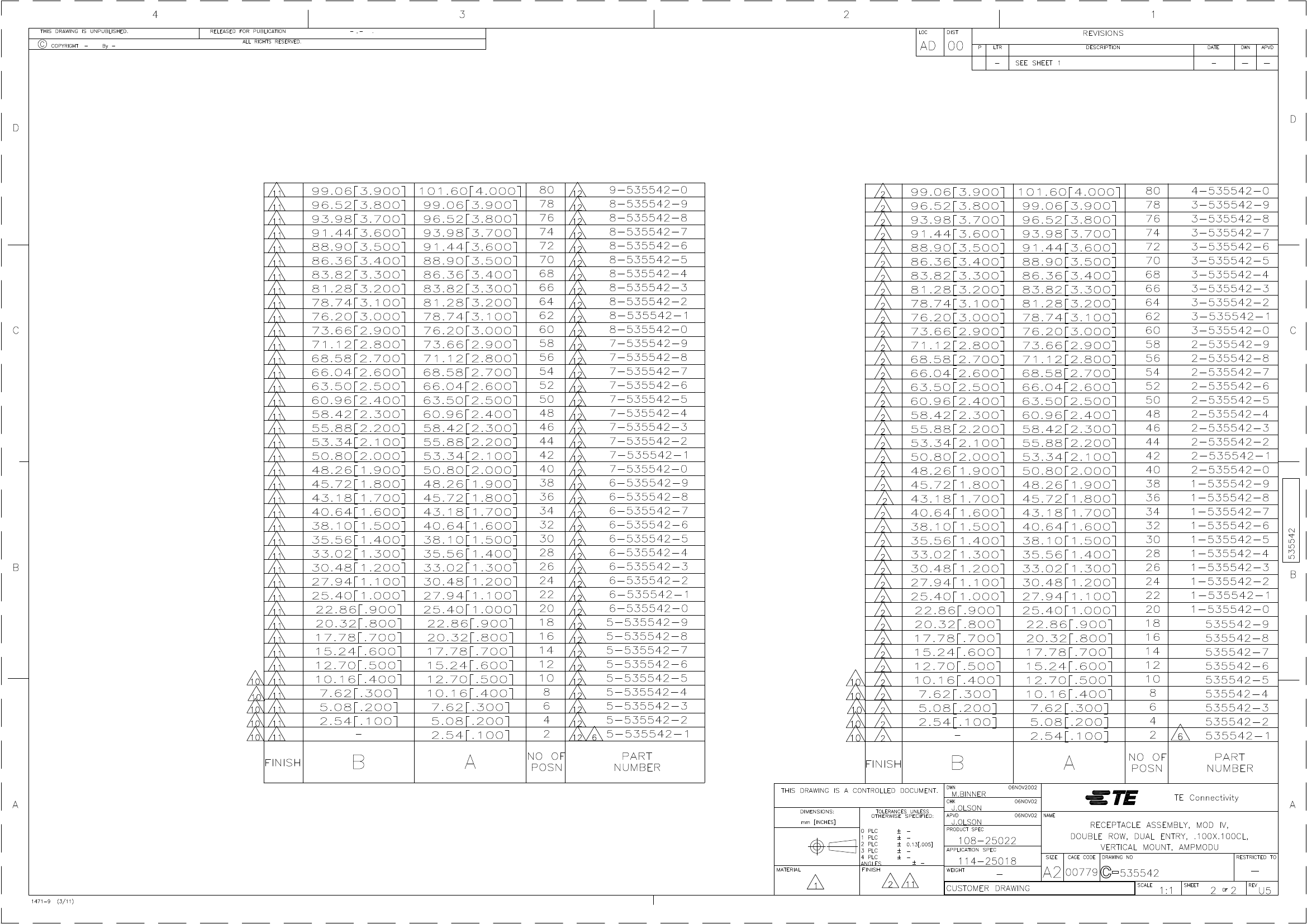

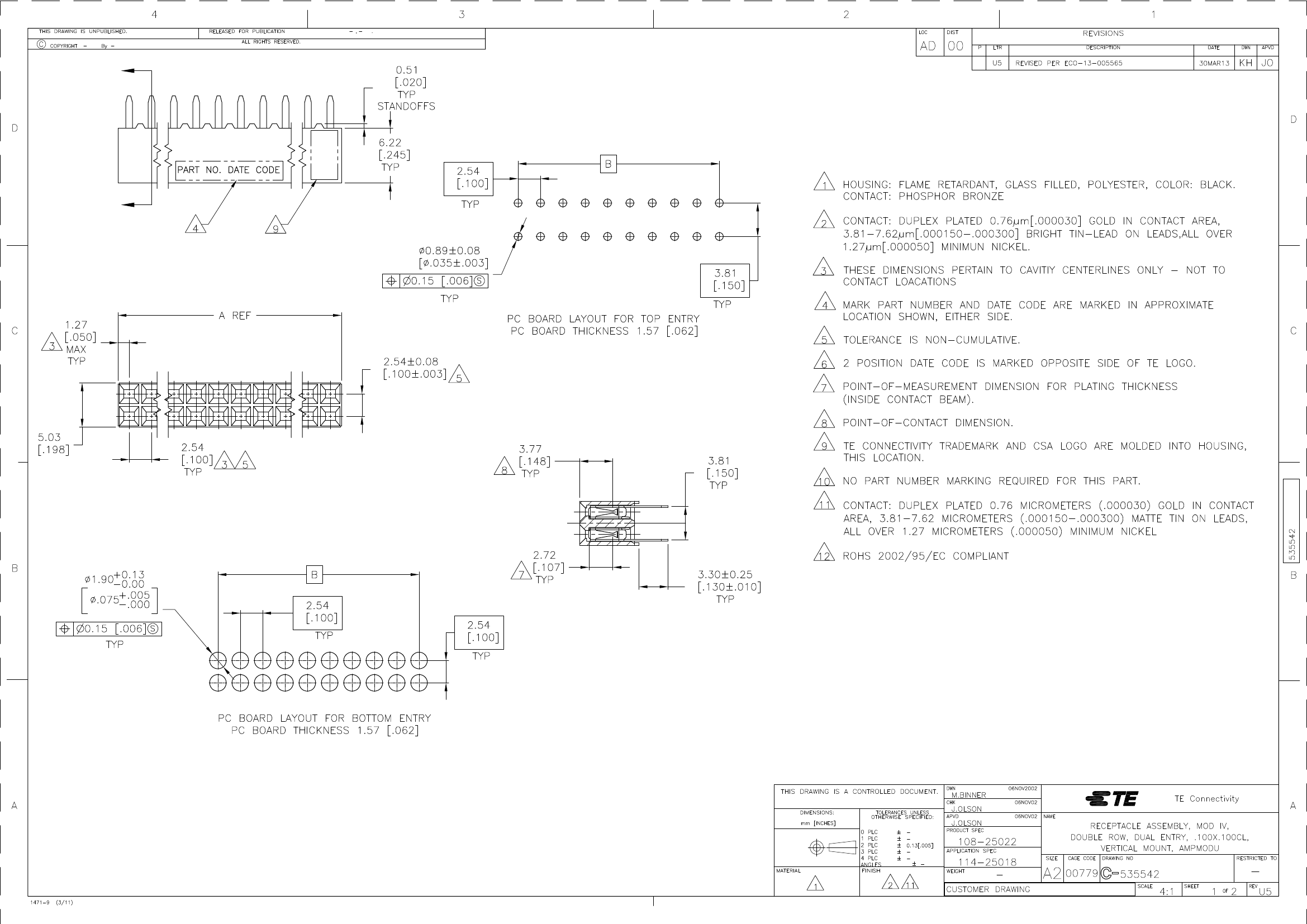

Preview

Download Datasheet

View All
