OPTIONAL
PICK AND PLACE CAP
SEE NOTES 4 & 9.
H
DIM. "M"
DIM. "G"
6.10
.240
8.13
.320
10.67
.420
12.70
.500
H
G
"G"
REF.
G
⌖
0.50/.020
U
X
FOR PARTS WITH PEGS
PEG OPTIONS
F
⌖
0.50/.020
U
Y
FOR PARTS WITHOUT PEGS
F
3.30 REF.
.130
1.40 REF.
.055
Z
E
Z
.055 PEG
SECTION Z-Z
-W-
E
D
C
B
A
NOTES:
-V-
1. MATERIALS: INSULATOR: GLASS FILLED LIQUID CRYSTAL
POLYMER (LCP). UL94 V-0, COLOR: BLACK
H
TERMINAL: COPPER ALLOY
SEE NOTE 12
2. FINISH:
59 TIN - 0.00150/.000059 MIN. BRIGHT TIN OVER NICKEL OVERALL.
150 TIN - 0.00381/.000150 MIN. BRIGHT TIN OVER NICKEL OVERALL.
REFLOWED MATTE TIN - 0.00152/.000060 MIN. REFLOWED MATTE TIN
OVER NICKEL OVERALL.
3.56
±
0.25
15 GOLD - 0.00038/.000015 MIN. GOLD IN SELECT AREA OVER
0.00191/.000075 MIN. TIN IN SELECT AREA
.140
±
.010
OVER NICKEL OVERALL.
30 GOLD - 0.00076/.000030 MIN. GOLD IN SELECT AREA OVER
6.99
±
0.51
0.00191/.000075 MIN. TIN IN SELECT AREA
.275
±
.020
OVER NICKEL OVERALL.
50 GOLD - 0.00127/.000050 MIN. GOLD IN SELECT AREA OVER
NO PEG
0.00254/.000100 MIN. TIN IN SELECT AREA
SEE PEG OPTIONS
OVER NICKEL OVERALL.
3. PART TO CONFORM TO PS-71308.
4. PACKAGING (SEE CHARTS): BULK: PER PK-70873-0353
TUBES: PER PK-70873-0041.
71308-82** IN TUBES: PER PK-70873-042.
TUBES W/ VAC CAPS: PER PK-70873-0691
TAPE AND REEL W/ VAC CAPS: PER PK-70873-0805.
SEE SHEET 3 FOR TAPE & REEL PRODUCT WITH SHALLOW POCKET REQUIREMENTS.
5. TYP. DIMENSIONS FOR LANDS SURROUNDING HOLES FOR RETETION PEGS.
6. PIN SOLERABILITY PER MOLEX SPEC. SMES-152.

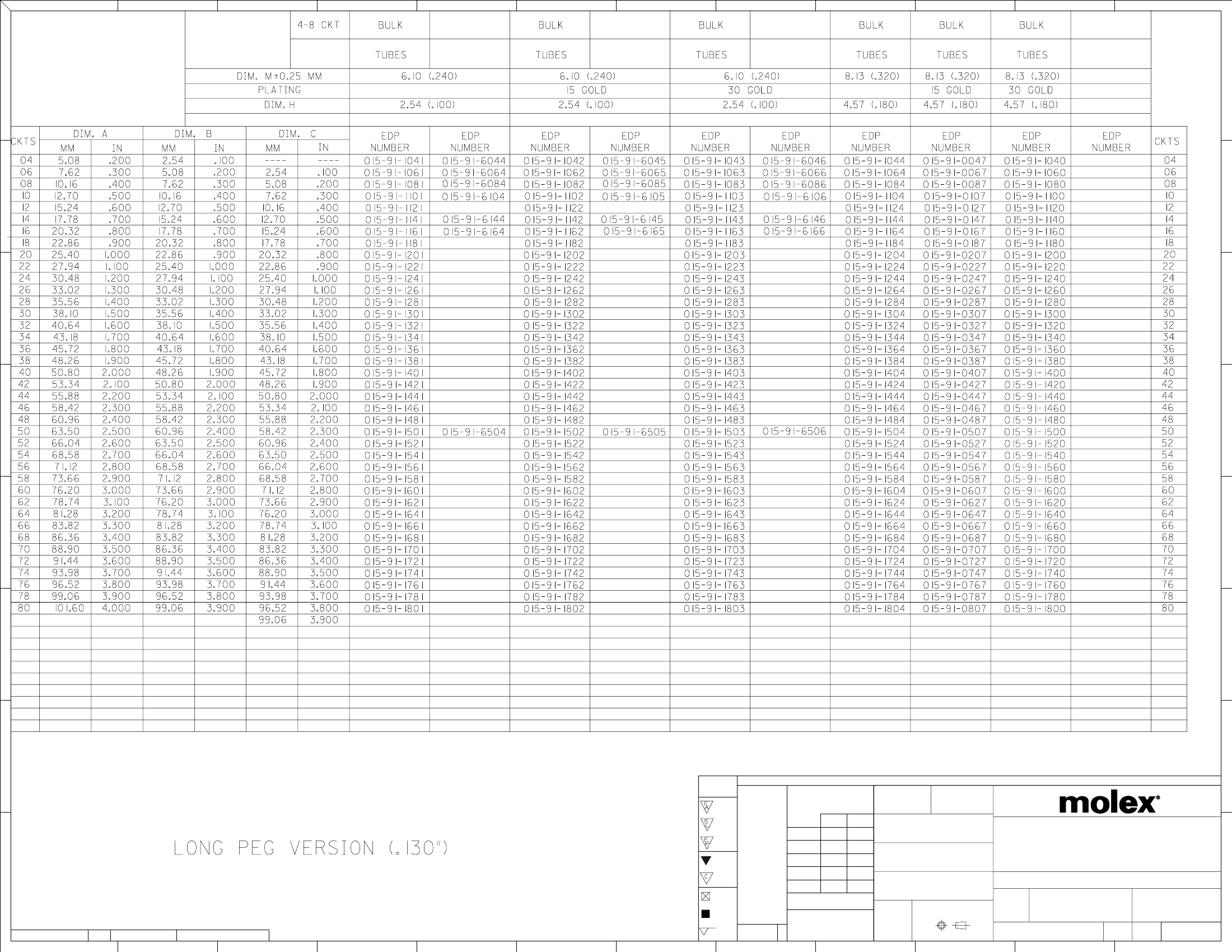

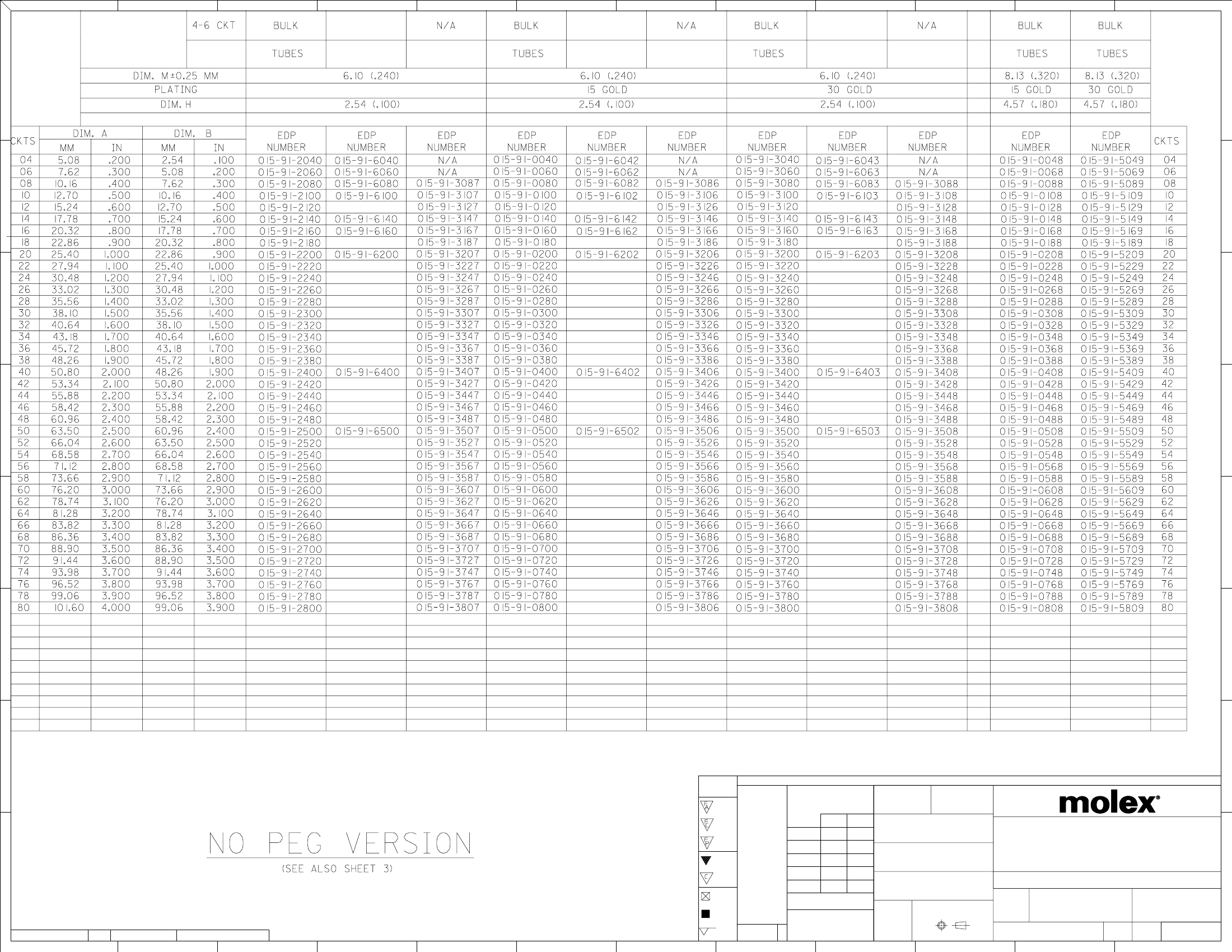

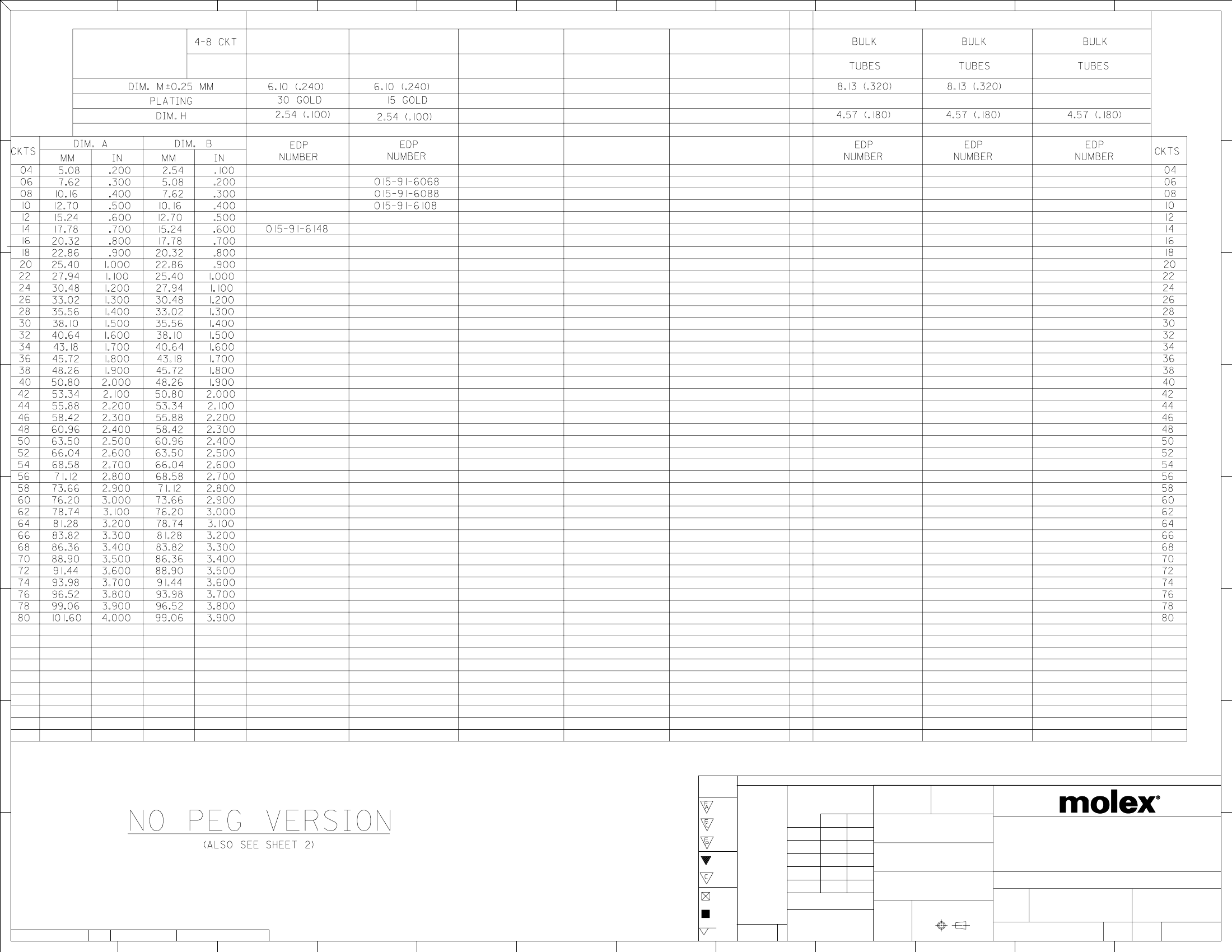

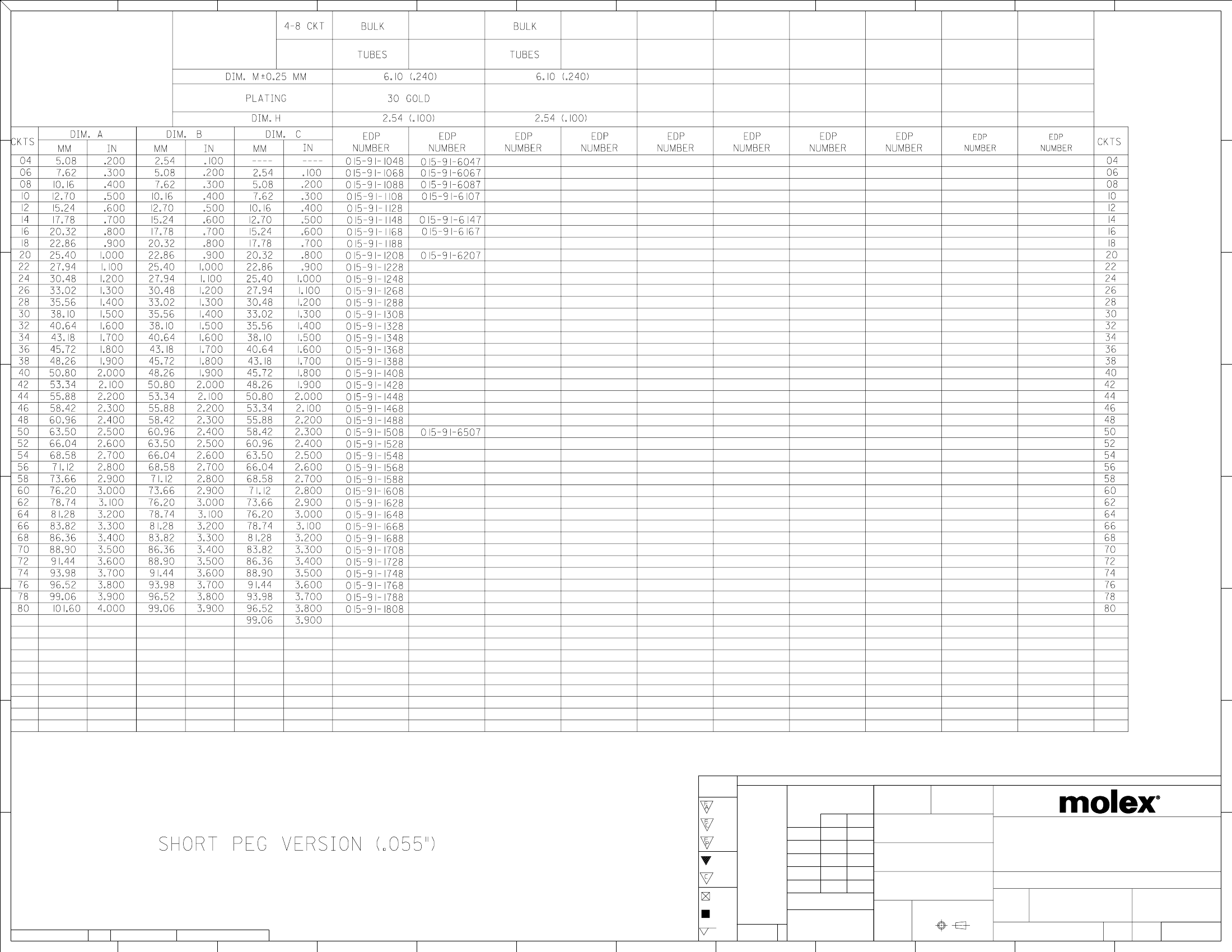

7. SEE SHEETS 2-6 FOR CHARTED DIMS., PART/EDP NO'S, AND VOIDED CIRCUITS.
8. PIN PUSHOUT FORCE: 3 LBS. MINIMUM.
9. PICK-N-PLACE CAPS WILL BE PLACED SO THAT VACUUM PICK UP AREA
WILL BE IN CENTER OF PART.
10. COPLANARITY FOR CIRCUIT SIZES UP TO 40 IS 0.15 MM/.006 INCH.
FOR CIRCUIT SIZES 42 AND LARGER, CONTACT MOLEX SALES DEPARTMENT.
11. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF
COSMETIC SPECIFICATION PS-45499-002.
12. MEASURE POINT FOR PLATING THICKNESS.
⌖
⌀
0.38/.015
U
V
W
1.27
.050
REF.
D
OPTIONAL PEG
TYPICAL
COPLANARITY - SEE NOTE 10
C
-X-
-Y-
B
QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
SYMBOLS
2016/08/02
2017/01/17
2017/01/20
=
=
=
=
=
=
=
0
0
0
0
0
0
0
0
ADD 71308-8017, 8416
GENERAL TOLERANCES
(UNLESS SPECIFIED)
MM/IN
DRWN BY
DATE
4:1
1999/10/15
DATE
MM
INCH
±
±
0.005
±
0.01
±
±
4 PLACES
3 PLACES
2 PLACES
±
±
±
0.13
±
0.25
±
KMS
CHK'D BY
112218
MKIPPER
JDFOX
FSMITH
KMS
APPR BY
DATE
1999/10/15
1999/10/15
THIRD ANGLE PROJECTION

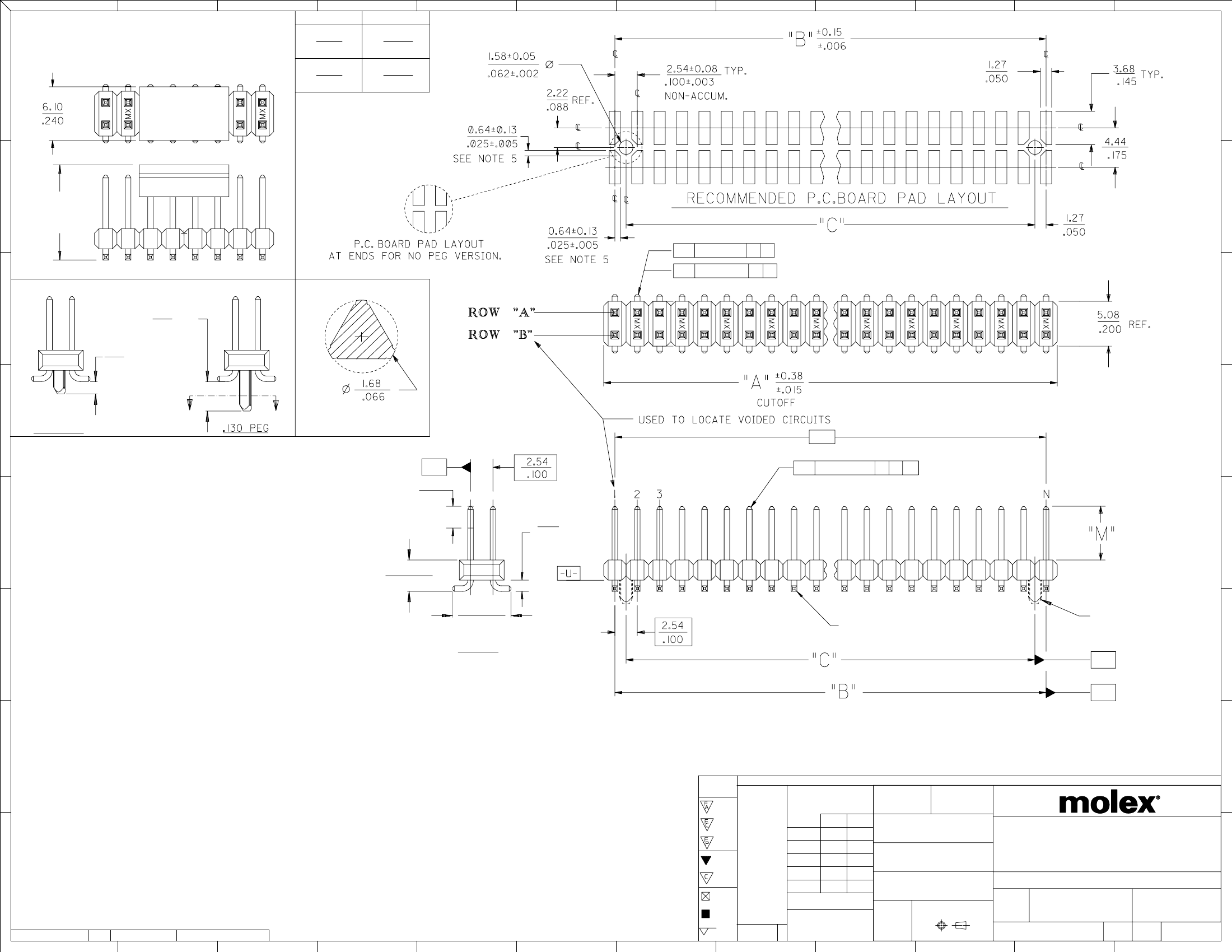

SALES ASSY INSULATOR
DUAL ROW SMT W/BREAK-OFF .025SQ PIN
GULLWING .100
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
1 PLACES
0 PLACES
A
KMS
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
ANGULAR TOL
±
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
71308
DOCUMENT NUMBER
SEE CHART
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
RELEASE STATUS
FORMAT: Eng-lega-master-tb-prod-C
REVISION: C
DATE: 2016/02/04
RELEASE DATE
C
=
K9
5
REV
C
3
SD-71308-001
PSD
000
1 OF 6
1
