TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 9T
FLAMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
PLATING:
- CENTER PIN: GOLD
- CENTER PIN TERMINAL: TIN
- SHUNT TERMINAL: TIN
- TIP SPRING: TIN
QUALITY CLASS: 5000 MATING CYLCES
ENVIRONMENTAL
OPERATING TEMPERATURE: -40°C UP TO +85°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 5A
WORKING VOLTAGE: 18 VDC
DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC/MIN
CONTACT RESISTANCE: 50 mΩ max
SOLDERING
JEDEC LEAD FREE REFLOW SOLDERING PROCESS

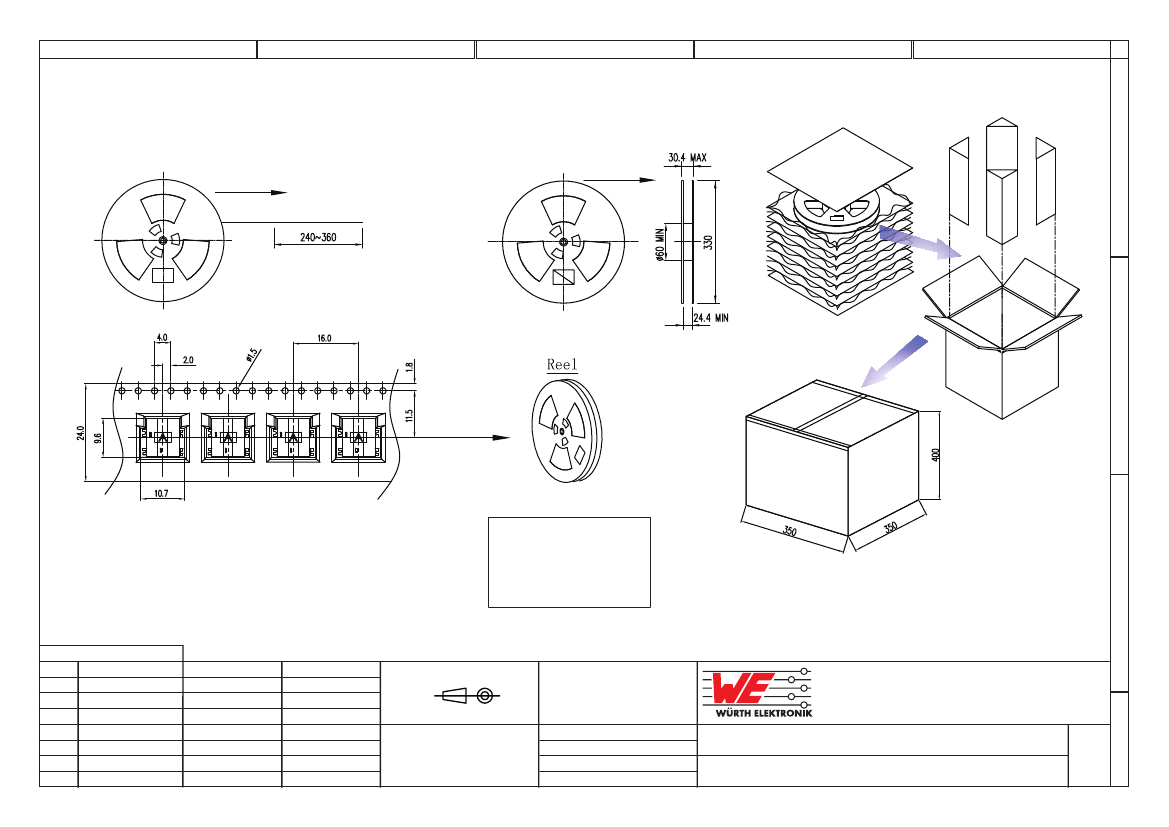

PACKAGING
TAPE & REEL
A

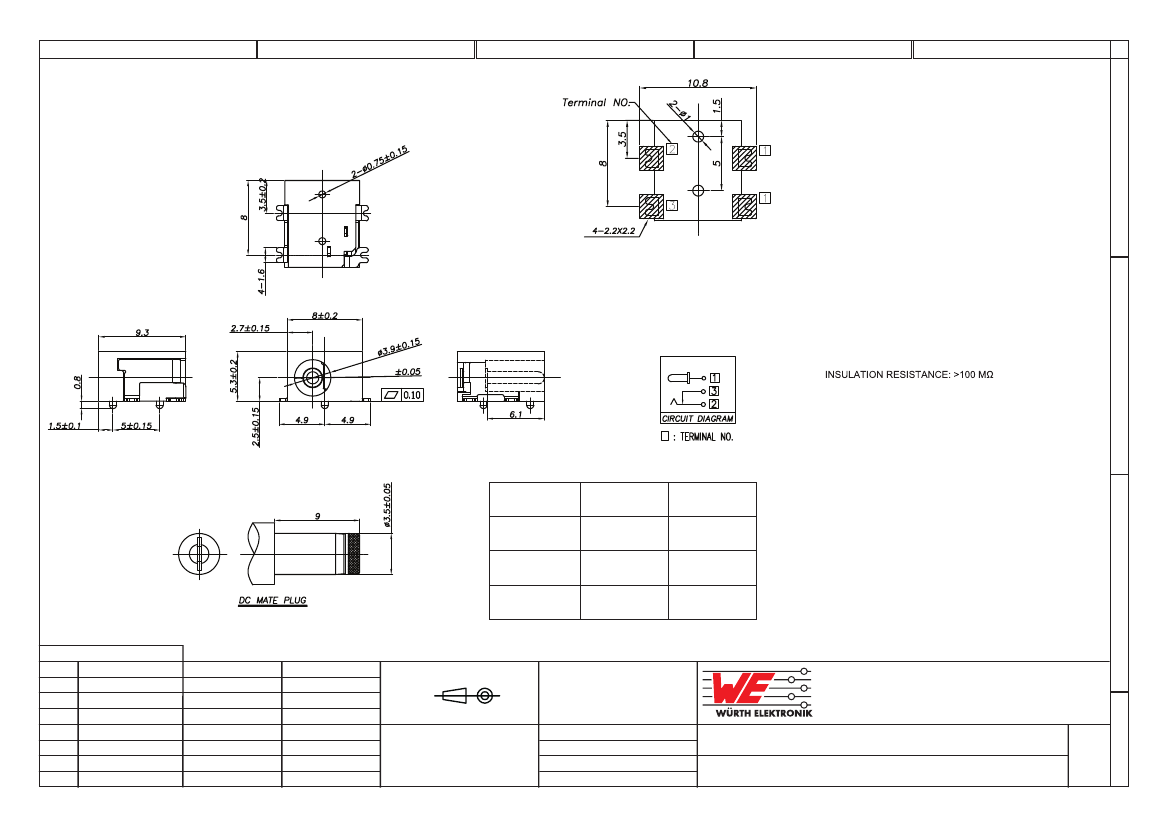

PCB LAYOUT - COMPONENT VIEW
TOLERANCE ± 0.05
A
B
ØA
XX
PLUG INNER Ø
PLUG OUTER Ø
RoHS Compliant
G
F
E
D
C
B
A
REV
08-SEP-14
DATE
PDF
FILE
AS
BY
APPROVAL: RJ
PROJECTION:
1.0
02
1.05
- 0.00
3.5±0.05
+0.10
1.3
03
1.35
- 0.00
3.5±0.05
+0.10
C
GENERAL TOLERANCE
X = +/- 0.50
.X = +/- 0.30
.XX = +/- 0.20
UNIT: MM
SCALE:
SHEET: 1/3
DRAW: AS
DESCRIPTION: DC POWER JACK - RIGHT ANGLED - SMT - 1.0 & 1.3Ø
WERI PART NO: 694 1xx 107 102
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET: 3/3
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
