319AS001M0802-6 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 319AS001M0802-6

319AS001M0802-6: DescriptionCircular MIL Spec Strain Reliefs u0026 Adapters SHLD SOCK SHRNK BOOT RC STRT; CategoryThe connector Connector bracket; File Size478KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

319AS001M0802-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	319AS001M0802-6	-	-	View	Buy Now

319AS001M0802-6 Overview

Circular MIL Spec Strain Reliefs u0026 Adapters SHLD SOCK SHRNK BOOT RC STRT

319AS001M0802-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Assembly name	SHRINK BOOT ADAPTER
Maximum number of cable entries	0.25 inch
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Material	ALUMINUM ALLOY
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C

Preview

Download Datasheet

View All

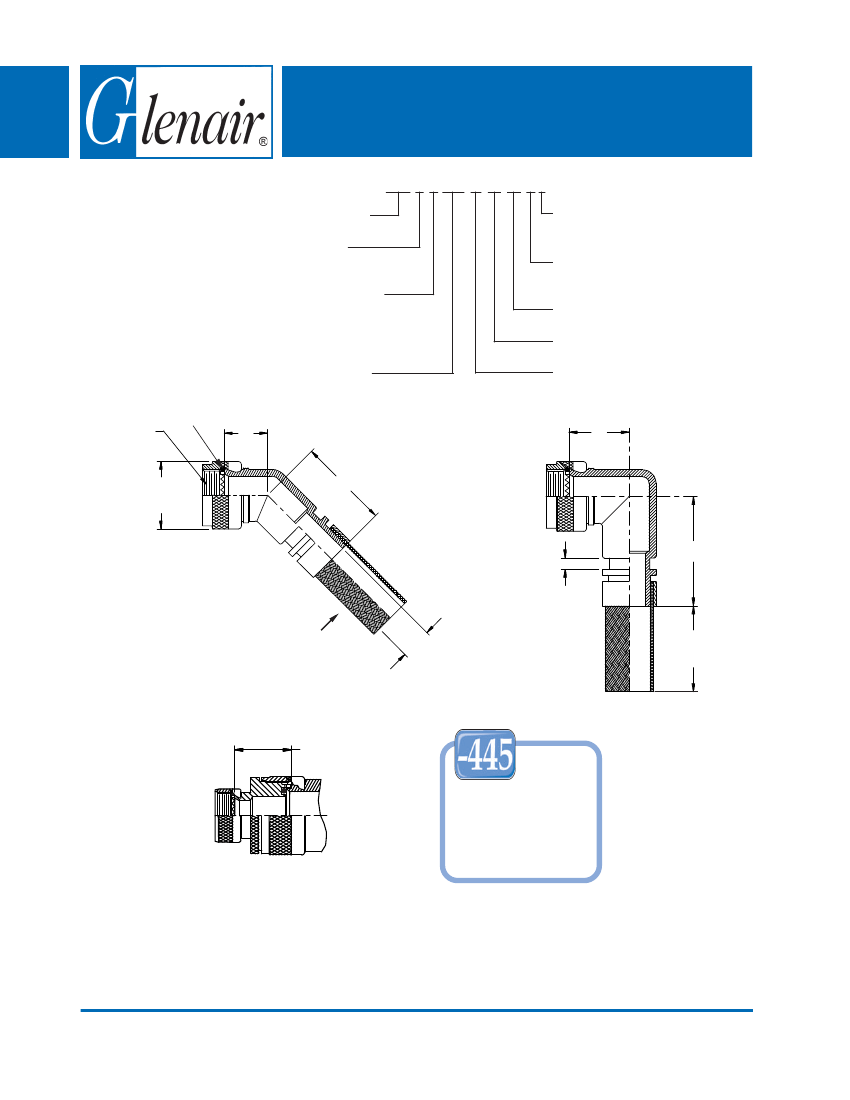

319-001

EMI/RFI Shield Sock Shrink Boot Adapter

with Optional Shrink Boot

Standard Profile - Rotatable Coupling

319 F J 001 M 16 06-6 T

319

CONNECTOR

DESIGNATORS

Product Series

Connector

Designator

Angle and Profile

J = 90°

H = 45°

See page 319-2 for straight

Basic Part No.

Shrink Boot (Table IV -

Omit for None)

Shield Length (1 inch increments:

Minimum 6 inches)

Cable Entry (Table IV)

Shell Size (Table I)

Finish (Table II)

A-F-H-L-S

ROTATABLE

COUPLING

O-Ring

A Thread

(Table I)

C Typ.

(Table I)

(Table III)

F (Table III)

H (Table III)

Single Layer Shield

(Tinned Copper)

Typ.

.140/.130

(3.6/3.3)

Typ.

Cable Entry

Shield Length

(Approx.)

.88 (22.4)

Max

Now Available

with the “NESTOR”

Glenair’s Non-Detent,

Spring-Loaded, Self-

Locking Coupling.

Add “-445” to Specify

This AS85049 Style “N”

Coupling Interface.

STYLE 2

(45° & 90°

See Note 5)

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 319 - Page 4
