2.5mm Pitch Connectors for Full Lock and Discrete Wire Connection
DF1E Series
Full lock function
added
UL, C-UL Listed
Inner-lock system
full lock mechanism
Nov.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Mis-insertion
prevention
Fig.1

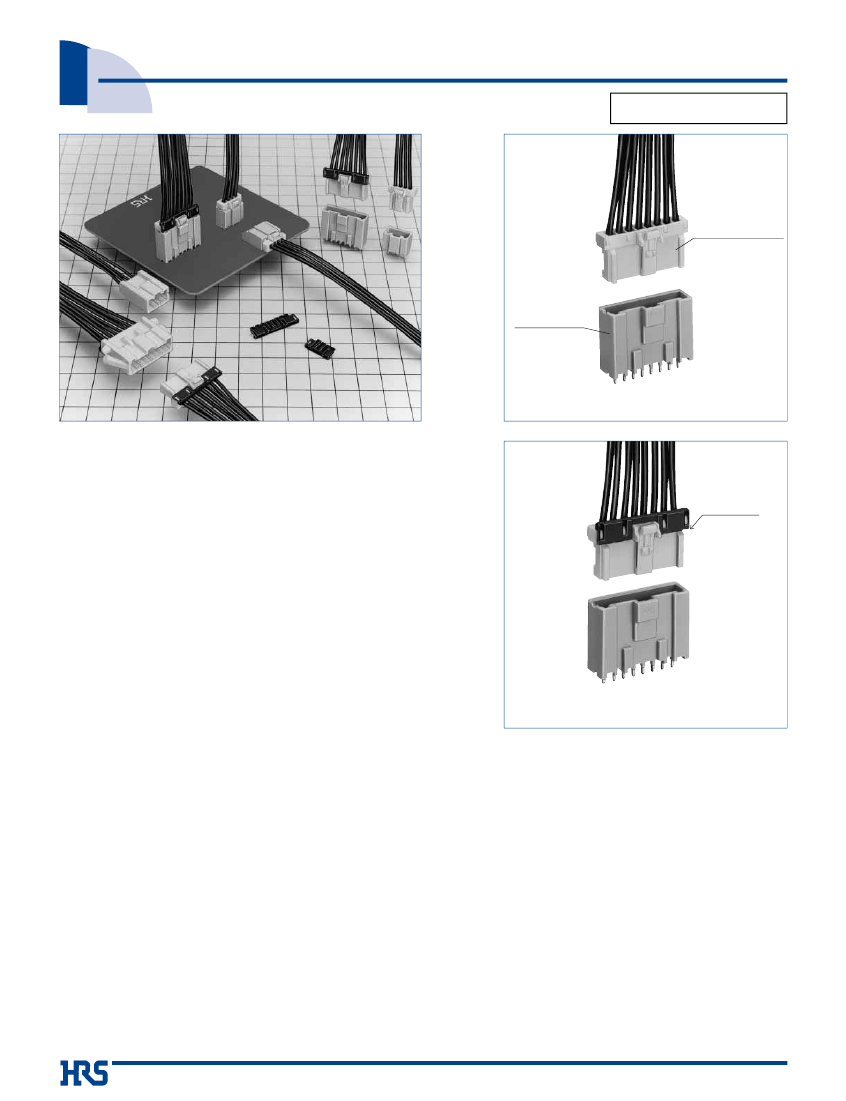

■Features
1. Full Lock Function Added
The inner lock system adopts a full lock mechanism.
This mechanism prevents disengagement to occur due to
an unexpected external shock. (Fig.1)
Double lock
engaged
Double lock
engaged
2. Increase in Crimping Contact Fixation Force and
Semi-insertion Prevention
The double lock is activated for the use method to give a
stress to the cable, to increase crimping contact fixation
force, and to prevent the semi-insertion of the crimping
contact. (Fig.2)
3. Mold Lance Adopted
Since the contact lance may be deformed involving in the
contact after the crimping process, the mold lance has been
adopted.
4. Mis-insertion Prevention
Equipped with the mechanism to completely prevent reverse
insertion and insertion between dissimilar contacts. (Fig.1)
Fig.2
5. Means to Prevent Solder Crack
The glass enforcement resin is adopted for the pin header to
prevent a solder crack to occur due to heat compression.
8. Various Applications
With the same series, various applications can
be used for the board solder dip type and in-
line.
6. Correspond to Potting
Corresponding to potting, the pin header is provided for
product variations.
Corresponding to potting up to 8mm and mounting height
19.8mm (no retainer), the low profile is achieved.
9. Listed by UL, C-UL
10. Glow wire compliance
(Compliant with IEC 60695-2-11)
7. Production Facility Cost Reduction
The female crimping contact uses the DF1B series crimping
contact, which has been conventionally marketed.
Investment for new facilities isn't needed. However, if the
retainer is installed in the cable with 22 AWG or more wire,
use the DF1E crimping contact. The female crimping
contact for in-line is used together with the DF1B applicator.
Therefore, no investment is needed for new facilities.
B146
DF1E Series●2.5mm Pitch Connectors for Full Lock and Discrete Wire Connection
■Products
Specifications
Current rating Note 1.
AWG#20
to
24 :
3A
26 :
2A
28 :
1A
30 : 0.5A
Voltage rating 250VAC
Rating
Operating Temperature Range :
-35 to +85ç
Note 2.
Operating Moisture Range :
-40
to 80%
Storage Temperature Range :
-10 to +60ç
Note 3.
Storage Moisture Range
:
-40
to 70% Note 3.
UL, C-UL Rating
Nov.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
20 to 22 AWG : 3A
Current rating
Rating
Voltage rating
Item
1. Contact Resistance
2. Insulation Resistance
3. Withstanding voltage
4. Single Insertor/Extraction Forth
5. Durability (Mating/un-mating)
6. Vibration
7. Shock
8.
Humidity (Steady state)
9. Temperature Cycle
10. Resistance to Soldering heat
30mΩ
max.
1000MΩ min.
No flashover or insulation breakdown.
MIN 0.29N, MAX 4.41N
30mΩ max
No electrical discontinuity of 1μs or more
No electrical discontinuity of 1μs or more
30mΩ max
30mΩ max.
No deformation of components affecting performance.
Specification
500V DC
24 to 28 AWG : 1A
30 AWG : 0.5A
30V AC
■UL/C-UL
File No. and Recognition No.
UL
: E52653
C-UL : E52653
Condition
Measured at 20mV max. and 1mA
650V AC/1 minute
Measured at the square steel pin with 0.635±0.002
30 cycles
Frequency : 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave waveform, 3 cycles in each of the 3 axis
96 hours at temperature of 40±2ç and humidity of 90% to 95%
(-55ç : 30 minutes-> 5 to 35ç : 5 minutes-> 85ç : 30 minutes-> 5 to 35ç : 5 minutes) 5 cicles
Flow : 260ç for 10 seconds
Manual soldering : 300ç for 3 seconds
Note 1 : Current rating of header is 3A.
Note 2 : Includes temperature rise caused by current flow.
Note 3 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
■Materials
/ Finish
Product
Socket
Header
In-line Plug
retainer
Crimping contact
Part
Insulator
Insulator
Contact
Insulator
Insulator
Contact
Material
Polyamide
Polyamide
Brass
Polyamide
Polyamide
Phosphor copper
Finish
White
Beige
Tin plated or
Gold plated
White
Black
Tin plated or
Gold plated
Remarks
UL94V-0
UL94V-0
–––––––
UL94V-0
UL94V-0
–––––––
B147
DF1E Series●2.5mm Pitch Connectors for Full Lock and Discrete Wire Connection
■Product
Number Structure
●Pin
Header
DF1E C -
*
P - 2.5 DSA
q
w
e
r
t
y
q
Series Name : DF1E
w
Hold Types (Note. 1)
Standard Product
With Boss
C
Without Boss
G
Potting
With Boss
Without Boss
e
Number of Contacts : 2 to 15 contacts
(note. 2)
r
Connector Type
P : Pin Header
t
Contact Pitch : 2.5mm
y
Form type
DSA : Straight through hole
DS : Right Angle Type
Nov.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note 1 : The right angle pin header has no symbol.
Note 2 : The potting header has 2 to 10 contacts.
●Socket
DF1E -
*
S - 2.5 C
q
w
e
r
t
q
Series Name : DF1E
w
Number of Contacts : 2 to 15 contacts
e
Connector type
S: Socket
r
Contact Pitch : 2.5mm
t
Form Type
C : Crimping socket
●In-line
Plug
DF1E A -
*
EP - 2.5 C
q
w
e
r
t
y
q
Series Name : DF1E
w
In-line Plug type
Blank: With Panel mount Lock
A : Without Panel mount Lock
e
Number of Contacts : 2 to 10 contacts
r
EP : In-line plug
t
Contact Pitch : 2.5mm
y
Form Type
C : Crimping socket
●Crimping
Contact
DF1E -
**
SCF
q
w
e
q
Series Name :
Socket side : DF1B (Note 1)
DF1E (Note 1)
Plug side
: DF1E
w
Applicable Cable Size
2022 : 20 to 22 AWG
2428 : 24 to 28 AWG
30
: 30 AWG
e
Packaging Type
SCF : Female contact/reel/Tin plated
SCFA : Female contact/reel/Gold plated
SC : Female contact/pack/Tin plated
SCA : Female contact/pack/Gold plated
PCF : Male contact/reel/Tin plated
PCFA : Male contact/reel/Gold plated
PC : Male contact/pack/Tin plated
PCA : Male contact/pack/Gold plated
Note 1 : When the retainer is used, use DF1E-2022SC(F)(A),
DF1B-2428SC(F)(A), and DF1B-30SC(F)(A) contacts.
Note 1 :
When no retainer is used, all DF1B-**SC(F)(A) and
DF1E-2022SC(F)(A) contacts can be used.
q
Series Name : DF1E
w
Number of Contacts : 2 to 10 contacts
e
Connector Type
RS/P : Retainer
Commonly used for socket and in-line plug
r
Contacts Pitch:2.5mm
●Retainer
DF1E -
*
RS/P - 2.5
q
w
e
r
B148
DF1E Series●2.5mm Pitch Connectors for Full Lock and Discrete Wire Connection
BApplication
Pattern
Pin Header
●Straight
Type
●Straight
Potting Type
●Right
Angle Type
Socket
In-line Plug
Nov.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●In-line
Plug (Panel Mount Lock Type)
Photo : Contact Inserted
●In-line
Plug
Retainer
Photo: Contact Inserted
Photo: Contact Inserted

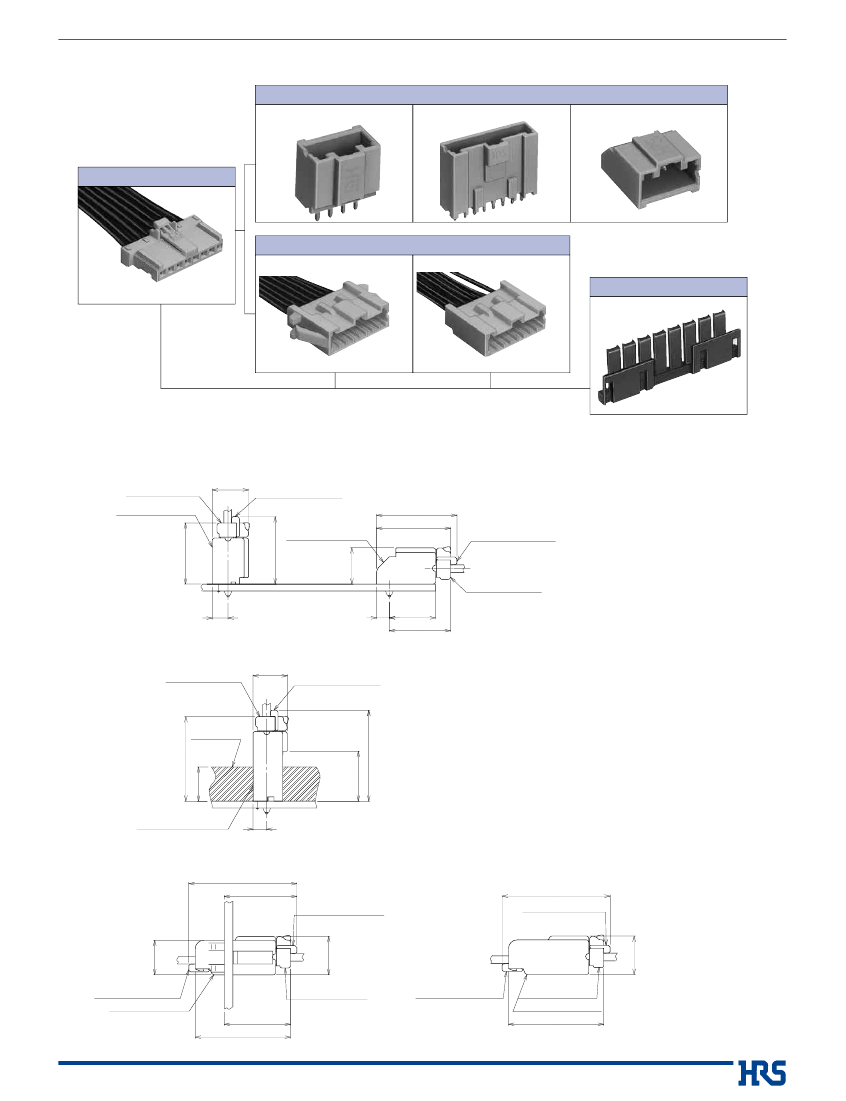

BMated
Dimensions
●Standard
Header
8.5
DF1E _ * S _ 2.5 C
DF1E# _ * P _ 2.5 DSA
DF1E _ * P _ 2.5 DS (**)
14.3
15.8
DF1E _ * RS / P _ 2.5
18.8
17.3
DF1E _ * RS / P _ 2.5
8.5
DF1E _ * S _ 2.5 C
3.7
3
10.8
14.3
●Header
for Potting
DF1E _ * S _ 2.5 C
8
DF1E _ * RS / P _ 2.5
Potting Resin
19.8
21.3
8 MAX
3.2
11.7
DF1E# _ * P _ 2.5 DSA
●Panel
Mounting Lock In-line Plug
25.3
17
DF1E _ * RS / P _ 2.5
Panel
●In-line
Plug
25.3
DF1E _ * RS / P _ 2.5
8.1
9
DF1E _ * RS / P _ 2.5
DF1E _ * EP _ 2.5 C
15.5
22.3
DF1E _ * S _ 2.5 C
DF1E _ * RS / P _ 2.5
DF1E _ * S _ 2.5 C
DF1EA _ * EP _ 2.5 C
22.3
9
B149
DF1E Series●2.5mm Pitch Connectors for Full Lock and Discrete Wire Connection

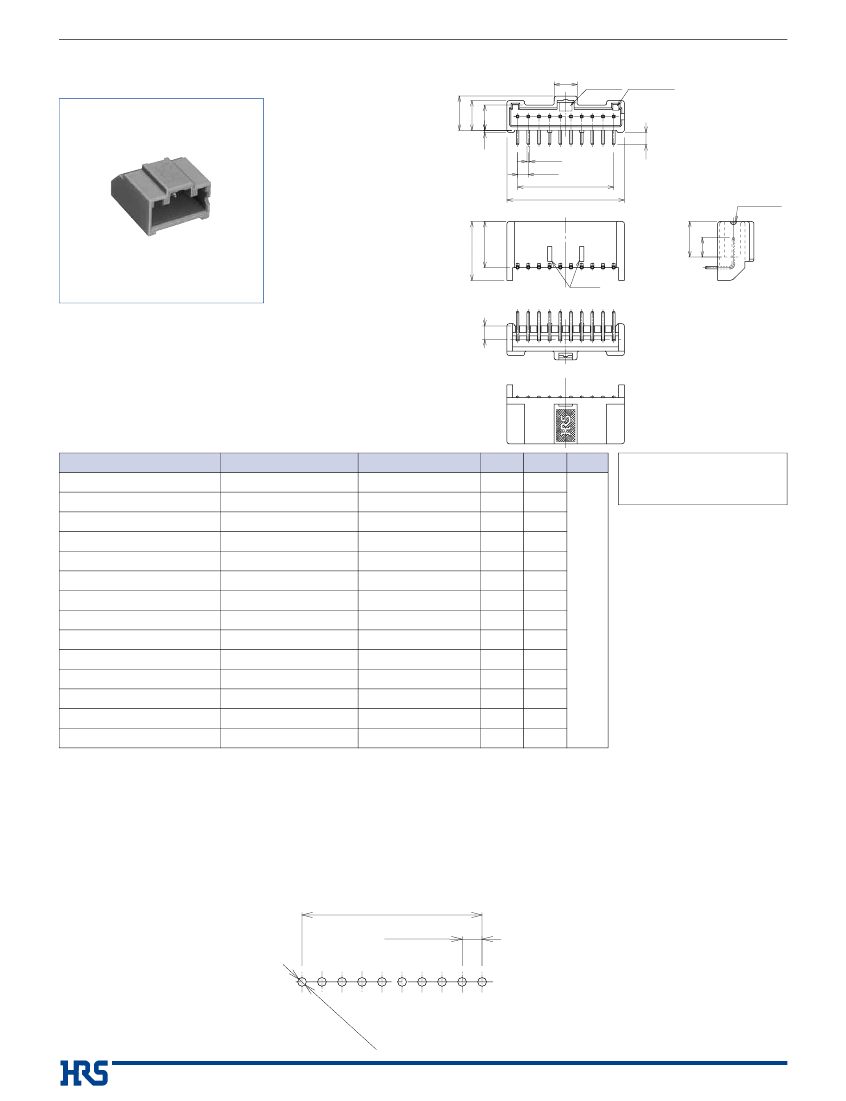

■Right
Angle Pin Header
8
6.95
5.9
5.4
10
Contact
No. mark
A
Mold Cavity
No. mark
0.5
M
0.64
P=2.5
A
B
Contact
No.1 indicated
2.9
10.8
8.3
Note 2
Nov.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
13.8
Part No.
DF1E-02P-2.5DS(**)
DF1E-03P-2.5DS(**)
DF1E-04P-2.5DS(**)
DF1E-05P-2.5DS(**)
DF1E-06P-2.5DS(**)
DF1E-07P-2.5DS(**)
DF1E-08P-2.5DS(**)
DF1E-09P-2.5DS(**)
DF1E-10P-2.5DS(**)
DF1E-11P-2.5DS(**)
DF1E-12P-2.5DS(**)
DF1E-13P-2.5DS(**)
DF1E-14P-2.5DS(**)
DF1E-15P-2.5DS(**)
HRS No.
541-0985-0 **
541-0986-3 **
541-0987-6 **
541-0988-9 **
541-0989-1 **
541-0990-0 **
541-0991-3 **
541-0992-6 **
541-0993-9 **
541-0994-1 **
541-0995-4 **
541-0996-7 **
541-0997-0 **
541-0998-2 **
No. of Contacts
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3.2
A
02.5
05.0
07.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
B
07.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
37.5
40.0
RoHS
[Specific No.]
–
* *
,
(*
*)
(36) : Gold plated
(35) : Tin plated
Yes
Note 1 : A packaging quantity is delivered by the bag unit (100 pcs.). If needed, please order the products per bag. However, the quantity
for delivery will be changed according to the Specific No.
Note 2 : The 2 to 4 contacts differ in two convex portions from those in above figures. The 2 and 3 contacts are not contained, but the 4
contact connector is contained in the center at one point.
Note 3 : Styles of 2 to 4 contact connectors partially differ from those in above figures.
●PCB
mounting pattern (Board Thickness t = 1.6
±
0.1)
A±0.1
P = 2.5±0.05
*
–
Ø1
.1
0
+
0.
1
B150
4.5
