C15 Type Accessories
NF Series
C15 type accessories (with an impedance Z of 75
ø
)
are high performance accessories for the satellite
broadcast receivers and measuring instruments
developed to respond to the new media wave.
NCJ-NFJ
NCJ-NFP
NCP-NFP
NCP-NFJ
HDC-NF-PJ
s

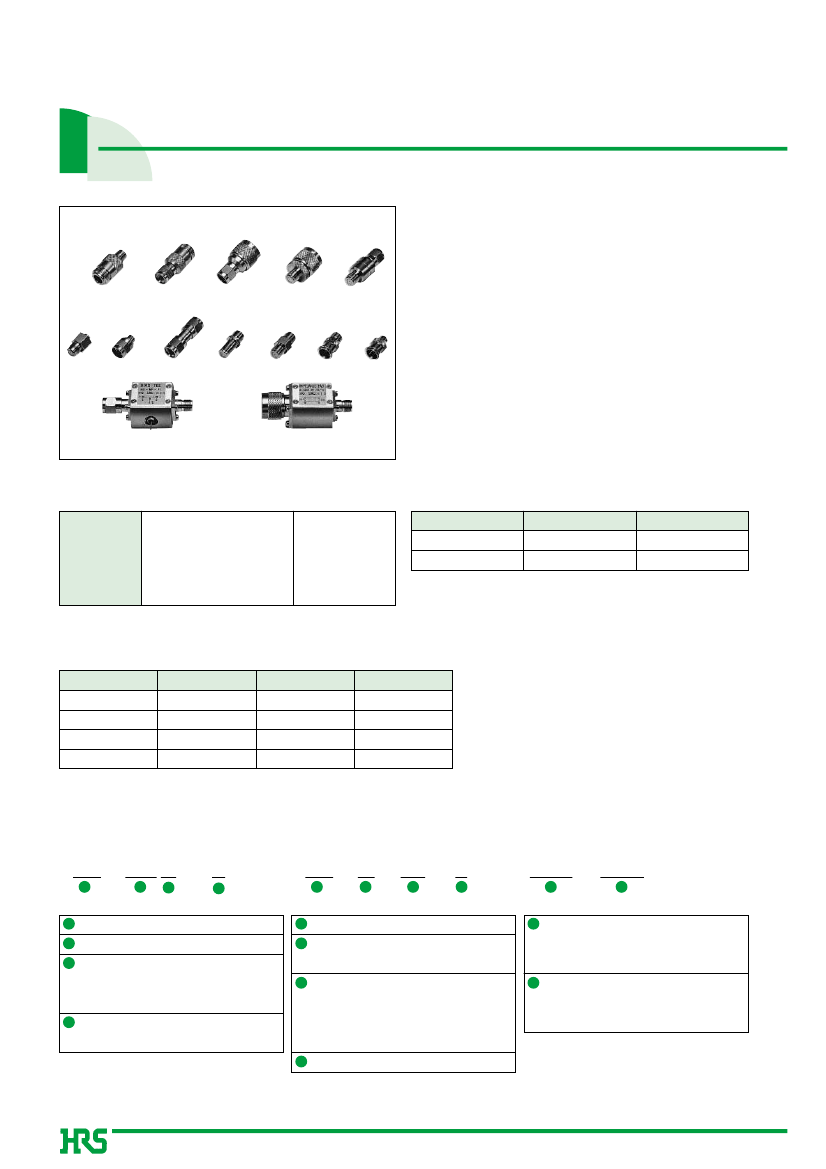

Features
1.High Degree of Matching
The non-reflective terminators exhibit a high degree
of matching of V.S.W.R. 1.12 or less for all products.
NF-TMJ-P NF-TMP-P
NF-A-PP
NF-PA-JJ
NF-A-JJ NF-A-PJ-1 NF-TMP-1
2.Easy Connection and Disconnection
The push-on plug type of connector, which ensures
easy connection and disconnection, is available for
the F type of non-reflective termination and in-line
adapter.
HB-NF-PJ
HI-NNF-PJ-50/75
s
Product Specifications
Frequency range (Note)
Characteristic impedance
Maximum Input Power
(Non-reflective termination)
Operating temperature range
Operating relative humidity
DC to 2.0 GHz
75
ohms
0.25W
-10ç to +65ç
95% Max.
Item
1.Insulation resistance
2.Contact resistance
Standard
500 M
ohms
min.
5 mV max.
Conditions
500 V DC
1 A DC
Ratings
Note: The frequency range will depend on the model.
s
Materials
Part
Body
Male center contact
Insulator
Material
Brass
Brass
PTFE
Finish
Nickel plating
Gold plating
Gold plating
----------
Remarks
----------
----------
----------
Female center contact Beryllium copper
Incombustible material
s
Ordering Information
q
Terminations
q
In-line Adapters
q
Conversion Adapter
NF - TM P - P
1
2
3
4
1
Series Name: NF
2
TM: Non-reflective termination
3
Coupling Portion
P: Plug
J: Jack
NF - A - PJ - 1
1
2
3
4
1
Series Name: NF
2
A: In-line adapter
PA: Panel adapter
NCJ - NFP
1
2
1
Connector Form (1)
NCP: NC type plug
NCJ: NC type jack
3
Coupling Portion
PP: Plug - Plug
JJ: Jack - Jack
PJ: Plug - Jack
2
Connector Form (2)
NFP: C15 type plug
NFJ: C15 type jack
4
P: Precision
1- : Suffix
4
Suffix
152
s
NF-N Conversion Adapter
q
Coupling Portion: NF side plug - NC side jack
Part Number
NCJ-NFP
Frequency Range
DC
~
1.5GHz
1.5
~
2.0GHz
V.S.W.R.
1.032
1.06
Weight
40g
q
Coupling Portion: NF side jack - NC side jack
Part Number
NCJ-NFJ
Frequency Range
DC
~
1.5GHz
1.5
~
2.0GHz
V.S.W.R.
1.06
1.12
Weight
32g
q
Coupling Portion: NF side plug - NC side plug
Part Number
NCP-NFP
Frequency Range
DC
~
1.5GHz
1.5
~
2.0GHz
V.S.W.R.
1.06
1.12
Weight
32g
q
Coupling Portion: NF side jack - NC side plug
Part Number
NCP-NFJ
Frequency Range
DC
~
1.5GHz
1.5
~
2.0GHz
V.S.W.R.
1.06
1.12
Weight
38g
s

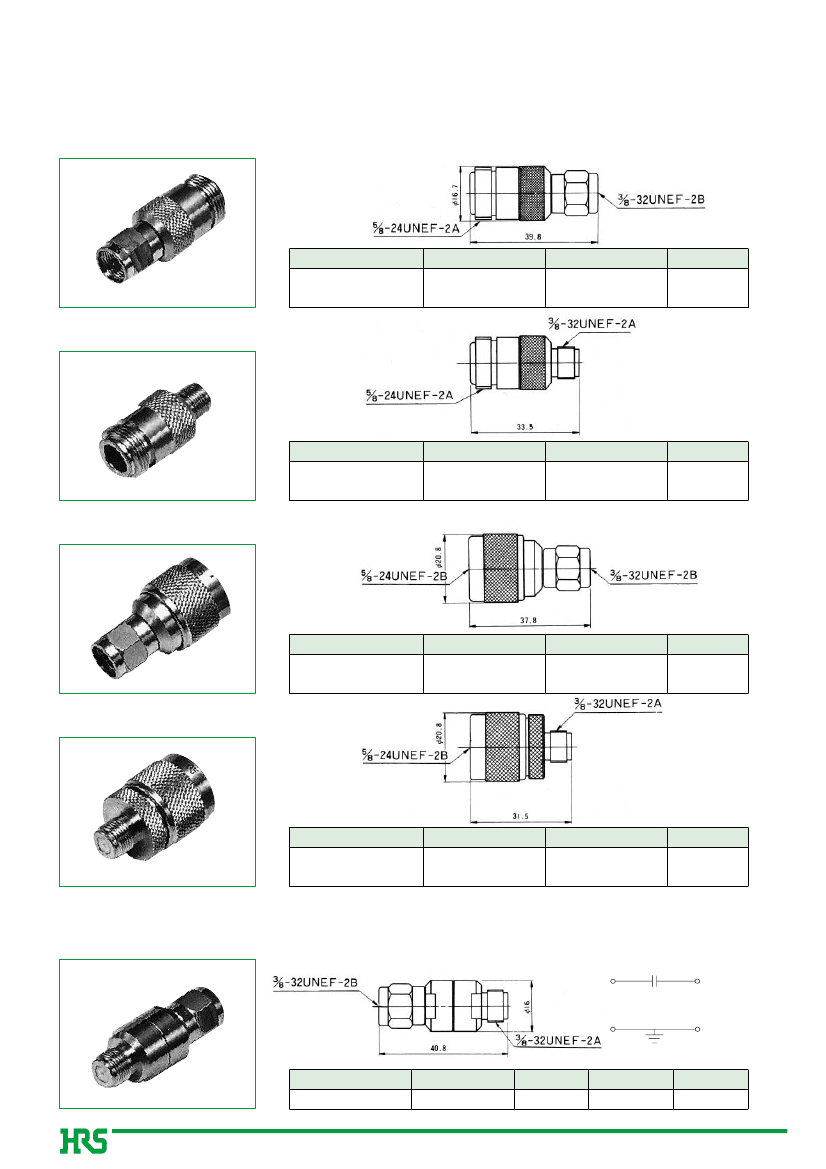

DC Block
q
Coupling Portion: NF plug - jack
s
Circuit Structure Diagram
NF-P
NF-J
Part Number
HDC-NF-PJ
Frequency Range
10
~
1500MHz
V.S.W.R.
1.20
Insertion Loss
0.4 dB or less
Weight
35g
154
s

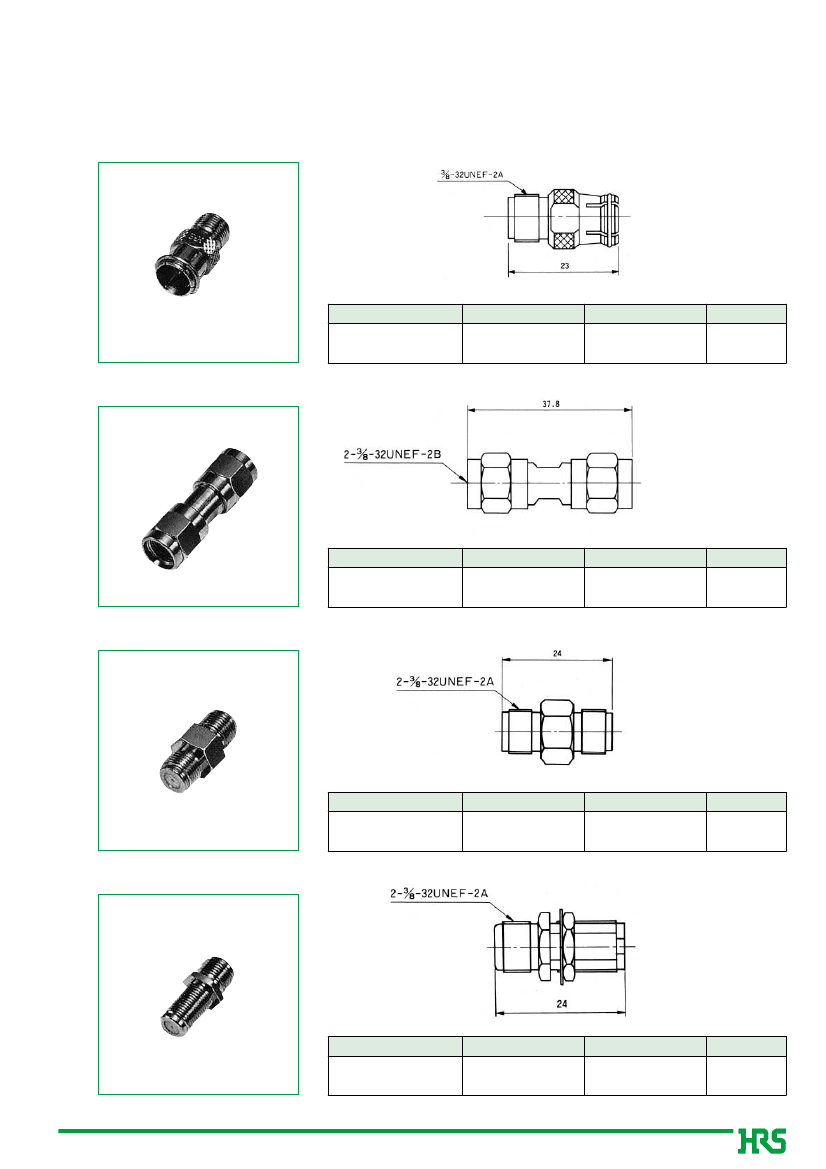

Non-reflective Terminations
q
Plug Type
Soldering
Part Number
NF-TMP-P
Frequency Range
DC
~
1.5GHz
1.5
~
2.0GHz
Soldering
V.S.W.R.
1.032
1.06
Power
25mW
Weight
11g
q
Push-on Plug Type
Part Number
NF-TMP-1
Frequency Range
DC
~
1.5GHz
1.5
~
2.0GHz
V.S.W.R.
1.06
1.12
Power
25mW
Weight
10g
q
Jack Type
Soldering
Part Number
NF-TMJ-P
Frequency Range
DC
~
1.5GHz
1.5
~
2.0GHz
V.S.W.R.
1.032
1.06
Power
25mW
Weight
13g
s

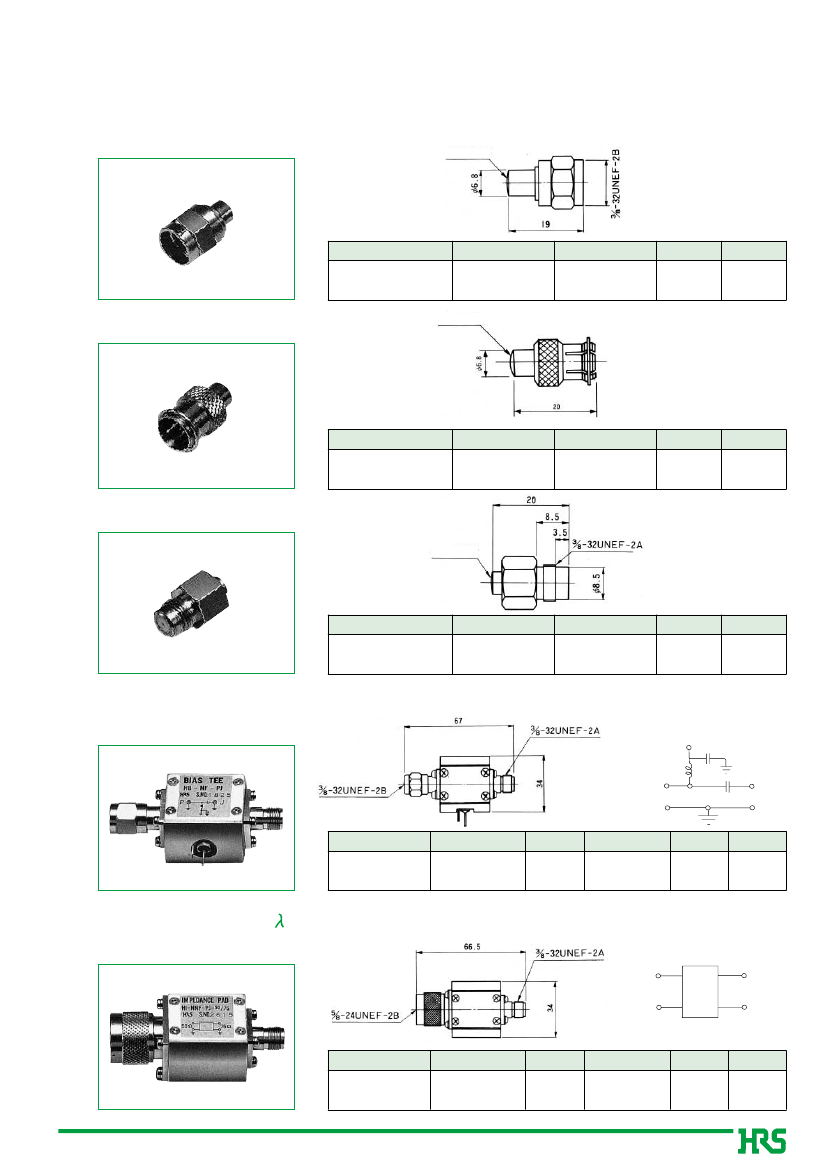

Bias Tee
q
Coupling Portion: Plug - Jack
s
Circuit Diagram
300mA
Max
50V
NF-P
NF-J
Part Number
HB-NF-PJ
Frequency Range V.S.W.R.
0.9
~
1.5GHz
1.0
~
1.35GHz
1.20
1.10
Insertion Loss
0.4 dB or less
Power
1W
Weight
81g
s
Impedance Pad ( /4 Conversion)
q
Coupling Portion: 50
ø
N Type Plug - NF Jack
s
Circuit Diagram
N-P
(50
ø
)
NF-J
(75
ø
)
Part Number
HI-NNF-PJ-50/75
Frequency Range V.S.W.R.
0.9
~
1.5GHz
1.0
~
1.35GHz
1.25
1.20
Insertion Loss
0.4 dB or less
Power
1W
Weight
108g
155
s

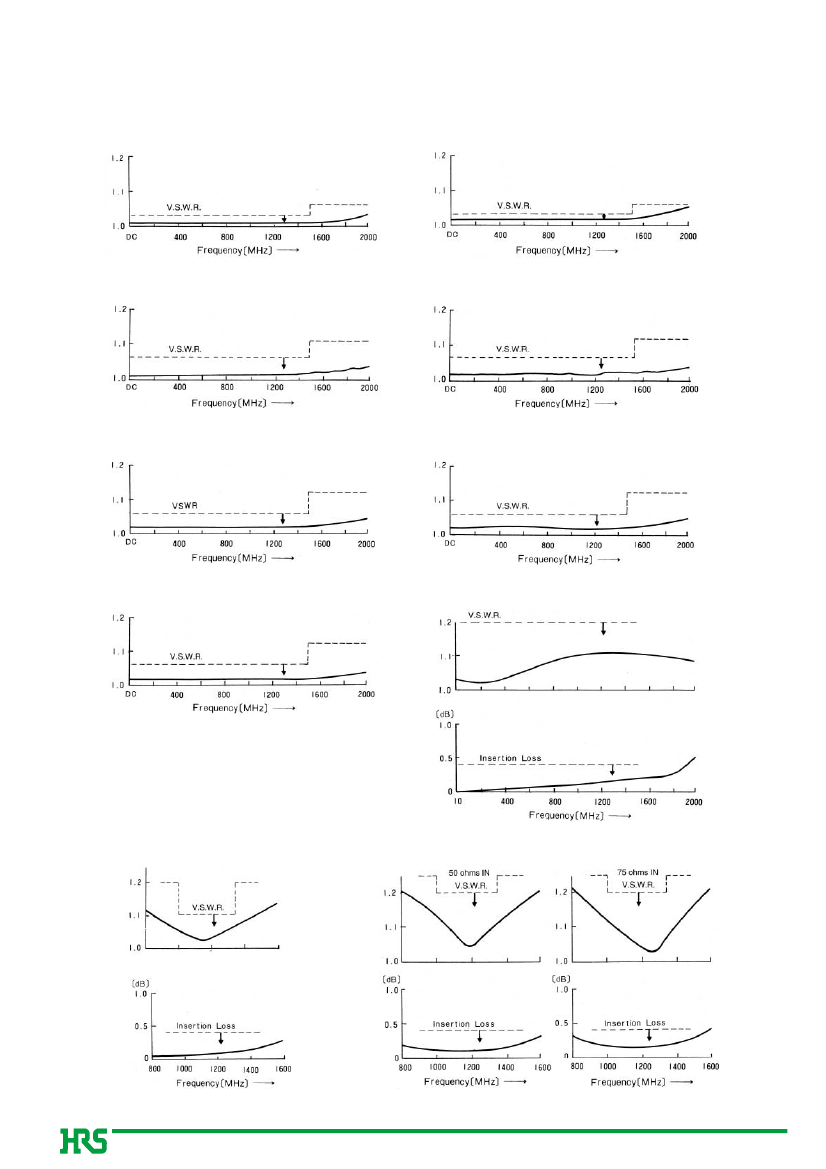

Typical Data
NF-TMP-P (Note 1)
NF-TMJ-P (Note 2)
NF-TMP-1
NF-A-PJ-1
NCJ-NFJ
NCP-NFP
NCP-NFJ
HDC-NF-PJ
NOTE 1: Measure with NCJ-NFP, and NF-A-JJ included in NF-TMP-P.
NOTE 2: Measure with NCJ-NFP included in NF-TMJ-P.
HB-NF-PJ
HI-NNF-PJ-50/75
156
