220-11E16-55PN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 220-11E16-55PN

Preview

220-11E16-55PN: DescriptionCircular MIL Spec Connector; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

220-11E16-55PN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	220-11E16-55PN	-	-	View	Buy Now

220-11E16-55PN Overview

Circular MIL Spec Connector

220-11E16-55PN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Other features	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	WATERPROOF
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	16
Termination type	SOLDER
Total number of contacts	55

Preview

Download Datasheet

View All

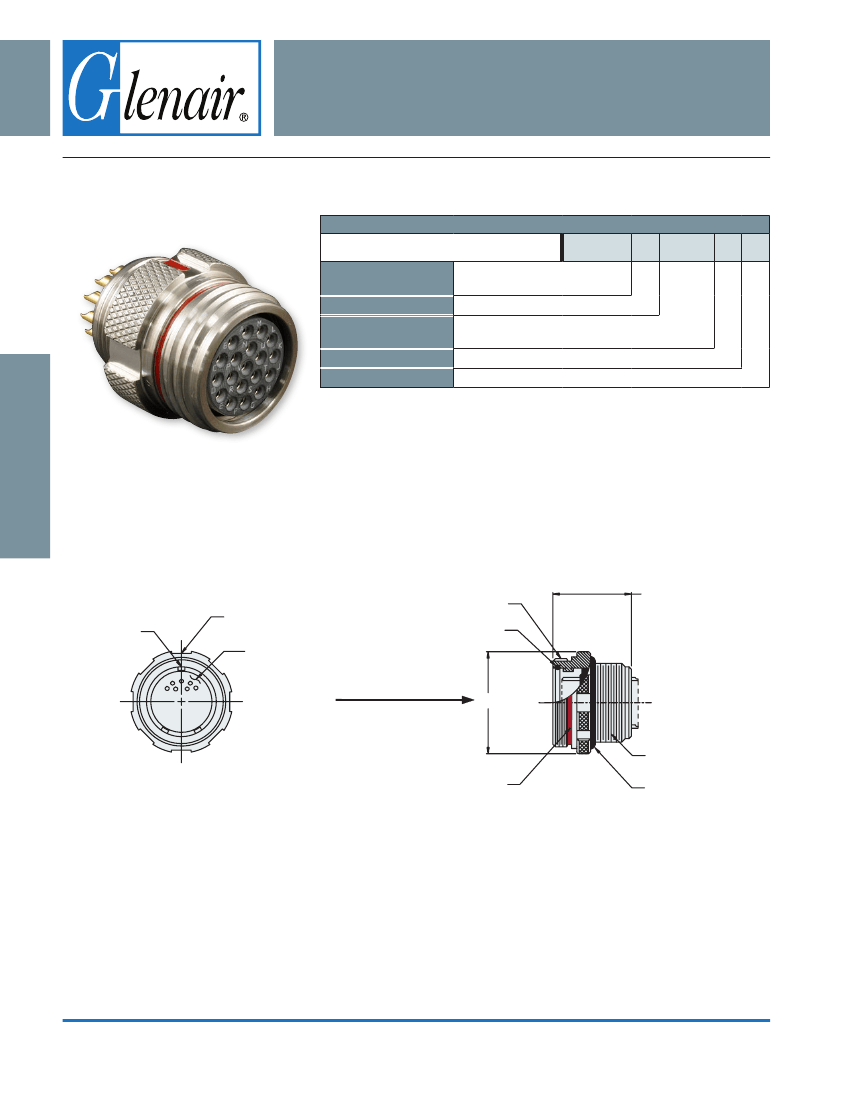

220-01 and 220-11

High-Pressure Environmental/Hermetic

In-Line Receptacle

SERIES 22 IN-LINE RECEPTACLE IN STANDARD OR SCOOP–PROOF SHELL WITH PIN OR SOCKET

CONTACTS

How To Order

Sample Part Number

Series and Shell Style

Class

Shell Size - Insert

Arrangement

Contact Style

Polarization

Geo-Marine

®

Connectors

220-01

- Standard

220-11

- Scoop–Proof (Not Shown)

H

= Hermetic

E

= Environmental

See page A-6

P

= Pins

S

= Sockets

N, 1, 2, 3, 4

See page A-6

H

24-61

P

N

Prior to use, lubricate O-rings with high grade silicone lubricant

(Moly-kote M55 or equivalent).

B

Master

Key

Master Key Indicator

(Red Dot)

See page A-6 for

Insert Arrangement

C Thread

Piston O-Ring

220-01:

1.19 (30.2) Max

220-11:

1.59 (40.4) Max

Direction of Pressure

Capability - Class H

B

A Thread

Full Mate Indicator Band

O-Ring

Series 22 Geo-Marine

®

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-4

E-Mail: sales@glenair.com

220-11E16-55PN Related Products

	220-11E16-55PN	220-11E10-6PN	220-01E12-8PN	220-01E10-4PN	220-01E16-26SN	220-11E14-12PN	220-01E10-6PN	220-01E16-19PN
Description	Circular MIL Spec Connector	Circular MIL Spec Connector CONN RECEPT IN LINE SCOOP PROOF ENV PINS	Circular MIL Spec Connector CONN RECEPT IN LINE STANDARD ENV PINS	Circular MIL Spec Connector CONN RECEPT IN LINE STANDARD ENV PINS	Circular MIL Spec Connector CONN RECEPT IN LINE STANDARD ENV SKTS	Circular MIL Spec Connector CONN RECEPT IN LINE SCOOP PROOF ENV PINS	Circular MIL Spec Connector CONN RECEPT IN LINE STANDARD ENV PINS	Circular MIL Spec Connector CONN RECEPT IN LINE STANDARD ENV PINS
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	10 weeks	13 weeks	17 weeks	17 weeks	10 weeks	13 weeks	17 weeks	11 weeks
Other features	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	FEMALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Environmental characteristics	CORROSION/ENVIRONMENT RESISTANT	CORROSION/ENVIRONMENT RESISTANT	CORROSION/ENVIRONMENT RESISTANT	CORROSION/ENVIRONMENT RESISTANT	CORROSION/ENVIRONMENT RESISTANT	CORROSION/ENVIRONMENT RESISTANT	CORROSION/ENVIRONMENT RESISTANT	CORROSION/ENVIRONMENT RESISTANT
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF
Shell surface	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Housing size	16	10	12	10	16	14	10	16
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	55	6	8	4	26	12	6	19
Base Number Matches	-	1	1	1	1	1	-	1
