33467-0003-Mouser-Reel: DescriptionAudio Transformers / Signal Transformers MID-SN6501 TI Driver Toroid .475mH 5VDC; CategoryThe connector; File Size26KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

33467-0003-Mouser-Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	33467-0003-Mouser-Reel	-	-	View	Buy Now

33467-0003-Mouser-Reel Overview

Audio Transformers / Signal Transformers MID-SN6501 TI Driver Toroid .475mH 5VDC

33467-0003-Mouser-Reel Parametric

Parameter Name	Attribute value
Product Category	Automotive Connectors
Manufacturer	Molex
RoHS	Details
Product	Terminals
Number of Positions	-
Gender	Female
Mounting Style	Wire
Termination Style	Crimp
Contact Plating	Gold
Wire Gauge Range	22 AWG
Contact Material	Copper Alloy
Contact Type	Receptacle
Current Rating	11.3 A
Packaging	Reel
Factory Pack Quantity	1000
Voltage Rating	14 V

Preview

Download Datasheet

View All

This document was generated on 11/02/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

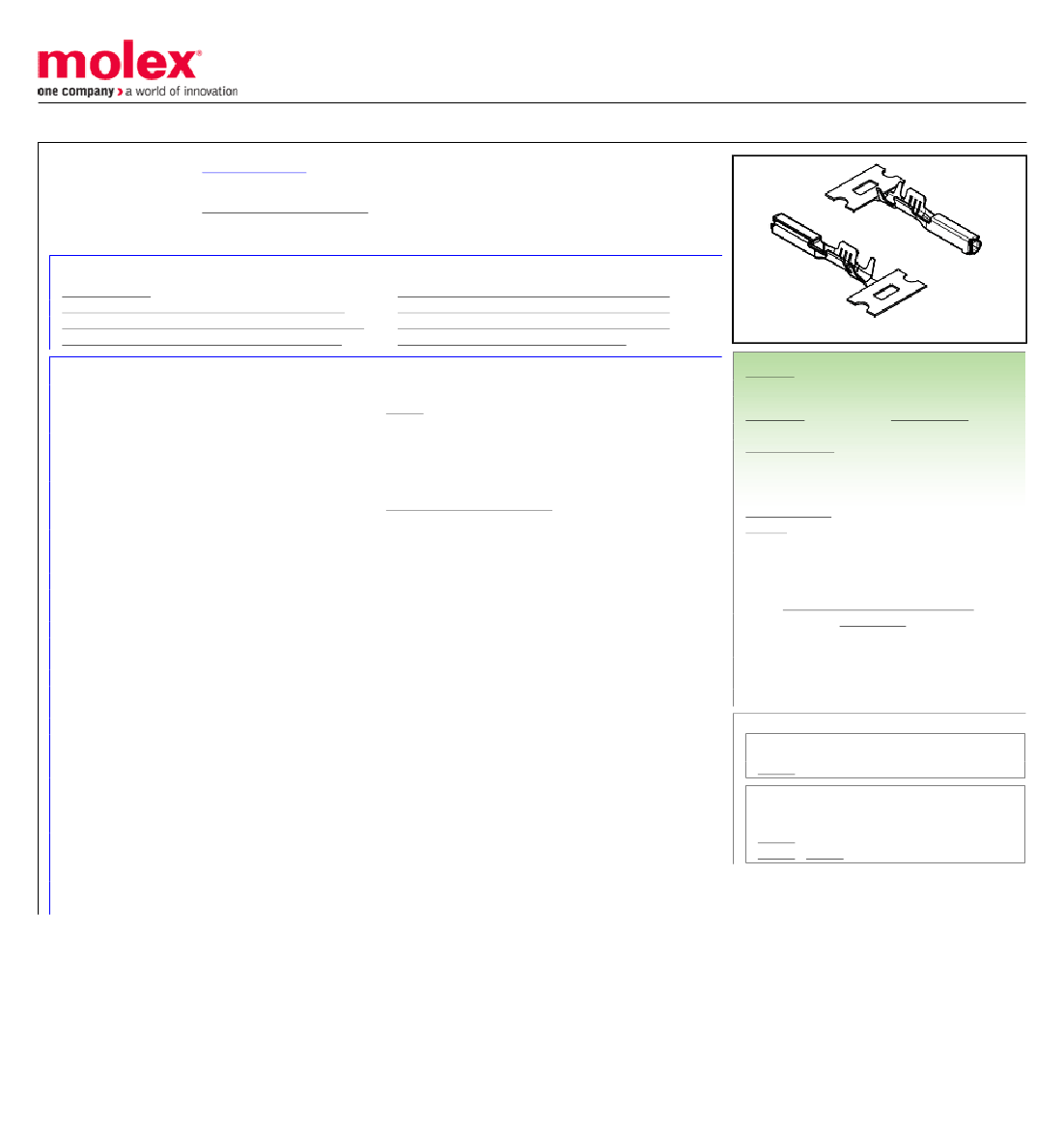

0334670003

Active

MX64™ Sealed Connectors

2.54mm Pitch MX64 Terminal, Gold (Au) Plating, 22 AWG, Right Reel Payoff, Also

used with MX123 Female Receptacle Housing

Documents:

Drawing (PDF)

Product Specification PS-33468-001-001 (PDF)

Application Specification AS-33468-001-001 (PDF)

Packaging Specification 313025040-000 (PDF)

General

Product Family

Series

Application

Comments

Packaging Specification PK-30907-759 (PDF)

Packaging Specification PK-31300-516 (PDF)

Packaging Specification PK-31302-480 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2017 (12

January 2017)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Crimp Quality Equipment

Overview

Product Name

UPC

Physical

Gender

Material - Metal

Material - Plating Mating

Net Weight

Packaging Type

Plating min - Mating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Crimp Terminals

33467

Power

Right Reel Payoff <br><br>For automatic and semi-

automatic crimping, use Left Reel Payoff terminals. See

Sales Drawing for Left Reel Payoff Part Numbers.

Yes

MX64™ Sealed Connectors

MX123, MX64

756054749715

Female

Copper

Gold

0.225/g

Reel

0.762µm

Crimp or Compression

1.50-2.06mm

N/A

Search Parts in this Series

33467 Series

Use With

MX64 Sealed Single Row Crimp Housing

31403 , MX123 Female Receptacle Housing

34566 , 34576

AS-33468-001-001

313025040-000, PK-30907-759, PK-31300-516,

PK-31302-480

PS-33468-001-001

SD-33468-001
