Interface module - FLKM-D15 SUB/S/ZFKDS - 2302997
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

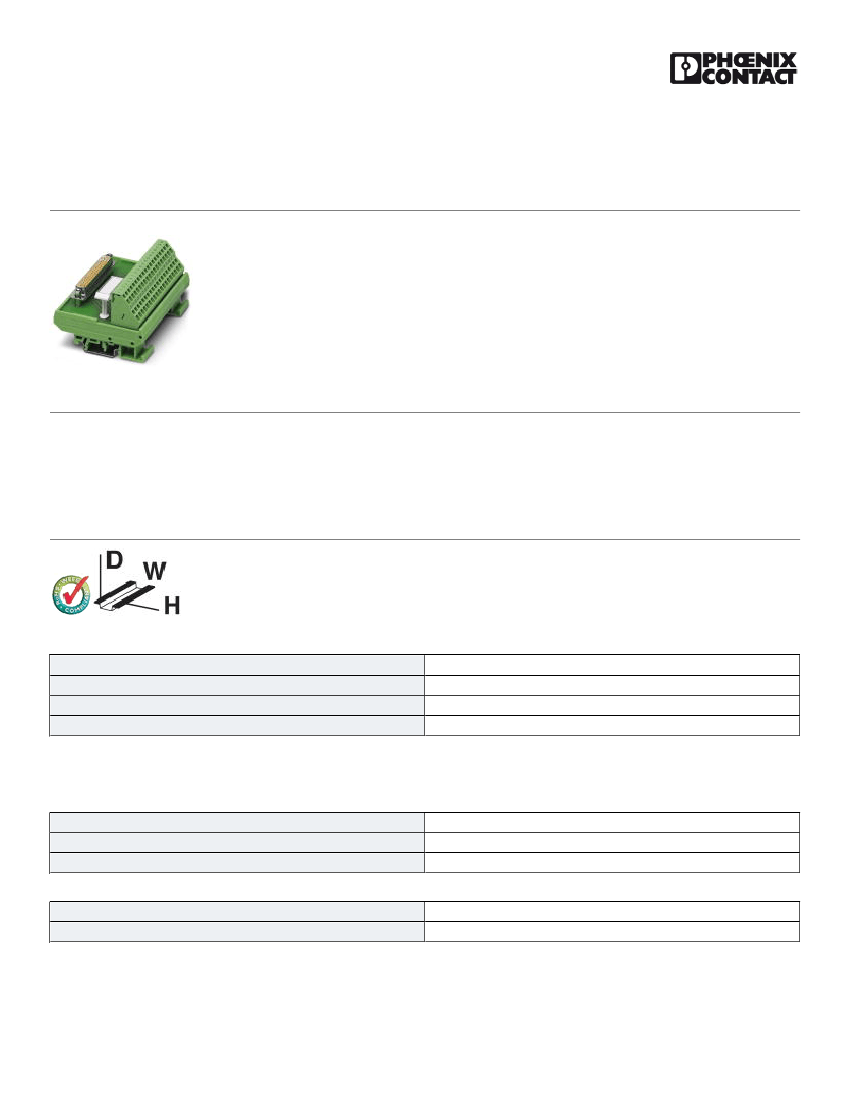

Standard 1:1 D-SUB module, with spring-cage connection and D-SUB pin strip, no. of positions 15
The illustration shows the version
FLKM-D37 SUB/S/ZFKDS
Product Features
■
■
■
■
9 to 50-pos.
Spring-cage connection technology
According to IEC 60807-2
1:1 connection
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
99.4 g
85369010
Germany
Technical data
Dimensions
Width
Height
Depth
45 mm
77 mm
52 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
General
04/21/2016 Page 1 / 8
https://www.phoenixcontact.com/us/products/2302997
Interface module - FLKM-D15 SUB/S/ZFKDS - 2302997
Technical data
General
Max. perm. operating voltage
Max. perm. current (per branch)
Number of positions
Mounting position
Degree of protection
Standards/regulations
125 V AC/DC
2.5 A
1.5 A (with even load on all branches)
15
any
IP20
IEC 60664
DIN EN 50178
IEC 62103
Rated insulation voltage
Rated surge voltage
Degree of pollution
Overvoltage category
125 V
1.2 kV (Functional insulation)
2
II
Connection data for connection 1
Connection name
Connection method
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Field level
Spring-cage connection
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Connection data for connection 2
Connection name
Connection method
Number of positions
Controller level
D-SUB pin strip
15
Standards and Regulations
Connection in acc. with standard
Standards/regulations
CUL
IEC 60664
DIN EN 50178
IEC 62103
Degree of pollution
Overvoltage category
2
II
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
27250313
27250313
04/21/2016 Page 2 / 8
https://www.phoenixcontact.com/us/products/2302997
Interface module - FLKM-D15 SUB/S/ZFKDS - 2302997
Classifications
eCl@ss
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27250313
27250313
27242608
27141152
27141152
27141152
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001434
EC001604
EC001604
EC002780
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211824
39121421
39121421
39121421
39121421
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
04/21/2016 Page 3 / 8
https://www.phoenixcontact.com/us/products/2302997
Interface module - FLKM-D15 SUB/S/ZFKDS - 2302997
Approvals
cUL Recognized
cULus Recognized

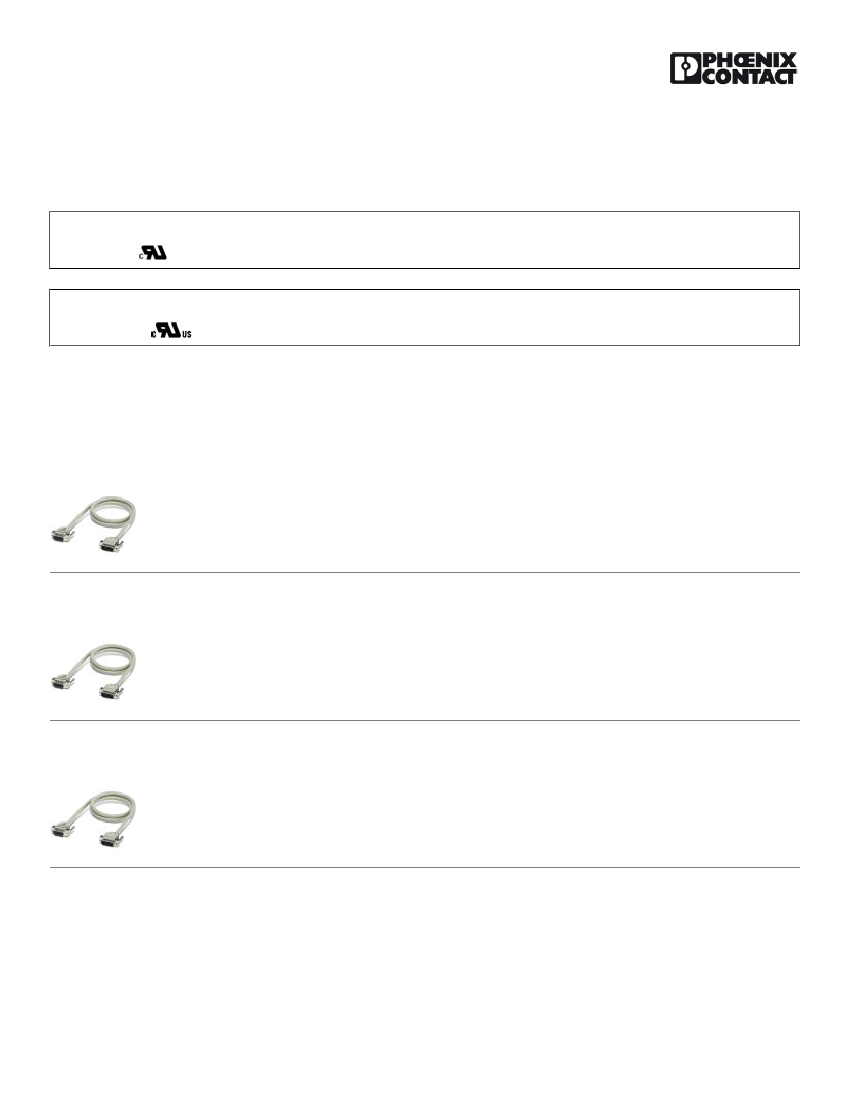

Accessories
Accessories
System cable
Cable - CABLE-D15SUB/B/S/ 50/KONFEK/S - 2302052
Round shielded cable set, with 15-pos. D-SUB female and male connectors, cable length: 0.5 m
Cable - CABLE-D15SUB/B/S/100/KONFEK/S - 2302065
Round shielded cable set, with 15-pos. D-SUB female and male connectors, cable length: 1 m
Cable - CABLE-D15SUB/B/S/150/KONFEK/S - 2302078
Round shielded cable set, with 15-pos. D-SUB female and male connectors, cable length: 1.5 m
04/21/2016 Page 4 / 8
https://www.phoenixcontact.com/us/products/2302997
Interface module - FLKM-D15 SUB/S/ZFKDS - 2302997
Accessories
Cable - CABLE-D15SUB/B/S/200/KONFEK/S - 2302081
Round shielded cable set, with 15-pos. D-SUB female and male connectors, cable length: 2 m
Cable - CABLE-D15SUB/B/S/300/KONFEK/S - 2302094
Round shielded cable set, with 15-pos. D-SUB female and male connectors, cable length: 3 m
Cable - CABLE-D15SUB/B/S/400/KONFEK/S - 2302104
Round shielded cable set, with 15-pos. D-SUB female and male connectors, cable length: 4 m
Cable - CABLE-D15SUB/B/S/600/KONFEK/S - 2302117
Round shielded cable set, with 15-pos. D-SUB female and male connectors, cable length: 6 m
Cable - CABLE D-SUB-S/.../.../... - 2302340
Shielded round cable, assembled with one D-SUB male and one female connector, variable cable length
