500-SDP1-S1-M2-R-E-A datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 500-SDP1-S1-M2-R-E-A

500-SDP1-S1-M2-R-E-A: DescriptionSwitch, DPDT, Horizontal, Through Hole-straight,; CategoryMechanical and electronic products switch; File Size271KB，4 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

500-SDP1-S1-M2-R-E-A Overview

Switch, DPDT, Horizontal, Through Hole-straight,

500-SDP1-S1-M2-R-E-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.2 inch
Actuator material	NYLON
Actuator type	SLIDE
body width	11.43 mm
body height	7.6962 mm
Body length or diameter	12.7 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Contact function	ON-OFF
Contact resistance	0.1 mΩ
Maximum contact voltage (AC)	250 V
End contact material	COPPER ALLOY
End contact plating	GOLD
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
Manufacturer's serial number	500
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Terminal length	0.189 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

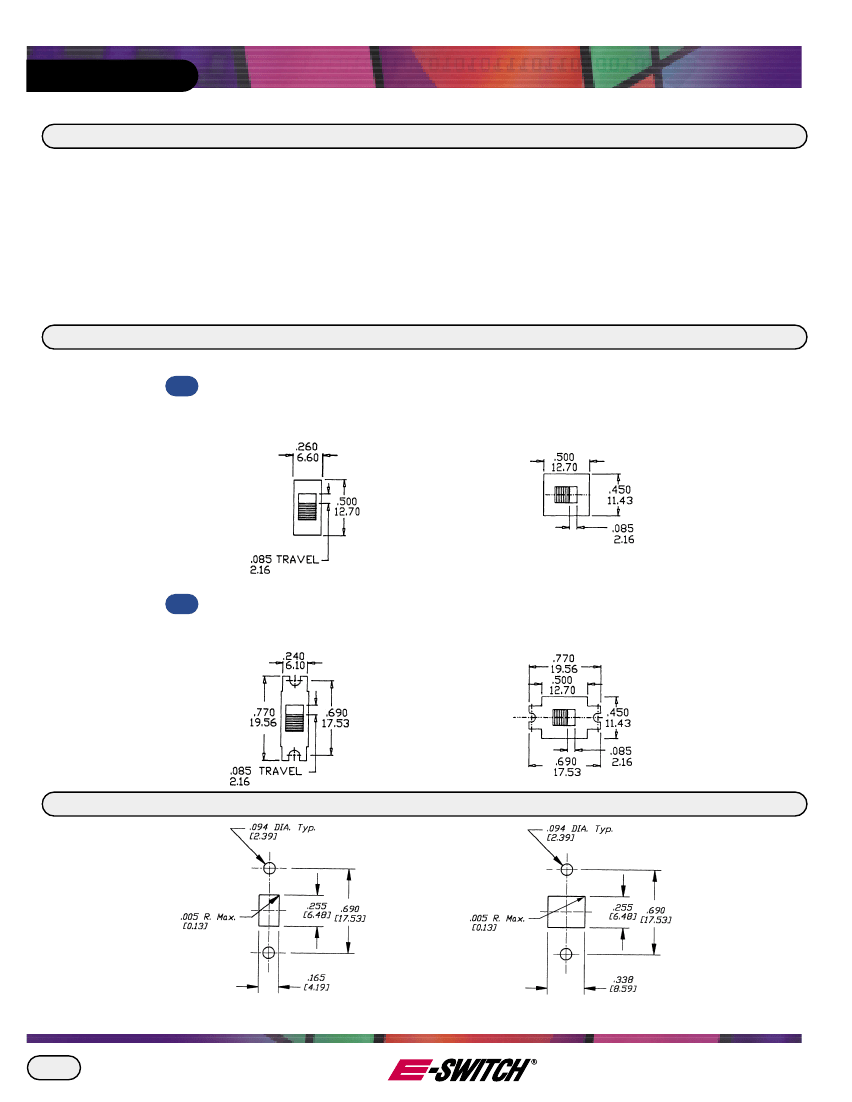

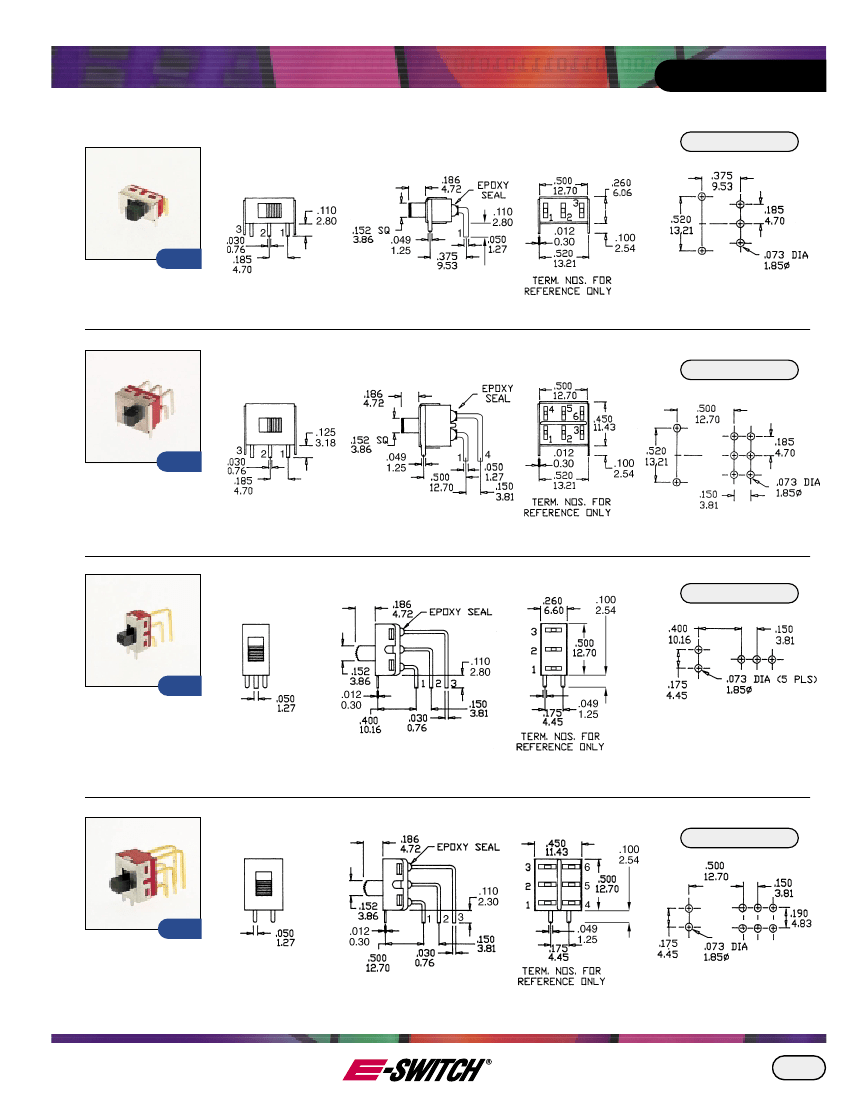

Preview

Download Datasheet

View All

SERIES

5 0 0

SWITCHES

SLIDE SWITCHES

SPECIFICATIONS

Ratings:

Electrical Life:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Operating Temperature:

MATERIALS

Case:

Housing:

Slide Handle:

Contacts:

5A @ 120 VAC

2A @ 250 VAC

50,000 make-and-break cycles at full load

10 mΩ max. typical @ 2-4 VDC

100mA for both silver and gold plated contacts

1,000 MΩ min.

1,000 V rms at sea level

-30

C to 85

Diallyl phthalate (DAP), UL 94V0

Stainless steel

Nylon UL 94HB

Silver or gold plated copper alloy

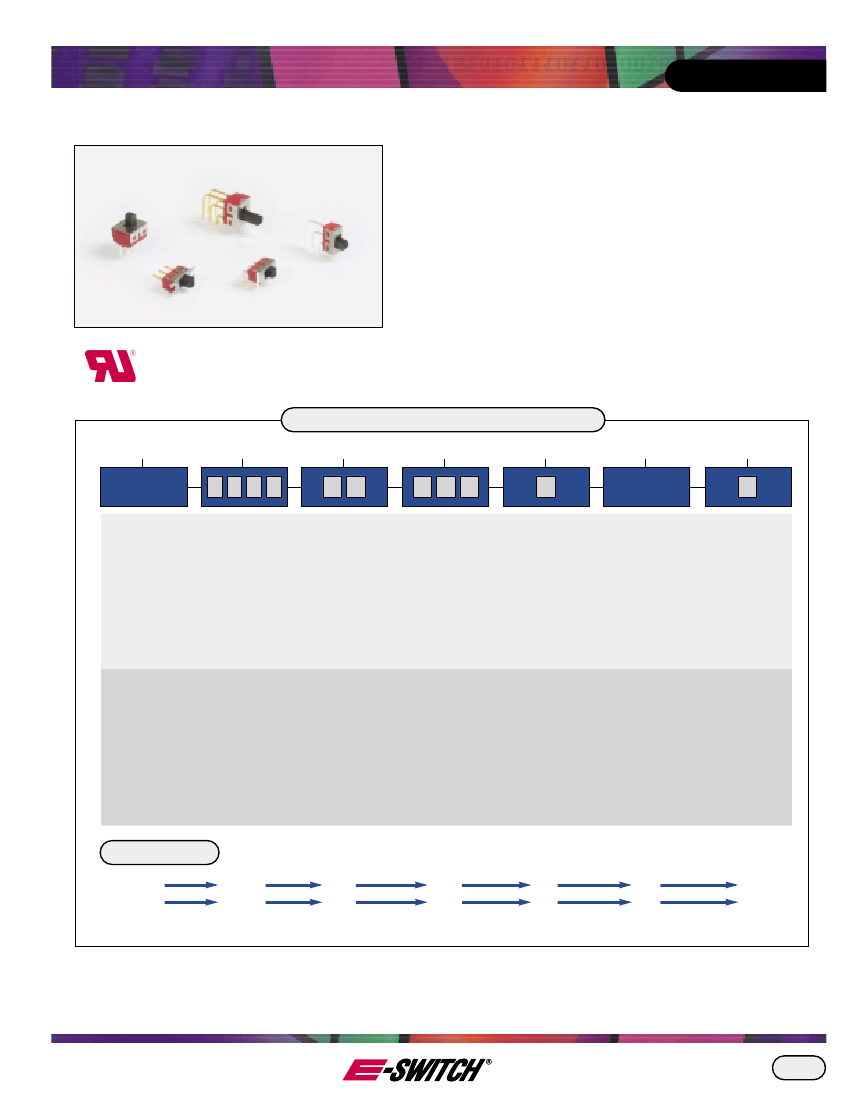

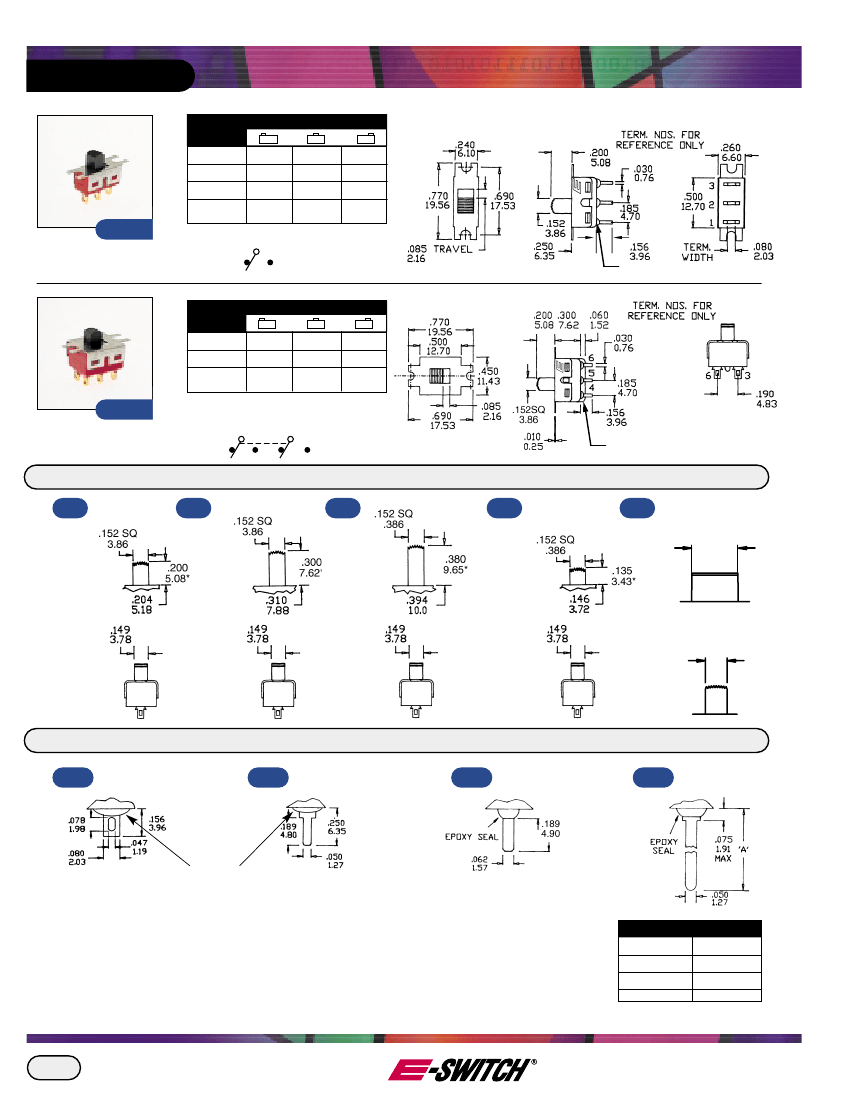

HOW TO ORDER

Series

Model No.

Actuator

Termination Contact Material

Seal

Mounting Tabs

500

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

SSP1

SSP2

SSP3

M5-1

M5-2

M5-3

M5-4

VS2

M5-1

M5-2

M5-3

M5-4

VS2

Q=Silver

R=Gold

E=Epoxy

Sealed

A=Without

Tabs

B=With Tabs

SDP1

SDP3

Q=Silver

R=Gold

E=Epoxy

Sealed

A=Without

Tabs

B=With Tabs

EXAMPLE

500

SSP2

SDP1

Phone: 763-504-3525

Fax: 763-531-8235

www.e -switch.com

info@e-switch.com
