Datasheet> All Categories > The connector> The connector> 206325098102011

206325098102011: DescriptionCard Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

206325098102011 Overview

Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE

206325098102011 Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	6325
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	98
Base Number Matches	1

Preview

Download Datasheet

View All

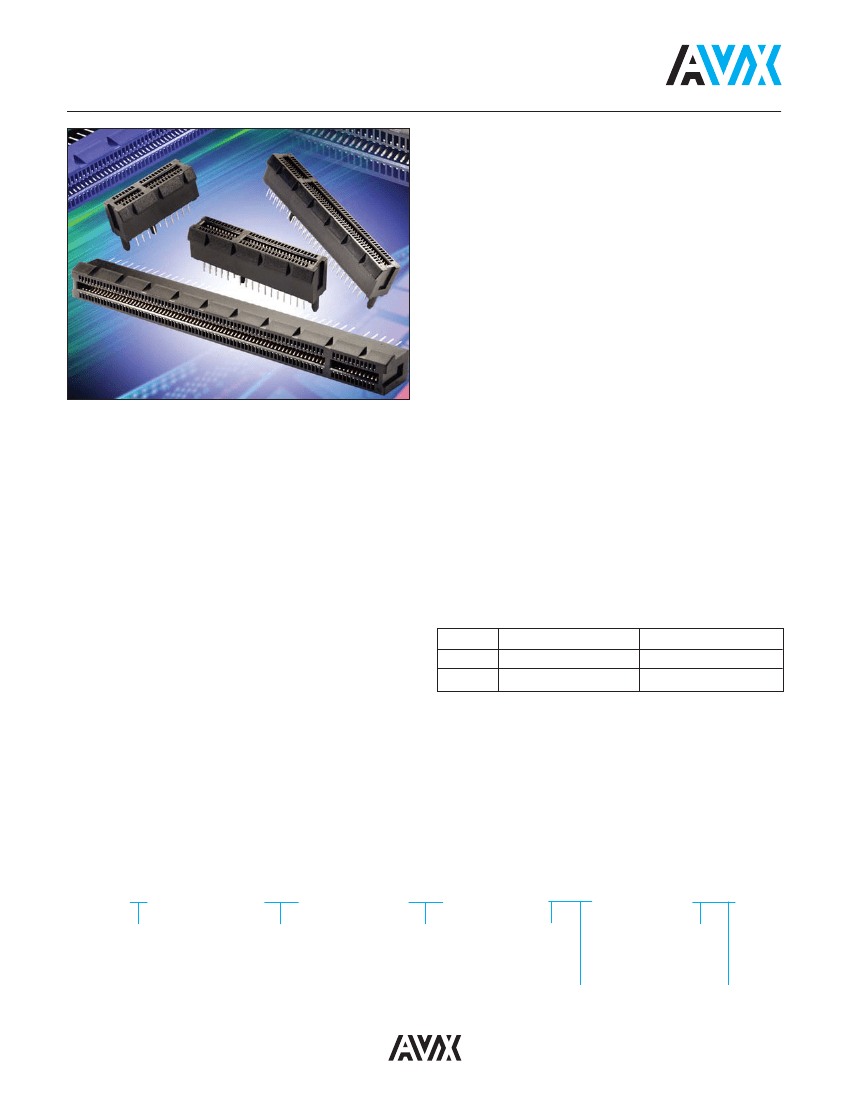

6325 PCI Express

Card Edge Connectors

GENERAL DESCRIPTION

The standard vertical card edge connectors are specifically

designed to implement PCI Express technology for desktop

PCs and server systems. These connectors allow the end

user to upgrade the PC with an “add on graphics card”.

Therefore complete range is available to support basic speed

x1 to high-speed x16 bandwidth requirements.

The connectors are available in 36(x1), 64(x4), 98(x8) and

164(x16) contact positions, all in a 1.00mm pitch. Therefore

each range can support different bandwidth requirements for

an “add on” graphics card.

These connectors are ideal for use in a broad range of com-

puting/data communication applications, including desktop

PCs, Servers and Workstations.

All connectors support PCI Express signal and Power

requirements as well as the interface between system board

and the add on card specification.

FEATURES/BENEFITS

• Different tail (contact) length (2.3mm or 3.00mm) available

to support differing motherboard thickness.

• Tails are offset to form 4 rows on a 2.00mm pitch, thus

making wave soldering easier.

• All connectors come with locating bosses to help align the

connector to PCB (motherboard).

• Raised ridge at the topside of the connector, which can be

used to lock/retain the graphic card.

• Molded polarization key prevents improper insertion of the

PCB.

• Connectors have slots to accept “add in” cards with thick-

ness of 1.58mm (0.062in).

• Conforms to PCI Express specification on connectors.

• Available in black or white color.

TECNICAL SPECIFICATIONS

Current Rating:

Contact Resistance:

Contact Material:

Contact Plating:

Insulator Material:

Insulation Resistance:

1.1 Ampere, maximum

30 milliohm, maximum

Phosphor Bronze

See table below

30% Glass Filled Nylon

100 Megaohms 50 50V AC

Plating Table

Code

Contact Area

15µ AuNi

Terminal Area

Tin/Lead

Tin (Lead Free)

APPLICATIONS

•

Desktop PCs

Servers

Work Stations

Factory Automation Systems

HOW TO ORDER

Connector

6325

Series

098

Number of Contacts

0 02

Color

00 1

Variation

0 = Black

1 = White

Tail Length

00 = Standard

01 = Latch

(164 only)

Plating

1 = 2.30mm

2 = 3.00mm

1 = Tin Lead

6 = Tin (Lead Free)

206325098102011 Related Products

	206325098102011	206325098102001	206325098102016	206325098002011	206325098002016	206325098001016	206325098001011	206325098101011	206325098101016	206325098101001
Description	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Card Edge Connector, 98 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE
Reach Compliance Code	unknown	unknown	compliant	unknown	compliant	compliant	unknown	unknown	compliant	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	TIN LEAD	TIN LEAD	GOLD (591) OVER NICKEL	TIN LEAD	GOLD (591) OVER NICKEL	GOLD (591) OVER NICKEL	TIN LEAD	TIN LEAD	GOLD (591) OVER NICKEL	TIN LEAD
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN	TIN LEAD	TIN	TIN	TIN LEAD	TIN LEAD	TIN	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e3	e0	e3	e3	e0	e0	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	6325	6325	6325	6325	6325	6325	6325	6325	6325	6325
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	98	98	98	98	98	98	98	98	98	98
Base Number Matches	1	1	1	1	1	1	1	1	1	1
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	-	LEAD FREE	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE
