3979-2000: DescriptionWire Terminal; CategoryThe connector terminals; File Size117KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

3979-2000 Overview

Wire Terminal

3979-2000 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	3979
Terminal and terminal strip types	WIRE TERMINAL
Wire gauge	18 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

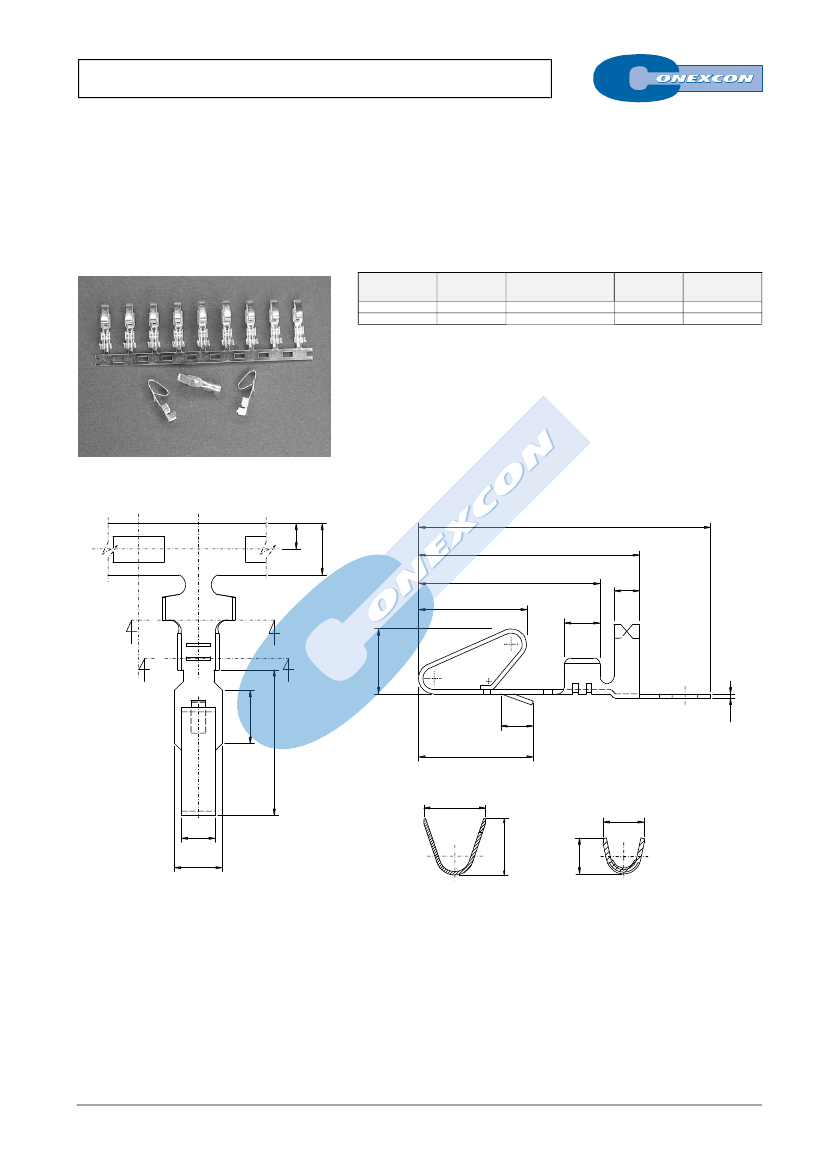

CRIMP TERMINAL

3979 SERIES.

Reel Form

Features



Used in 3940, 3990, 5000, 5080 and 7500 series socket

Accommodates wire ranges from AWG 18 to 26

Material: Pre-tinned Phosphor bronze



Mates with 1.14mm(.045”) square or round pin

For other options consult the Sales Office

Dimensional Information

Ordering and Dimensional Information

Reel Quantity

5.000 pcs. (Reel)

Loose Piece

Part Number

3979 - 2000

3979 - 2001

Material

Pre-tinned Phosphor bronze

Wire Ranges

AWG 18 – 26

Insulation

Diameter

2.48mm Max.

1.5

.059

3.0

.118

17.7

.697

13.0

.512

10.7

.421

6.3

.248

2.4

.094

1.5

.059

4.4

.173

0.25

.010

3.5

.138

8.2

.323

1.9

.075

6.2

.244

3.4

.134

3.3

.130

1.80

.071

2.70

.106

SEC : A-A

2.8

.110

2.2

.087

SEC : B-B

FULL LINE CATALOGUE

E-XX

3979-2000 Related Products

	3979-2000	3979-2001
Description	Wire Terminal	Wire Terminal
Maker	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Manufacturer's serial number	3979	3979
Terminal and terminal strip types	WIRE TERMINAL	WIRE TERMINAL
Wire gauge	18 AWG	18 AWG
Base Number Matches	1	1
