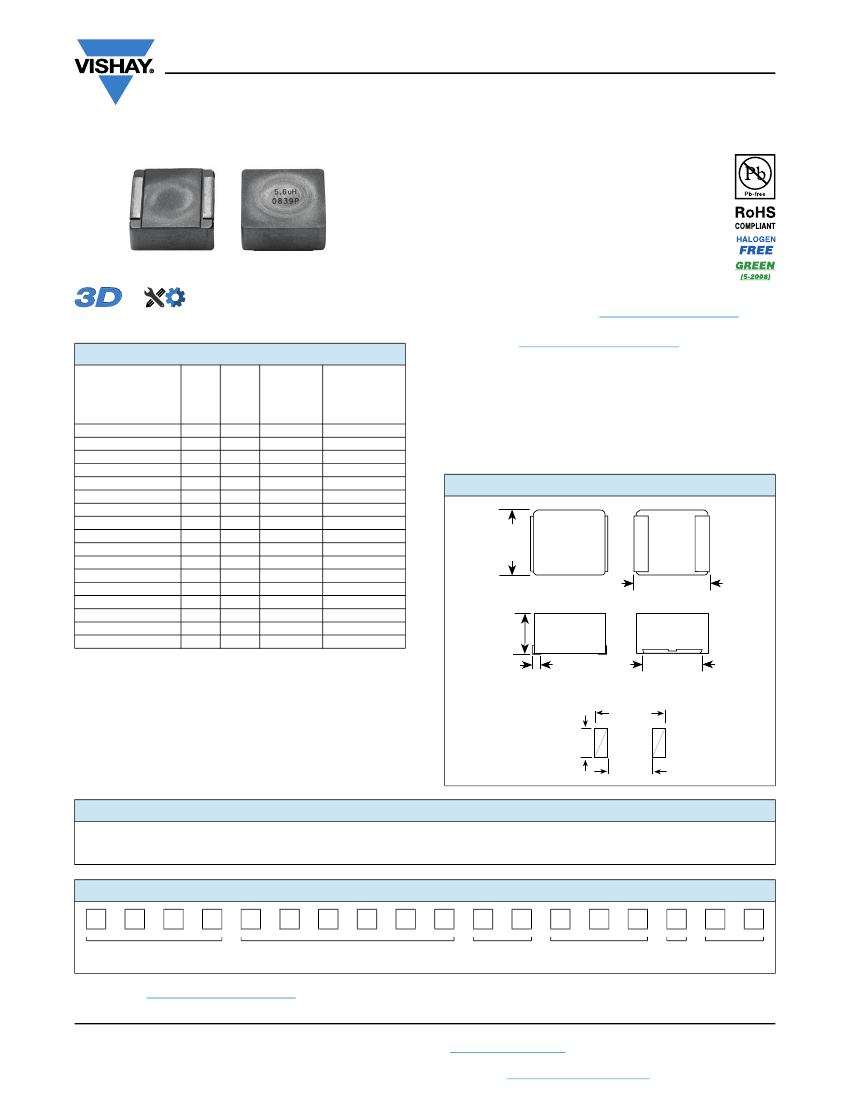

IHLP-6767GZ-01
www.vishay.com
Vishay Dale
Low Profile, High Current IHLP
®
Inductors
FEATURES
•
•
•
•
•
Shielded construction
Frequency range up to 2.0 MHz
Lowest DCR/μH, in this package size
Handles high transient current spikes without
saturation
Saturation and inductance extremely stable over
temperature
Ultra low buzz noise, due to composite
construction
IHLP design. PATENT(S):
www.vishay.com/patents
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
Design Tools
•
•
•
Available
STANDARD ELECTRICAL SPECIFICATIONS
L
0
HEAT
INDUCTANCE
DCR DCR
RATING SATURATION
± 20 % AT 100 kHz, TYP. MAX. CURRENT
CURRENT
0.25 V, 0 A
25 °C 25 °C DC TYP.
DC TYP.
(μH)
(mΩ) (mΩ)
(A)
(1)
(A)
(2)
0.22
0.63
0.75
80
129
0.33
0.71
0.82
65
126
0.47
0.90
1.03
62
123
0.56
0.91
1.05
56
88
0.82
1.17
1.29
50
73
1.0
1.28
1.38
48
73
1.5
1.78
1.88
42
65
1.8
1.96
2.10
38
65
2.2
2.40
2.53
35
62
3.3
3.68
3.88
28
54
4.7
4.84
5.11
25
41
5.6
6.68
7.05
21
40
6.8
8.37
8.83
19
32
8.2
10.10 10.66
18
25
10.0
11.6
12.0
16.5
25
15.0
18.8
19.9
12.5
25
22.0
25.1
26.5
11
23
Notes
• All test data is referenced to 25 °C ambient
• Operating temperature range -55 °C to +125 °C
• The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
• Rated operating voltage (across inductor) = 75 V
(1)
DC current (A) that will cause an approximate
ΔT
of 40 °C
(2)
DC current (A) that will cause L to drop approximately 20 %
0
APPLICATIONS
•
•
•
•
•
Desktop / server applications
High current buck and boost converters
Low profile, high current power supplies
DC/DC converters in distributed power systems
High current noise filter
DIMENSIONS
in inches [millimeters]
0.675
[17.15]
Max.
0.675 ± 0.005
[17.15 ± 0.127]
0.276
[7.00]
Max.
0.083 ± 0.01
[2.11 ± 0.3]
0.47 ± 0.01
[11.94 ± 0.3]
Typical Pad Layout
0.790
[20.07]
0.485
[12.32]
0.489
[12.42]
DESCRIPTION
IHLP-6767GZ-01
MODEL
4.7 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
JEDEC
®
e3
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
L
P
6
7
6
SIZE
7
G
Z
E
R
4
R
INDUCTANCE
VALUE
7
M
TOL.
0
1
PRODUCT FAMILY
PACKAGE
CODE
SERIES
PATENT(S):
www.vishay.com/patents
This Vishay product is protected by one or more United States and international patents.
Revision: 09-May-17
Document Number: 34000
1
