25Y Series
www.vishay.com
Vishay Cera-Mite
AC Line Rated Ceramic Disc Capacitors
Class X1, 400 V
AC
/ Class Y2, 300 V
AC
/ 250 V
AC
FEATURES
• Complying with IEC 60384-14 3
rd
edition
• High reliability
• Complete range of capacitance values
• Radial leads
• Singlelayer AC disc safety capacitors
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• X1 / Y2 according to IEC 60384-14.3
• Across-the-line
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
250
VALUE
2
Y5S
300
1000
8000
Radial
400
• Line by-pass
• Antenna coupling
DESIGN
The capacitors consist of a ceramic disc of which both sides
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.032" (0.81 mm) or 0.025"
(0.64 mm). The capacitors may be supplied with radial
kinked or straight leads having a lead spacing of 0.375"
(9.5 mm) or 0.250" (6.4 mm). The standard tolerance is
± 20 %. Coating is made of flame retardant epoxy resin in
accordance with “UL 94 V-0.”
INSULATION RESISTANCE
Min. 1000
F
CAPACITANCE RANGE
TOLERANCE ON CAPACITANCE
± 20 %
1.0 nF to 8.0 nF
RATED VOLTAGE
DISSIPATION FACTOR
2.0 % max. at 1 kHz; 1 V
IEC 60384-14.3:
• X1:
• Y2:
• Y2:
400 V
AC
, 50 Hz
300 V
AC
, 50 Hz (LS
5.5 mm)
250 V
AC
, 50 Hz (LS < 5.5 mm)
CERAMIC DIELECTRIC
Y5S (Class 2)
CLIMATIC CATEGORY ACC. TO EN 60068-1
25/125/21
DIELECTRIC STRENGTH BETWEEN LEADS
Component test:
2500 V
AC
, 50 Hz, 2 s
As repeated test admissible only once with:
2250 V
AC
, 50 Hz, 2 s
Random sampling test (destructive test):
2500 V
AC
, 50 Hz, 60 s
OPERATING TEMPERATURE RANGE
-30 °C to +125 °C
DIELECTRIC STRENGTH OF BODY INSULATION
2300 V
AC
, 50 Hz, 60 s (destructive test)
Revision: 02-Mar-15
Document Number: 23105
1
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
25Y Series
www.vishay.com
Vishay Cera-Mite
DIMENSIONS
in inches (millimeters)
1.250 min.
(32)
D
max.
Tinned Copper Leads
Ø
T
max.
0.125
max. (3.2)
LS
LO
ORDERING INFORMATION, CERAMIC X1 / Y2 CAPACITORS 25Y
C
(pF)
TOL.
(%)
D
max.
DIAMETER
INCH (mm)
T
max.
THICKNESS
INCH (mm)
WIRE SIZE
AWG
INCH (mm)
LS
LEAD SPACE
INCH (mm)
± 1 mm
LO
LEAD OFFSET
INCH (mm)
± 0.5 mm
0.075 (1.9)
0.079 (2.0)
0.075 (1.9)
0.170 (4.3)
0.175 (4.4)
0.175 (4.4)
0.185 (4.7)
0.175 (4.4)
0.185 (4.7)
0.185 (4.7)
0.190 (4.7)
0.190 (4.7)
0.185 (4.7)
0.200 (5.1)
20
0.032 (0.81)
0.375 (9.5)
22
0.025 (0.64)
0.250 (6.4)
0.079 (2.0)
0.075 (1.9)
0.079 (2.0)
0.079 (2.0)
0.087 (2.2)
0.087 (2.2)
0.087 (2.2)
0.083 (2.1)
0.087 (2.2)
0.087 (2.2)
0.091 (2.3)
0.091 (2.3)
0.087 (2.2)
0.102 (2.6)
ORDERING
CODE
Y5S TEMPERATURE STABLE (± 22 %, -30 °C TO +85 °C)
1000
1500
2000
2200
2700
2800
3000
3200
3300
3900
4000
4700
5000
5500
5600
6800
8000
± 20
0.330 (8.4)
0.400 (10.2)
0.430 (10.9)
0.460 (11.7)
0.490 (12.4)
0.530 (13.5)
0.530 (13.5)
0.620 (15.7)
0.560 (14.2)
0.620 (15.7)
0.620 (15.7)
0.680 (17.3)
0.680 (17.3)
0.720 (18.3)
0.720 (18.3)
0.790 (20.1)
0.900 (22.9)
0.170 (4.3)
0.175 (4.4)
25YD10-R
25YD15-R
25YD20-R
25YD22-R
25YD27-R
25YD28-R
25YD30-R
25YD32-R
25YD33-R
25YD39-R
25YD40-R
25YD47-R
25YD50-R
25YD55-R
25YD56-R
25YD68-R
25YD80-R
Notes
• Alternate lead spacings of 7.5 mm and 10 mm are available bulk or tape and reel on request.
• Minimum lead clearance according to IEC 60384-14: 0.118" (3 mm)
TAPE AND REEL OPTIONS
Part number codes and specifications for tape and reel packaging are found in the general information document - find web-link
below.
OPTIONAL 3-LEADED STYLE
An optional 3-leaded construction is available. It consists of a single capacitor with the two outside leads attached to one
electrode, and the center lead attached to the electrode. Used in feed-thru or line-to-ground applications, it allows a short
ground lead for enhanced high frequency performance.
a
D
max.
4 mm max.
1.250" min. (32)
b
T
G
LS
G
c
a
b
Revision: 02-Mar-15
Document Number: 23105
2
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
25Y Series
www.vishay.com

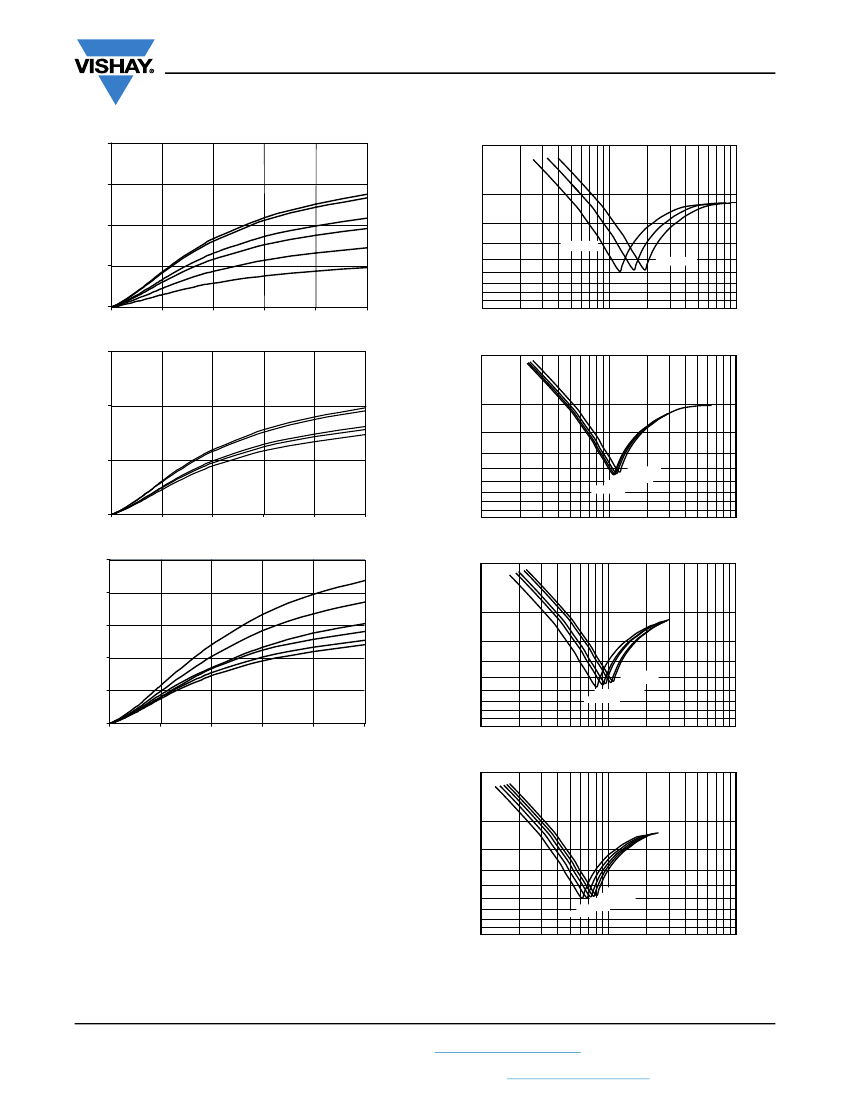

LEAKAGE CURRENT VS. VOLTAGE
(Typical)
4
Leakage Current (mA) RMS
Vishay Cera-Mite
INSERTION LOSS VS. FREQUENCY
(Typical)
10
25YD28-R
25YD27-R
25YD22-R
Insertion Loss (dB)
3
20
30
40
50
25YD15-R
25YD20-R
25YD10-R
2
25YD20-R
25YD15-R
1
25YD10-R
0
0
500
1000
1500
AC Voltage (V) RMS
2000
2500
100
1
10
Frequency (MHz)
100
6
Leakage Current (mA) RMS
10
Insertion Loss (dB)
4
25YD40-R
25YD39-R
25YD33-R
25YD32-R
25YD30-R
20
30
40
50
25YD22-R
25YD27-R
25YD28-R
25YD30-R
2
0
0
500
1000
1500
AC Voltage (V) RMS
2000
2500
100
1
10
Frequency (MHz)
100
10
Leakage Current (mA) RMS
25YD80-R
10
8
Insertion Loss (dB)
25YD68-R
20
30
40
50
25YD32-R
25YD33-R
25YD39-R
25YD40-R
25YD47-R
6
4
2
0
0
500
1000
1500
AC Voltage (V) RMS
2000
25YD56-R
25YD55-R
25YD50-R
25YD47-R
2500
100
1
10
Frequency (MHz)
100
10
Insertion Loss (dB)
20
30
40
50
25YD50-R
25YD55-R
25YD56-R
25YD68-R
25YD80-R
100
1
10
Frequency (MHz)
100
Revision: 02-Mar-15
Document Number: 23105
3
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
25Y Series
www.vishay.com
Vishay Cera-Mite

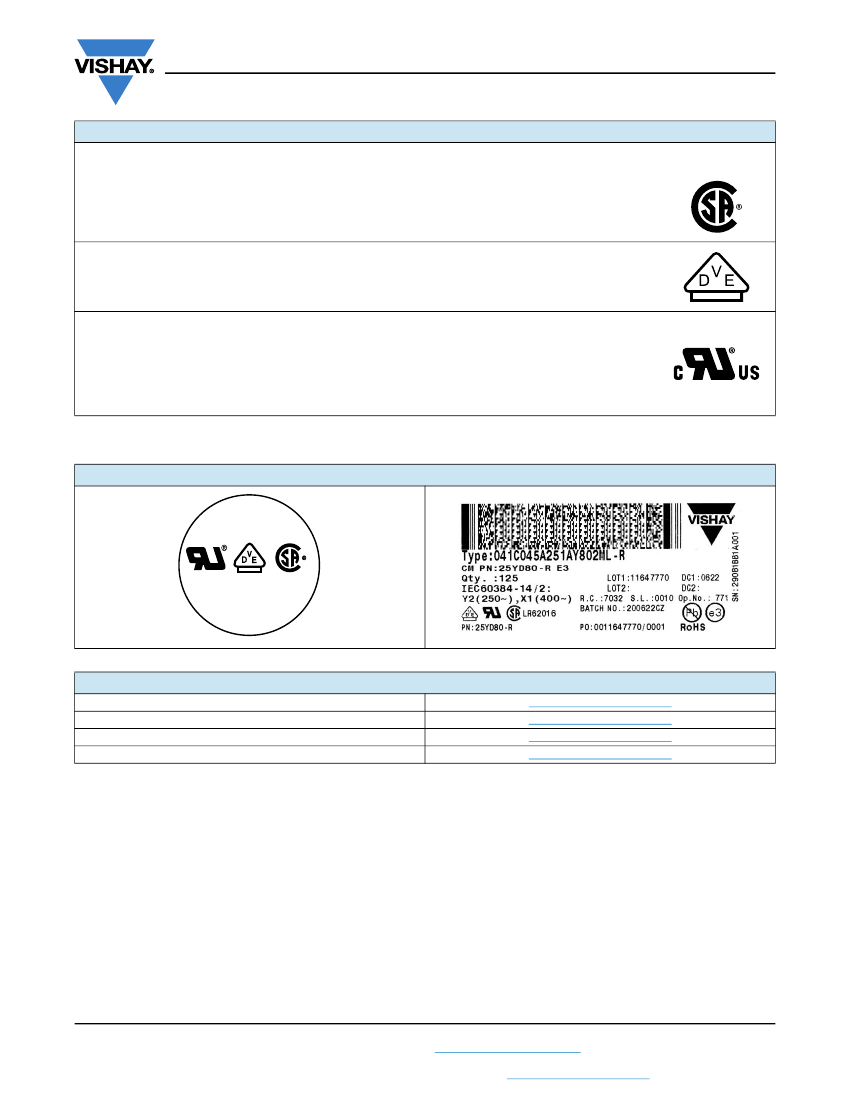

APPROVALS
IEC 60384-14.3 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y2-capacitor: CB test certificate:
Y2-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
VDE
Y2-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Underwriters Laboratories Inc.
Y2-capacitor: UL test certificate:
Y2-capacitor: UL test certificate:
X1-capacitor: UL test certificate:
UL 60384-14, CSA E60384-1:03, CSA E60384-14:09
Fixed capacitors for electromagnetic interference suppression and connection to the supply mains.
Note
(1)
LS
5.5 mm: 300 V ; LS < 5.5 mm: 250 V
AC
AC
E99264
E99264
E99264
1 nF to 8 nF
1 nF to 8 nF
1 nF to 8 nF
300 V
AC (1)
250 V
AC (1)
400 V
AC
40003978
40003978
1 nF to 8 nF
1 nF to 8 nF
250 V
AC
400 V
AC
CA/13631/CSA
CA/13631/CSA
CA/13631/CSA
1 nF to 8 nF
1 nF to 8 nF
1 nF to 8 nF
300 V
AC (1)
250 V
AC (1)
400 V
AC
MARKING
Sample
682M
25Y
125 °C
Y2 250 ~
X1 400 ~
CM
RELATED DOCUMENTS
General Information
CB Test Certificate
VDE Marks Approval
UL Test Certificate
www.vishay.com/doc?23140
www.vishay.com/doc?22240
www.vishay.com/doc?22241
www.vishay.com/doc?22242
Revision: 02-Mar-15
Document Number: 23105
4
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
