930C6S68K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 930C6S68K-F

930C6S68K-F: DescriptionFilm Capacitors 630V .022uF 5%; CategoryPassive components; File Size136KB，5 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric View All

930C6S68K-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	930C6S68K-F	-	-	View	Buy Now

930C6S68K-F Overview

Film Capacitors 630V .022uF 5%

930C6S68K-F Parametric

Parameter Name	Attribute value
Product Category	Film Capacitors
Manufacturer	Cornell Dubilier
RoHS	Details
Termination Style	Axial
Product	General Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	0.068 uF
Voltage Rating AC	250 VAC
Voltage Rating DC	630 VDC
Tolerance	10 %
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Packaging	Bulk
Capacitance - nF	68 nF
Capacitance - pF	68000 pF
Lead Diameter	0.8 mm
Factory Pack Quantity	25

Preview

Download Datasheet

View All

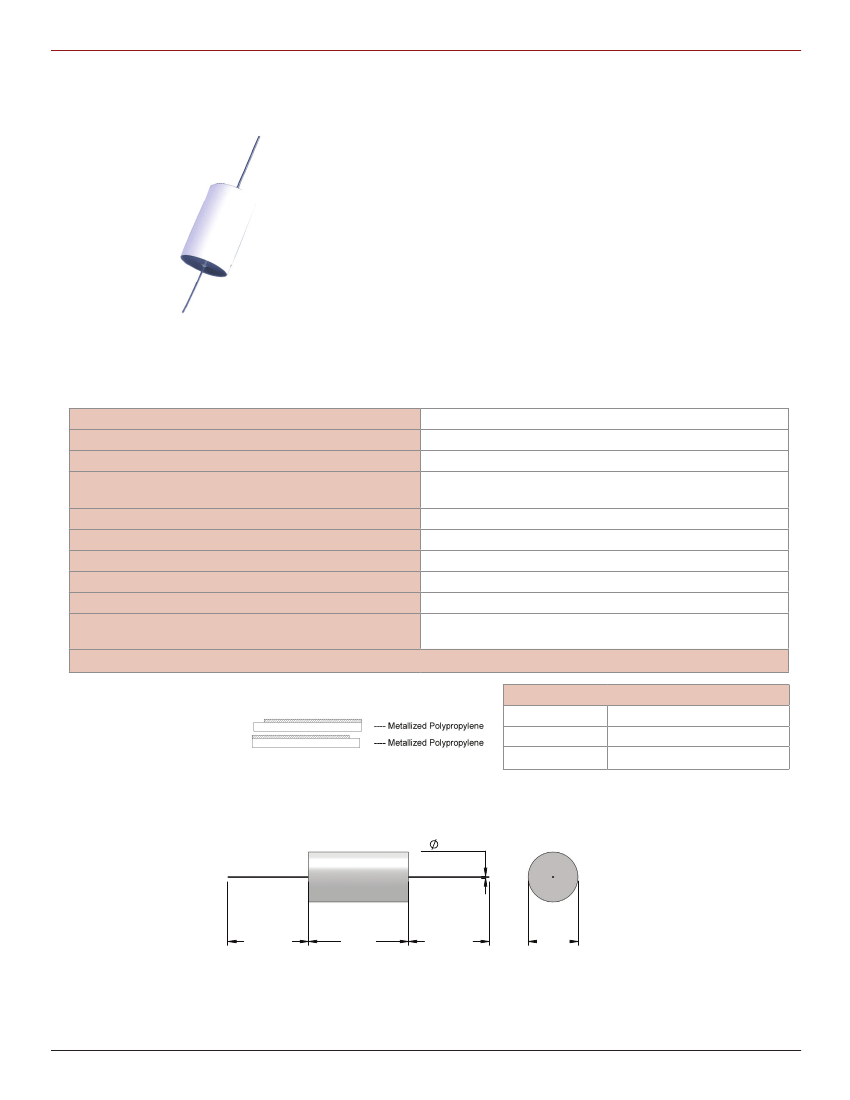

Type 930C, Metallized Polypropylene Capacitors for DC Filtering

Low Dissipation, General Purpose

Type 930C metallized polypropylene capacitors are designed for

general purpose filtering applications. Their stability and low

loss characteristics make them an excelllent choice for blocking,

filtering, bypassing, coupling and decoupling applications.

This Series is UL recognized for construction only under UL File

Number E128034(N).

Highlights

- Low dissipation factor

- Self healing

- UL recognized

0.22 to 10.0 µF

±10 % (K) Standard; ±5% (J) Optional

100 to 630 Vdc (70 to 250 Vac, 60 Hz)

–55 ºC to 105 ºC*

*Full rated voltage at 85 ºC - derated linearly to 50% rated at 105 ºC

Check tables for values

200,000 MΩ x µF

200% rated DC voltage for 60 s

3 kVac @ 50/60 Hz for 60 s

1,000 h @ 85 ºC, 150% rated DC voltage

60,000 h @ rated Vdc, 70 ºC

30,000 h @ rated Vac, 70 ºC

RoHS Compliant

Film

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range with Ripple

Maximum rms Current

Insulation Resistance

Test Voltage between Terminals @ 25 ºC

Test Voltage between Terminals & Case @ 25 ºC

Life Test

Life Expectancy

Dimensions

Construction Diagram

Construction Details

Case Material

Resin Material

Terminal Material

UL510 Polyester Tape Wrap

UL94V-0 Epoxy Fill

Tin Plated Copper

0.8 mm

41 mm

Min

Max

±1.5 mm

41 mm

Min

Max

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.
