36502C39NJTDG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 36502C39NJTDG

36502C39NJTDG: Description3650 1008 39nH 5% 2K RL; CategoryPassive components inductor; File Size319KB，12 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

36502C39NJTDG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	36502C39NJTDG	-	-	View	Buy Now

36502C39NJTDG Overview

3650 1008 39nH 5% 2K RL

36502C39NJTDG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	1111
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	26 weeks
uppercase and lowercase codes	1111
structure	Rectangular
DC Resistance	0.15 Ω
Nominal inductance(L)	0.039 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2.1 mm
Package length	2.92 mm
Package form	SMT
Package width	2.79 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	60
Maximum rated current	1 A
self resonant frequency	1500 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 350 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	50 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

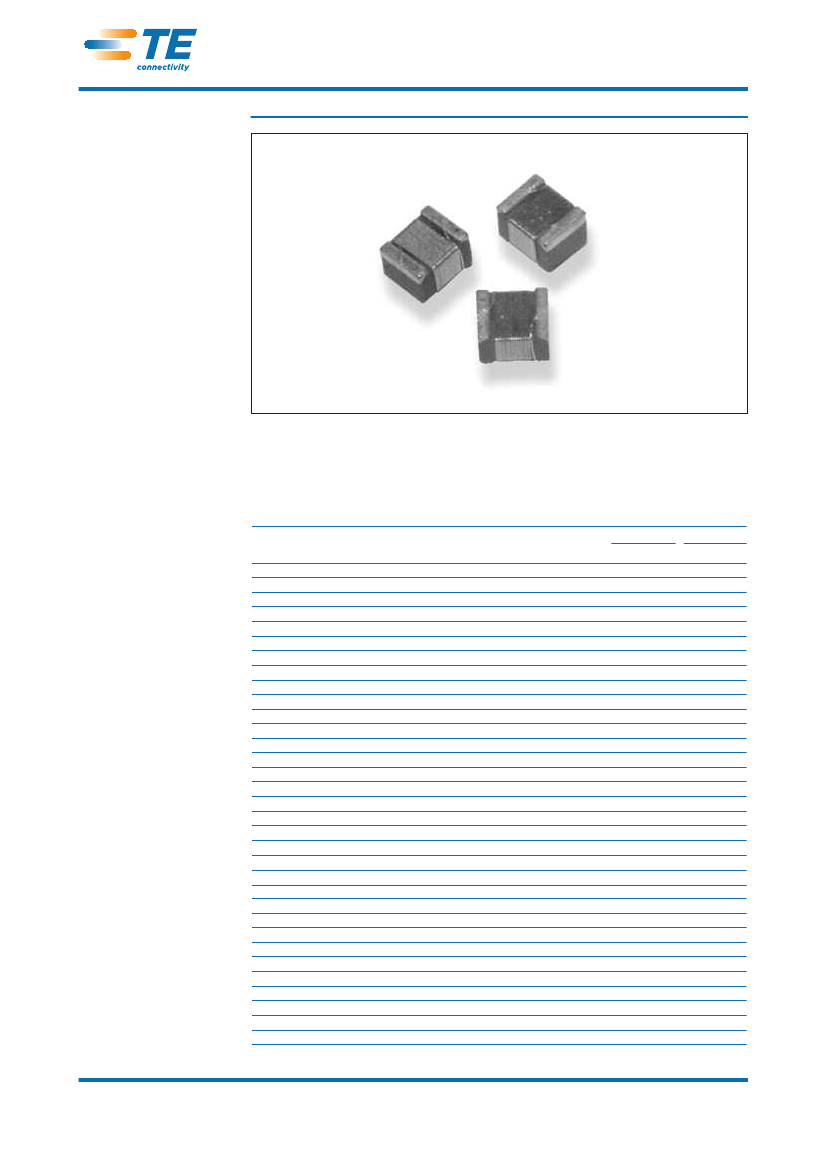

Low Inductance, High Frequency Chip Inductor

Type 3650 Series

Key Features

Choice of Four Package

Sizes

Wire Wound Construction

Smooth Top Aids

Placement

1.0NH to 4.7mH Value

Range

Laboratory Design Kits

Available

High Q Factor

High S.R.F.

Standard Tolerances

The 3650 Series is a new concept from TE Connectivity, a range of inductors in values from

1.0 nanohenry to 4.7 microhenries. The 3650 is available in four package sizes and is

designed for automatic placement.

Characteristics - Electrical

Type 36501E Series - 0402 Package

Inductance Inductance Tolerance Q

Code

(nH) @ 250MHz

(%)

Min.

1N0

1N9

2N0

2N2

2N4

2N7

3N3

3N6

3N9

4N3

4N7

5N1

5N6

6N2

6N8

7N5

8N2

8N7

9N0

9N5

10N

11N

12N

13N

15N

16N

18N

19N

20N

22N

23N

24N

27N

1.0

1.9

2.0

2.2

2.4

2.7

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

8.7

9.0

9.5

10,5

10,5,2

S.R.F. Min. R.D.C. Max

(GHz)

(Ohms)

12.7

11.3

11.1

10.8

10.5

10.4

7.00

6.80

5.80

6.00

4.70

4.80

4.40

4.10

4.16

4.00

3.90

3.68

3.60

3.45

3.28

3.10

3.04

3.00

2.80

2.72

2.70

2.48

0.045

0.070

0.120

0.066

0.091

0.130

0.083

0.104

0.200

0.104

0.200

0.195

0.120

0.210

0.172

0.220

0.230

0.202

0.250

0.300

I.D.C. Max.

(mA)

1360

1040

960

790

640

840

700

640

800

760

680

480

680

480

640

440

560

420

480

420

400

900MHz

1.7GHz

L Typ. Q Typ. L Typ. Q Typ.

1.02

1.72

1.93

2.19

2.24

2.23

3.10

3.56

3.89

4.19

4.55

5.15

5.16

6.16

6.56

7.91

8.50

8.78

9.07

9.42

9.8

10.7

11.9

13.4

14.6

16.6

18.3

19.1

20.7

23.2

23.8

25.1

28.7

1.02

1.74

1.93

2.23

2.27

2.25

3.12

3.62

4.00

4.30

4.68

5.25

5.28

6.37

6.93

8.22

8.85

9.21

9.53

9.98

10.1

11.2

12.7

14.6

15.5

18.8

20.28

21.1

23.66

26.75

26.9

29.5

33.5

100

1773163 CIS WR 03/2012

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are standard equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

For email, phone or live chat, go to:

te.com/help
