PM43-2R7M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PM43-2R7M

PM43-2R7M: DescriptionFixed Inductors 2.7uH 20%; CategoryPassive components inductor; File Size211KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

PM43-2R7M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM43-2R7M	-	-	View	Buy Now

PM43-2R7M Overview

Fixed Inductors 2.7uH 20%

PM43-2R7M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	1816
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1816
structure	Bobbin Core
core material	FERRITE
DC Resistance	0.079 Ω
Nominal inductance(L)	2.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PM43
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	3.2 mm
Package length	4.5 mm
Package form	SMT
Package width	4 mm
method of packing	TR
Maximum rated current	1.58 A
self resonant frequency	66 MHz
series	PM43 SERIES
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	7.96 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

Available in E12 series

■

Low proﬁle of only 3.2 mm

■

Low inductance values

■

RoHS compliant*

Applications

model

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

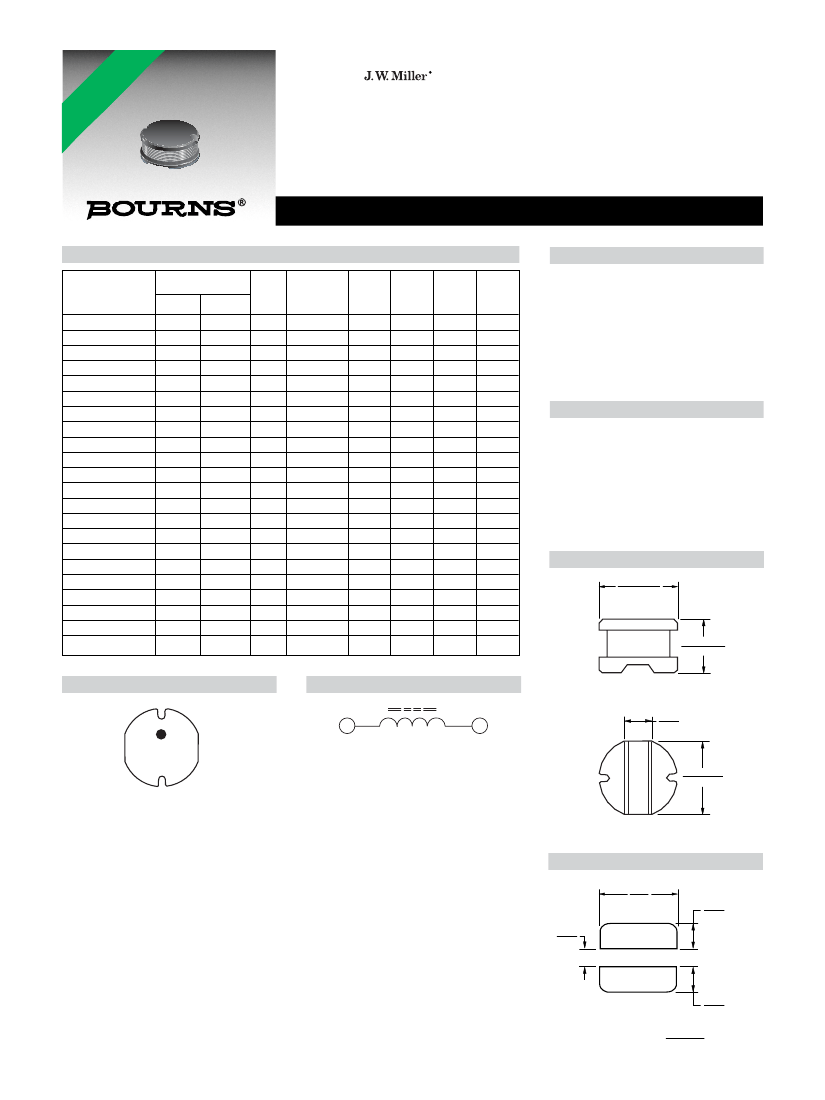

PM43 Series - SMD Power Inductor

Electrical Speciﬁcations

Inductance 1 kHz

Bourns Part No.

PM43-1R0M-RC

PM43-1R4M-RC

PM43-1R8M-RC

PM43-2R2M-RC

PM43-2R7M-RC

PM43-3R3M-RC

PM43-3R9M-RC

PM43-4R7M-RC

PM43-5R6M-RC

PM43-6R8M-RC

PM43-8R2M-RC

PM43-100M-RC

PM43-120M-RC

PM43-150M-RC

PM43-180M-RC

PM43-220M-RC

PM43-270K-RC

PM43-330K-RC

PM43-390K-RC

PM43-470K-RC

PM43-560K-RC

PM43-680K-RC

(µH)

1.0

1.4

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

Tol. %

± 20

± 10

Ref.

Test

Frequency

(MHz)

7.96

2.52

SRF

Min.

(MHz)

150

110

I rms

Max.

(A)

3.80

3.30

2.91

2.60

2.43

2.15

1.98

1.70

1.60

1.41

1.26

1.15

1.05

0.92

0.84

0.76

0.71

0.64

0.59

0.54

0.50

0.46

I sat

Typ.

(A)

5.50

5.10

4.40

3.90

3.50

3.00

2.70

2.60

2.40

2.10

1.90

1.70

1.60

1.40

1.30

1.20

1.00

0.99

0.92

0.78

0.74

0.68

General Speciﬁcations

Test Voltage .......................................1 V

Reﬂow Soldering .. 230 °C, 50 sec. max.

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature

................................-40 °C to +125 °C

Resistance to Soldering Heat

................................. 260 °C for 5 sec.

Materials

Core ...................................... Ferrite DR

Wire ............ Enameled copper wire 130

Terminal ....................................Ag/Ni/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temperature Rise ................. 40 °C max.

at rated Irms

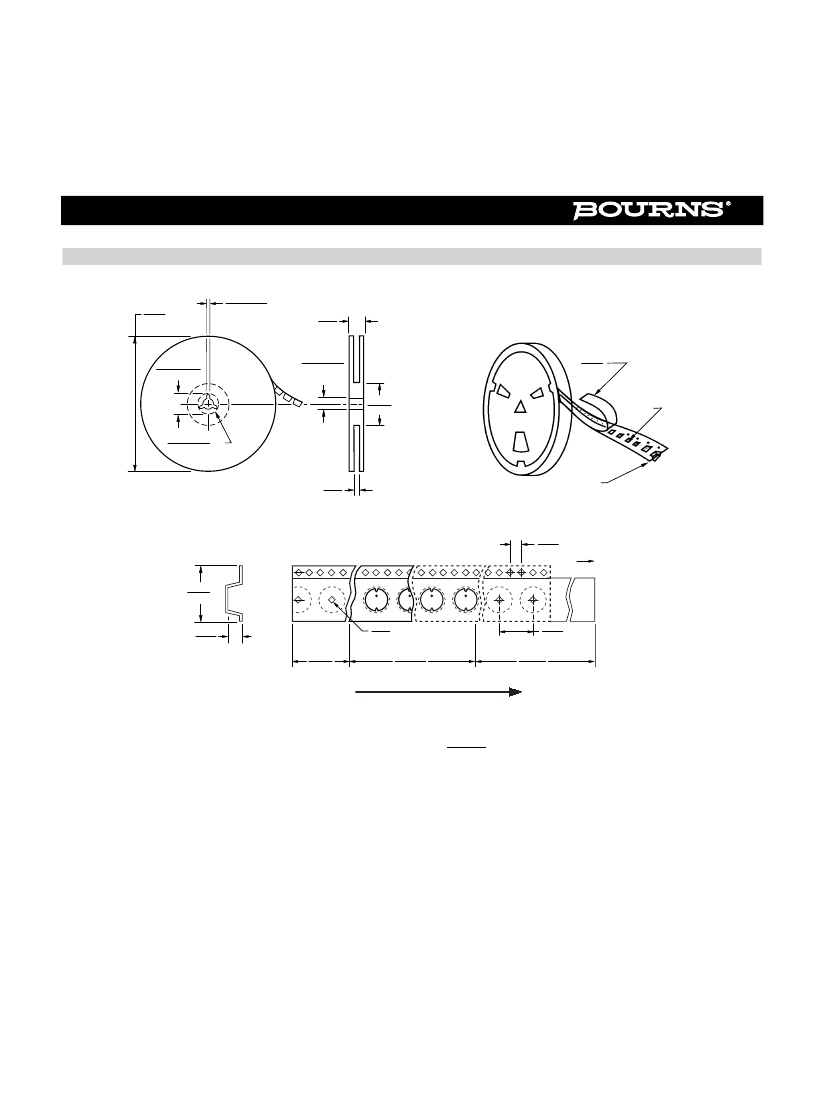

Packaging .................. 1500 pcs. per reel

Product Dimensions

4.5

0.3

(.177

.012)

MAX.

RDC

(Ω)

0.033

0.038

0.042

0.047

0.052

0.058

0.076

0.094

0.10

0.12

0.13

0.18

0.21

0.24

0.34

0.38

0.52

0.54

0.59

0.84

0.94

1.12

3.2

0.3

MAX.

(.126

.012)

Typical Part Marking

Electrical Schematic

1.5

TYP.

(.059)

100

4.0

0.3

MAX.

(.157

.012)

Recommended Layout

4.5

(.177)

1.8

(.071)

1.5

(.059)

1.8

(.071)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

DIMENSIONS:

(INCHES)

PM43-2R7M Related Products

	PM43-2R7M	PM43-4R7M	PM20-470K-RC	PM43-100M
Description	Fixed Inductors 2.7uH 20%	Fixed Inductors 4.7uH 4X4.5X3.2mm	Fixed Inductors 47uH 10%	Fixed Inductors 10uH 4X4.5X3.2mm
Tolerance	20%	20%	10 %	20%
Is it Rohs certified?	incompatible	incompatible	-	incompatible
Maker	Bourns	Bourns	-	Bourns
package instruction	1816	1816	-	1816
Reach Compliance Code	unknown	unknown	-	unknown
ECCN code	EAR99	EAR99	-	EAR99
uppercase and lowercase codes	1816	1816	-	1816
structure	Bobbin Core	Bobbin Core	-	Bobbin Core
core material	FERRITE	FERRITE	-	FERRITE
DC Resistance	0.079 Ω	0.109 Ω	-	0.182 Ω
Nominal inductance(L)	2.7 µH	4.7 µH	-	10 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	-	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	-	1
Number of terminals	2	2	-	2
Maximum operating temperature	100 °C	100 °C	-	100 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C
Package height	3.2 mm	3.2 mm	-	3.2 mm
Package length	4.5 mm	4.5 mm	-	4.5 mm
Package form	SMT	SMT	-	SMT
Package width	4 mm	4 mm	-	4 mm
method of packing	TR	TR	-	TR
Maximum rated current	1.58 A	1.15 A	-	1.04 A
self resonant frequency	66 MHz	49 MHz	-	35 MHz
series	PM43 SERIES	PM43 SERIES	-	PM43 SERIES
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
shield	NO	NO	-	NO
surface mount	YES	YES	-	YES
Terminal location	DUAL ENDED	DUAL ENDED	-	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	-	ONE SURFACE
Test frequency	7.96 MHz	7.96 MHz	-	2.52 MHz
