225P22292XD3: DescriptionFilm Capacitors 200Volts 2200pF ORANGE DROP; CategoryPassive components; File Size307KB，8 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric View All

225P22292XD3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	225P22292XD3	-	-	View	Buy Now

225P22292XD3 Overview

Film Capacitors 200Volts 2200pF ORANGE DROP

225P22292XD3 Parametric

Parameter Name	Attribute value
Product Category	Film Capacitors
Manufacturer	Cornell Dubilier
RoHS	Details
Termination Style	Radial
Product	General Film Capacitors
Dielectric	Polyester
Capacitance	2200 pF
Voltage Rating AC	140 VAC
Voltage Rating DC	200 VDC
Tolerance	10 %
Lead Spacing	9.5 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 85 C
Length	20.3 mm
Width	6.4 mm
Height	14 mm
Packaging	Bulk
Capacitance - nF	2.2 nF
Capacitance - uF	0.0022 uF
Diameter	-
Lead Diameter	0.8 mm
Lead Style	Inside Bend
Life	500 Hour
Factory Pack Quantity	100
Type	Orange Drop, Polyester Film/Foil Capacitors

Preview

Download Datasheet

View All

Type 225P, Orange Drop®, Polyester Film/Foil Capacitors

Features

• Radial-lead. Pressed profile.

• Non-inductively wound, extended

foil construction.

• Over 35 years o f proven dependability.

• Wide availability through CDE

Distribution.

Insulation Resistance:

At +25°C: 100,000 M for

.25 µF

25,000 M

-µF for C > .25 µF

At +85°C: 10,000 M

for C

.15 µF

1,500M

-µF for C >.15 µ

At+105°C: 1.500 M

for C

.17 µ

250 M

-µF for C > .17µF

At +125°C: 200 M

for C

.13 µ

25 M

-µF for C >.13 µF

Dissipation Factor:

0.75% Maximum @ 1 KHz, +25°C

Encapsulation:

Conformal coating of orange, flame

retardant epoxy. Meets UL94V-0

specifications.

Dielectric/Construction:

Polyester film, single section design.

Non-inductively wound with extended

aluminum foil.

Specifications

Capacitance Range:

.00 to 1.0 µF

Capacitance Tolerance:

±5%, ±10%, ±20%

Voltage Ratings:

100 to 600 Volts DC

Operating Temperature Range:

-55°C to +85°C (at full voltage)

Voltage Derating:

At +105°C, 70% of +85°C rating.

At +125°C, 50% of +85°C rating.

Lead Wire:

Tinned copper-clad steel,

.032 (0.8) diameter, #20 AWG

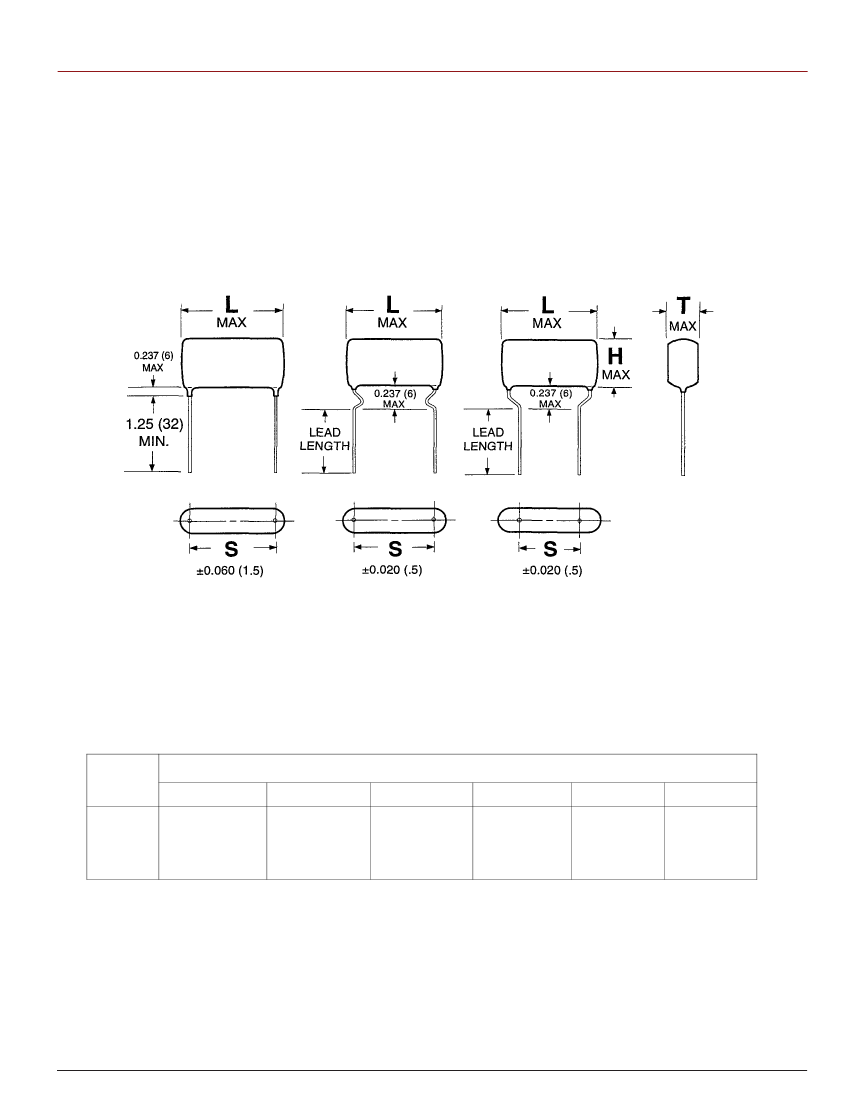

Dimensions in inches, metric (mm) in parenthesis.

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830
