55140-3L-03-D

Description
Industrial Hall Effect / Magnetic Sensors 3 Wire OL 500mm CONN
CategoryThe sensor    Sensor/transducer
File Size469KB,3 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Download Datasheet Parametric View All

55140-3L-03-D Online Shopping

Suppliers Part Number Price MOQ In stock
55140-3L-03-D - - View Buy Now

55140-3L-03-D Overview

Industrial Hall Effect / Magnetic Sensors 3 Wire OL 500mm CONN

55140-3L-03-D Parametric

Parameter NameAttribute value
package instructionFLNG,.5"H.SPACE
Reach Compliance Codeunknown
body width14 mm
body height6 mm
Body length or diameter23 mm
Installation featuresFLANGE MOUNT
Maximum working current5.2 mA
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Output circuit typeSINGLE-ENDED
Maximum output current20 mA
Output interface type3-WIRE INTERFACE
Output range20mA
Output typeDIGITAL VOLTAGE
Package body materialMETAL
Encapsulate equivalent codeFLNG,.5"H.SPACE
Package Shape/FormRECTANGULAR
power supply3.75/24 V
Sensor/Transducer TypeMAGNETIC FIELD SENSOR,HALL EFFECT
Maximum supply voltage24 V
Minimum supply voltage3.8 V
surface mountNO
technologyCMOS
Termination typeCABLE
Base Number Matches1
Hall Effect Sensors
Flange Mount > 55140

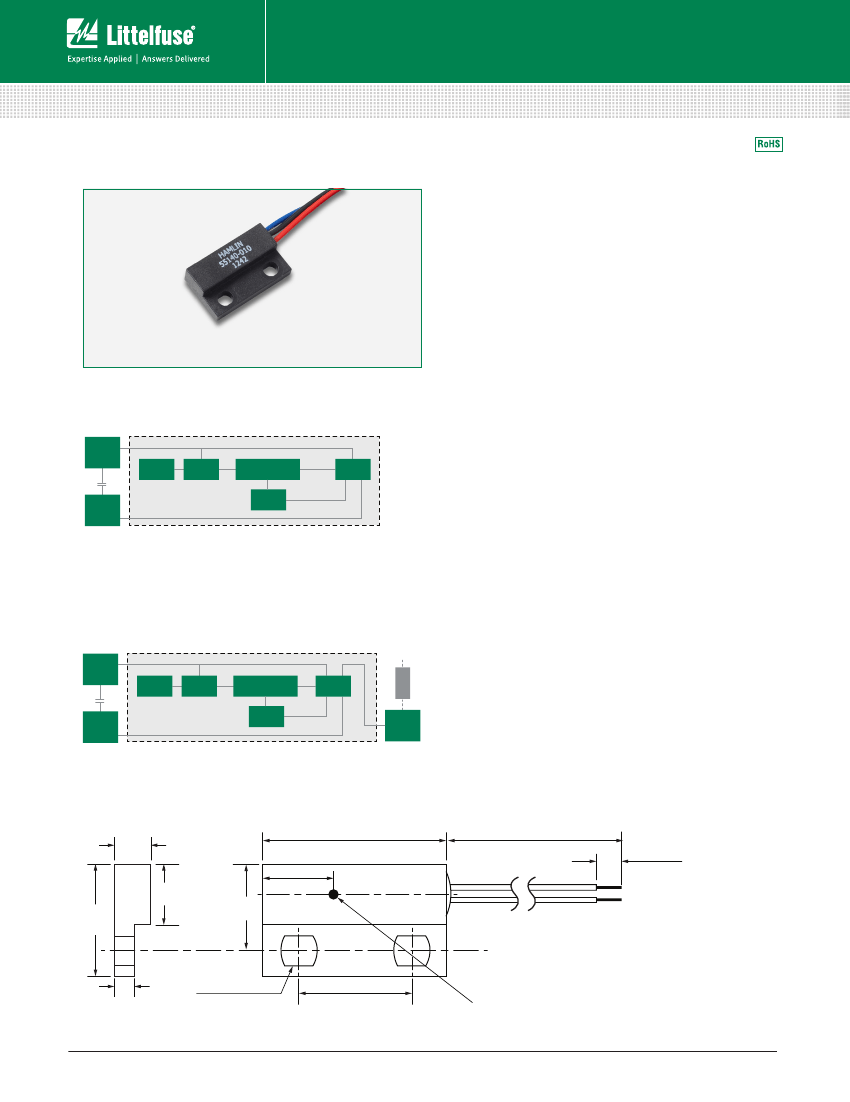

55140 Miniature Flange Mounting Sensor
Description
The 55140 is a small flange mounting hall effect sensor occupying only 3.22cm²
(0.500”² ) board space with a choice of digital, or programmable analogue
outputs. It is available as three-wire (voltage output) or two-wire (current output)
versions. It’s case design enables screw or adhesive mounting and capable of
switching up to 28Vdc and 20mA. It comes with a range of sensitivity, cable
length and connector options.
Features
• Magnetically operated position
sensor
• Digital,latching or programmable
analog types available
• Medium, high or programmable
sensitivities
• Three-wire (voltage output) or two-
wire (current output) versions
Comparator
Clock
Current
Source
Block Diagram
Two-wire Version
VDD
Pin 1
(Red)
Cn
GND
Pin 2
(Black)
Hall
Plate
• Vibration 50g max. @ 50-2,000Hz
• Shock 150g max. @ 11ms ½ Sine
• EMC to DIN 40839 (Consult
Littelfuse)
• Reverse/Over voltage protection
• Built in temperature compensation
• Open Drain Output
Switch
Benefits
• High switching speed up to 10kHz
• Long life; up to 20 billion operations
• Operates in static or dynamic
magnetic field
• Unaffected by harsh environment
• Customer selection of cable length
and connector type
Notes:
1. Add capacitor
Cn
as shown, close for the sensors for transient suppression if required.
2. Add pull-up resistor
Rpu
as shown for sinking output. The Rpu value should be calculated
using your supply voltage while keeping the ON state current at a level below the
maximum. Rpu = VDD/Io;
Rpu = 12Vdc/10mA = 1.2
Applications
• Position and limit sensing
• RPM measurement
• Commutation of brushless
DC motors
• Flow metering
• Angle sensing
• Magnetic encoders
Three-wire Version
VDD
Pin 1
(Red)
Cn
GND
Pin 2
(Black)
VDD
Hall
Plate
Switch
Comparator
Clock
Output
Rpu
OUT
Pin 3
(Blue)
Dimensions
Dimensions in mm (inch)
Two-wire version illustrated.
6.00
(.236)
7
.50
(.295)
14.00
(.551)
23.00
(.906)
Encapsulant excluded
9.50
(.374)
11.00
(.433)
300
(11.81)
6.35 NOM.
(.250)
3.00
(.118)
3.20x3.81 TYP
.
Slot (.12x.150)
14.00
(.551)
Centre of Sensitivity
General Tol.: ±(.005) 0.13
© 2017 Littelfuse
Revised: 02/16/17
Specifications are subject to change without notice.
littelfuse.com
