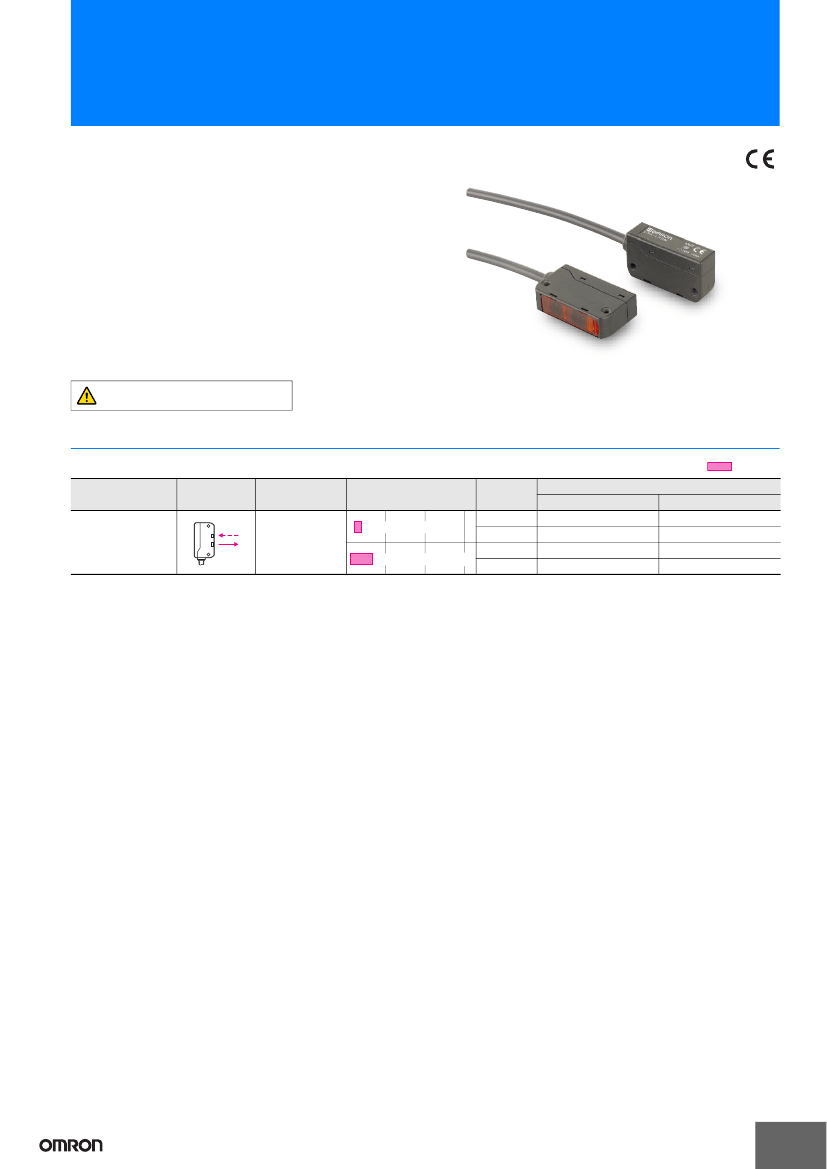

E3S-LS3@
Ratings and Specifications
Sensing method
Item
Sensing
distance
Model
White paper
*
Black paper
*
E3S-LS3N(T)/-LS3P(T)
20 to 35 mm
(installation distance from background: 60 mm min.)
20 to 30 mm
(installation distance from background: 60 mm min.)
Red LED (660 nm)
12 to 24 VDC±10%, ripple (p-p) 10% max.
25 mA max.
Load power supply voltage: 24 VDC max.,
Load current: 100 mA max., (Residual voltage: 1 V max. for NPN output or 2 V max. for PNP output)
Open collector output configuration: NPN or PNP output depending on the model,
Operating mode: Light-ON
Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention
Operate or reset: 1 ms max.
OFF-delay range: 0.1 to 1.0 s (adjustable)
Incandescent lamp: 5,000 lux max.
Operating:
−10
to 55°C (with no icing or condensation)
Storage:
−25
to 70°C (with no icing or condensation)
Operating: 35% to 85% (with no condensation)
Storage: 35% to 95% (with no condensation)
20 MΩ min. (at 500 VDC)
1,000 VAC at 50/60 Hz for 1 minute
Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Destruction: 500 m/s
2
, 3 times each in X, Y and Z directions
IEC 60529 IP40
Pre-wired (standard length: 2 m)
Approx. 80 g
ABS (Acrylonitril Butadiene Styrene)
Methacrylic resin
Instruction manual, M3 screws, Adjustment screwdriver (only models with timer function)
Convergent-reflective
E3S-LS3NW(T)/-LS3PW(T)
10 to 60 mm
(installation distance from background: 120 mm min.)
15 to 50 mm
(installation distance from background: 120 mm min.)
Light source (wavelength)
Power supply voltage
Current consumption
Control output
Protection circuits
Response time
Timer function
(only models with timer function)
Ambient illumination
(Receiver side)
Ambient temperature range
Ambient humidity range
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Connection method
Weight (packed state)
Material
Accessories
* For 80
×
80 mm.
Case
Lens
Engineering Data (Reference Value)

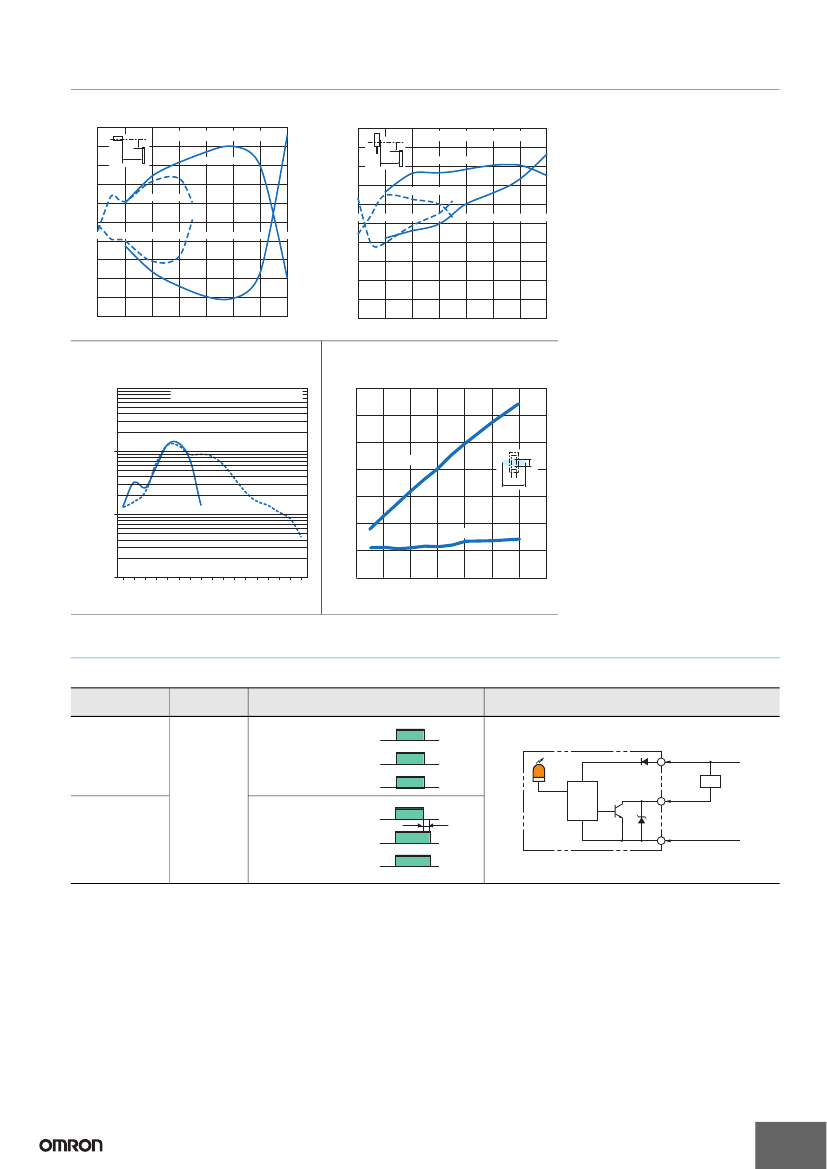

Sensing Distance vs. Materials
Sensing distance (mm)
80
E3S-LS3@(T)
70
E3S-LS3@W(T)
60
50
40
30
20
10
0
White
paper
Black
paper
Black
SUS PWB
with green PWB
resist
Materials
2
E3S-LS3@
PNP Output
Model
Operation
mode
Timing charts
Incident light
No incident light
Operation indicator ON
(orange)
OFF
Output transistor
ON
OFF
Output circuit
E3S-LS3P
E3S-LS3PW
Light-ON
E3S-LS3PT
E3S-LS3PWT
Operation
indicator
(orange)
Photo-
electric
Sensor
main
circuit
Brown
12 to 24
VDC
Black
OUT
Load
Incident light
No
incident light
Operation indicator ON
(orange)
OFF
ON
Output transistor
OFF
T: OFF-delay timer (0.1 to 1.0 s)
T
Blue
0
V
Safety Precautions
Refer to
Warranty and Limitations of Liability.
WARNING
This product is not designed or rated for ensuring
safety of persons either directly or indirectly.
Do not use it for such purposes.
Precautions for Correct Use
Do not use the product in atmospheres or environments that exceed
product ratings
Dimensions

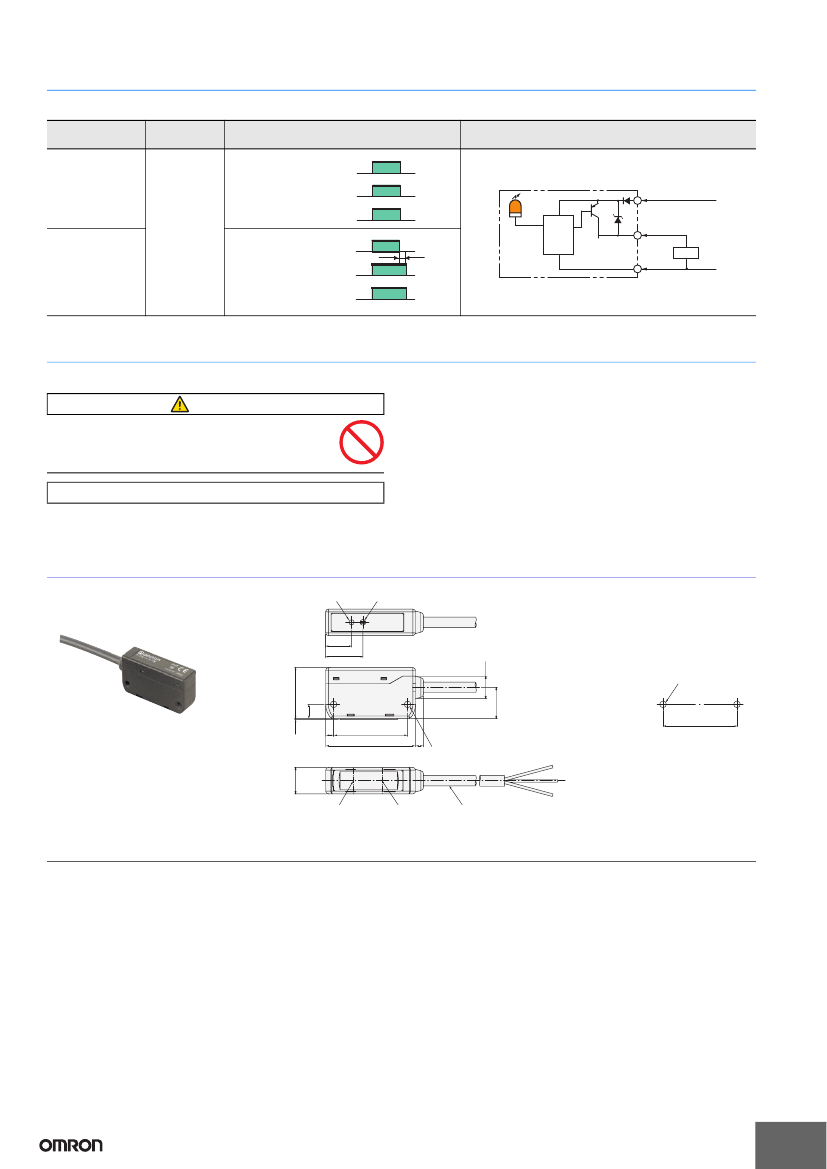

E3S-LS3N(T)/E3S-LS3P(T)
E3S-LS3NW(T)/E3S-LS3PW(T)
(Unit: mm)
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Operation Indicator (orange) Timer adjuster *
10
14.2
8.5
dia.
19.3
11.8
5.4
0.3
Mounting Holes
Two, 3.6 dia.
28
3
28
34
3
Two, M3 Mounting Holes
10
Receiver
Emitter
4-dia.vinyl-insulated round cable
with
3 conductors
(Conductor cross section: 0.2 mm
2
, Insulator diameter: 1.1 mm),
Standard length: 2 m
*
The timer adjuster is only for models
with
the timer function.
4
