NC4D-PL2-DC48V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> NC4D-PL2-DC48V

NC4D-PL2-DC48V: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.03A (COIL), 12VDC (COIL), 360mW (COIL), SOCKET MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size890KB，11 Pages; ManufacturerNais ( Matsushita Electric Works ); Websitehttp://www.nais-e.com/

Download Datasheet Parametric View All

NC4D-PL2-DC48V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NC4D-PL2-DC48V	-	-	View	Buy Now

NC4D-PL2-DC48V Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.03A (COIL), 12VDC (COIL), 360mW (COIL), SOCKET MOUNT

NC4D-PL2-DC48V Parametric

Parameter Name	Attribute value
Maximum operating temperature	70 Cel
Minimum operating temperature	-40 Cel
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Coil power	360 mW
Relay action	MOMENTARY
Relay function	DPDT
Coil resistance	400 ohm
Electrical life	100000 Cycle(s)
terminal coating	NOT SPECIFIED
Manufacturer Series	NC
Maximum DC coil current	0.0300 A
Maximum DC coil voltage	12 V
Maximum AC contact current	5 A
Maximum AC contact voltage	250 V
DC coil operating voltage	9.6 V
DC coil release voltage	1.2 V
width	11.2 mm
high	27.8 mm
length or diameter	25.4 mm
Installation features	SOCKET MOUNT
operating hours	20 ms
Relay type	POWER/SIGNAL RELAY
release time	10 ms
Terminal type	SNAP ON

Preview

Download Datasheet

View All

VDE

FLAT/VERTICAL TYPE

HIGH POWER BIFURCATED

CONTACT

38.1

1.500

NC-RELAYS

25.4

1.000

10.9

.429

25.4

1.000

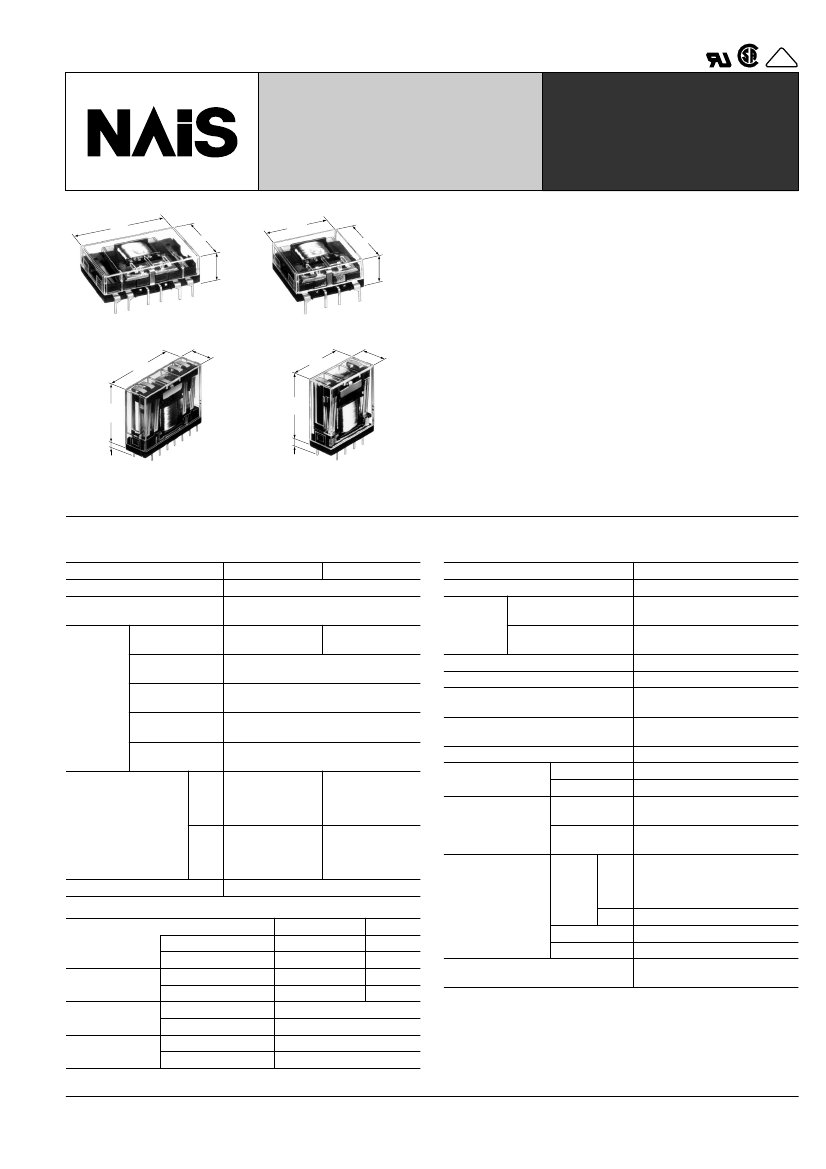

FEATURES

25.4

1.000

10.9

.429

4C Flat type

11.2

.441

38.1

1.500

2C Flat type

25.4

1.000

11.2

.441

• Space saver — Flat series and vertical series

• High contact reliability due to bifurcated contacts

— 2C: 5 A 250 V AC, 4C: 5 A 125 V AC, 4 A 250 V AC

• Latching types available

• Low operating power

— 2C: 200 mW, 4C: 400 mW (Single side stable)

• Soldering ﬂux inﬂow prevented by terminal location

• Amber sealed types available

• High breakdown voltage for transient protection

— 1,000 Vrms between open contacts, contact sets

27.8

1.094

4.1

.161

27.8

1.094

4.1

.161

4C Vertical type (PC board)

2C Vertical type (PC board)

inch

SPECIFICATIONS

Contacts

Types

Arrangement

Standard

Amber sealed

2 Form C, 4 Form C

Characteristics (at 25

50% Relative humidity)

Max. operating speed

Initial insulation resistance

Between open contacts,

Initial

contact sets

breakdown

Between contacts and

voltage*

coil

Operate time (at nominal voltage)

Release time (at nominal voltage)

Operate time (latching)

(at nominal voltage)

Reset time (latching)

(at nominal voltage)

Temperature rise (at nominal voltage)

Functional*

Shock resistance

Destructive*

Vibration

resistance

Functional*

Destructive

(Single

side

stable)

180 cpm

Min. 100 M

Ω

at 500 V DC

1,000 Vrms

2,000 Vrms

Approx. 6 ms

Approx. 3 ms

Approx. 6 ms

Max. 65

Min. 98 m/s

{10 G}

Min. 980 m/s

{100 G}

58.8 m/s

{6 G}, 10 to 55 Hz

at double amplitude of 1 mm

117.6 m/s

{12 G}, 10 to 55 Hz

at double amplitude of 2 mm

up to 48 V DC: –40

C to +70

–40

F to +158

110 V DC:

–40

C to +55

–40

F to +131

–40

C to +55

–40

F to +131

–40

C to +55

–40

F to +131

5 to 85% R.H.

2C/Approx. 16 g

.56 oz

4C/Approx. 18 g

.63 oz

Initial contact resistance, max.

50 m

Ω

(By voltage drop 6 V DC 1 A)

Max. switching

2C: 1,250 VA 150 W 2C: 750 VA 150 W

power

4C: 1,000 VA 150 W 4C: 500 VA 150 W

Max. switching

250 V AC

voltage

Rating

Max. switching

(resistive

current

load)

Max. switching

carrying current

Min. switching

100

A 1 V DC

power

5 A 250 V AC

3 A 250 V AC

5 A 30 V DC

Expected life

(minimum)

4 A 250 V AC

2 A 250 V AC

5 A 30 V DC

Contact material

Gold-clad silver nickel

Coil (Polarized) (at 25

Minimum

operating power

Nominal

operating power

Up to 48 V DC 110 V DC

2 C single side stable Approx. 200 mW 500 mW

4 C single side stable Approx. 400 mW 500 mW

2 C single side stable Approx. 360 mW 900 mW

4 C single side stable Approx. 720 mW 900 mW

Approx. 450 mW

Approx. 900 mW

Approx. 800 mW

Approx. 1,600 mW

Conditions for oper-

ation, transport and

storage*

(Not freezing and

condensing at low

temperature)

Unit weight

Remarks

(2 coil latching)

Humidity

Minimum set and 2 C 2 coil latching

reset power

4 C 2 coil latching

Nominal set and 2 C 2 coil latching

reset power

4 C 2 coil latching

* Speciﬁcations will vary with foreign standards certiﬁcation ratings.

Detection current: 10 mA

Half-wave pulse of sine wave: 11ms; detection time: 10

Half-wave pulse of sine wave: 6ms

Detection time: 10

Refer to 5. Conditions for operation, transport and storage mentioned in

AMBIENT ENVIRONMENT (Page 61).

223
