Rotary Precision Position Sensor
Single Turn, Compact, Sealed, Extended Life

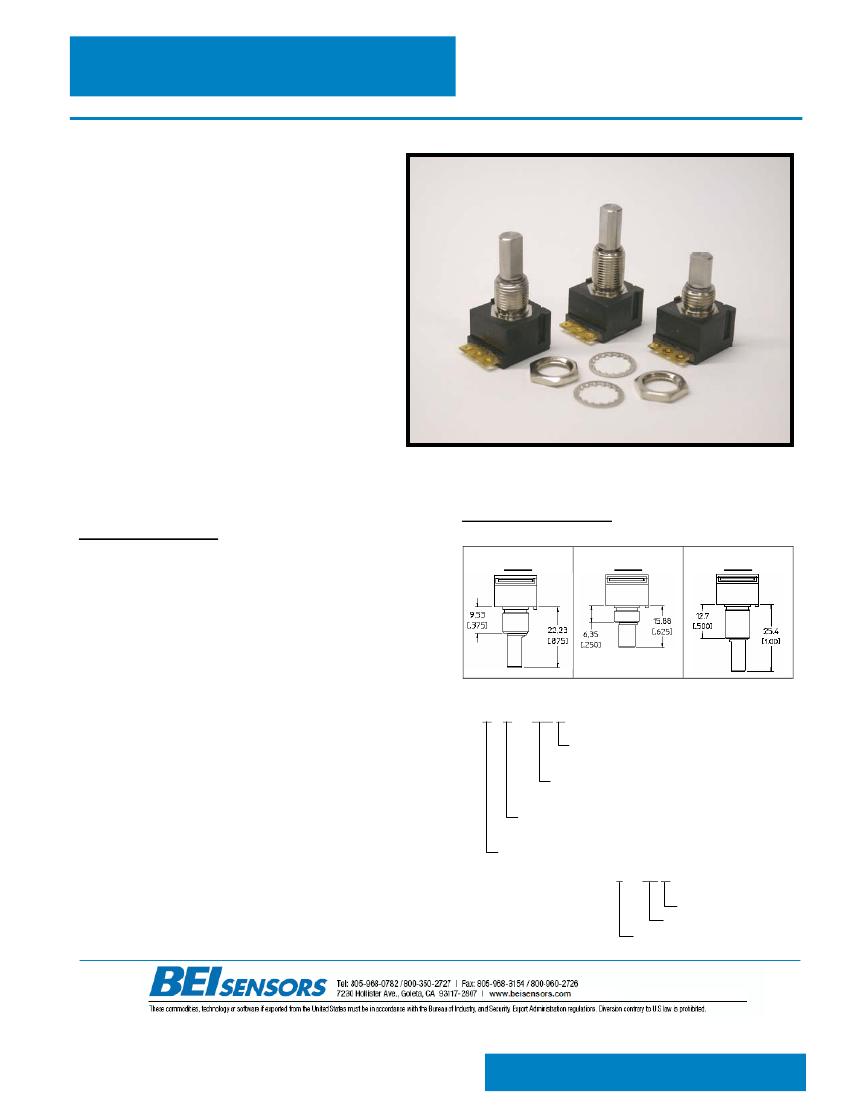

The BEI
5320 Series offers a highly reliable
rotary potentiometer sensor that can be easily integrated
or re-packaged into a wide variety of existing and new
applications. The new 5320 Series is ideally suited for
tight packaging constraints while providing superior
durability, long service life and repeatable accuracy.
The sensor is fully sealed and impervious to
contamination and moisture. A wide variety of standard
and non-standard options are available including detent
functions, electrical/mechanical angles, shaft/bushing
sizes, lengths and configurations, resistance values, etc.
The 5320 Series standard termination offers gold plated
through holes for direct soldering. Options are also
available for custom termination methods by contacting
Sales. The 5320 series sensors offer all of the
advantages of a cost effective, traditional potentiometer
while providing a rugged, compact, low-profile design to
survive the harshest conditions.
5320
Series
Panel Pot
Ordering Information:
5320 Series Features:
Extended Operating Life
1 million plus operational cycles
Fully Sealed Construction
Meets or exceeds IP66/IP67 standards
Extended Temperature Range
Operating: -40º to +125ºC
Storage: -55º to +150ºC
High Quality, Rugged Construction
Stainless Steel Shaft, Nickel Plated Brass Bushing
See Reverse for Additional Environmental Specifications
Wide Range of Configurations (see ordering info)
Shaft and Bushing Lengths
Linearity (accuracy) Tolerance Limits
With or Without Detent Function
Total Resistance
Dimensions are shown in millimeters [inches reference]
532X RXK LX.X X
Detent:
Blank = None, D = Included
Independent Linearity:
Standard = +/-2.0%
Total Resistance:
Standard = 1K, 5K or 10K
Basic Configuration Model (identified above)
Basic Configurations: Shaft & Bushing Lengths
5321
5322
5323
Custom Options Available (contact Duncan Sales)
STANDARD PART: 5321 R5K L2.0
No Detent Function
Standard +/-2.0% Linearity
5K Total Resistance
170 Technology Drive
Irvine, CA 92618-2401
(949) 341-9500 Fax: (949) 453-2700
email: sales@beiduncan.com
ISO 9001 : 2000 Registered
Rotary Precision Position Sensor
5320 Series Panel Pot
Standard Sensor as Example

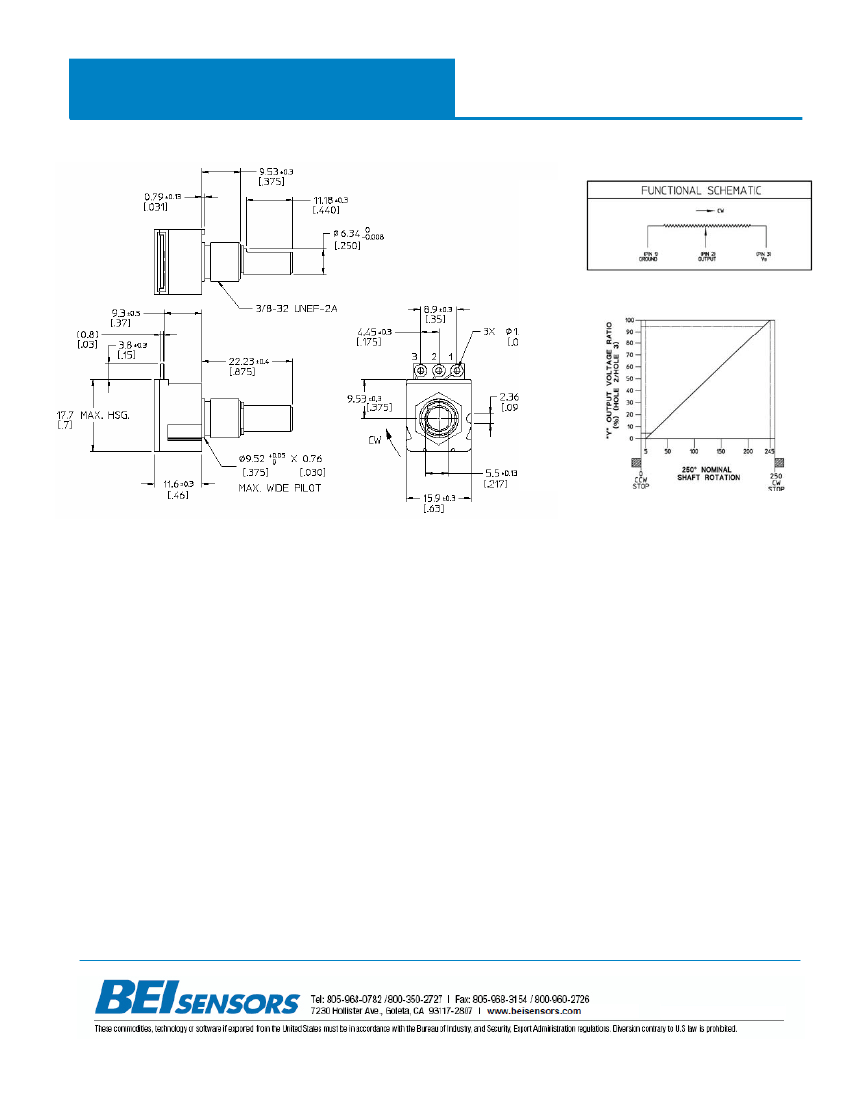

Dimensions are shown in millimeters [inches reference]
SHAFT FLAT SHOWN IN THE
FULLY CCW POSITION
Dual O
utput Hall Ef
9900 S
Mechanical Specifications
Total Travel (stop to stop):
Stop Strength:
Shaft Pull Out Strength:
Shaft Operating Torque:
Shaft Starting Torque:
Cycle Life:
Detent Life:
Detent Torque:
Detent Release Position:
250 degrees
1350 Nmm (190 in-oz)
200N (45lbs)
5-25 Nmm (0.7-3.5 in-oz)
35 Nmm (5 in-oz) Max.
1 Million cycles
10,000 cycles
35-120 Nmm (5-17 in-oz)
20 degrees Max.
Electrical Specifications
Electrical Travel:
Active Electrical Travel:
PowerRating at 70C:
Resistance Tolerance:
Linearity, Independent:
RGV:
(Output Smoothness):
240 degrees
216 degrees (5%-95%)
0.25W (derating to 0 at 125C
±20%
±2%
(Active)
100% Max.
(0.2%) Max.
Environmental Specifications
Moisure & Dust Resistant:
Vibration:
Shock:
Temperature:
Salt Spray:
Resistance to Solder Heat:
Sealed, IP66/IP67
15g, 10 to 2000 Hz
30g
-40°C to +125ºC operating
-55º to +150ºC storage
96 hours
350ºC (660ºF) for 5 sec.
(at termination points)
Materials
Shaft:
Bushing:
Housing (Package):
PCB:
Stainless Steel
Nickel Plated Brass
Nylon 6 (Akulon)
4101/21 (FR-4)
Specifications subject to change without notice. BE2023
ISO 9001 : 2000 Registered
ISO 9001 : 2000 Registered
