3L05-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> 3L05-1

3L05-1: DescriptionThermostats 135-175F 40F Diff. SPST Open on Rise; CategoryThe sensor; File Size261KB，1 Pages; ManufacturerWhite-Rodgers (Emerson)

Download Datasheet Parametric Compare View All

3L05-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3L05-1	-	-	View	Buy Now

3L05-1 Overview

Thermostats 135-175F 40F Diff. SPST Open on Rise

3L05-1 Parametric

Parameter Name	Attribute value
Product Category	Thermostats
Manufacturer	White-Rodgers (Emerson)
RoHS	Details
Function	Open on Rise
Temperature Range	+ 57 C
Current Rating	10 A, 14 A, 60 A, 72 A
Voltage Rating	120 VAC, 240 VAC
Product	Adjustable Snap Disc Control Thermostats
Factory Pack Quantity	1

Preview

Download Datasheet

View All

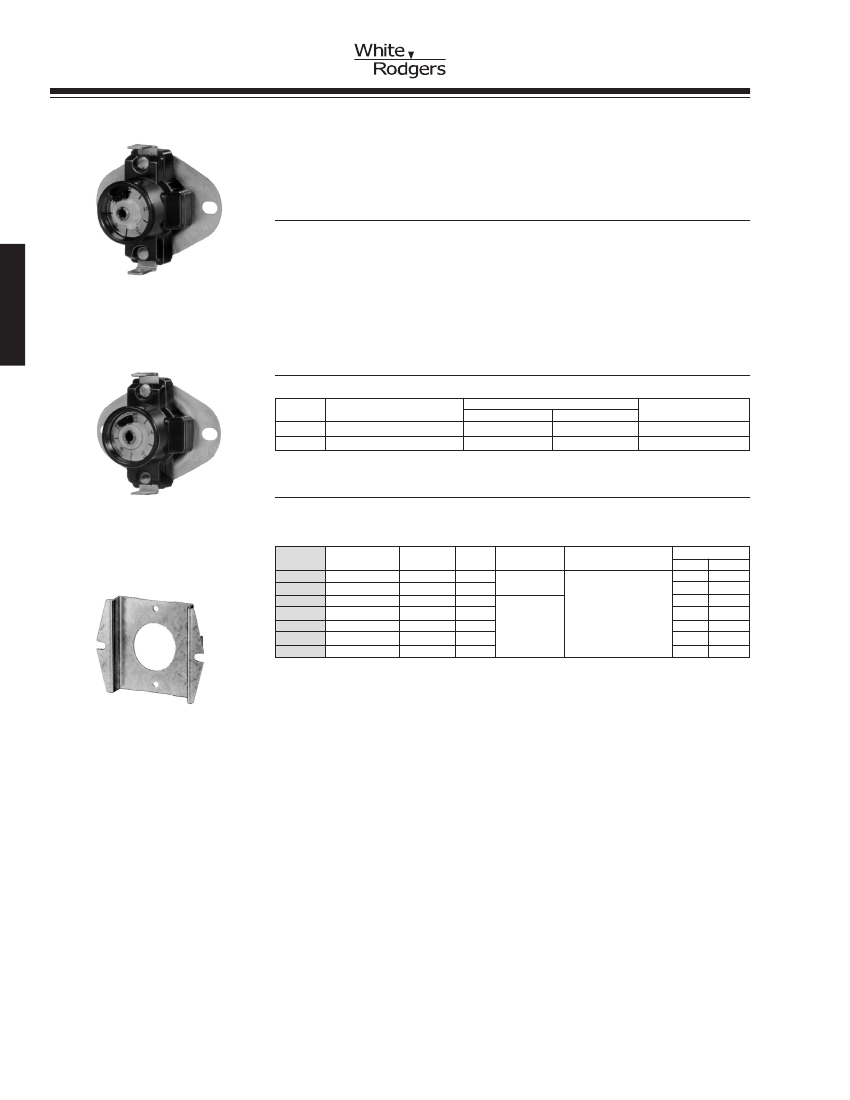

SNAP DISC

CONTROLS

ADJUSTABLE SNAP DISC FAN & LIMIT CONTROLS

Adjustable Snap Disc Thermostat Allows You to Set the Temperature

Set Point to Match Your Specific Needs Which Simplifies Inventory

FEATURES

• ¼” quick connect terminals are standard.

• Reduces inventory while providing coverage for a wide range of temperature

applications.

• Replaces the majority of fixed disc thermostats now on heating equipment and

various appliances.

• 2 adjustable fan control models replace 7 fixed snap disc models.

• 5 adjustable limit control models replace 10 fixed snap disc models.

FURNACE

3F05-1

SPECIFICATIONS

ELECTRICAL RATINGS

VAC

120

240

Resistive

(Non-Inductive)

25.0A

Motor Rating (Inductive)

Full Load

Locked Rotor

4.0A

0.0A

72.0A

60.0A

Pilot Duty

25 VA

PARTS AND ACCESSORIES

3L05-1

• F6-798 Adapter plates (Order separately) — per pack

Model

Number

3F05-1

3F05-2

3L05-1

3L05-2

3L05-3

3L05-10

3L05-13

Temperature

Range

90 to 30°F

40 to 80°F

35 to 75°F

75 to 25°F

20 to 250°F

35 to 75°F

250 to 290°F

Switch

Action

Function

SPST

Fan Controls

SPST (Close on Rise)

SPST Limit Controls

SPST (Open on Rise)

SPST

Therm-O-Disc

Style Type

74T2 30708

74T2 30709

74T 3070

74T 307

74T 3072

74T 30724

74T 30730

Differential

20°F

40°F

20°F

40°F

Accessories

Includes thermostat

and tab-to-screw

terminals.

F6-1798 (1 per pack)

www.white-rodgers.com

3L05-1 Related Products

	3L05-1	3L05-2	3L05-10	3L05-13
Description	Thermostats 135-175F 40F Diff. SPST Open on Rise		Thermostats 135-175F 20F Diff. SPST Open on Rise	Thermostats 250-290F 40F Diff. SPST Open on Rise
Product Category	Thermostats	Thermostats	Thermostats	Thermostats
Manufacturer	White-Rodgers (Emerson)	White-Rodgers (Emerson)	White-Rodgers (Emerson)	White-Rodgers (Emerson)
RoHS	Details	Details	Details	Details
Function	Open on Rise	Open on Rise	Open on Rise	Open on Rise
Temperature Range	+ 57 C	+ 79 C	+ 57 C	+ 121 C
Current Rating	10 A, 14 A, 60 A, 72 A	10 A, 14 A, 60 A, 72 A	10 A, 14 A, 60 A, 72 A	10 A, 14 A, 60 A, 72 A
Voltage Rating	120 VAC, 240 VAC	120 VAC, 240 VAC	120 VAC, 240 VAC	120 VAC, 240 VAC
Product	Adjustable Snap Disc Control Thermostats	Adjustable Snap Disc Control Thermostats	Adjustable Snap Disc Control Thermostats	Adjustable Snap Disc Control Thermostats
Factory Pack Quantity	1	1	1	1
