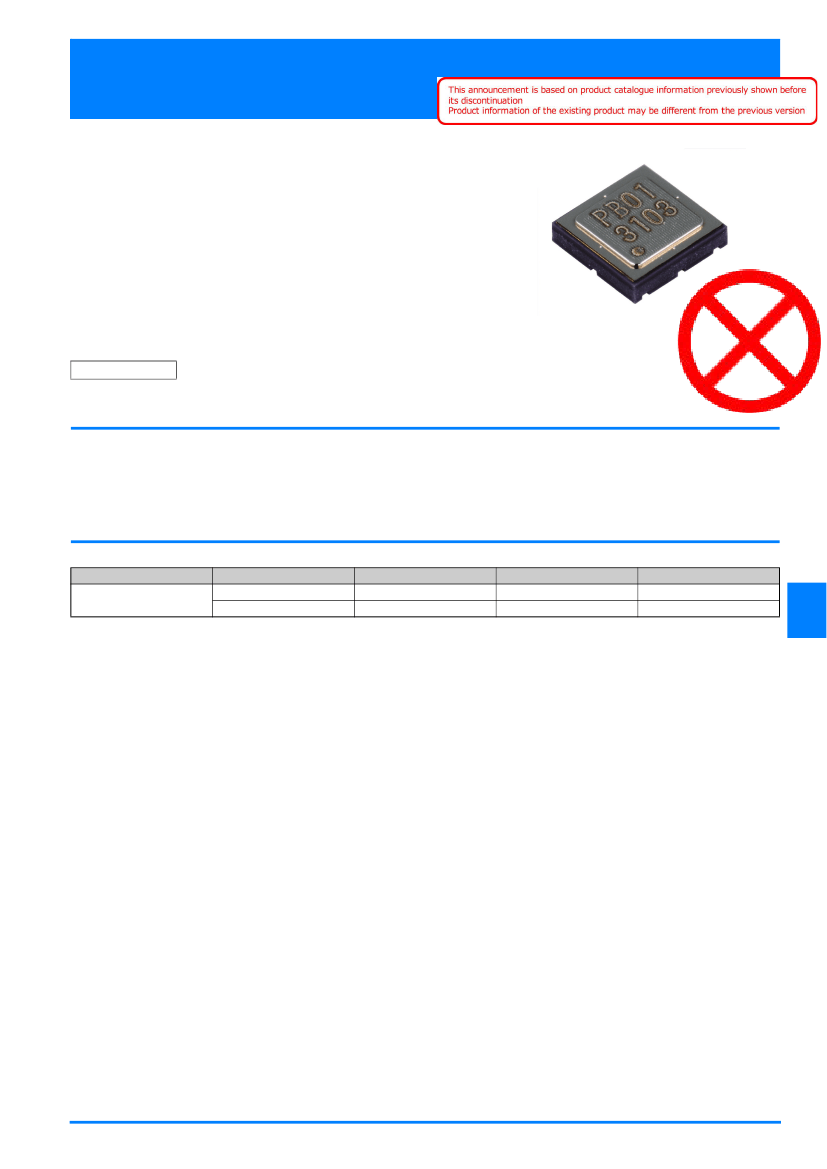

2SMPB-01-01
Absolute Pressure Sensor
High accuracy and small size absolute
pressure sensor with low current con-
sumption
• Measure absolute pressure and temperature with high accuracy.
• Built in low noise 24 bits ADC.
• Digital control and output via I2C interface
• Automatically power down non working circuit to minimize current
consumption
• Individual calibration parameters stored in OTP *.
* One Time Programmable Non Volatile Memory
RoHS compliant
Application Example
• Smart Phone
• Activity monitor
• Wearable device
Ordering Information
■
Standard Models with Surface Mounting Terminals
Structure
8-pin QFN
Packaging
Tape and Reel
Embossed Carrier Tape
Model
2SMPB-01-01-TR
2SMPB-01-01
10
Minimum Order Quantity
1,000
10
Minimum Packing Unit
1,000
1
2SMPB-01-01
2SMPB-01-01
Ratings, Specifications, and Function
■
Use conditions and recommended operating conditions
Type of Pressure
Medium
Operating Pressure Range
* Never use corrosive gases.
Absolute pressure
Air *
30 kPa to 110 kPa
Absolute Pressure Sensor
■
Absolute Maximum Ratings
Item
Power Supply Voltage
Input Voltage (other than power)
Maximum Pressure
Storage Temperature
Storage Humidity
Vddmax
Vmax
Pmax
Tstr
Hstr
Symbol
4.0
-0.2 to Vopr+0.2
160
-40 to 85
10 to 95
Rating
V
V
kPa
°C
%RH
with no condensation or icing
with no condensation
Unit
Remark
■
Operating Ratings
Item
Operating Voltage
Operating Temperature
Vopr
Vddio
Topr
Symbol
2.25
1.62
-40
Min.
2.5
2.5
-
Typ.
3.6
3.6
85
Max.
V
V
°C
Unit
VDD
VDDIO
Remark
■
Electrical Characteristics
(At Ta = 25°C, VDD = 2.5 V, unless otherwise noted)
Item
Average Current *
Current Consumption
Sleep Mode Current Consumption
Measureable Pressure Range
Absolute Pressure Accuracy *
Relative Pressure Accuracy *
rms Noise *
Absolute Temperature Accuracy
Pressure Resolution *
Temperature Resolution *
Discharge time of VDD *
Ihp
Idd
Isleep
Popr
Pabs1
Prel1
Pnois
Tabs
Pres
Tres
Toff
Name
-
-
-
30
-750
-
-
-2
-
-
-
Min.
9
500
0.3
-
-
6
2
-
0.06
0.0002
60
Typ.
-
610
0.6
110
750
-
-
2
-
-
-
Max.
µA
µA
µA
kPa
Pa
Pa
Pa
°C
Pa
°C
sec
High accuracy mode
High accuracy mode
Time@ VDD From 2.5 V to 0.01 V
70 k to 110 kPa High accuracy mode
70 k to 110 kPa High accuracy mode
70 k to 110 kPa High accuracy mode
Unit
Remarks
1 sample/s High accuracy mode
2SMPB-01-01
* These characteristics are guaranteed by design.
Note: Above table shows the characteristics without mounting board.
Please confirm performance of this sensors in your application and use your own judgment to determine the appropriateness of using them in such application.
2
2SMPB-01-01
■
I2C Characteristics
(At Ta = 25°C, VDD = 2.5 V, unless otherwise noted)
Item
SCLK Clock Frequency
Digital Input L (I2C)
Digital Input H (I2C)
Digital Output L (I2C)
Pull-up Resister
Capacitive Load
Power On Start Up Time
Pulse Width of Asynchronous Reset
fscl
Vil2
Vih2
Vol2
Rpullup
Cb
tstart
trar
Name
-
-0.2
VDD×0.8
0
2.2
-
-
-
100
Standard Mode
MIN.
100
VDD×0.2
VDD+0.2
0.4
10
400
0.8
2
-
MAX.
-
-0.2
VDD×0.8
0
2.2
-
-
-
100
MIN.
Absolute Pressure Sensor
Fast Mode
MAX.
400
VDD×0.2
VDD+0.2
0.4
10
400
0.8
2
-
kHz
V
V
V
kΩ
pF
msec
msec
µsec
Unit
Remark
Power On Supply Startup Waiting Time Tpor
Power On Reset
2.4
V
VDD
0.1
V
Tpor
Note 1: When the power is turned on, please activate power on reset.
For more information, please refer to the section of “Power on Reset” (p. 8).
Note 2: About detailed I2C bus information, please refer to the I2C-bus specification and user manual presented by NXP.
■
Characteristics by Power Mode
Mode *1
Low power mode
Standard mode
High accuracy mode
*1.
*2.
7
9
17
Waiting Time [msec] *2
Average Current @1 sample/s [µA] *2
4
5
9
6
3
2
rms Noise [Pa] *2
Please see “I2C_SREQ: Sensor Request Register” (p. 13) for setting up power mode.
Please see “Execute timing chart” (p. 6) for meaning of waiting time. These characteristics are guaranteed by design.
3
2SMPB-01-01
2SMPB-01-01

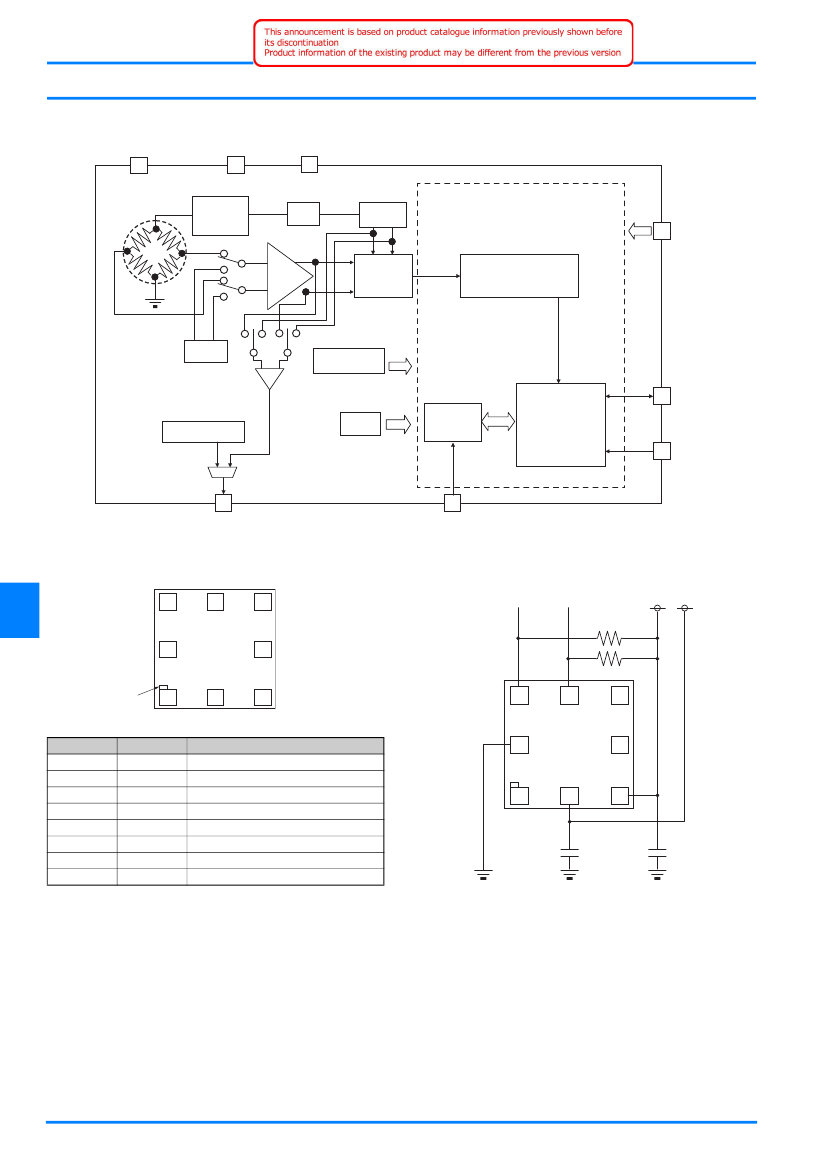

Connection
■
Block Diagram
VDDIO
3
VDD
2
GND
8
Absolute Pressure Sensor
Logic Block
Vsensor
Voltage
Supply
BG
VREF
5 RST
+
-
ΔΣ
ADC
DIGITAL FILTER
PTAT
CLK Gen.
7 SDA
POR
N.V.
Memory
I2C
(100 kHz
/400 kHz)
6 SCL
Vsensor, Vcm
4
TESTA
1
VPP
■
Pin Description and Layout (Top view)
7
2SMPB-01-01
■
Typical Connection
I2C Interface
4.7 kΩ
VDDIO VDD
6
5
8
4
4.7 kΩ
1 pin Mark
1
2
3
7
6
N.C.
5
Pin No.
1
2
3
4
5
6
7
8
Symbol
VPP
VDD
VDDIO
TESTA
RST
SCL
SDA
GND
Power
Description
OTP write enable *
8
N.C.
N.C.
4
Digital I/O Power
Analog out for test *
Asynchronous reset
I2C clock
I2C data
Ground
1
2
3
1
µF
1
µF
* These pins are for test purpose only.
Please leave open (Non-connect) while operating.
4
2SMPB-01-01

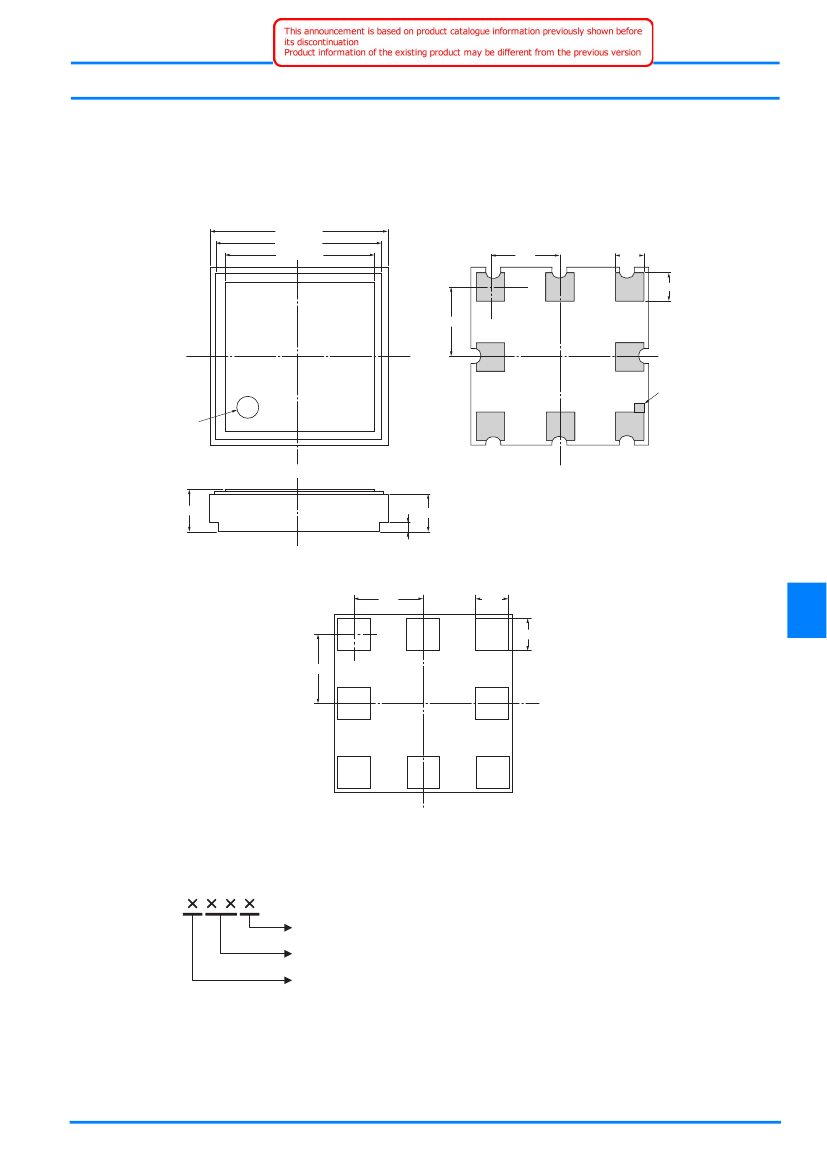

Dimensions
(Unit: mm)
■
Package
Package Type: QFN (Quad Flat No-lead package) 8 pin
Package Size: 3.8 mm × 3.8 mm × 1.0 mm (max.)
Absolute Pressure Sensor
■
Outline Dimension
Top view
@3.80
±0.10
@3.60
±0.10
@2.90
±0.10
Bottom view
1.50
0.60
0.60
1.50
1 pin
index
1 pin
Front view
0.92
±0.08
0.72
±0.08
Terminal surface material : Gold Plate
0.20
±0.05
■
Mounting PAD Dimensions (Top View) : recommended
1.50
0.70
0.70
1.50
PCB Land Pad
■
Marking structure
P B 0 1
(Type : Fixed)
Sequence number (from 0 to 9, from A to Z (without O, Q, I))
Week
of manufacture (from 01 to 5*)
Year of manufacture (One digit at the end of the year)
5
