30-INCH-G-4V-PRIME Overview

Board Mount Pressure Sensors Gauge Amplified A Package

30-INCH-G-4V-PRIME Parametric

Parameter NameAttribute value
Product CategoryBoard Mount Pressure Sensors
ManufacturerAll Sensors
RoHSDetails
Pressure TypeGauge
Output TypeAnalog
Package / CaseA Package
Factory Pack Quantity10
Signed Original On File
w.allsensors.com
Signed Original On F

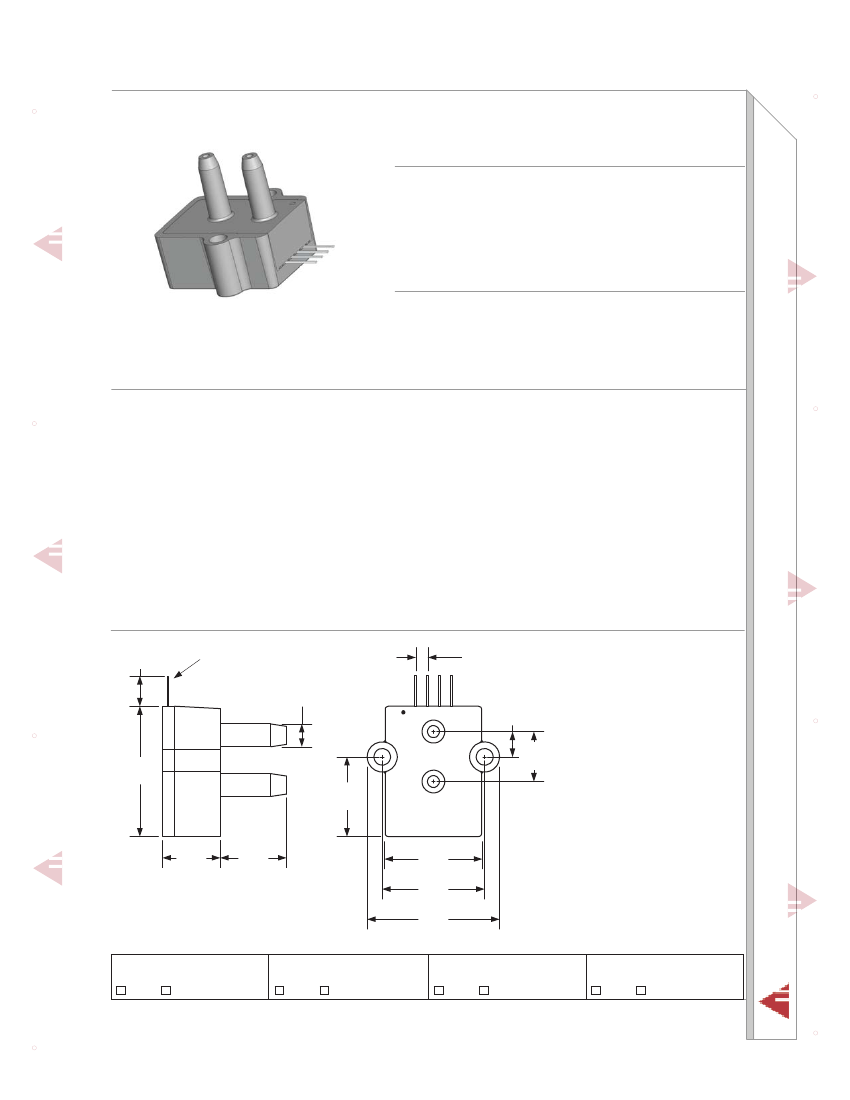

Amplified Low Pressure Sensors
1 mbar (0.4 In H2O) to 30 In H2O Pressure Sensors
R
www.allsensors.com
Industrial Temperature Grade
Features
• 0 to 1 mbar to 0 to 30 In H2O Pressure Ranges
• Ratiometric 4V Output
• Temperature Compensated (-25C to 85C)
• Calibrated Zero and Span
R
Applications
www.allsensors.com
Signed Original On File
Signed Original On File
• Medical Instrumentation
General Description
The Amplified line of low pressure sensors is based upon a proprietary technology to reduce all output offset or common mode er-
rors. This model provides a ratiometric 4-volt output with superior output offset characteristics. Output offset errors due to change
all sensors
f
408 225 2079
e
www.allsensors.com
p
408 225 4314
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
• Environmental Controls
• HVAC
R
www.allsensors.com
R
in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when
compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration
enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This
series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.
www.allsensors.com
Signed Original On File
Physical Dimensions
0.25
(6.4)
Pin Size
0.010 x 0.020
(0.25 x 0.50)
0.174 to 0.190
(4.4 to 4.8)
Pin 1 2 3 4
1
0.21
(5.3)
A
1.08
(27.4)
0.66
(16.0)
B
0.42
(10.5)
0.10 Typical
(2.54)
Signed Original On File
pin 1: Vsupply
pin 2: Common
pin 3: Voutput
pin 4: do not connect
R
www.allsensors.com
R
0.48
(12.2)
0.55
(14.0)
0.80
(20.3)
0.85
(21.6)
1.10
(27.9)
NOTES:
1) Dimensions in inches (millimeters)
www.allsensors.com
Original On File
Signed Original O
Approvals
MKT
DATE
MFG
DATE
ENG
DATE
QA
DATE
As Is
With Change
As Is
With Change
As Is
With Change
As Is
With Change
All Sensors
DS-0025 Rev B
R
ors.com
R
