C3RWT1072: DescriptionElectrical Enclosures; CategoryTopical application Mechanical and electrical/engineering/automation; File Size128KB，2 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric View All

C3RWT1072 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C3RWT1072	-	-	View	Buy Now

C3RWT1072 Overview

Electrical Enclosures

C3RWT1072 Parametric

Parameter Name	Attribute value
Product Category	Electrical Enclosures
Manufacturer	Hammond
Product	Wiring Troughs
Type	NEMA Enclosure
Material	Galvanized Steel
Factory Pack Quantity	1
Unit Weight	75.001 lbs

Preview

Download Datasheet

View All

11/19/2017

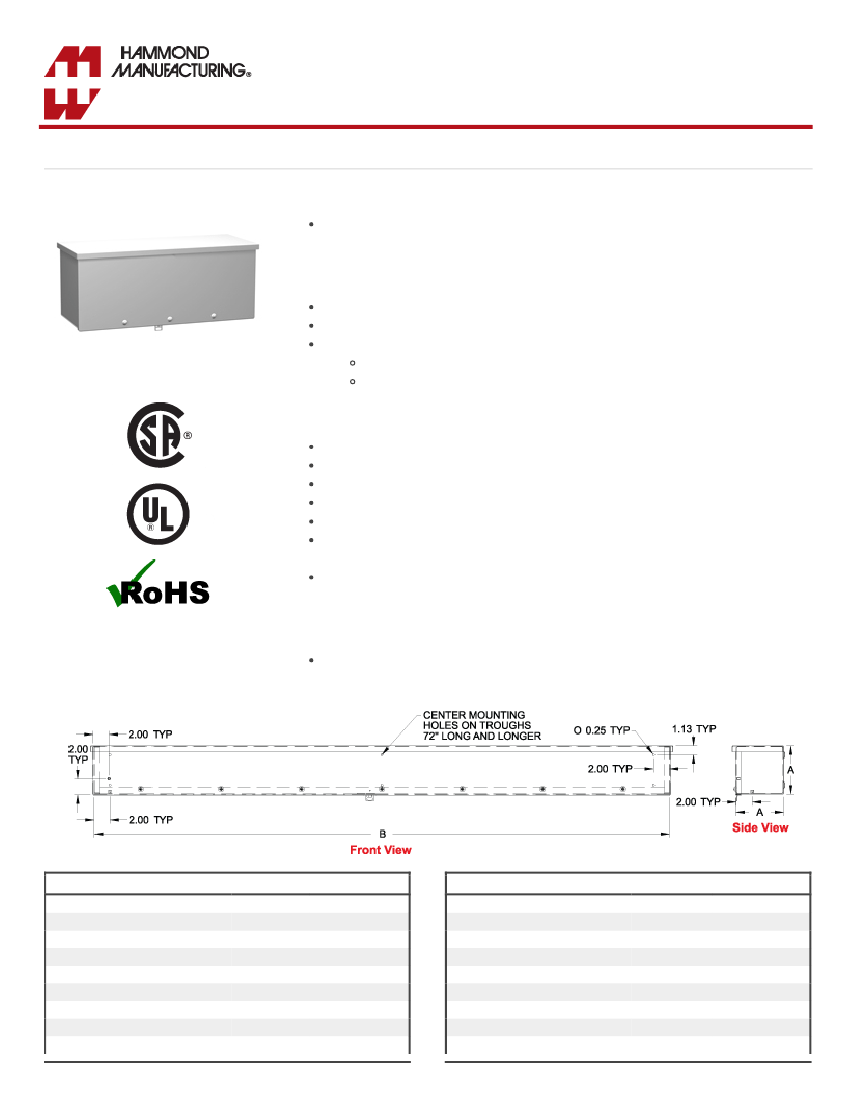

Type 3R Wiring Trough (C3RWT Series) - Hammond Mfg.

Quality Products. Service Excellence.

Type 3R Wiring Trough

C3RWT Series

Application

Designed for use to protect multiple wiring junctions in outdoor environments against the

ingress of rain, sleet, snow and the external formation of ice.

Standards

UL870 Type 3R

CSA Type 3R

Complies with

NEMA Type 3R

IEC 60529, IP24

Construction

Formed and spot welded from 14 or 16 gauge galvanized steel

Drip shield top design protects the enclosure against rain, snow or sleet

Embossed mounting holes on back of enclosure

Slip on removable front cover is secured with screws

Padlocking hasp

To fully comply with UL870 - 2008 requirements a bonding stud is provided on the cover

and a ground stud is provided in the enclosure

A #10 AWG - 12" grounding strap with crimped on ring terminals is also provided to

comply with UL requirements

Finish

Enclosure and cover are finished in ANSI 61 gray powder coating.

Part No.

C3RWT412

C3RWT418

C3RWT424

C3RWT436

C3RWT448

C3RWT460

C3RWT472

C3RWT612

C3RWT618

A

4.00

6.00

B

12.00

18.00

24.00

36.00

48.00

60.00

72.00

12.00

18.00

Part No.

C3RWT872

C3RWT896

C3RWT8116

C3RWT1024

C3RWT1036

C3RWT1048

C3RWT1060

C3RWT1072

C3RWT1096

A

8.00

10.00

B

72.00

96.00

116.00

24.00

36.00

48.00

60.00

72.00

96.00

https://www.hammfg.com/electrical/products/wireway/c3rwt

1/2
