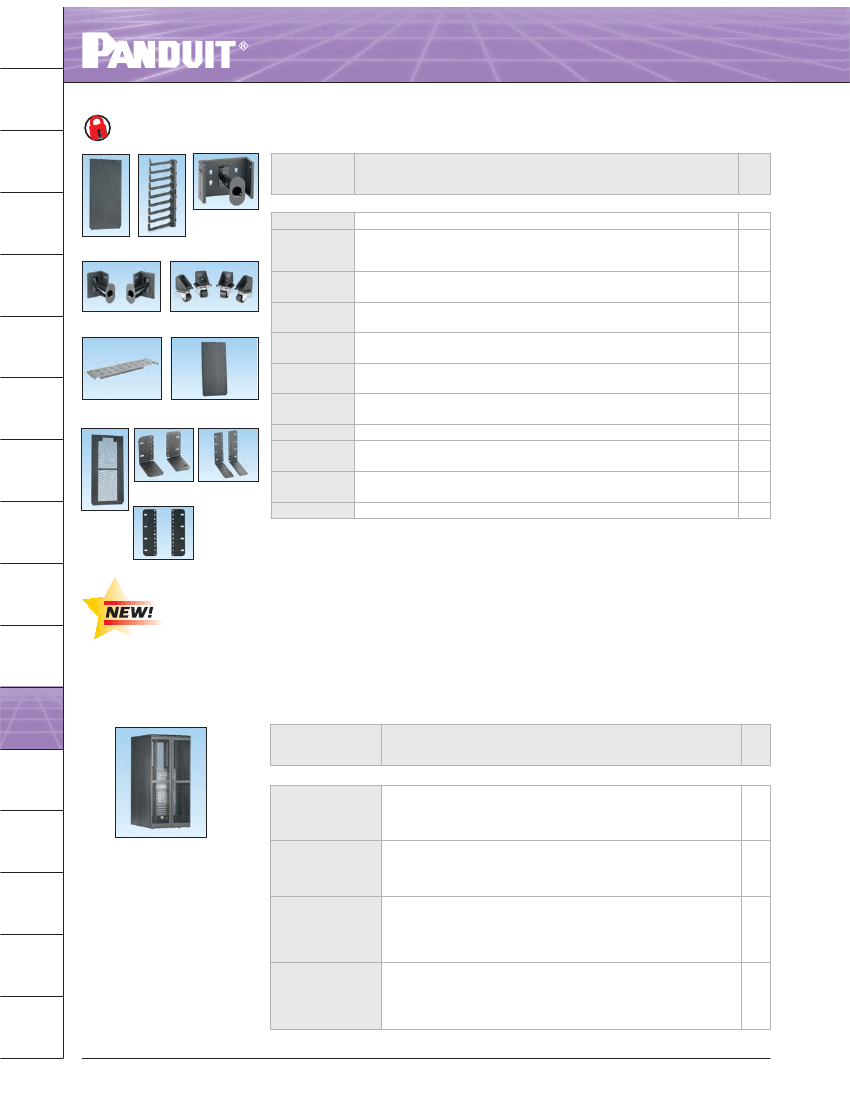

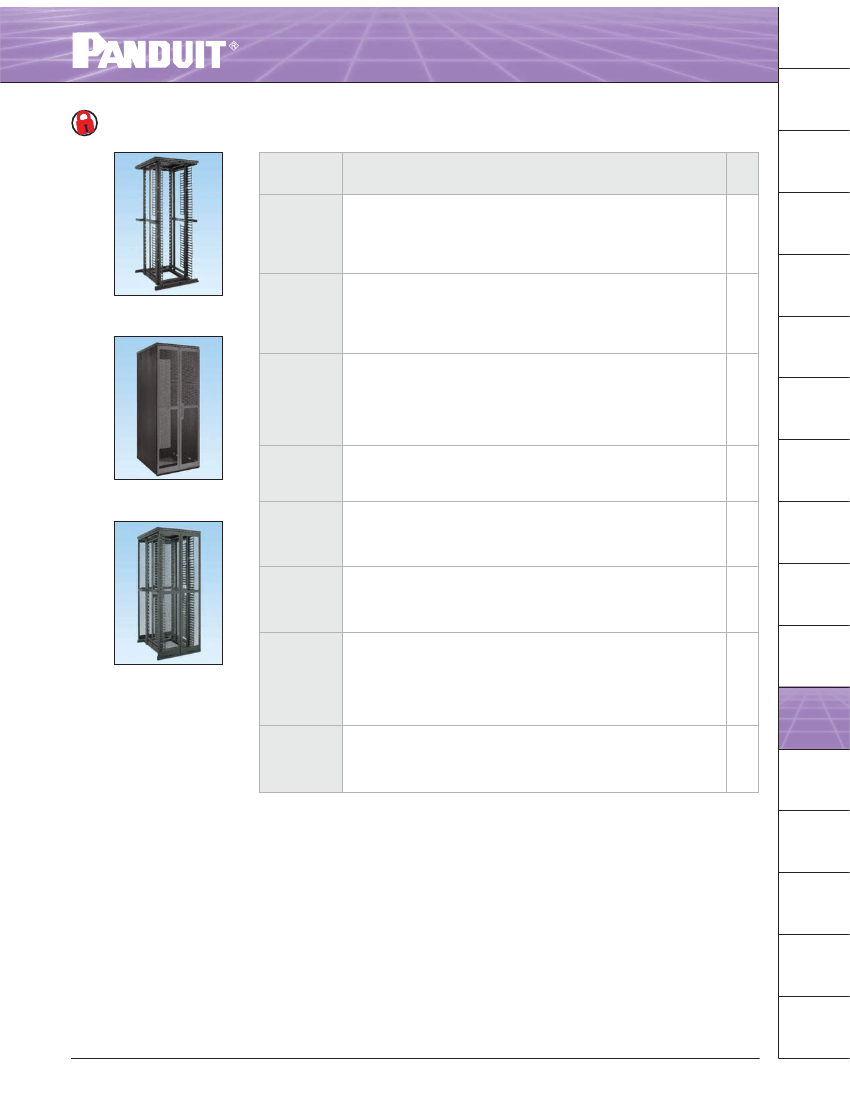

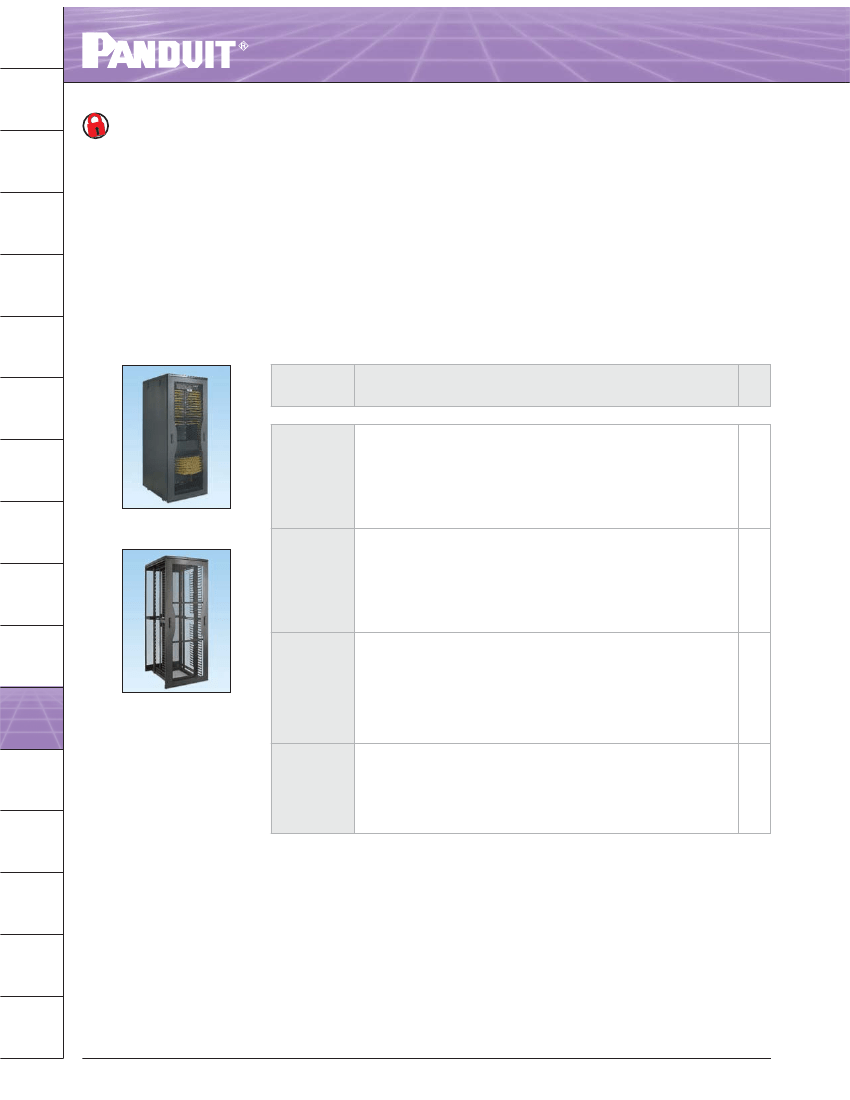

PHYSICAL INFRASTRUCTURE SYSTEMS
Net-Access
™
Switch Cabinets
• Inset frame posts create large and accessible vertical
pathways for routing cables
• Modular cable management fingers easily mount to the
front and/or back of all four cabinet posts
• Designed with the use of CFD (computational fluid
dynamics) analysis and thermal lab testing to optimize the
thermal performance of network switches requiring
side-to-side airflow
• Accommodate equipment mounting depths up
to 25.9" (658mm)
• Innovative, fully integrated, electrically bonded cabinet
with a single ground connection to guard against EMI
and ESD, and provide a safe current path to ground
• Four adjustable equipment mounting rails – available
in cage nut or #12-24 threaded with printed rack
space identification
• Equipment rails have printed rack space numbering that
can be oriented numbers up or down
• Durable black polyester epoxy powder coat finish
• 2,500 lbs. (1134 kg) load rating
• Cabinet ships assembled, one per pallet
• For the complete grounding solution, see the
StructuredGround
™
Kits for Cabinets selection guide on
pages M.10 – M.11
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
F.
Wireless
G.
Outlets
Part Number
Part Description
™
Std.
Pkg.
Qty.
1
Net-Access
CN1
Switch Cabinets
Cabinet frame with top panel. Tapped equipment rails (12-24).
Dual hinge perforated front door opens to the left or right.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Solid side panels.
Two sets of #12-24 threaded equipment mounting rails.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel. Cage nut rails (12-24).
Dual hinge perforated front door opens to the left or right.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Solid side panels.
Two sets of #12-24 cage nut equipment mounting rails.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.0"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel. Cage nut rails (12-24) – mounted numbers up.
Dual hinge perforated front door opens to the left or right.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Solid side panels.
Two sets of #12-24 cage nut equipment mounting rails – numbered up.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.0"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Dual hinge perforated front door opens to the left or right.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Two sets of #12-24 threaded equipment mounting rails.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
CN1
CN1CN
1
CN1CNNU
1
CN2
CN2
1
N.
Industrial
White cabinets also available upon request. Please consult Panduit Customer Service for lead-times.
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
L.6
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in
BOLD.
PHYSICAL INFRASTRUCTURE SYSTEMS
Net-Access
™
Switch Cabinets (continued)
Std.
Pkg.
Qty.
1
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
CN2CN
Part Description
Cabinet frame with top panel. Cage nut rails (12-24).
Dual hinge perforated front door opens to the left or right.
Split perforated rear doors open in the middle to minimize door swing
footprint. Two sets of #12-24 cage nut equipment mounting rails.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.0"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel. Dual hinge perforated front door opens to the
left or right. Split perforated rear doors open in the middle to minimize door
swing footprint.
Two sets of #12-24 threaded equipment mounting rails – numbered up.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.1"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel. Cage nut rails (12-24) – mounted numbers
up. Dual hinge perforated front door opens to the left or right.
Split perforated rear doors open in the middle to minimize door
swing footprint.
Two sets of #12-24 cage nut equipment mounting rails – numbered up.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.0"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Two sets of #12-24 threaded equipment mounting rails.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0”H x 31.5”W x 40.0”D (2134mm x 800mm x 1016mm)
Cabinet frame with top panel.
Two sets of #12-24 cage nut equipment mounting rails.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 40.0"D (2134.0mm x 800.0mm x
1016.0mm)
Cabinet frame with top panel. Cage nut rails (12-24) – mounted
numbers up.
Two sets of #12-24 cage nut equipment mounting rails – numbered up.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.0"D (2134mm x 800mm x 1044mm)
Cabinet frame with top panel.
Split perforated front and rear doors open in the middle to minimize door
swing footprint.
Solid side panels.
Set of two #12-24 threaded equipment mounting rails.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 40.0"D (2134mm x 800mm x 1017mm)
Cabinet frame with top panel. Split perforated front and rear doors open in
the middle to minimize door swing footprint.
Set of two #12-24 threaded equipment mounting rails.
45 RU cable management on front and rear of front posts.
Dimensions: 84.0"H x 31.5"W x 41.0"D (2134mm x 800mm x 1044mm)
CN2NU
CN3
1
F.
Wireless
CN2CNNU
1
G.
Outlets
CN3
CN4
CN3CN
1
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
1
CN3CNNU
1
CN4
CN5
1
CN5
1
White cabinets also available upon request. Please consult Panduit Customer Service for lead-times.
N.
Industrial
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
www.panduit.com
Table continues on
next Page
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see
catalog
back cover).
L.7
A.
System
Overview
PHYSICAL INFRASTRUCTURE SYSTEMS
Net-Access
™
Switch Cabinets (continued)
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
Part Description
™
Std.
Pkg.
Qty.
1
1
Net-Access
CNSPCA
CNPS
CNBRFK
CNSPCA
CNSPE
CNSPE
CNCSTR
CNCSTR
CSBA
CNPS
CNBRFK
Switch Cabinet Options and Accessories
Removable solid side panel with lockable push button latches.
Network cabinet cable management finger kit, nine RU sections. Kit
includes five left and five right finger sections to complete 45 RU on one
side of post.
Network cabinet center channel slack spool. Package includes one center
spool and mounting bracket.
Net-Access
™
Network Cabinet and 4 post rack end channel slack spools.
Package includes one left and one right slack spool and mounting brackets.
Network cabinet casters – set of four. Can be field installed without tipping
cabinet. Adds 1.7" (43mm) to cabinet height.
Network cabinet adjustable cable support bridge supports horizontal cable
runs between Net-Access
™
Cabinets.
Removable side panel with pass-through holes and lockable push
button latches.
Removable cabinet perforated side panel with lockable push button latches.
Side cabinet cable management bracket for side mounting 19"
EIA equipment.
Side cable management for mounting 19" EIA equipment, 4 RU. Comes
with bend radius clips.
Side cabinet bracket for mounting 19" EIA equipment.
1
1
1
1
1
1
1
1
1
F.
Wireless
G.
Outlets
CNPSPT
CSBA
CNPSPT
CNPP
CNFBB
H.
Media
Distribution
CNFBB4R
CNFBB
CNFBB4R
CNFBBS
CNPP
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
CNFBBS
Cisco^ Nexus 7018 Cabinet Solution
• Engineered to provide a best in class solution for Cisco
Nexus 7018 switches
• Available for multiple architectures including: hot aisle/cold
aisle applications, cold aisle containment applications, and
vertical exhaust duct applications
• Offered in both 42 RU and 45 RU heights to meet your
data center’s height requirement
• Inlet duct, exhaust duct or vertical blanking panels are
preinstalled on the cabinet
• Cabinet ships assembled, one per pallet
Std.
Pkg.
Qty.
1
Part Number
CN3847018NU
Part Description
Net-Access
™
Network Cabinet for 7018 switch, 45RU, #12-24
threaded rails, numbers up, intake and exhaust ducts, and cable
management fingers.
Dimensions: 40"W x 48"D x 84"H (1003mm x 1219mm x 2134mm)
Net-Access
™
Network Cabinet for 7018 switch, 45RU, #12-24
threaded rails, numbers up, split perforated front door, split perforated
rear door, intake and exhaust ducts, and cable management fingers.
Dimensions: 40"W x 48"D x 84"H (1003mm x 1242mm x 2134mm)
Net-Access
™
Network Cabinet for 7018 switch, 45RU, #12-24
threaded rails, numbers up, split perforated front door, split perforated
rear door, side panels, intake and exhaust ducts, and cable
management fingers.
Dimensions: 40"W x 48"D x 84"H (1003mm x 1242mm x 2134mm)
Net-Access
™
Network Cabinet for 7018 switch, 42 RU, #12-24
threaded rails, numbers up, split perforated front door, split perforated
rear door, side panels, intake and exhaust ducts, and cable
management fingers.
Dimensions: 40"W x 48"D x 84"H (1003mm x 1219mm x 2000mm)
Net-Access
™
7018 Cabinets for Use in Hot Aisle/Cold Aisle Applications
N.
Industrial
Net-Access
™
7018 Cabinets
CN5847018NU
1
O.
Labeling &
Identification
P.
Cable
Management
Accessories
CN4847018NU
1
CN48470182NU
1
Q.
Index
^Cisco is a registered trademark of Cisco Technology, Inc.
White cabinets also available upon request. Please consult Panduit Customer Service for lead-times.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in
BOLD.
