EXN-23353-SV: DescriptionEnclosures, Boxes, u0026 Cases EXT ALUM-ALUM COVER 4.48x1.39x2.72" SLVR; CategoryTopical application Mechanical and electrical/engineering/automation; File Size71KB，1 Pages; ManufacturerBud Industries

Download Datasheet Parametric Compare View All

EXN-23353-SV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EXN-23353-SV	-	-	View	Buy Now

EXN-23353-SV Overview

Enclosures, Boxes, u0026 Cases EXT ALUM-ALUM COVER 4.48x1.39x2.72" SLVR

EXN-23353-SV Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Bud Industries
RoHS	Details
Length	4.48 in
Width	1.39 in
Height	2.72 in
Factory Pack Quantity	1
Unit Weight	6.560000 oz

Preview

Download Datasheet

View All

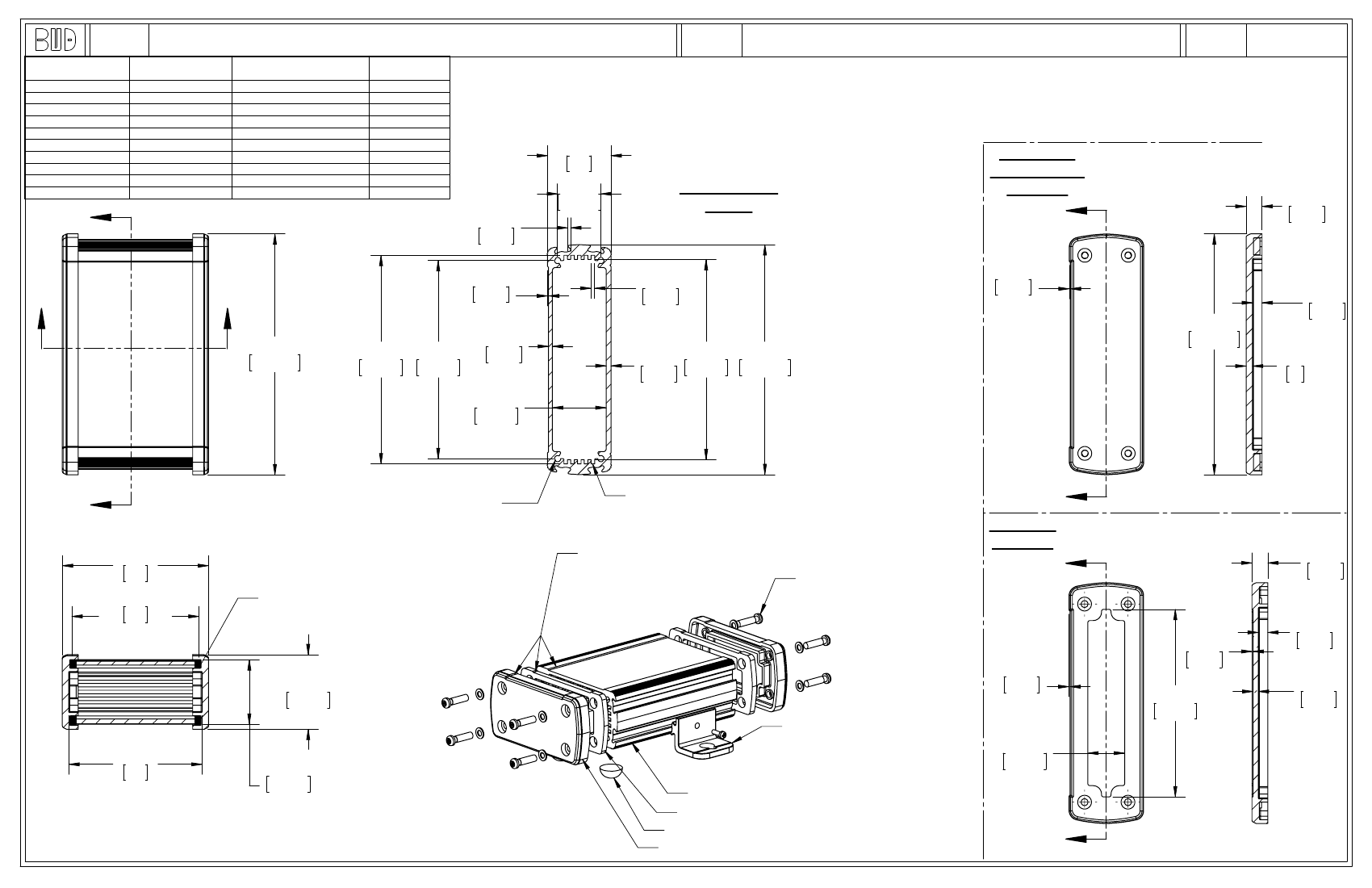

PART

NAME

EXTRUDED ALUMINUM IP65 PCB ENCLOSURES

BODY

COLOR

BLACK

BLUE

GOLD

RED

SILVER

PART

No.

EXN-23353 (SEE TABULATION FOR COMBINATIONS)

REVISION

DATE

10-23-15

PART NUMBER ALUM. COVER

PLASTIC COVER

EXN-23353-BK

BLACK

-

EXN-23353-BKP

-

BLACK

EXN-23353-BL

BLACK

-

EXN-23353-BLP

-

TRANSLUCENT BLUE

EXN-23353-GD

BLACK

-

EXN-23353-GDP

-

CLEAR

EXN-23353-RD

BLACK

-

EXN-23353-RDP

-

IR RED

EXN-23353-SV

BLACK

-

EXN-23353-SVP

-

CLEAR

B

MATERIAL: ALUMINUM EXTRUSION BODY PROVIDED

ALUMINUM COVER (2X) AND GASKETS OR

POLYCARBONATE COVER (2X) AND GASKETS - NOT ASSEMBLED

DIMENSIONS ARE INCH[MM]

1.181

30

.807

20.50

SECTION B-B

WE RESERVE THE RIGHT TO MAKE CHANGES TO OUR

STANDARD PRODUCTS. PLEASE CONSULT WITH BUD INDUSTRIES

PRIOR TO USING THIS DRAWING FOR DESIGN PURPOSE.

DRAWING FOR REFERENCE

.059

1.50

.020

0.50

RECESS

4.476

113.70

3.878

98.50

3.681

93.50

.071

1.80

1.000

25.40

EXTRUSION

ONLY

DIE CAST

ALUMINUM

COVER

C

.295

7.50

A

.067

1.70

.020

0.50

RECESS

3.720

94.50

4.272

108.50

.091

2.30

4.476

113.70

.177

4.50

.118

3

B

PRE-THREADED FOR

M3.5 SCREW (4X)

SLOTS FOR PCB

#EXN-23403-PCB

* ASSEMBLY

ORIENTATION *

ALIGN RECESS IN GASKET,

COVERS, & EXTRUSION

DURING ASSEMBLY

C

SECTION C-C

2.717

69

2.362

60

EXTRUSION

RUBBER FOAM

GASKET

PLASTIC

COVER

M3.5 CAPTIVE

SCREWS

(8X)

D

.295

7.50

.177

4.50

.098

2.50

1.386

35.20

OPTIONAL

MOUNTING

BRACKET KIT

#EXN-23370-MBK

ISOMETRIC VIEW

REFERENCE ONLY-

(AL. COVER SHOWN)

ACTUAL APPEARANCE

MAY VARY

.020

0.50

RECESS

.685

17.40

.020

0.50

3.484

88.50

2.480

63

SECTION A-A

SCALE 1 : 1.5

1.197

30.41

EXT.

DIMENSIONS MAY VARY DEPENDING ON

THE COMPRESSION OF THE GASKETS

BODY - EXTRUSION (1X)

GASKET (2X)

RUBBER FEET (4X)

COVER (2X)

D

SECTION D-D

EXN-23353-SV Related Products

	EXN-23353-SV	EXN-23353-SVP	EXN-23353-RD	EXN-23353-BKP	EXN-23353-RDP	EXN-23353-BK	EXN-23353-BL	EXN-23353-GD	EXN-23353-GDP
Description	Enclosures, Boxes, u0026 Cases EXT ALUM-ALUM COVER 4.48x1.39x2.72" SLVR	Enclosures, Boxes, u0026 Cases EXT ALUM-POLY COVER 4.48x1.39x2.72" SLVR	Enclosures, Boxes, u0026 Cases EXT ALUM-ALUM COVER 4.48x1.39x2.72" RED	Enclosures, Boxes, u0026 Cases EXT ALUM-POLY COVER 4.48x1.39x2.72" BLK		Multilayer Ceramic Capacitors MLCC - SMD/SMT 100v 0.01uF X7R 0805 10% Tol	Enclosures, Boxes, u0026 Cases EXT ALUM-ALUM COVER 4.48x1.39x2.72" BLUE	Enclosures, Boxes, u0026 Cases EXT ALUM-ALUM COVER 4.48x1.39x2.72" GOLD	Enclosures, Boxes, u0026 Cases EXT ALUM-POLY COVER 4.48x1.39x2.72" GOLD
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Bud Industries	Bud Industries	Bud Industries	Bud Industries	Bud Industries	Bud Industries	Bud Industries	Bud Industries	Bud Industries
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Length	4.48 in	4.48 in	4.48 in	4.48 in	4.48 in	4.48 in	4.48 in	4.48 in	4.48 in
Width	1.39 in	1.39 in	1.39 in	1.39 in	1.39 in	1.39 in	1.39 in	1.39 in	1.39 in
Height	2.72 in	2.72 in	2.72 in	2.72 in	2.72 in	2.72 in	2.72 in	2.72 in	2.72 in
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Unit Weight	6.560000 oz	4.640000 oz	6.560000 oz	4.640000 oz	4.640000 oz	6.560000 oz	6.560000 oz	6.560000 oz	4.640000 oz
