1553BTBUBKBAT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1553BTBUBKBAT

Preview

1553BTBUBKBAT: DescriptionAudio Amplifiers SoundPlus(TM) Hi-Perf Aud Oper Amp; CategoryTopical application Mechanical and electrical/engineering/automation; File Size612KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1553BTBUBKBAT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1553BTBUBKBAT	-	-	View	Buy Now

1553BTBUBKBAT Overview

Audio Amplifiers SoundPlus(TM) Hi-Perf Aud Oper Amp

1553BTBUBKBAT Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Cases
Type	Hand Held
Material	Plastic
Color	Blue
Length	4.62 in
Width	3.11 in
Height	0.95 in
Cover Color	Blue
Dimensions	4.62 in L x 3.11 in W x 0.95 in H
Height - in	0.95
Height - mm	24.13
Length - in	4.62
Length - mm	117.348
Factory Pack Quantity	1
Width - in	3.11
Width - mm	78.994
Unit Weight	4.000041 oz

Preview

Download Datasheet

View All

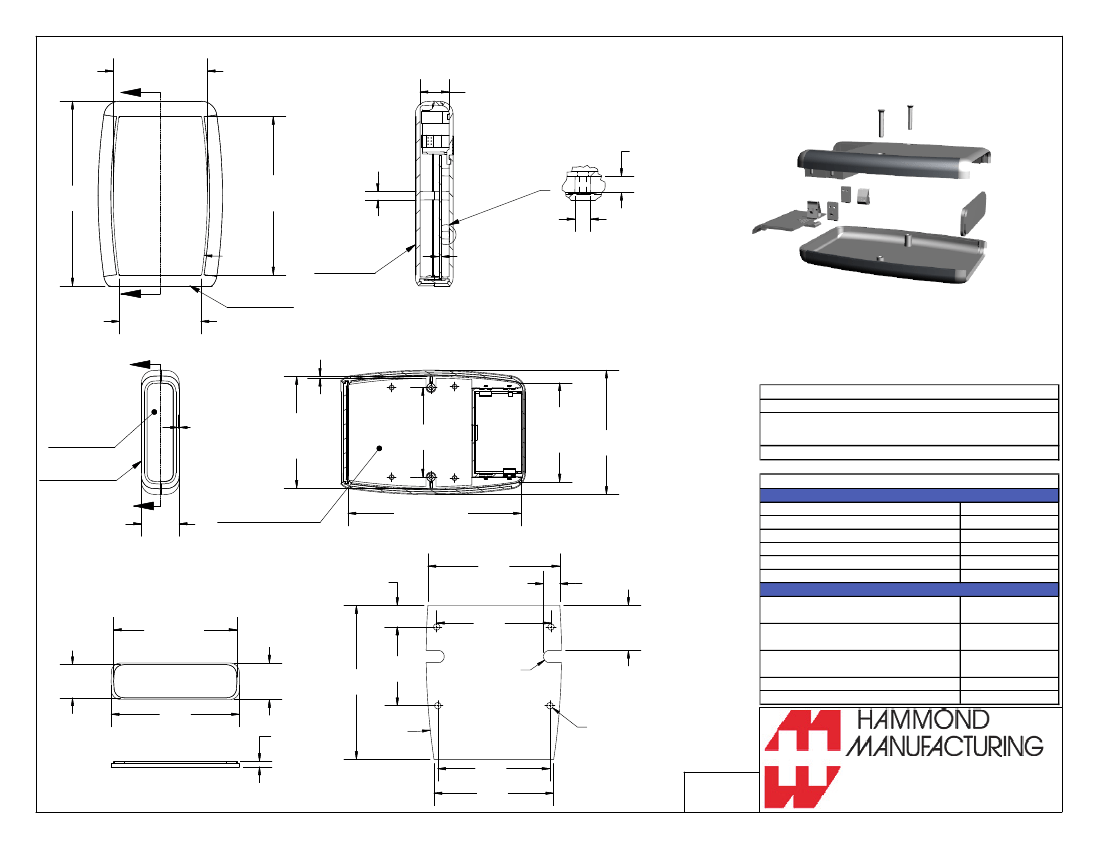

Top View of Assembly

59.71

[2.351]

(Center Inlay Width)

SECTION A-A

(Side View Inside Assembly)

A

18.50

[.728]

(Inner Box Height)



5.50

Detail View of PCB Boss

(Located on Bottom Cover)

5.00

[.197]

[.217]

(Top and Bottom

Assem Boss



)

117.24

[4.616]

100.71

[3.965]

(Inlay Length)



5.00

[.197]

R353.57

[13.920]

Top Cover

P.C Board

A

51.61

[2.032]

(End Inlay Width)

Front Panel

1.16

[.046]

(PCB dist from inner wall)

End View of Assembly

B

.50

[.02]

(Inlay Depth)

SECTION B-B

(Inside of Bottom Cover)

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

(Part number and text placement/orientation on our products are subject to change,

we do not recommend using them as a locating reference for modification purposes)

NOTE

71.02

[2.796]

(Inner Box Width

at Center)

62.86

[2.475]

(Inner Box Width 79.00

at End)

[3.110]

Enclosure molded from GP ABS Plastic.

Purchased assembly includes Top, Bottom, front plastic panel, Battery

Door, battery spring clips (4 pcs), 9V adapter (1pcs) and 2 cover screws.

(P.C. Board not supplied)

Front Panel

Bottom Cover

56.78

[2.236]

Recommended Cover screw torque -- 2.5 lbf-in (30 cN-m)

PART NUMBER

B

24.00

[.945]

P.C Board Aligned

on PCB Bosses

110.24

[4.340]

(Inner Box Length)

1553B Battery Enclosure

Maximum P.C. Board Size

10.90

[.429]

67.00

[2.638]

8.29

[.326]

22.74

[.895]

Black Enclosure/Grey Over‐mold

Grey Enclosure/Grey Over‐mold

Translucent Blue Enclosure/ Black Over‐mold

Red Enclosure/ Black Over‐mold

Yellow Enclosure/ Black Over‐mold

Black Enclosure/ Black Over‐mold

ACCESSORIES

Oval Head Cover Screws Self-Tapping (Pkg 100)

[#4 X 3/4" (19mm)]

P.C. Board Self Tapping Screw

[#4 X 1/4" (6.4mm) Plated]

1553BBKBAT

1553BGYBAT

1553BTBUBKBAT

1553BRDBKBAT

1553BYLBKBAT

1553BBKBKBAT

1593QS100 (Silver)

1593QS100BK (Black)

1593ATS50 (Pkg 50)

1593ATS100 (Pkg 100)

1599CLIP (Black)

1599CLIPGY (Grey)

BS61

1553HDR‐BKIT

Front Panel

16.83

[.663]

(Viewing Area)

62.63

[2.466]

(Viewing Area)

18.50

[.728]

65.15

[2.565]

2.75

[.108]

58.11

[2.288]

78.18

[3.078]

40.00

[1.575]

R3.16

[.125]

Belt or Pocket Clip

9V Battery Kit

AA Battery Clip Kit (4 positive and 4 Negative)



3.20 x 4

(NOT SUPPLIED)

R357.35

[14.069]

56.96

[2.243]

60.78

[2.393]

[.126]

Dimensions:

mm

[inches]

1553BBAT

www.hammondmfg.com

®
