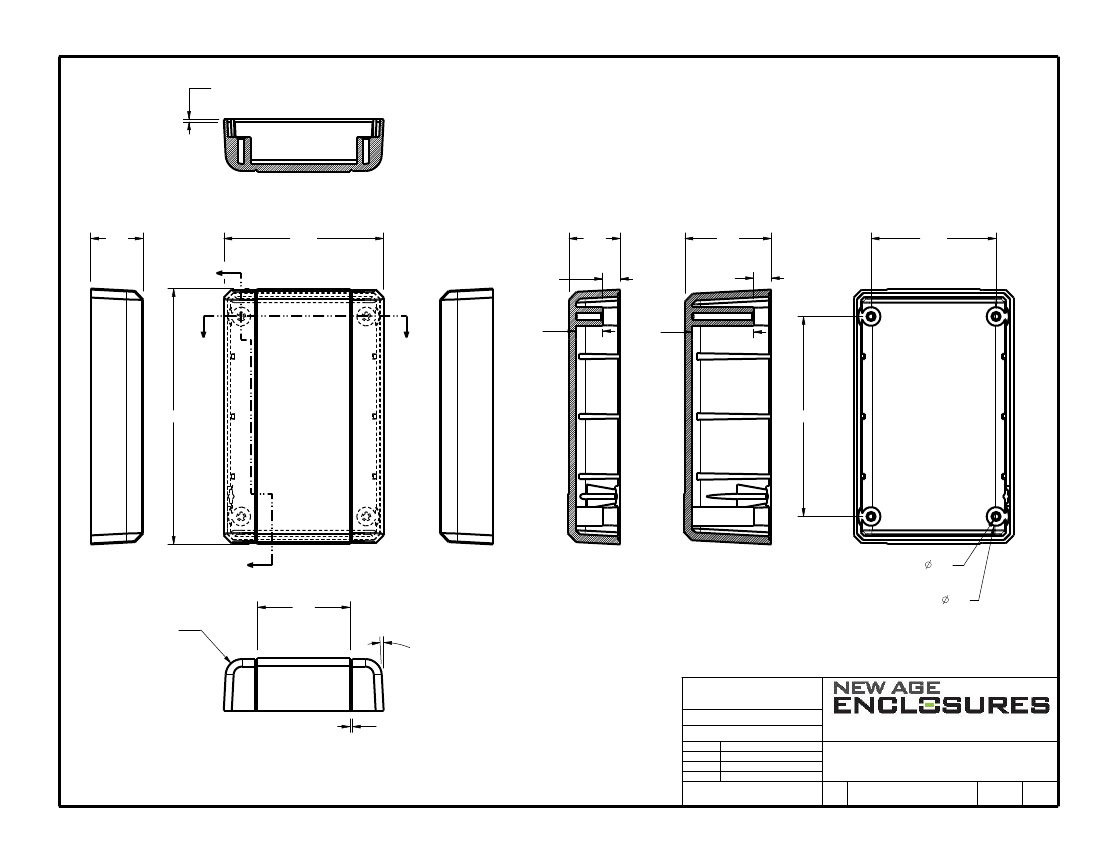

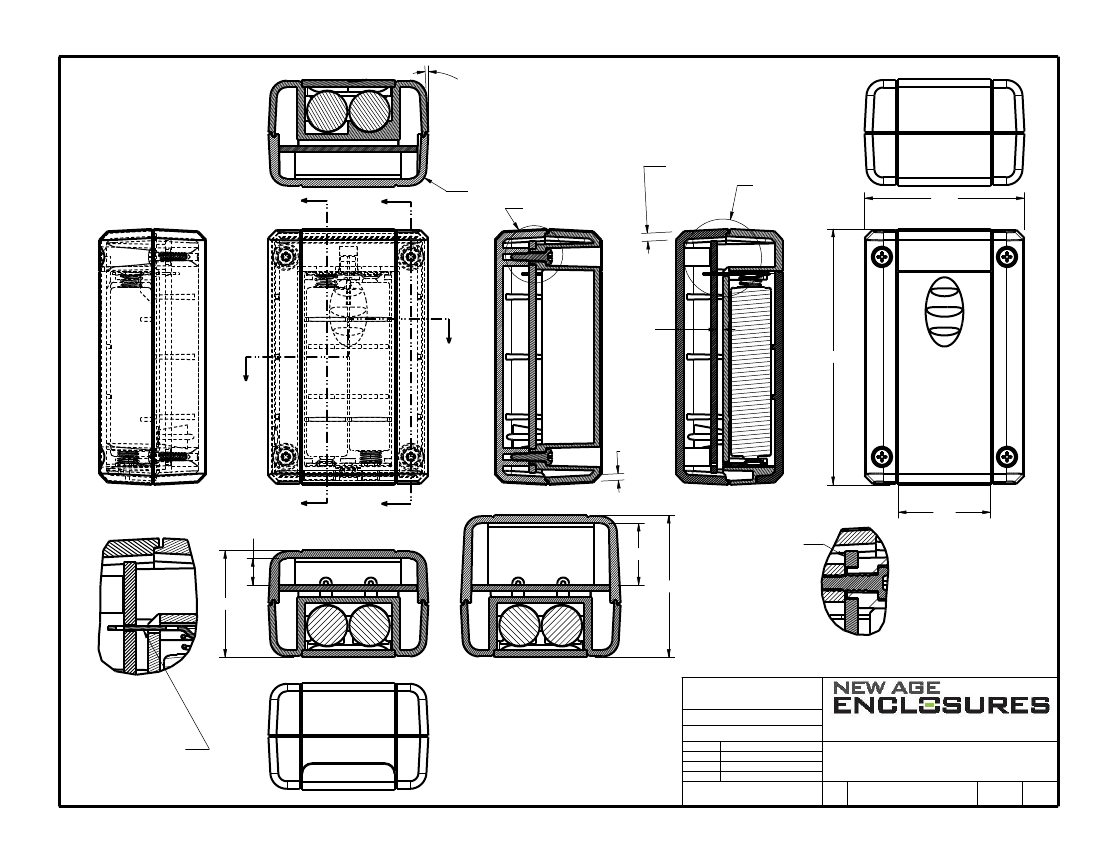

NOTES:
UNLESS OTHERWISE SPECIFIED
1. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM.
2. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH.
EQUIVALENT TO MT-11020.
3. INTERIOR SURFACE TEXTURE TO BE: NONE
4. ALL INSIDE RADII .010R. ALL OUTSIDE RADII .020R MAX,
UNLESS OTHERWISE SPECIFIED.
5. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT
THE LARGE END OF THE FEATURE, AND ALL INTERNAL FEATURES
AFFECTED BY THE DRAFT APPLY AT THE SMALL END OF THE
FEATURE UNLESS OTHERWISE SPECIFIED.
6. 1 DEGREE DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE UNLESS
OTHERWISED SPECIFIED.
7. MATERIAL / COLOR:
ABS PLASTIC IS STANDARD IN BLACK OR WHITE.
CUSTOM MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE.
8. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND
VERIFICATION OF ITS FIT ARE THE SOLE RESPONSIBILITY OF
EACH CUSTOMER.
9. ASSEMBLY HARDWARE PROVIDED.
BATTERY CONTACTS SOLD SEPERATELY
-TK
1
-WP
REV. DRAWN BY
1
2
3
3.1
4.0
4.1
5.0
6.0
7.0
7.1
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
R CRUZ
R CRUZ
M BOYER
R CRUZ
ECO No
2109
4309
0710
1210
2810
7713
2214
0814
0361
R E V I S I O N
DESCRIPTION
PRELIMINARY RELEASE
UPDATE MODEL, ADD DRAFT AND FORMAT
ADD SURFACE CALLOUT AND MODIFY HATCH
UPDATE FORMAT
ADD CORING IN REAR
UPDATE VIEWS AND 2ND-OP PAGE
ADD "TALL" CONFIGURATION
INCLUDE WALL CRADLE OPTION
CHANGE TEXTURE CALLOUT
UPDATE WALL CRADLE DIMENSIONS TO AS BUILT
DATE
16-Mar-09
18-Apr-09
14-Dec-09
20-Mar-10
04-May-10
28-Jul-10
01-Nov-13
19-May-14
21-May-14
18-Jun-14
APPROVED
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
251510(x) CONFIGURATIONS
-Blank
-T
-K
251510 COVER
1
1
251510T COVER
1
251510 BASE
1
1
251510 MACHINED BASE
1
251510 HATCH
1
1
1
251510 WALL CRADLE
1
#2 HiLo SCREW .375"
4
4
4
4
6
1
1
1
4
2
1
5
9
1
11

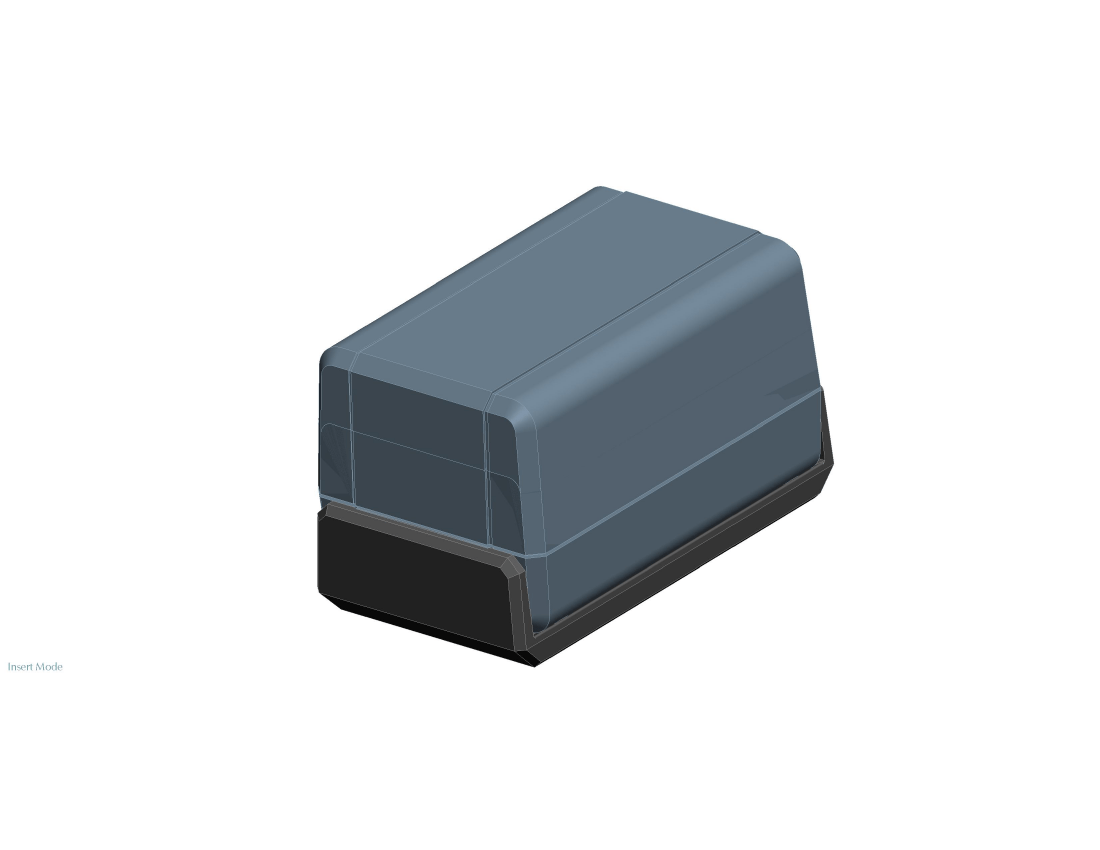

251510 STANDARD
SCALE 0.750
251510 TALL
SCALE 0.750
10
3
11
10
9
8
7
6
5
4
3
2
1
AAA-SINGL-CONTACT-POS
AAA-SINGL-CONTACT-NEG
AAA-DBL-CONTACT
251510_WALL-CRADLE
251510_HATCH
251510_COVER
251510_BASE
251510T_COVER
NO_2_HI-LO_SCREW
251510_PCB
AAA-BATTERY
ACC-AAAPOS-5226
ACC-AAANEG-5204
ACC-AAADBL-5214L
251510 WALL CRADLE - STANDARD
251510 HATCH - STANDARD
251510 COVER - STANDARD
251510 BASE - STANDARD
251510 TALL COVER - STANDARD
No2 HI-LO x .375"
REFERENCE ONLY
REFERENCE ONLY
SPRING STEEL
SPRING STEEL
SPRING STEEL
ABS
ABS
ABS
ABS
ABS
STEEL
CUSTOMER SUPPLIED
CUSTOMER SUPPLIED
SOLD SEPERATELY
SOLD SEPERATELY
SOLD SEPERATELY
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
3/8" LONG
.062" THICK
"AAA" SIZE
1
1
1
1
1
1
1
1
4
1
2
7

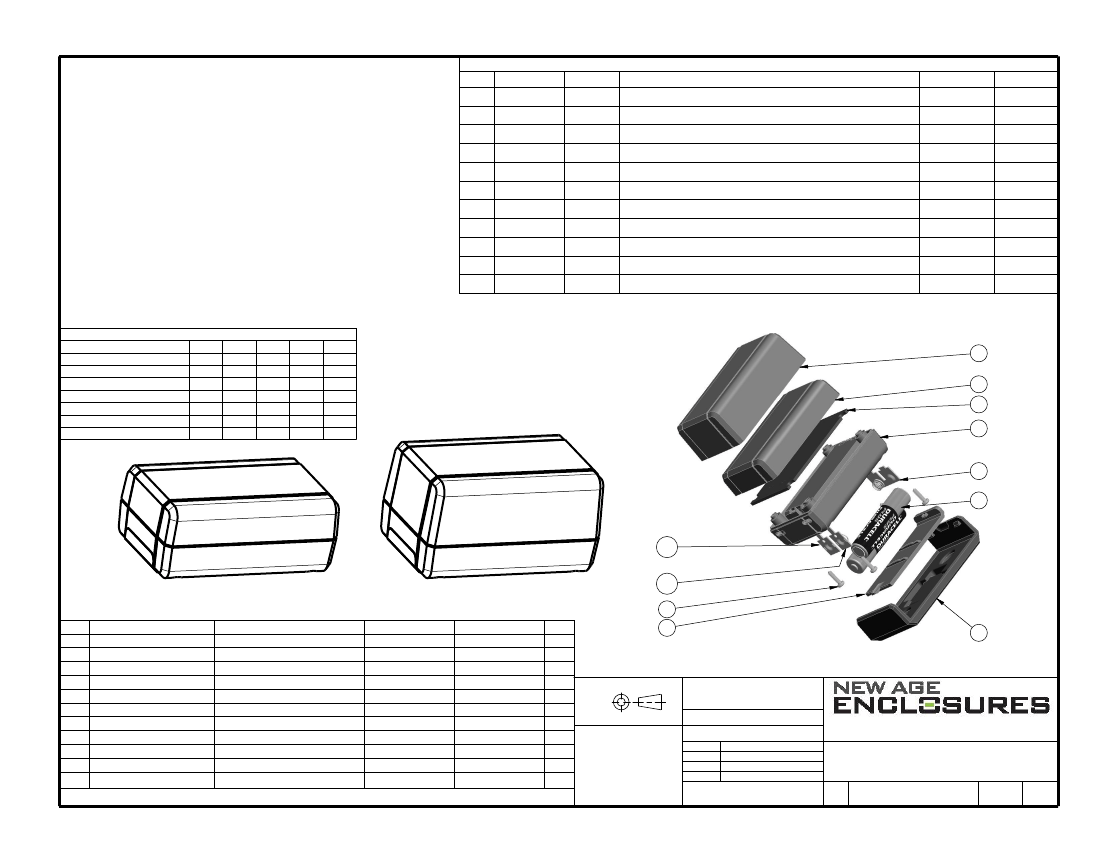

EXPLODED VIEW
SCALE 0.500
8
THIRD ANGLE PROJECTION
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
DO NOT SCALE DRAWING
NOTICE: THE INFORMATION AND DATA
CONTAINED HEREIN IS CONSIDERED
PROPRIETARY TO ALLTEC INTEGRATED
MFG INC & SHALL REMAIN THE EXCLUSIVE
PROPERTY OF ALLTEC INTEGRATED MFG INC
THE HOLDER WILL ASSUME CUSTODY AND
CONTROL THAT THIS DOCUMENT WILL
NOT BE COPIED, REPRODUCED, OR
DISCLOSED WITHOUT THE EXPRESS WRITTEN
CONSENT OF ALLTEC INTEGRATED MFG INC
POSSESSION OF THIS DOCUMENT DOES
NOT CONSTITUTE A GRANT TO
MANUFACTURE ANY ITEMS.
© 2014
NEW AGE ENCLOSURES
Customer's Part No:
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
X.XX = .015 X.XXXX = .001
X.XXX = .010
X.X° = 1°
251510
4330 Santa Fe Road
ph. (805) 595-1310
www.newageenclosures.com
San Luis Obispo, CA. 93401
fax (805) 595-1024
ITEM
FILE
NAME
DESCRIPTION
MATERIAL
COLOR
QTY.
AS NOTED
SIZE
STANDARD - MINI AAA
SXX-251510X ASSEMBLY
A
DRAWING NAME
SHEET
REV.DOC
BILL OF MATERIALS
M BOYER
16-Mar-09
251510_R7_1
1 OF 8
