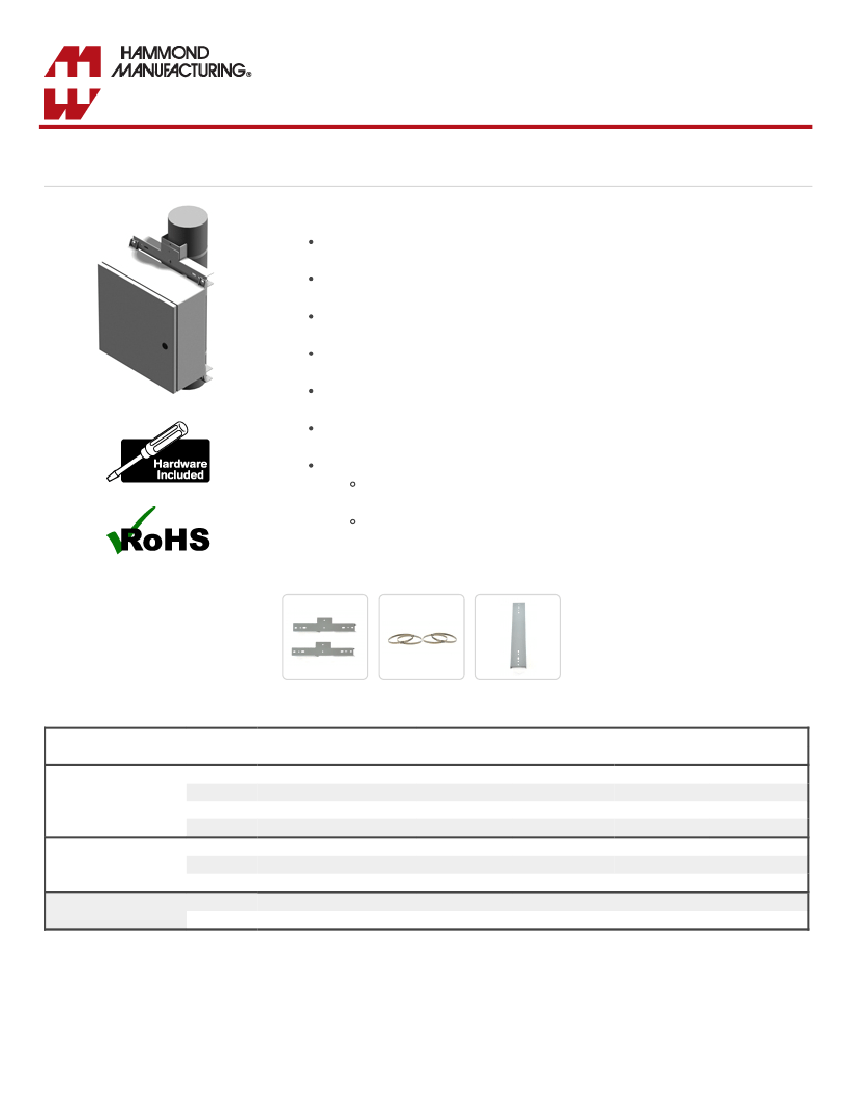

Pole Mounting Kit (PMK Series) - Hammond Mfg.
Quality Products. Service Excellence.
Pole Mounting Kit
PMK Series
Junction and Wallmount Style - Steel
Features
Designed to mount outdoor rated enclosures - Hammond 1414N4, Eclipse, Eclipse Junior
and 1418N4 Series
Individual components allow user to choose mounting configuration and/or components to
purchase
Note: Eclipse Series enclosures require use of external
Eclipse Mounting Foot Kit
(sold
separately)
Vertical channel can be lagged directly to pole or attached using optional stainless steel
straps
Vertical channel prevents enclosure from twisting. Can be used on pole diameters from 4"
and up
Horizontal steel channels (sold in pairs) come with all hardware needed to secure the
enclosure
Stainless steel straps
sold separately
in quantities of 4
PMSTRAP40
straps are rated for 450 lbs each and can be used for pole
diameters up to 10"
PMSTRAP55
straps are rated for 250 lbs each and can be used for pole
diameters up to 15"
Gallery
Use with Hammond Series
Part No.
Description
1414N4
12"-16" encl height
-
-
-
12"-16" encl width
-
-
Eclipse Junior (EJ)
12"-16" encl height
-
-
-
12"-16" encl width
-
-
1418N4
Eclipse (EN4SD)
PMV1216GY
Qty 1 - Vertical Steel Channel
Step 1: Choose the
PMV2024GY
Qty 1 - Vertical Steel Channel
PMV4248GY
Qty 1 - Vertical Steel Channel
Step 2: Choose the part
that mounts to the enclosure
Step 3: Choose your
strap size
PMH15GY
PMH25GY
PMH35GY
Qty 2 - Horizontal Steel Channel
Qty 2 - Horizontal Steel Channel
Qty 2 - Horizontal Steel Channel
part that mounts to the pole
PMV3036GY
Qty 1 - Vertical Steel Channel
12"-16" encl height 12"-16" encl height
20"-24" encl height 20"-24" encl height
30"-36" encl height 30"-36" encl height
42"-48" encl height 42"-48" encl height
12"-20" encl width
24"-30" encl width
36" encl width
12"-16" encl width
20"-24" encl width
30"-36" encl width
PMSTRAP40
Qty 4 - 0.50" x 39" length 316 stainless strap, supports up to 450 lbs, pole diameters up to 10"
PMSTRAP55
Qty 4 - 0.31" x 55" length 316 stainless strap, supports up to 250 lbs, pole diameters up to 15"
Data subject to change without notice
© 2018. Hammond Manufacturing Ltd. All rights reserved.
