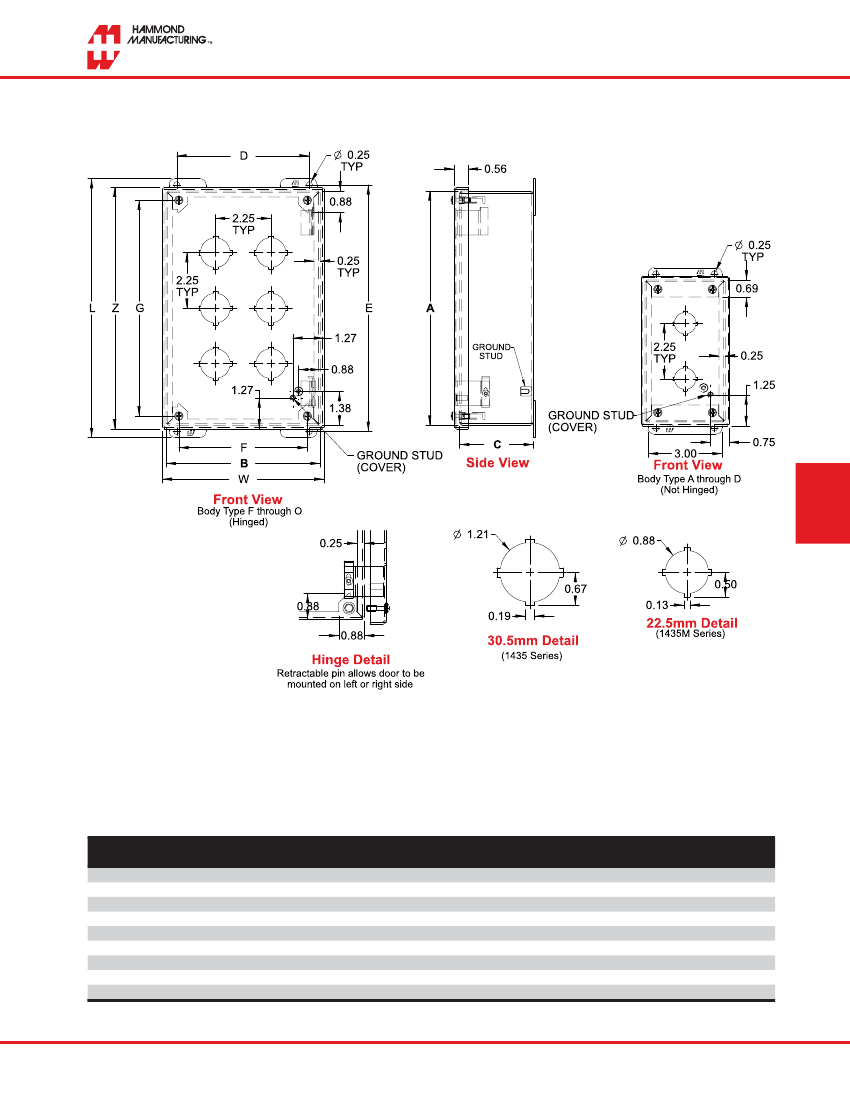

Pushbutton Enclosures - NEMA 12, 13
1435/1435M Series
253

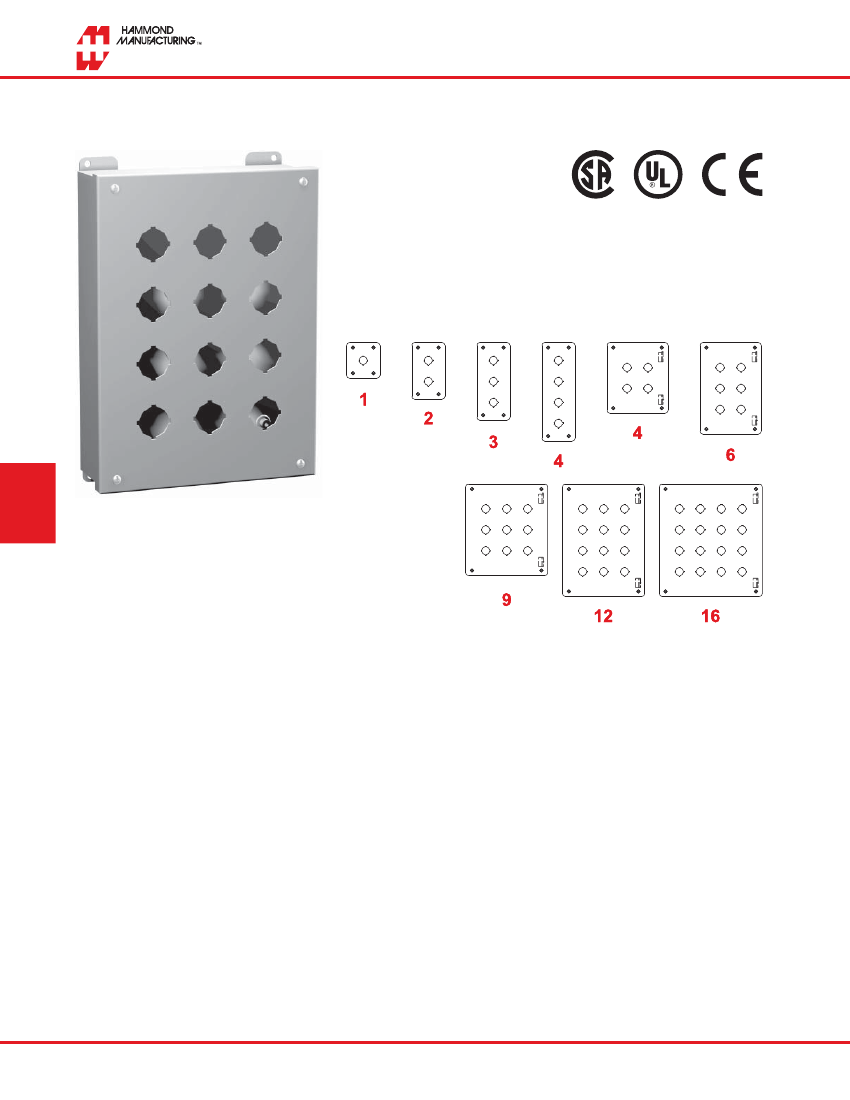

Operator Interface Enclosure
Pushbutton Enclosures
Application
• Designed to accept standard heavy duty oil tight
pushbuttons, switches and pilot lights.
• Provides protection from dirt, dust, oil and water.
Standards
• UL 508 Type 12 and 13
• CSA Type 12 and 13
• Complies with
• NEMA Type 12 and 13
• JIC standard EGP-1-1967
• IEC 60529, IP54
• Appropriate components are required to maintain these
standards.
Construction
• Formed 14 gauge steel except
A and B which are 16 gauge.
• Smooth continuously welded seams.
• Welded brackets provide for enclosure mounting.
• Captive cover screws thread into sealed wells.
• Larger enclosures provide internally hinged removable
covers, designed to hold the cover open during wiring
(see table).
• Oil resistant gasket and adhesive.
• A bonding stud is provided on the door and a grounding
stud is provided on the enclosure.
Accessories
• Hole plugs
...see page
435
• Pedestals
...see page
454
Finish
• Cover and enclosure are phosphatized and finished in
ANSI 61 gray powder coating.
Technical references and CAD downloads available at www.hammondmfg.com
All dimensions in inches unless specified otherwise
Quality Products. Service Excellence.
© Hammond Manufacturing
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
www.hammondmfg.com
Pushbutton Enclosures - NEMA 12, 13
1435/1435M Series
Operator Interface Enclosure
Pushbutton Enclosures
Part No.
30.5mm
22.5mm
1
1435A
1435MA
1
1435MB
1
1435B
1
1435C
1
1435MC
1
1
1435D
1435MD
1
1435F
1435MF
1435H
1435MH
1435K
1435MK
1435O
1435MO
1435S
1435MS
1
Not Hinged
No. of
Holes
1
2
3
4
4
6
9
12
16
A
3.50
5.75
8.00
10.25
7.25
9.50
9.50
11.75
11.75
B
3.25
3.25
3.25
3.25
6.25
6.25
8.50
8.50
10.75
C
2.75
2.75
2.75
2.75
3.00
3.00
3.00
3.00
3.00
D
2.38
2.38
2.38
2.38
5.38
5.38
7.63
7.63
9.88
E
4.00
6.25
8.50
10.75
7.75
10.00
10.00
12.25
12.25
F
2.21
2.21
2.21
2.21
5.21
5.21
7.46
7.46
9.71
G
2.75
5.00
7.25
9.50
6.50
8.75
8.75
11.00
11.00
Overall Dimensions
L
W
4.50
3.56
6.75
3.56
9.00
3.56
11.25
3.56
8.25
6.56
10.50
6.56
10.50
8.81
12.75
8.81
12.75
11.06
Z
3.81
6.06
8.31
10.56
7.56
9.81
9.81
12.06
12.06
Ship
Wt. lbs.
2
3
3
4
5
6
7
8
10
Technical references and CAD downloads available at www.hammondmfg.com
All dimensions in inches unless specified otherwise
Quality Products. Service Excellence.
© Hammond Manufacturing
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
