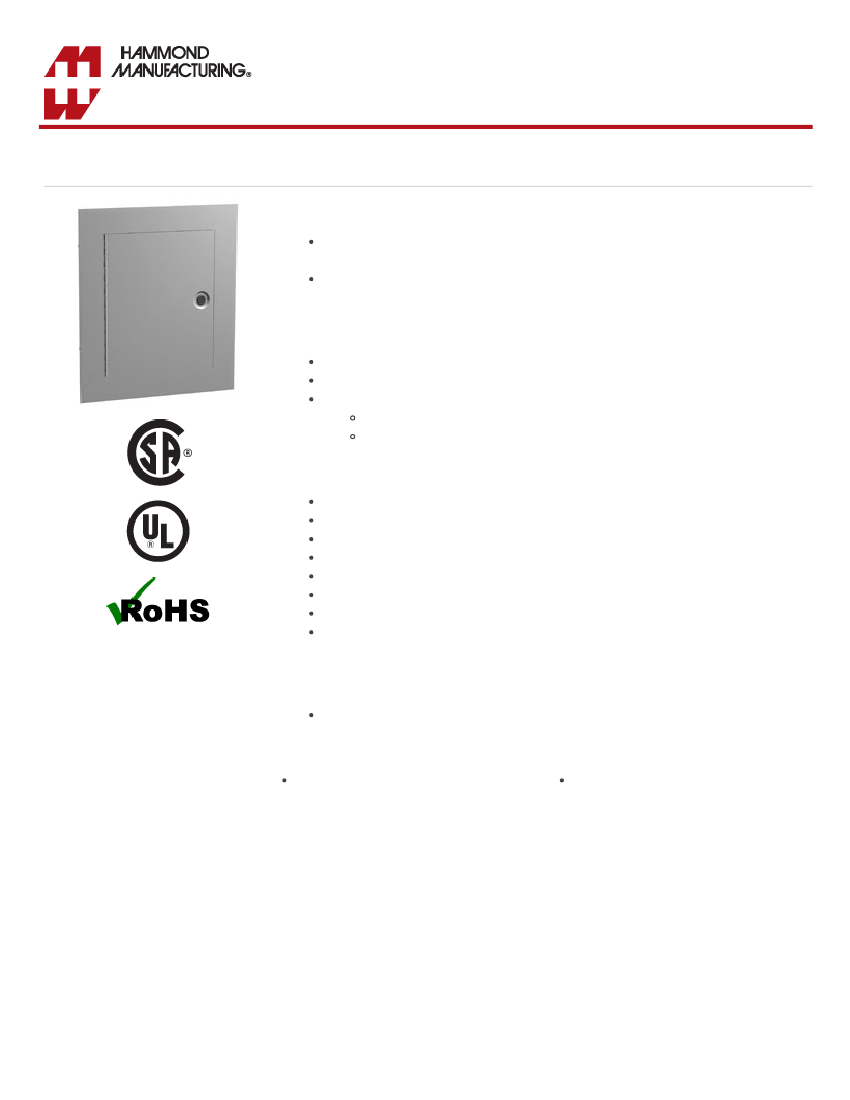

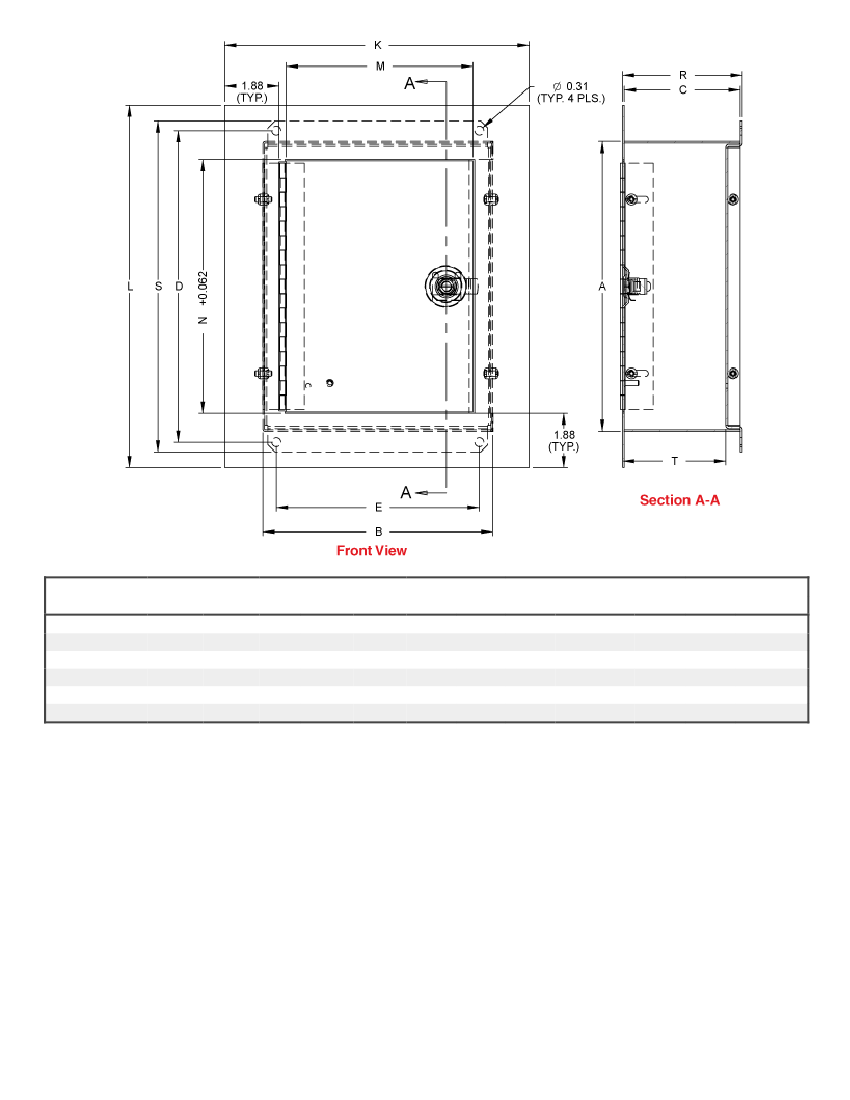

Type 1 Mild Steel 3 Piece Flushmount Enclosure (N1W F Series) - Hammond Mfg.

Quality Products. Service Excellence.

Type 1 Mild Steel 3 Piece Flushmount Enclosure

N1W F Series

Hinge Door with Quarter Turn

Application

Designed for indoor use to enclose controls, instruments, and components which do not

require oil-tight or dust-tight protection.

Ideal for applications where components may be easily mounted and wired prior to

installation of wrapper and door.

Standards

UL 50 Type 1

CSA Type 1

Complies with

NEMA Type 1

IEC 60529, IP20

Construction

Three piece assembly consisting of a base, wrapper, and door.

Components are attached and secured with metal screws.

14 gauge reverse formed base provides clearance for mounting hardware.

Punched for left or right hinging of the door and ease of assembly.

Wrapper is formed from 16 gauge steel, with no knock-outs in the sides.

Flush mounting door assembly formed from 16 gauge steel.

Door is fastened with a slotted quarter turn latch.

A bonding stud is provided on the door and a grounding screw is provided for the

enclosure.

Finish

Base, wrapper and door are finished in ANSI 61 gray powder coating.

Accessories

Type 1 Lock Kit

Padlock Adaptor

https://www.hammfg.com/electrical/products/commercial/n1wf

1/2

N1WF12104 Related Products

	N1WF12104	N1WF20164	N1WF24204	N1WF16124	N1WF864
Description	Enclosures, Boxes, u0026 Cases 3Piece Flushmount 12.5x14.5x4.6" NEMA1	Enclosures, Boxes, u0026 Cases 3Piece Flushmount 18.5x22.5x4.6" NEMA1	Enclosures, Boxes, u0026 Cases 3Piece Flushmount 22.5x26.5x4.6" NEMA1	Electrical Enclosures 3Piece Flushmount 14.5x18.5x4.6" NEMA1	Enclosures, Boxes, u0026 Cases 3Piece Flushmount 8.5x10.5x4.6" NEMA1
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Electrical Enclosures	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond	Hammond	Hammond	Hammond
RoHS	Details	Details	Details	Details	Details
Product	Enclosures	Enclosures	Enclosures	Commercial Enclosures	Enclosures
Type	Flush Mount	Flush Mount	Flush Mount	Flush Mount	Flush Mount
Material	Steel	Steel	Steel	Steel	Steel
Color	Gray	Gray	Gray	Gray	Gray
Length	14.5 in	22.5 in	26.5 in	469.9 mm	10.5 in
Width	12.5 in	18.5 in	22.5 in	18.5 in	8.5 in
Height	4.6 in	4.6 in	4.6 in	368.3 mm	4.6 in
IP Rating	IP20	IP20	IP20	IP20	IP20
NEMA Rating	1	1	1	1	1
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Dimensions	14.5 in L x 12.5 in W x 4.6 in H	22.5 in L x 18.5 in W x 4.6 in H	26.5 in L x 22.5 in W x 4.6 in H	469.9 mm L x 18.5 in W x 368.3 mm H	10.5 in L x 8.5 in W x 4.6 in H
Factory Pack Quantity	1	1	1	1	1
Unit Weight	10.500 lbs	21.500 lbs	29.500 lbs	14.500 lbs	5.500 lbs
Height - in	4.6	4.6	4.6	-	4.6
Height - mm	116.84	116.84	116.84	-	116.84
Length - in	14.5	22.5	26.5	-	10.5
Length - mm	368.3	571.5	673.1	-	266.7
Width - in	12.5	18.5	22.5	-	8.5
Width - mm	317.5	469.9	571.5	-	215.9
