DB-4715: DescriptionTranslation - Voltage Levels 6Ch High-Speed; CategoryTopical application Mechanical and electrical/engineering/automation; File Size106KB，1 Pages; ManufacturerBud Industries

Download Datasheet Parametric View All

DB-4715 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DB-4715	-	-	View	Buy Now

DB-4715 Overview

Translation - Voltage Levels 6Ch High-Speed

DB-4715 Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Bud Industries
RoHS	Details
Product	Accessories
Type	DIN Rail Panel
Material	Plastic
Color	Gray
Length	5.91 in
Width	2.76 in
Height	4.43 in
Flammability Rating	UL 94 V-0
Cover Color	Gray
Factory Pack Quantity	1
Unit Weight	8.699999 oz

Preview

Download Datasheet

View All

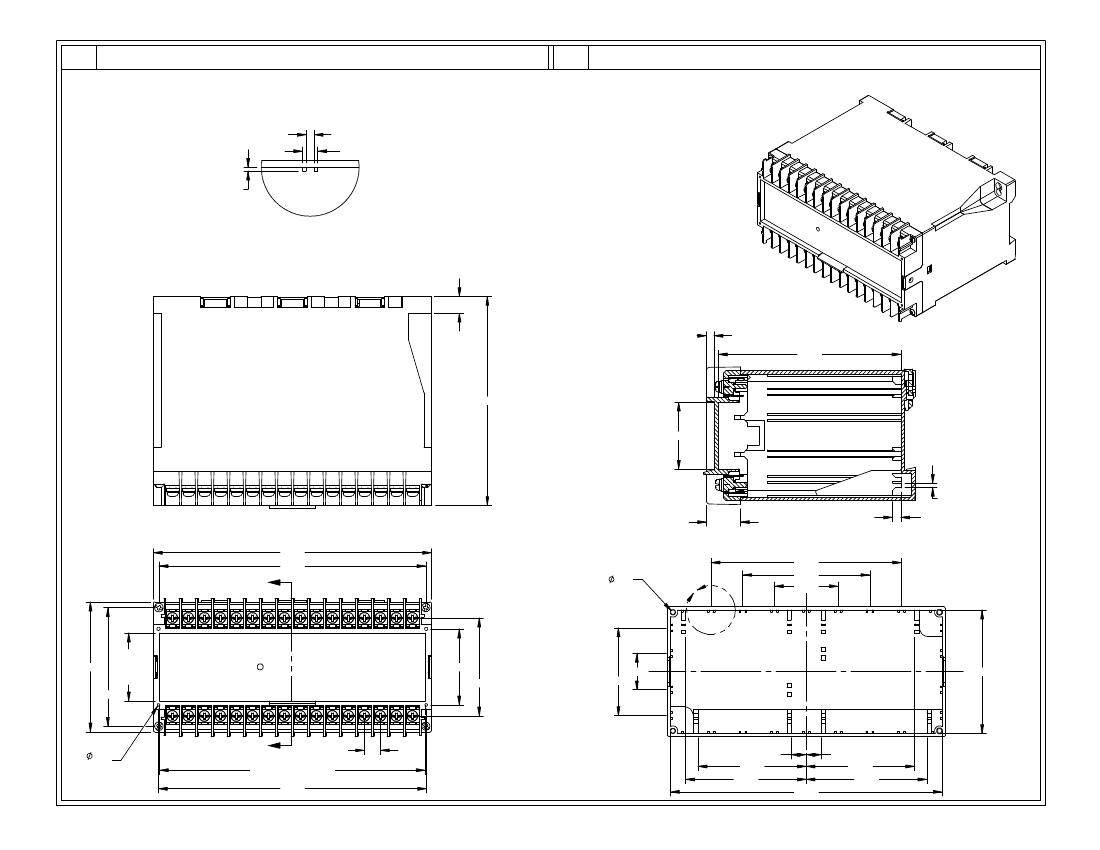

PART

NAME

DIN RAIL / PANEL MOUNT BOX

PART

No.

DB-4715

.088

.162

.040

DETAIL B

.360 2PLCS

.160

LABEL

POCKET

DEPTH

3.875

4.440

1.420

.088

.725

SECTION A-A

.180

5.910

5.670

A

.098

B

4.050

2.700

1.350

2.760

1.442

LABEL

POCKET

HEIGHT

1.610

2.080

MATERIAL: UL94V-0 RATED ABS

FINISH: LIGHT GRAY

A

FOUR (4) M3 SCREWS SUPPLIED TO

ATTACH FRONT PANEL

1.863

.768

2.620

2.520

.060

4 PLCS

.340 TYP.

5.645

LABEL POCKET WIDTH

5.690

ALL DIMENSIONS HAVE A ±.015 TOLERANCE

UNLESS OTHERWISE SPECIFIED

ALL CONTACTS ARE TIN PLATED BRASS

RATED AT 10 AMPS

.323

2.300

2.563

5.770

.323

2.300

2.563

REV: 6/24/04
