1414 N4 PHSS Series Stainless Steel Enclosures - NEMA 4X
Continuous Hinge, Clamped Cover
73
Corrosion Resistant
Junction Boxes
Application
• Designed for use as instrument
enclosures, electric, hydraulic
or pneumatic control housings,
electrical junction boxes or terminal
wiring enclosures.
• Provides protection where
equipment may be hosed down or
otherwise be very wet, or in specific
applications where corrosion may
be a problem.
Construction
• Formed from 14 gauge 304 or 316
stainless steel.
• Smooth, continuously welded
seams.
• Welded brackets provide for
enclosure mounting.
• Continuous stainless steel hinged
cover is secured with stainless steel
clamps and screws.
• Seamless poured-in place gasket.
• All models include a removable
14 gauge inner panel.
• Tapped studs are provided for
mounting inner panels.
• A bonding stud is provided on
the door and a grounding stud is
provided in the enclosure.
Finish
• Cover and enclosure are natural
stainless steel with a smooth
brushed finish.
• Removable inner panel is finished in
white powder coating.
Accessories
• Additional inner panels
...see page
436
• Breather kits
...see page
400-401
• Door clamping hardware
...see page
429
• Filter fans
...see page
371-384
• Heaters
...see page
393-396
• Louvered ventilating plates
...see page
402
• Terminal kit assemblies
...see page
441
• Thermostats
...see page
397
• Window kits
...see page
449
Standards
• UL 508 Type 3R, 4, 4X, 12 and 13
• CSA Type 3R, 4, 4X, 12 and 13
• Complies with
• NEMA Type 3R, 4, 4X, 12 and 13
• JIC EGP-1-1967
• IEC 60529, IP66
Technical references and CAD downloads available at www.hammondmfg.com
All dimensions in inches unless specified otherwise
Quality Products. Service Excellence.
© Hammond Manufacturing
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
www.hammondmfg.com
1414 N4 PHSS Series Stainless Steel Enclosures - NEMA 4X
Continuous Hinge, Clamped Cover
Corrosion Resistant
Junction Boxes
304 S.S.
Part Number
1414N4PHSSC4
1414N4PHSSE
1414N4PHSSG
1414N4PHSSG4
1414N4PHSSI
1414N4PHSSK
1414N4PHSSK6
1414N4PHSSL6
1414N4PHSSM6
1414N4PHSSO6
1414N4PHSSM8
1414N4PHSSO10
316 S.S.
Part Number
1414N4PHS16C4
1414N4PHS16E
1414N4PHS16G
-
1414N4PHS16I
1414N4PHS16K
1414N4PHS16K6
1414N4PHS16L6
1414N4PHS16M6
1414N4PHS16O6
-
-

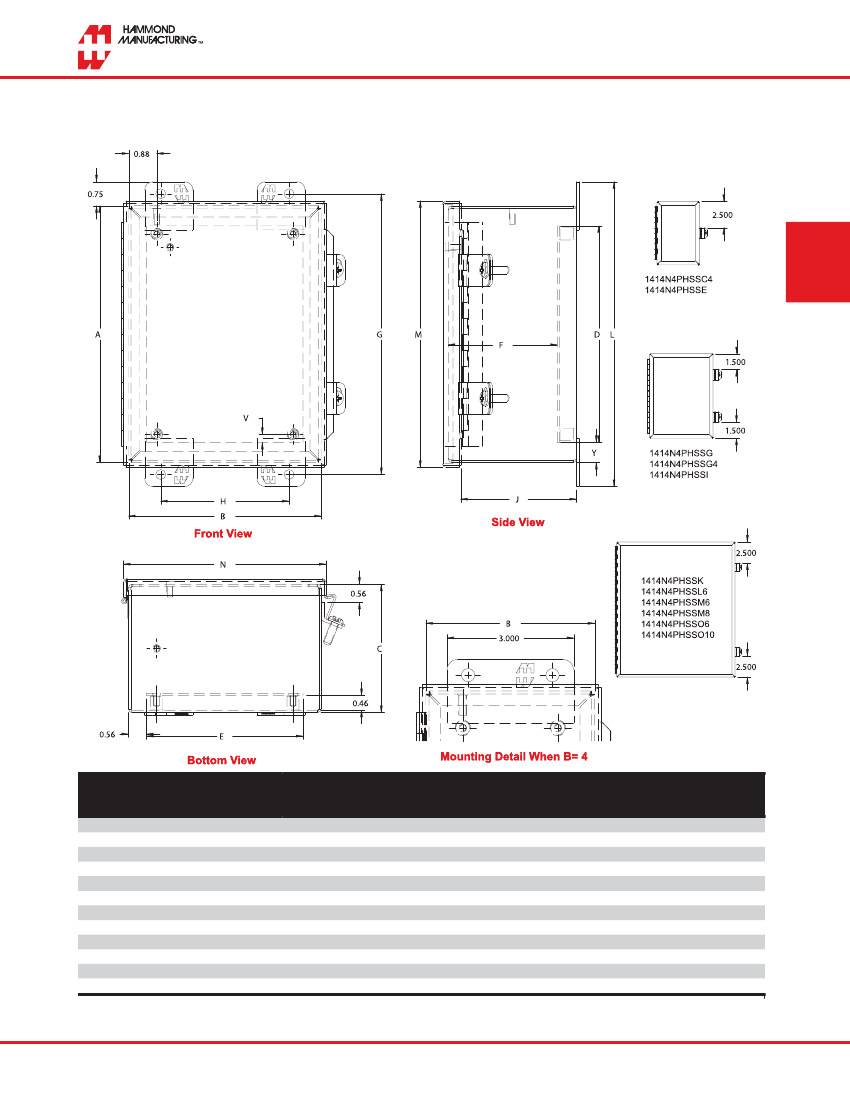

Dimensions
A
B
C
6.0 4.0 4.0
6.0 6.0 4.0
8.0 6.0 3.5
8.0 6.0 4.0
10.0 8.0 4.0
12.0 10.0 5.0
12.0 10.0 6.0
12.0 12.0 6.0
14.0 12.0 6.0
16.0 14.0 6.0
14.0 12.0 8.0
16.0 14.0 10.0
Panel Size
D
E
4.88 2.88
4.88 4.88
6.75 4.88
6.75 4.88
8.75 6.88
10.75 8.88
10.75 8.88
10.75 10.88
12.75 10.88
14.75 12.88
12.75 10.88
14.75 12.88
F
3.5
3.5
3.0
3.5
3.5
4.5
4.5
5.5
5.5
5.5
7.5
9.5
Mounting
Centers
G
H
6.75 2.0
6.75 4.0
8.75 4.0
8.75 4.0
10.75 6.0
12.75 8.0
12.75 8.0
12.75 10.0
14.75 10.0
16.75 12.0
14.75 10.0
16.75 12.0
J
3.6
3.6
3.1
3.6
3.6
4.6
4.6
5.6
5.6
5.6
7.6
9.6
L
7.5
7.5
9.5
9.5
11.5
13.5
13.5
13.5
15.5
17.5
15.5
17.5
Cover
Dimensions
M
N
6.31 4.31
6.31 6.31
8.31 6.31
8.31 6.31
10.31 8.31
12.31 10.31
12.31 10.31
12.31 12.31
14.31 12.31
16.31 14.31
14.31 12.31
16.31 14.31
V
0.31
0.31
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Y
0.56
0.56
0.63
0.63
0.63
0.63
0.63
0.63
0.63
0.63
0.63
0.63
Ship Wt.
Lbs.
5
6
6
8
10
15
16
20
21
26
22
28
Technical references and CAD downloads available at www.hammondmfg.com
All dimensions in inches unless specified otherwise
Quality Products. Service Excellence.
© Hammond Manufacturing
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
74
