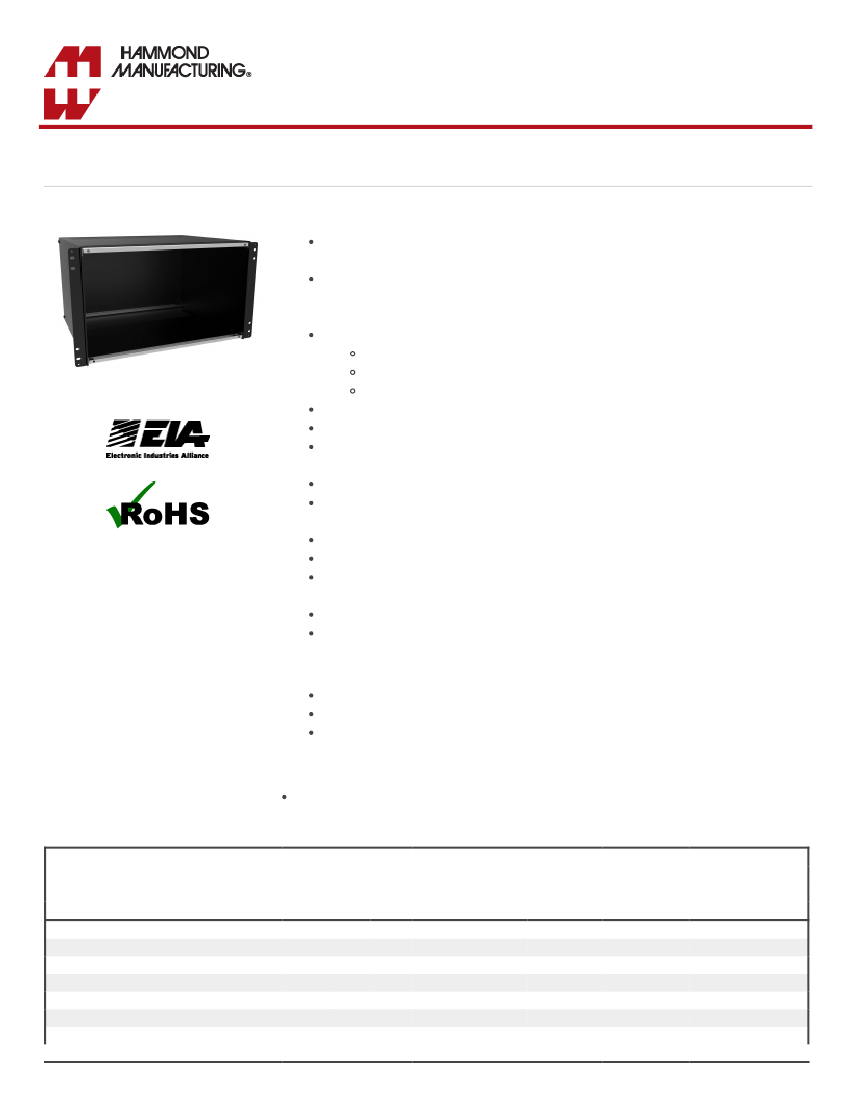

Rack-Mounted Instrument Enclosure
RMC Series
19" Rack-Mount or Desktop Use
Features
Uses all machine screw & PEM nut construction, perfect for applications where repetitive
assembly and disassembly are required.
Light weight design - all aluminum, type 5050 H32 for easy modification. Example: the 19
rack mountable enclosure (RMCS190313BK1) shown in the left photo above - weighs
only 5 pounds (2.3 Kg).
Strong design construction using:
0.125" (3.2 mm) thick - side panels & rack mount brackets
0.064" (1.6 mm) thick - front & rear panels
0.062" (1.6 mm) thick - top and bottom panels
Can be used with or without rack mounting "ears" or brackets (included).
Enclosure is finished in rugged, satin texture, black powder paint
Includes top, bottom, side panels, front & rear panels, rubber self adhesive feet, rack
mount brackets and all hardware
Pull handle accessory kit available
Easy access to inside, only 4 screws need to be removed from any of the 6 panels for
internal access.
Internal aluminum chassis panel is optional (see below).
Knockdown design ships unassembled for easy handling and shipping protection.
Note: Panels are not grounded to frame due to powder coat finish. Grounding method to
be determined by user.
RoHS Compliant.
Manufactured in North America.
Replacement Hardware kit: RMCHDWKIT includes:
#10‐32 X 5/8" Pan head black, qty 8
#6‐32 X 3/8" Flat head black, qty 16
20.5 X 20.5 X 7.6 Rubber Bumpon, qty 4
Accessories
Mounting Hardware
Inside Height
Clearance
Part No.
Solid Top/Bottom
RMCS9018BK1
RMCS19018BK1
RMCS190113BK1
RMCS9038BK1
RMCS19038BK1
RMCS190313BK1
RMCS9058BK1
Part No.
Vented Top/Bottom
RMCV9018BK1
RMCV19018BK1
RMCV190113BK1
RMCV9038BK1
RMCV19038BK1
RMCV190313BK1
RMCV9058BK1
Overall Dimensions
Height
1.73
1.73
1.73
3.48
3.48
3.48
5.23
Width
8.50
17.00
17.00
8.50
17.00
17.00
8.50
Depth
8.00
8.00
13.00
8.00
8.00
13.00
8.00
Usable Mounting Dimensions
Rack Units
1U
1U
1U
2U
2U
2U
3U
Height
1.75
1.75
1.75
3.50
3.50
3.50
5.25
With Chassis
Installed
0.81
0.81
0.81
2.56
2.56
2.56
4.18
Optional
Pull Handle
Mounting Bracket
Kit
RMCHANDLE1U
RMCHANDLE1U
RMCHANDLE1U
RMCHANDLE2U
RMCHANDLE2U
RMCHANDLE2U
RMCHANDLE3U
https://www.hammfg.com/electronics/small-case/rack-mount/rmc
1/2
11/8/2018
Rack-Mounted Instrument Enclosure (RMC Series) - Hammond Mfg.
Inside Height
Clearance
Optional
Pull Handle
Mounting Bracket
Kit
RMCHANDLE3U
RMCHANDLE4U
RMCHANDLE5U
RMCHANDLE6U
RMCHANDLE6U
Part No.
Solid Top/Bottom
RMCS190513BK1
RMCS190713BK1
RMCS190813BK1
RMCS191013BK1
RMCS191015BK1
Part No.
Vented Top/Bottom
RMCV190513BK1
RMCV190713BK1
RMCV190813BK1
RMCV191013BK1
RMCV191015BK1
Overall Dimensions
Height
5.23
6.98
8.73
10.48
10.48
Width
17.00
17.00
17.00
17.00
17.00
Depth
13.00
13.00
13.00
13.00
15.00
Usable Mounting Dimensions
Rack Units
3U
4U
5U
6U
6U
Height
5.25
7.00
8.75
10.50
10.50
With Chassis
Installed
4.18
6.06
7.81
9.56
9.56
Front & Rear Replacement Panels (Full 17" Width Only)
Part No.
Textured Black
RMCP1
RMCP3
RMCP5
RMCP7
RMCP8
RMCP10
Part No.
Smooth Black
RMCP1BK
RMCP3BK
RMCP5BK
RMCP7BK
RMCP8BK
RMCP10BK
Part No.
Beige
RMCP1CG
RMCP3CG
RMCP5CG
RMCP7CG
RMCP8CG
RMCP10CG
Mounting Dimensions
Height
1.75
3.5
5.25
7
8.75
10.5
Rack Units
1U
2U
3U
4U
5U
6U
Internal Aluminum Chassis Panel
Overall Panel Dimensions
Part No.
RMP908
RMP1908
RMP1913
RMP1915
Height
0.50
0.50
0.50
0.50
Width
8.22
16.72
16.72
16.72
Depth
6.00
6.00
11.00
13.00
For use with Enclosure Dimensions
Width
8.50
17.00
17.00
17.00
Depth
8.00
8.00
13.00
15.00
Replacement Rack Mounting Flanges (Sold in
Pairs)
Part Number (Pair)
RMCFLANGE1U
RMCFLANGE2U
RMCFLANGE3U
RMCFLANGE4U
RMCFLANGE5U
RMCFLANGE6U
Enclosure Height
1U
2U
3U
4U
5U
6U
Data subject to change without notice
