173RGY: DescriptionEnclosures, Boxes, u0026 Cases 6.88 x 4.88 x 2.51 GRAY; CategoryTopical application Mechanical and electrical/engineering/automation; File Size1MB，2 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

173RGY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	173RGY	-	-	View	Buy Now

173RGY Overview

Enclosures, Boxes, u0026 Cases 6.88 x 4.88 x 2.51 GRAY

173RGY Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Product	Boxes
Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Gray
IP Rating	IP40
NEMA Rating	1
Flammability Rating	UL 94 HB
Cover Color	Gray
Features	Front access, PCB supports
Factory Pack Quantity	1
Unit Weight	8.000135 oz

Preview

Download Datasheet

View All

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

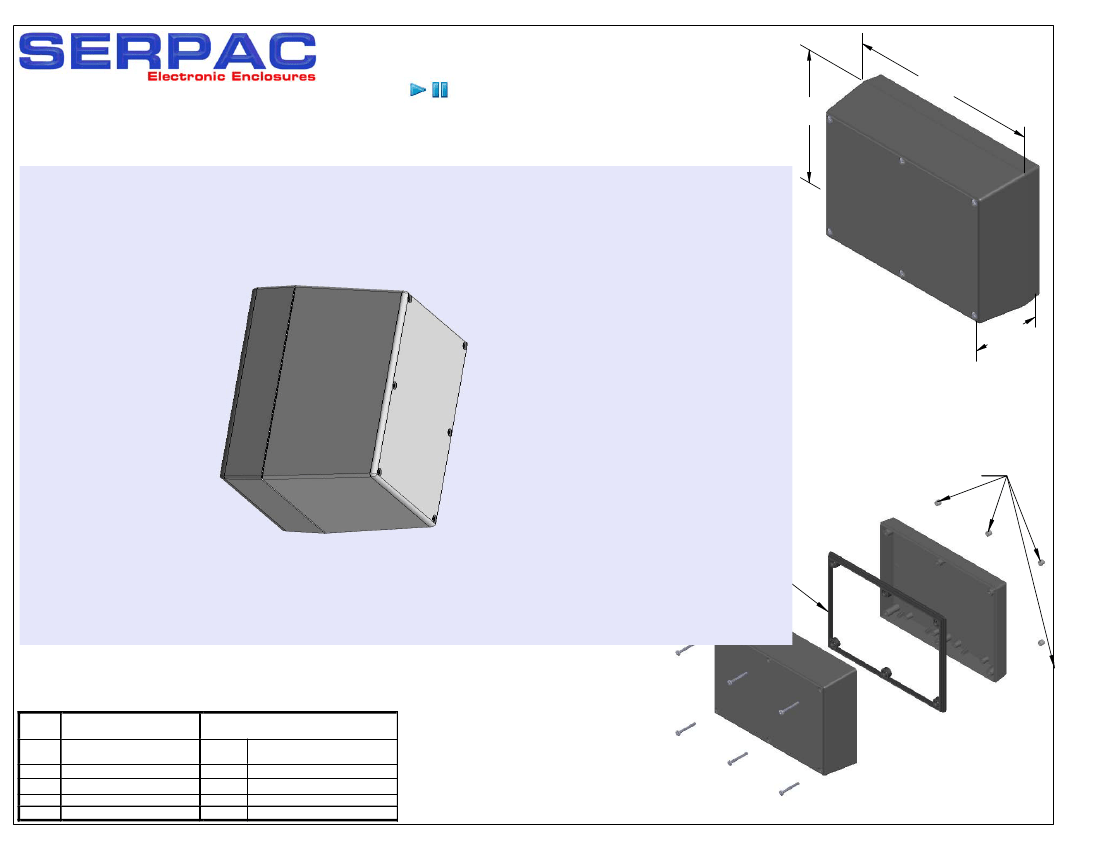

173R

(3D exploded)

4.88

6.88

2.50

Threaded inserts only

have to be assembled

the first time.

Water proofing gasket

PS17 optional.

see note #2

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

PART

NO.

7-3R

6019

6102

DESCRIPTION

(Included)

TOP

BOTTOM

4-40 SCREW (6)

THREADED INSERTS (6)

ACCSESSORIES

(Optional)

PART

NO.

PS17

370

470

DESCRIPTION

Perimeter Seal

Prototype Grid Circuit Board

Prototype Clad Circuit Board

Notes:

Enclosure weight .50 lbs / 229 gm

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS17 the enclosure meets or exceeds

IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

3) Circuit Board drawings can be download at:

Top:

http://www.serpac.com/Accessories/CircuitBoard/drawings/X73_CB.pdf

Bottom:

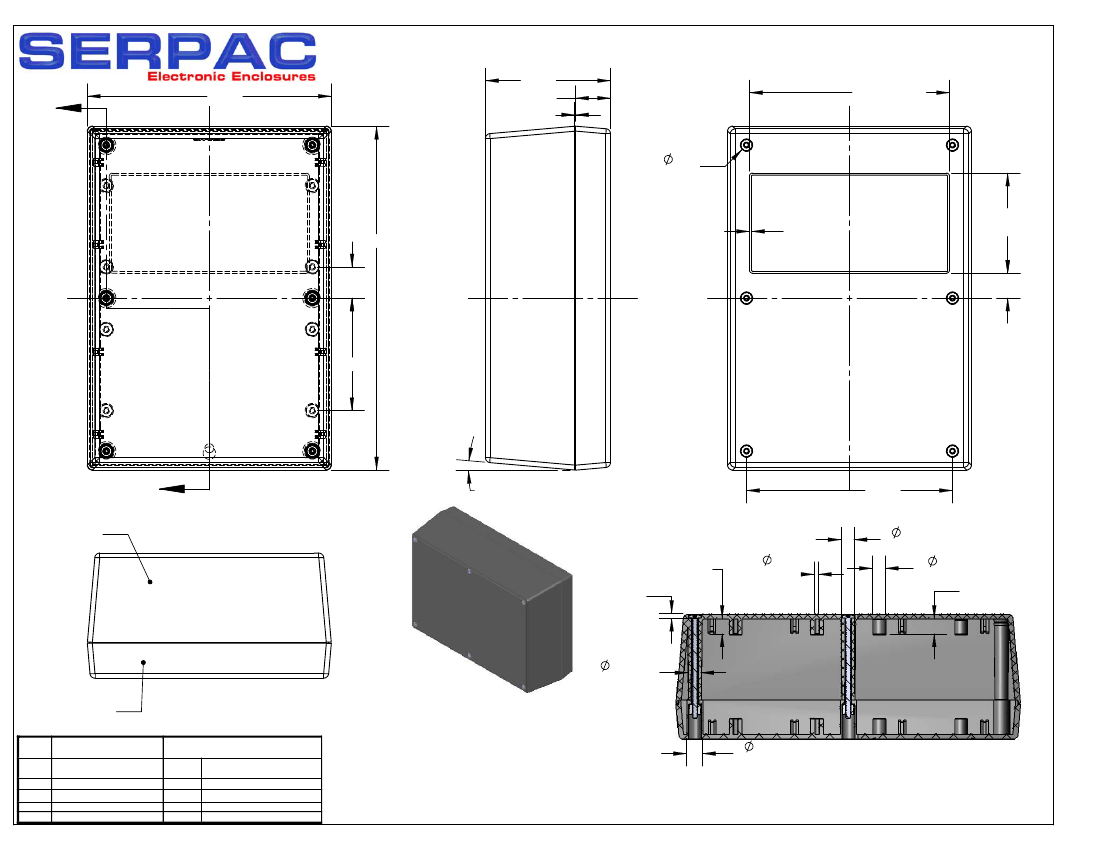

ALL DIMENSIONS ARE ± .010"

7/29/10

(1 of 2)

http://www.serpac.com/Accessories/CircuitBoard/drawings/370-470-cbc.pdf

2009 Wright Ave. La Verne, CA 91750

4) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com
