CA80-GRAY: DescriptionEnclosures, Boxes, u0026 Cases 3.27 X 1.81 X 1.02 Gray; CategoryTopical application Mechanical and electrical/engineering/automation; File Size118KB，1 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

CA80-GRAY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CA80-GRAY	-	-	View	Buy Now

CA80-GRAY Overview

Enclosures, Boxes, u0026 Cases 3.27 X 1.81 X 1.02 Gray

CA80-GRAY Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Gray
IP Rating	IP66
NEMA Rating	4X, 12, 13
Flammability Rating	UL 94 HB
Features	Ergonomic Design, 0 to 6 Button Configurations Available
Factory Pack Quantity	1
Unit Weight	0.480079 oz

Preview

Download Datasheet

View All

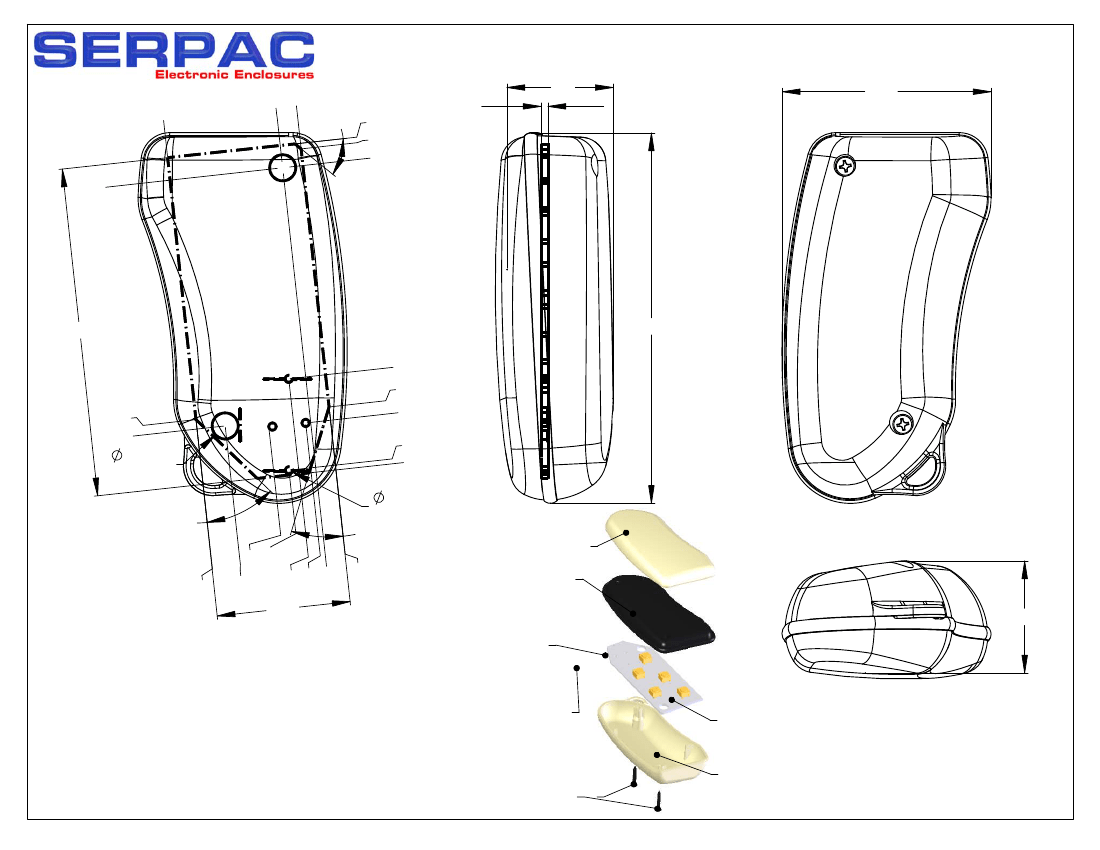

CA8B0

.95

45°

.20

.15

0

.18

0

1.02

(no buttons option)

1.87

.06

0

2.95

1.89

2.18

2.30

2.71

2.75

3.32

2.16

2.25

.24 typ.

2 plc's

40°

TOP VIEW SHOWING

CIRCUIT BOARD

DIMENSIONS

.07 typ.

4 plc's

23°

TOP

0

.04

.15

.24

.37

.76

.18

MEMBRANE

NOTES:

1) Serpac Provides the following components:

Top, Bottom, Button Membrane, 9mm keyring and (2) #2 Screws.

All components are shipped unassembled.

2) The switches characteristics recommended for this enclosure are:

- 4.3 mm in height from mounting surface to top of push plate.

- Operating force recommended is 1.6 N or more.

3) For battery contacts use:

- for Coin battery Keystone 3003 positive and 2990 negative.

#2 SCREWS

PN 6008

1.02

1.20

(B)

COIN BATTERY

HOLDER

1.01

20mm

COIN BATTERY

CIRCUIT

BOARD

BOTTOM

ALL DIMENSIONS ARE ± .010"

6/25/2013

2009 Wright Ave, La Verne, CA 91750

Ph:(626) 331-0517 Fx: (626) 331-8584 www.serpac.com

CA80-GRAY Related Products

	CA80-GRAY	CA80-ALMOND
Description	Enclosures, Boxes, u0026 Cases 3.27 X 1.81 X 1.02 Gray	Enclosures, Boxes, u0026 Cases 3.27 X 1.81 X 1.02 Almond
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	SERPAC	SERPAC
RoHS	Details	Details
Material	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)
Color	Gray	Almond
IP Rating	IP66	IP66
NEMA Rating	4X, 12, 13	4X, 12, 13
Flammability Rating	UL 94 HB	UL 94 HB
Features	Ergonomic Design, 0 to 6 Button Configurations Available	Ergonomic Design, 0 to 6 Button Configurations Available
Factory Pack Quantity	1	1
Unit Weight	0.480079 oz	0.480079 oz
