NOTES:
UNLESS OTHERWISE SPECIFIED
REV.
1
2
3
4
5
5.1
5.2
DRAWN BY
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
ECO No
RELEASED
R E V I S I O N
DESCRIPTION
PRELIMINARY RELEASE
MODIFIED BATTERY COMPARTMENT
DATE
08-Jul-04
09-Jul-04
06-Aug-04
15-May-08
04-Nov-09
26-Mar-10
13-Feb-12
APPROVED
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
1. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM.
2. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH.
EQUIVELANT TO MT-11010.
3. INTERIOR SURFACE TEXTURE TO BE: NONE.
4. ALL INSIDE RADII .010R. UNLESS OTHERWISE SPECIFIED.
5. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT
THE LARGE END OF THE FEATURE, AND ALL INTERNAL FEATURES
AFFECTED BY THE DRAFT APPLY AT THE SMALL END OF THE
FEATURE UNLESS OTHERWISE SPECIFIED.
6. 1 DEGREE DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE UNLESS
OTHERWISED SPECIFIED.
7. MATERIAL / COLOR:
ABS PLASTIC IS STANDARD IN BLACK OR WHITE.
CUSTOM MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE.
8. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND
VERIFICATION OF IT'S FIT ARE THE SOLE RESPONSIBILITY OF
EACH OWNER.
9. STANDARD OR CUSTOM LABEL RECESSES ARE AVAILABLE UPON
REQUEST FOR QUOTE.
10. ASSEMBLY SCREWS PROVIDED. PCB SCREWS AND BATTERY
CONTACTS ARE SOLD SEPERATELY.
11. BATTERY CLIPS AVAILABLE.
ASK REP. FOR DETAILS
0208
4209
0710
0412
UPDATE FORMAT
REDUCE SIZE OF ASSEMBLY SCREW HOLE ON BASE
UPDATE FORMAT
ADD NYLON WASHER TO BOM
6
3
8
9
5
4
2
11
10
1
12. HARDWARE CALLOUT:
a) ASSY BOSS -
4ea .250" #6 HI-LOW SCREW
b) PCB BOSS -
4ea .187" #4 HI-LOW SCREW (Not Included)
c) BATTERY HATCH - 1ea 4-40 BRASS INSERT
1ea 4-40 FLATHEAD SCREW
1ea #2 RETAINER WASHER
11
10
9
8
7
6
5
4
3
2
1
WASHER_91755A2
BATTERY_AA
SM_CLIP
LG_CLIP
784114_HATCH
784114_COVER
784114_BASE
4-40_INSERT
784114_PCB
NO_4_500_SCREW
4-40_FLAT-HEAD-SCREW
WASHER NYLON RETAINING #2
BATTERY - CUSTOMER SUPPLIED
ACC-AACLIP-209
ACC-AACLIP-210
784114 HATCH - STANDARD
784114 COVER - STANDARD
784114 BASE - STANDARD
PEM STKB-440-8
784114 PCB - REFERENCE
ASSEMBLY SCREW
4-40 FLAT HEAD
NYLON
SIZE "AA"
STEEL
STEEL
ABS
ABS
ABS
STK SERIES INSERT
CUSTOMER SUPPLIED
#4 HiLo SCREW
4-40 FH x .312"
WHITE
REFERENCE
NICKEL PLATED
NICKEL PLATED
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
4-40 x .250"
.062" THICK
#4 HiLo x .500"
-
1
4
2
3
1
1
1
1
1
4
1

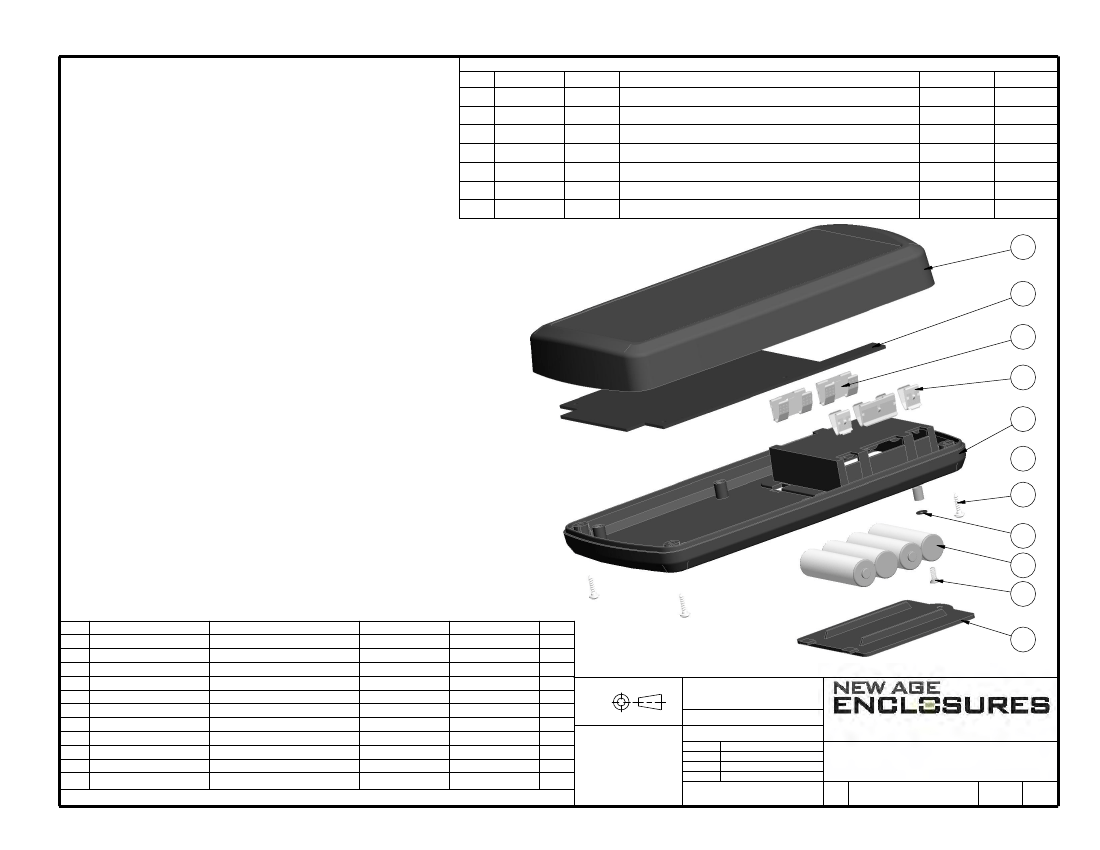

EXPLODED VIEW
SCALE
0.500
THIRD ANGLE PROJECTION
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
7
X.XX = .015 X.XXXX = .001
X.XXX = .010 X.X°
= 1°
DO NOT SCALE DRAWING
NOTICE: THE INFORMATION AND DATA
CONTAINED HEREIN IS CONSIDERED
PROPRIETARY TO ALLTEC INTEGRATED
MFG INC & SHALL REMAIN THE EXCLUSIVE
PROPERTY OF ALLTEC INTEGRATED MFG INC
THE HOLDER WILL ASSUME CUSTODY AND
CONTROL THAT THIS DOCUMENT WILL
NOT BE COPIED, REPRODUCED, OR
DISCLOSED WITHOUT THE EXPRESS WRITTEN
CONSENT OF ALLTEC INTEGRATED MFG INC
POSSESSION OF THIS DOCUMENT DOES
NOT CONSTITUTE A GRANT TO
MANUFACTURE ANY ITEMS.
© 2011
NEW AGE ENCLOSURES
Customer's Part No: 784114
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
4330 Santa Fe Road
ph. (805) 595-1310
www.newageenclosures.com
San Luis Obispo, CA. 93401
fax (805) 595-1024
ITEM
FILE
NAME
DESCRIPTION
MATERIAL
COLOR
QTY.
AS NOTED
SIZE

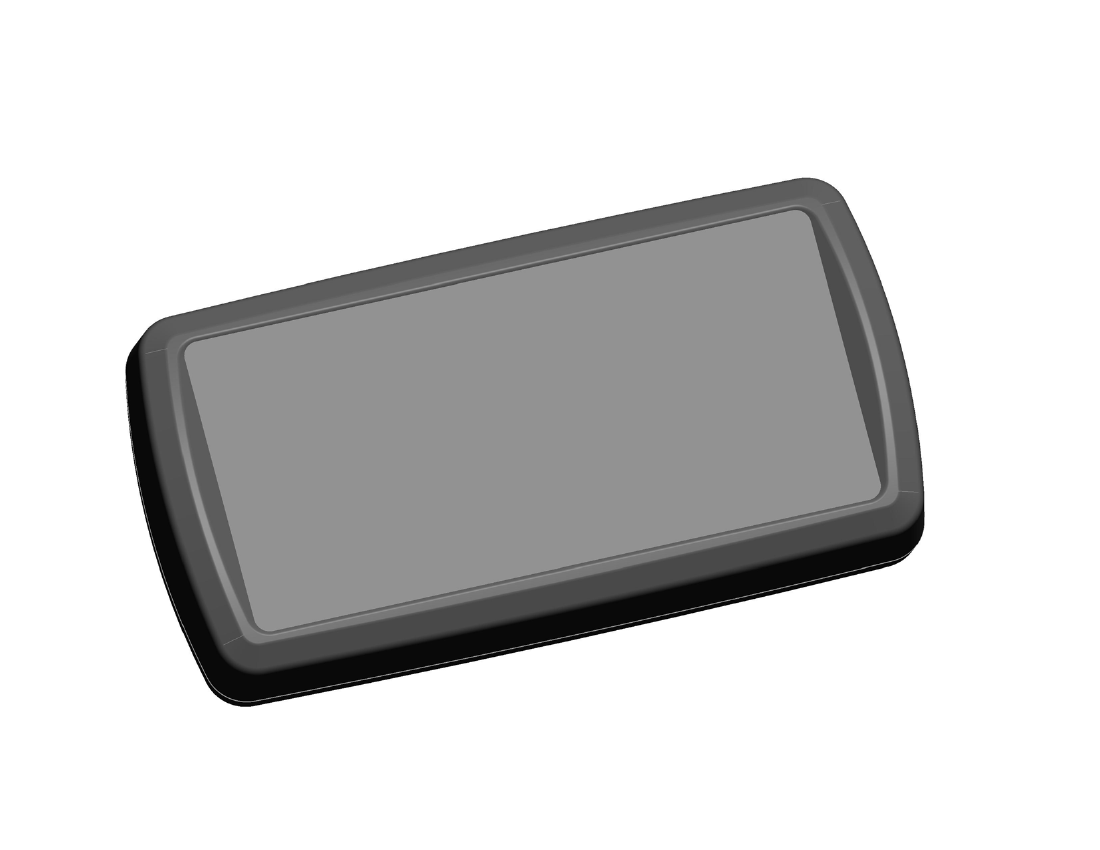

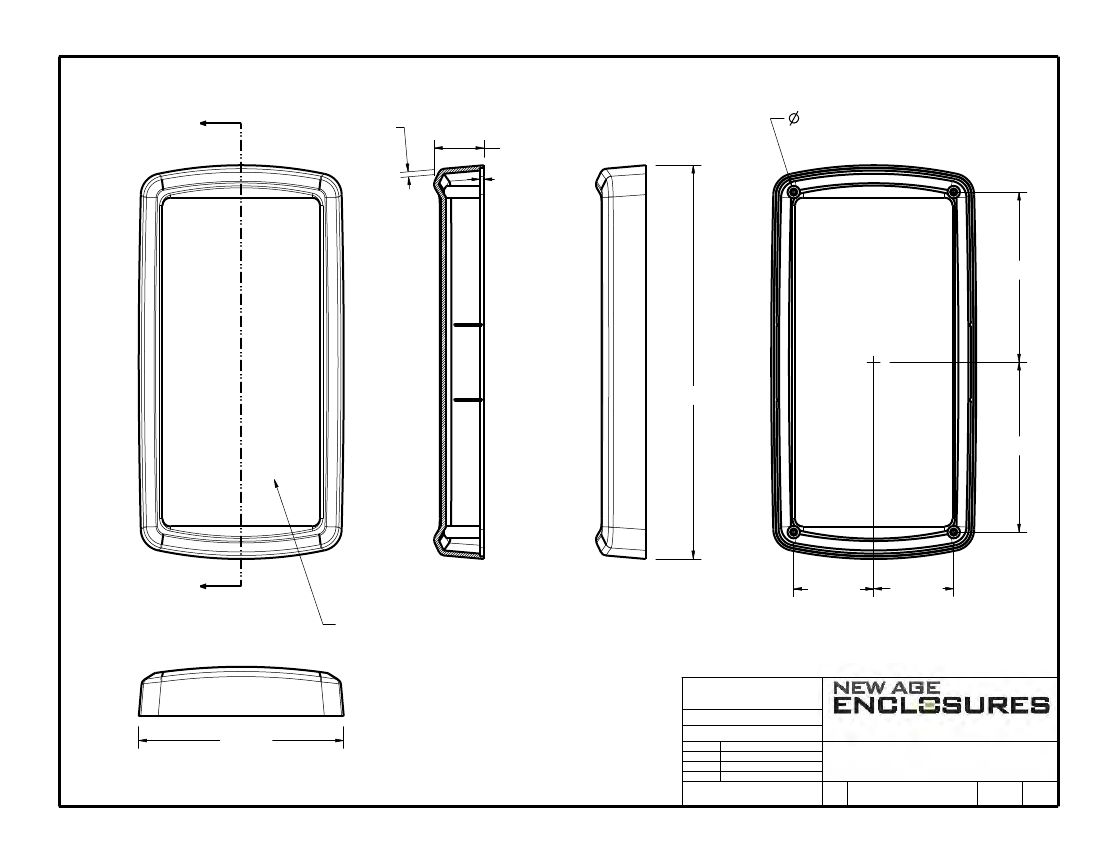

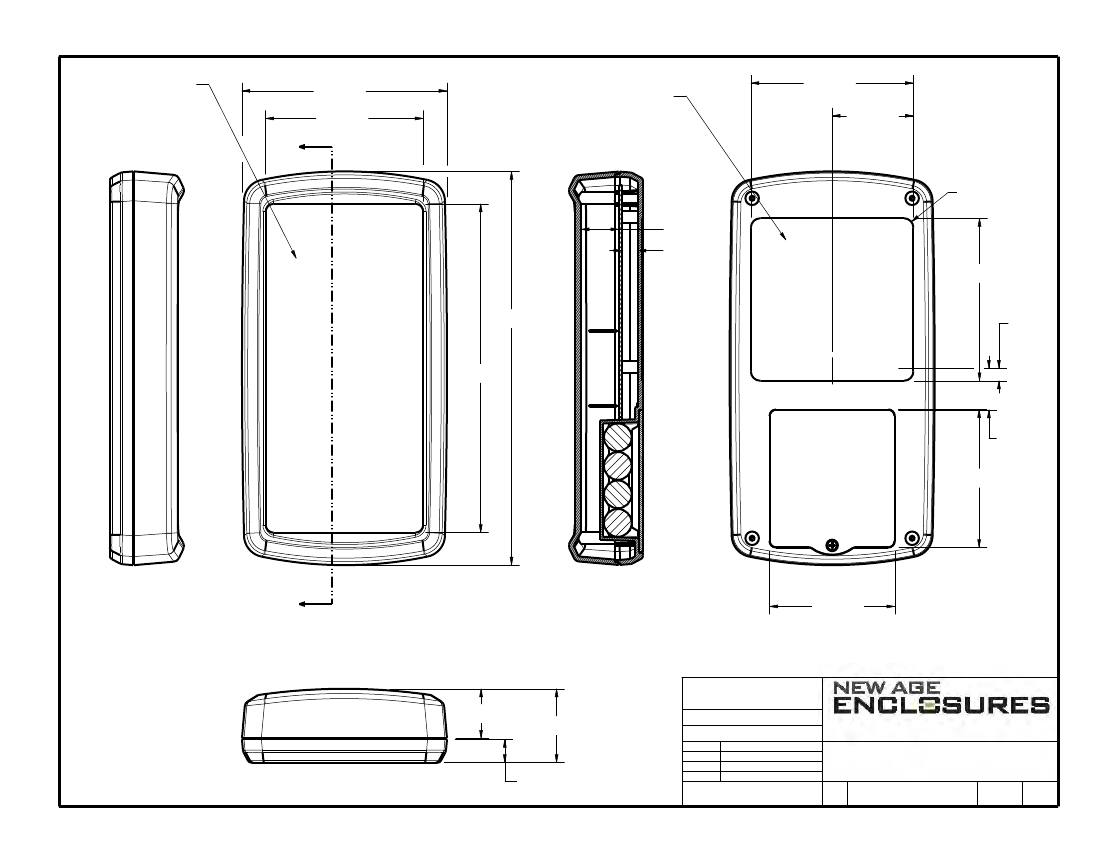

STANDARD LRG HANDHELD
SXX-784114 ASSEMBLY
DRAWING NAME
SHEET
REV.DOC
BILL OF MATERIALS
M BOYER
08-Jul-04
A 784114_R5_2
1 OF 7
5.2
