76361-017 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76361-017

76361-017: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Straight, Wire Terminal, Receptacle; CategoryThe connector The connector; File Size594KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

76361-017 Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Wire Terminal, Receptacle

76361-017 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.814 inch
subject depth	0.4 inch
body length	0.605 inch
Body/casing type	RECEPTACLE
Cable type	WIRE, STRANDED
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Durability	250 Cycles
maximum insertion force	4.8928 N
Insulation resistance	500000000 Ω
Insulator color	GRAY
insulator material	ABS
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Termination type	WIRE
Total number of contacts	4
Maximum wire diameter	27 AWG
Minimum wire diameter	27 AWG

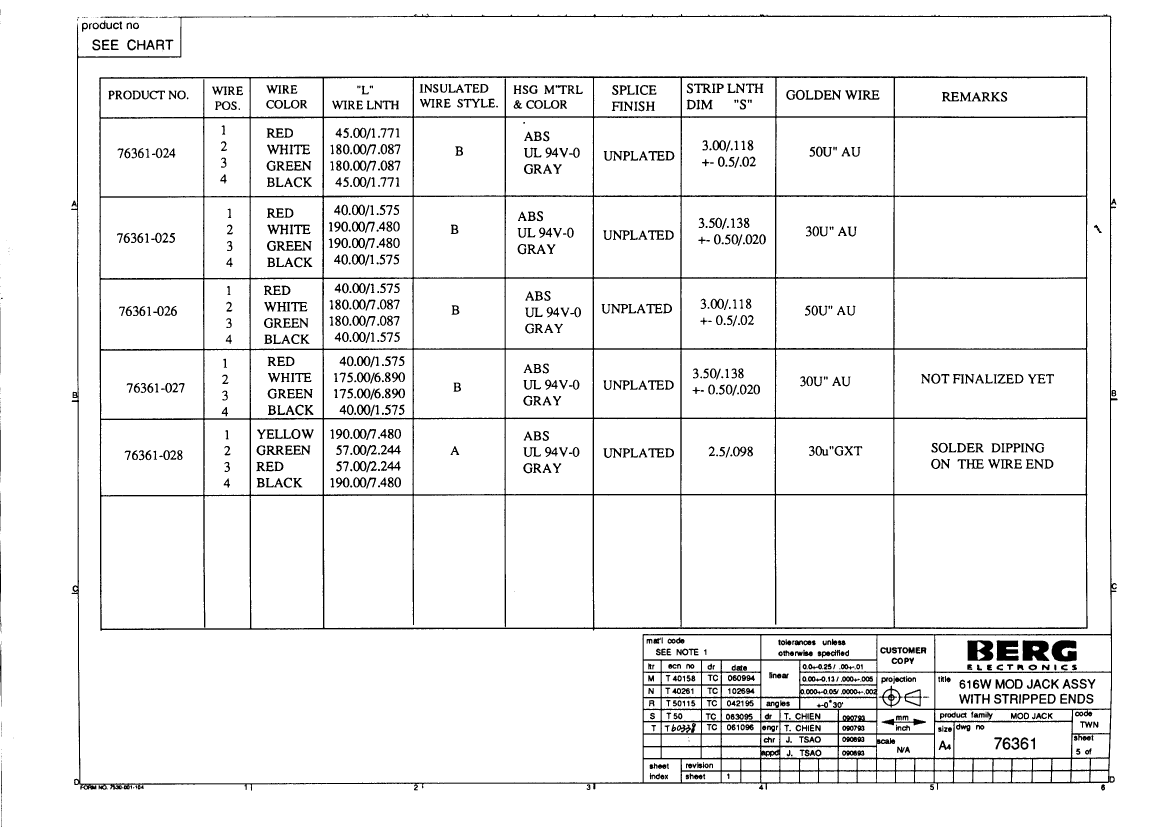

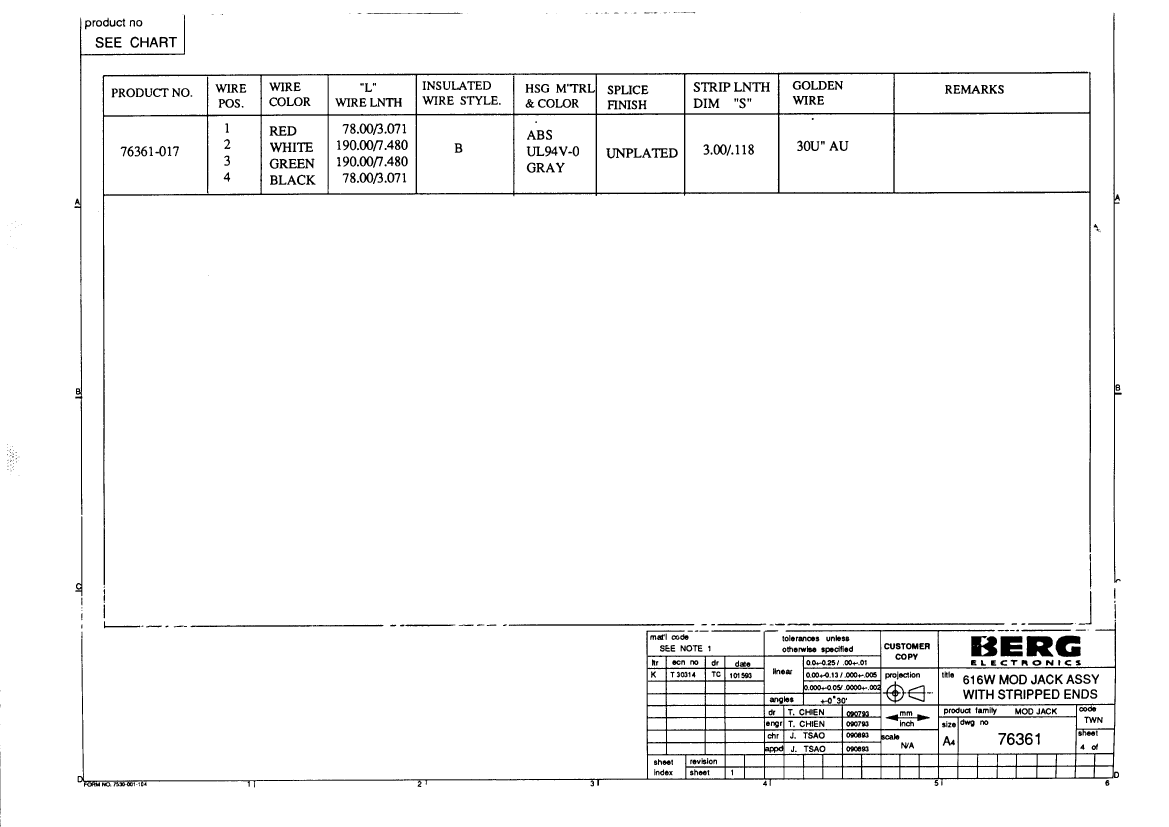

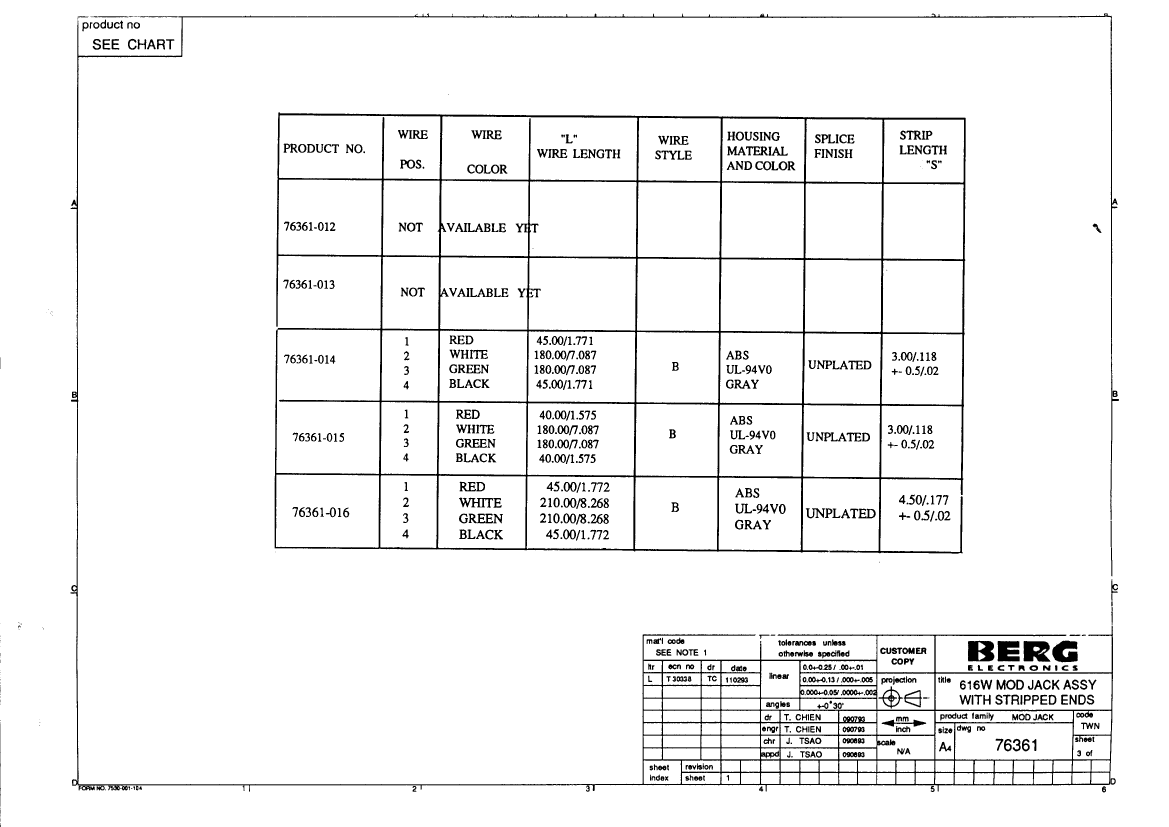

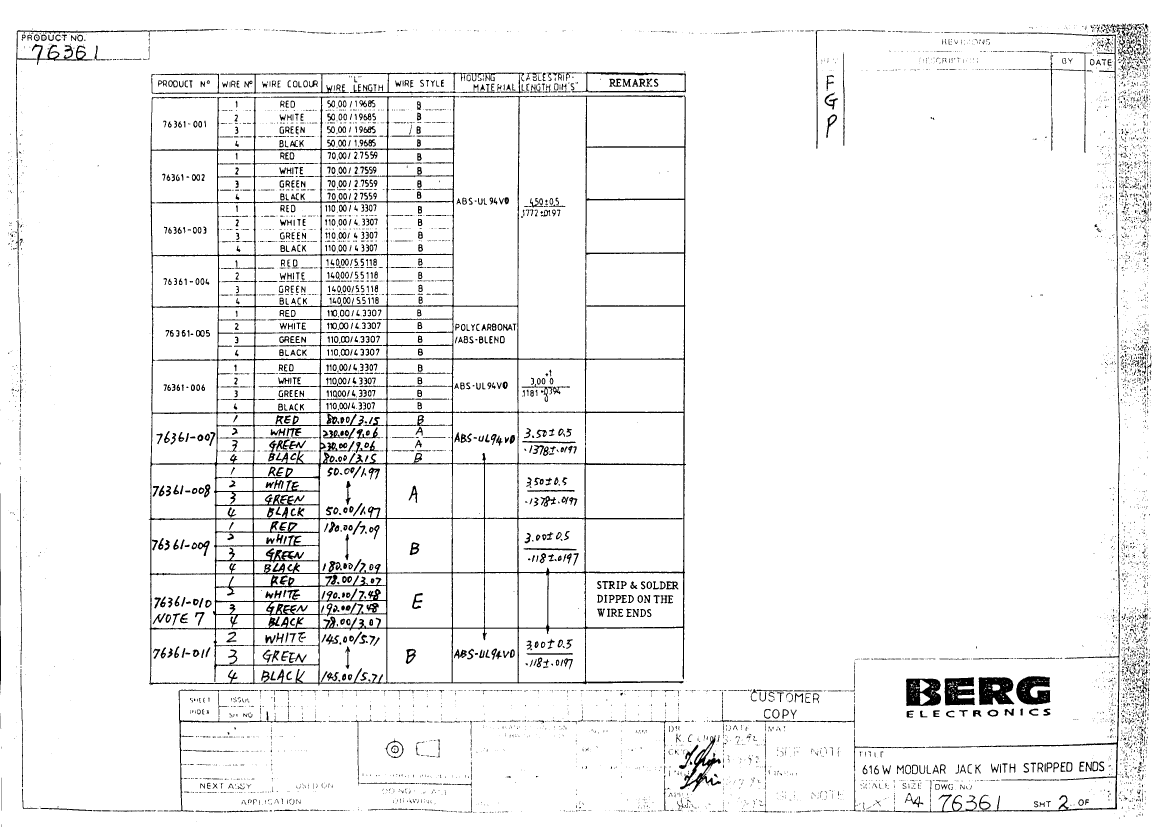

Preview

Download Datasheet

View All

76361-017 Related Products

	76361-017	76361-007	76361-030	76361-001
Description	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Wire Terminal, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Wire Terminal, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Wire Terminal, Receptacle	Telecom and Datacom Connector, 4 Contact(s), Male, Straight, Wire Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	0.814 inch	0.814 inch	0.814 inch	0.814 inch
subject depth	0.4 inch	0.4 inch	0.4 inch	0.4 inch
body length	0.605 inch	0.605 inch	0.605 inch	0.605 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Cable type	WIRE, STRANDED	WIRE, STRANDED	WIRE, STRANDED	WIRE, STRANDED
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles
maximum insertion force	4.8928 N	4.8928 N	4.8928 N	4.8928 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY
insulator material	ABS	ABS	ABS	ABS
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1
Number of rows loaded	2	2	2	2
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	CSA, UL	CSA, UL	CSA, UL	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	WIRE	WIRE	WIRE	WIRE
Total number of contacts	4	4	4	4
Maximum wire diameter	27 AWG	27 AWG	27 AWG	27 AWG
Minimum wire diameter	27 AWG	27 AWG	27 AWG	27 AWG
Maker	Amphenol	Amphenol	Amphenol	-
