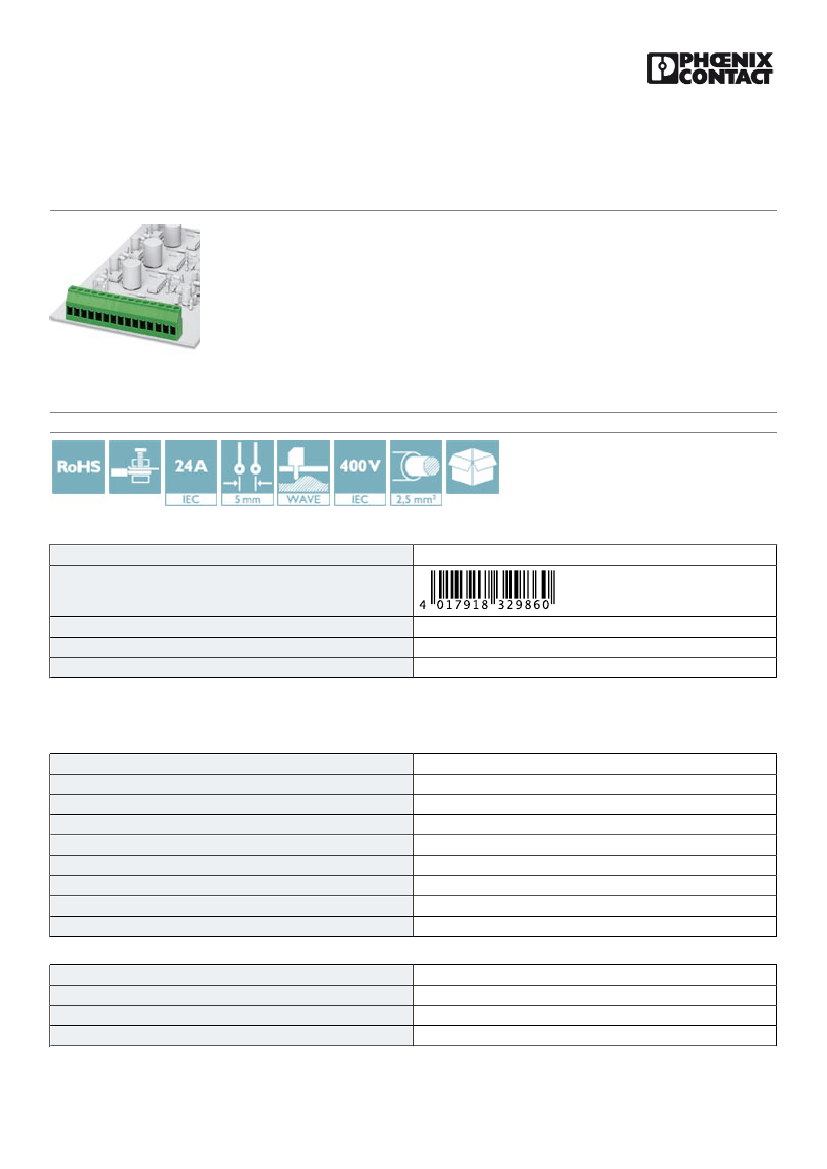

PCB terminal block - MKDS 3/12 BK - 1724602
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 12,
Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB
connection direction: 0 °, Color: black, The article can be aligned to create different nos. of positions!
The illustration shows an 15-pos.
version in green
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918329860
85369010
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Height
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
11.2 mm
5.00 mm
55 mm
23 mm
18 mm
5 mm
0,9 x 0,9 mm
5 mm
1.3 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
MKDS 3
I
4 kV
4 kV
11/14/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1724602
PCB terminal block - MKDS 3/12 BK - 1724602
Technical data
General
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
4 kV
250 V
400 V
630 V
EN-VDE
24 A
2.5 mm²
28 A (with 4 mm² conductor cross section)
PA
Sn
V0
A3
8 mm
12
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.25 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.75 mm²
0.5 mm²
1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
11/14/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1724602
PCB terminal block - MKDS 3/12 BK - 1724602
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Dimensional
Drilling
diagram
drawing
Approvals
Approvals
Approvals
CSA / SEV / CCA / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
28-12
10 A
300 V
D
28-12
10 A
300 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
SEV https://www.electrosuisse.ch/en/meta/shop/product-certificates.html IK-3248
mm²/AWG/kcmil
Nominal voltage UN
4
250 V
11/14/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1724602
PCB terminal block - MKDS 3/12 BK - 1724602
Approvals
CCA IK-3249
mm²/AWG/kcmil
Nominal voltage UN
4
250 V
EAC B.01742
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19770427
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
15 A
300 V
D
30-12
10 A
300 V
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 4 / 4
