124097 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 124097

Preview

124097: DescriptionERNI Electronics 88P 2MM VERT FML TYPE F NO SHLD PRESS; CategoryThe connector The connector; File Size53KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

124097 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	124097	-	-	View	Buy Now

124097 Overview

ERNI Electronics 88P 2MM VERT FML TYPE F NO SHLD PRESS

124097 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: IEC 61076-4-101
body width	0.719 inch
subject depth	0.535 inch
body length	0.984 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.7228 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of rows loaded	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	ENDS
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	88
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

Datum

date

Id.-Nr.

18.25

XXXXXXX ERNI 124097

1 max.

1

4 max.

11

c

d

e

f

g

h

2

10 x 2 =

20

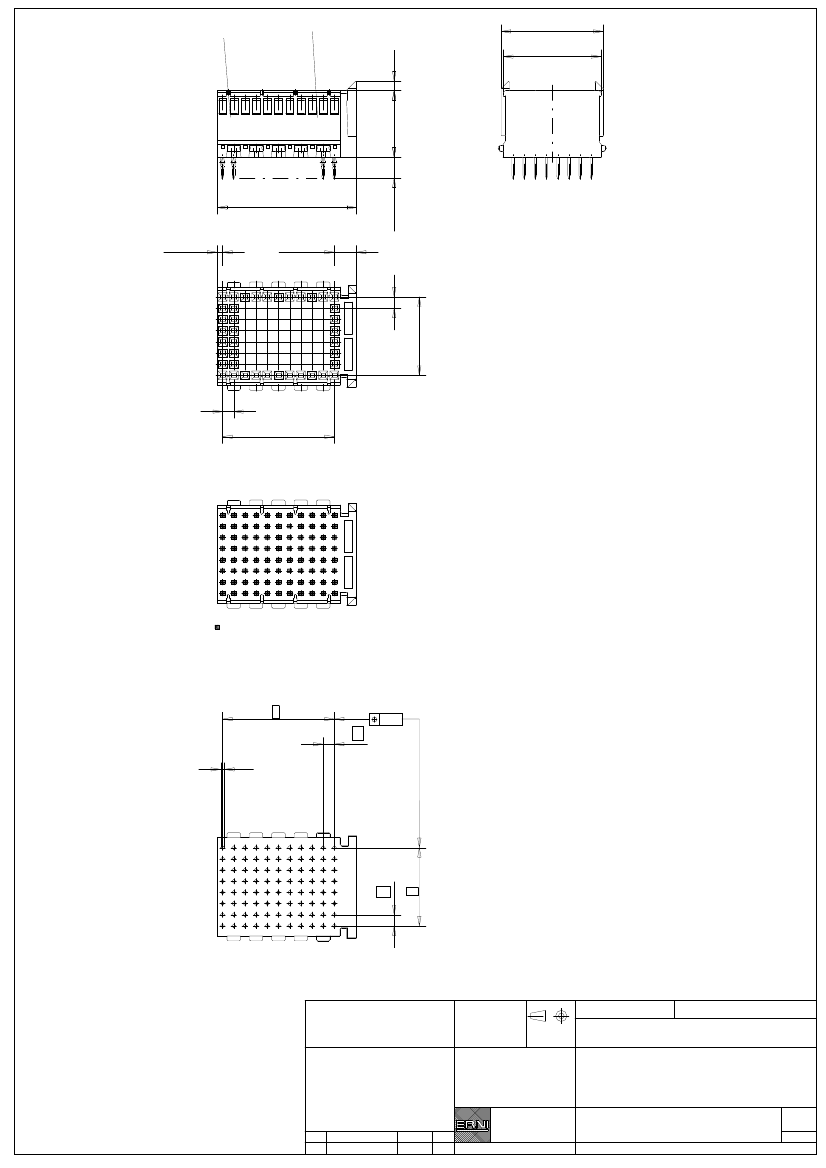

Bestückungsplan

1

- contact layout

11

a

b

c

d

e

f

g

h

= bestückt

- assemble

Lochbild für Leiterplatte

(Bestückungsseite)

Board hole pattern

(Component mounting side)

alle Löcher

-all holes

10 x 2 = ( 20 )

0.05

2

1)

7x2=

14

b

2

a

3.7

±0.2

25 max.

12

1.6

17.4

1)

ø 0,6

±0,05

Durchmesser des metallisierten Loches

ø 0,6

±0,05

Diameter of finished plated-through hole

ø 0,7

±0,02

Bohrungsdurchmesser des Loches

ø 0,7

±0,02

Diameter of drilled hole

a

c

d

e

f

g

h

7 x 2 = ( 14)

b

Schichtaufbau im metallisierten Loch

siehe Zeichnung 114406

Metal plating of plated-through hole

see drawing 114406

1

11

Fehlende Masse und Angaben nach IEC 61076-4-101

Missing information and dimensions per IEC 61076-4-101

Information:

Tolerances

All Dimensions

in mm

Consider protection memo from DIN 34

2

Scale

2:1

Angaben zu entsprechender Ident-Nr. siehe Fertigungsunterlagen

For further information about I.D. number see manufacturing document

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

ERmet-FS Federleiste F

ERmet-Female Straight Type F

www.ERNI.com

a

Index

20.07.2004

Date

H:00042052.SZN

124097

ERMF

I
