384295 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 384295

384295: DescriptionERNI Electronics 160P 2.54MM RA MALE TYPE E160 CLIP 3MM; CategoryThe connector The connector; File Size176KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384295 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384295	-	-	View	Buy Now

384295 Overview

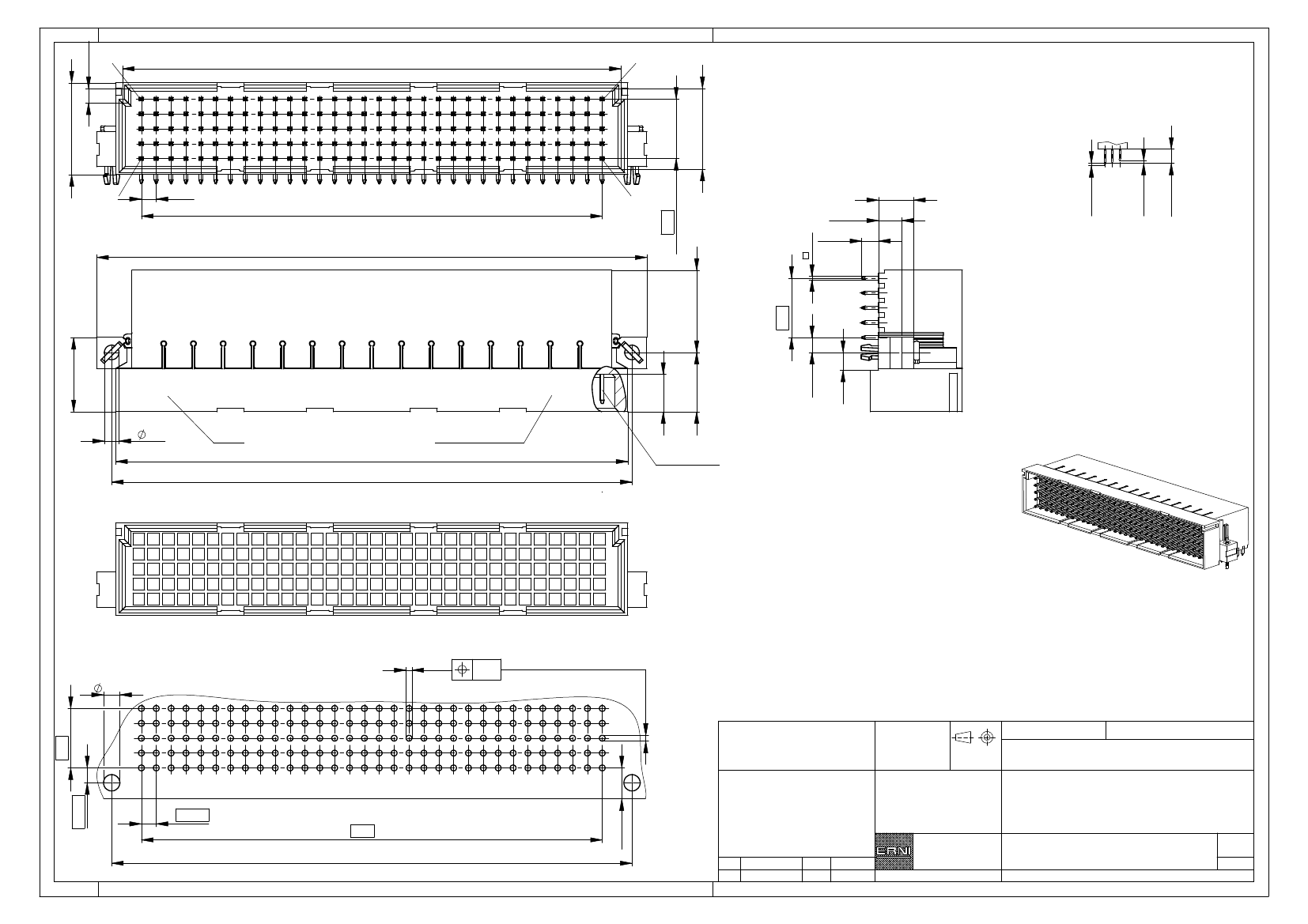

ERNI Electronics 160P 2.54MM RA MALE TYPE E160 CLIP 3MM

384295 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Samacsys Description	DIN 41612 Connectors 160P 2.54MM RA MALE TYPE E160 CLIP 3MM
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

2,5

-0,2

e32

85,2

+0,2

Stecklänge / mating length

max. 16,2

+0,2

4 x 2,54 (=10,16)

13,8

ESL

a32

2,54

31x2,54=78,74

±0,1

3,95

0,6

-0,4

E =

early mate, late break

/ voreilend

S = standard

max. 94

4 x 2,54 (=10,16)

L = late mate, early break / nacheilend

12,7

10,2

-0,2

max.14,6

2,54

XXXXXXX

Datum

2,5

ERNI

Anforderungsstufe

RC 2

6,4

-0,1

date

87,5

88,9

class

Stecklänge

mating length

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen / performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

4 x 2,54 (=10,16)

+0,1

±0,1

0,05

alle Löcher/

all holes

+0,1

a b c d e

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

5,3

±0,1

2,54

31 x 2,54 (=78,74)

88,9

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

14.10.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste E160 Löt + Clip

Male Conn. E160 solder+Clip

www.ERNI.com

Class

384295

STVE

4,8

±0,2

0,8

±0,1

0,8

±0,1
