1799455 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1799455

1799455: DescriptionPluggable Terminal Blocks FMC 1,5/ 8-ST- 3,5 CN5 BD:-A75; CategoryThe connector; File Size77KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

1799455 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1799455	-	-	View	Buy Now

1799455 Overview

Pluggable Terminal Blocks FMC 1,5/ 8-ST- 3,5 CN5 BD:-A75

1799455 Parametric

Parameter Name	Attribute value
Product Category	Pluggable Terminal Blocks
Manufacturer	PHOENIX CONTACT
Product	Plugs
Number of Positions	8 Position
Pitch	3.5 mm
Factory Pack Quantity	50
Unit Weight	0.152736 oz

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/1799455

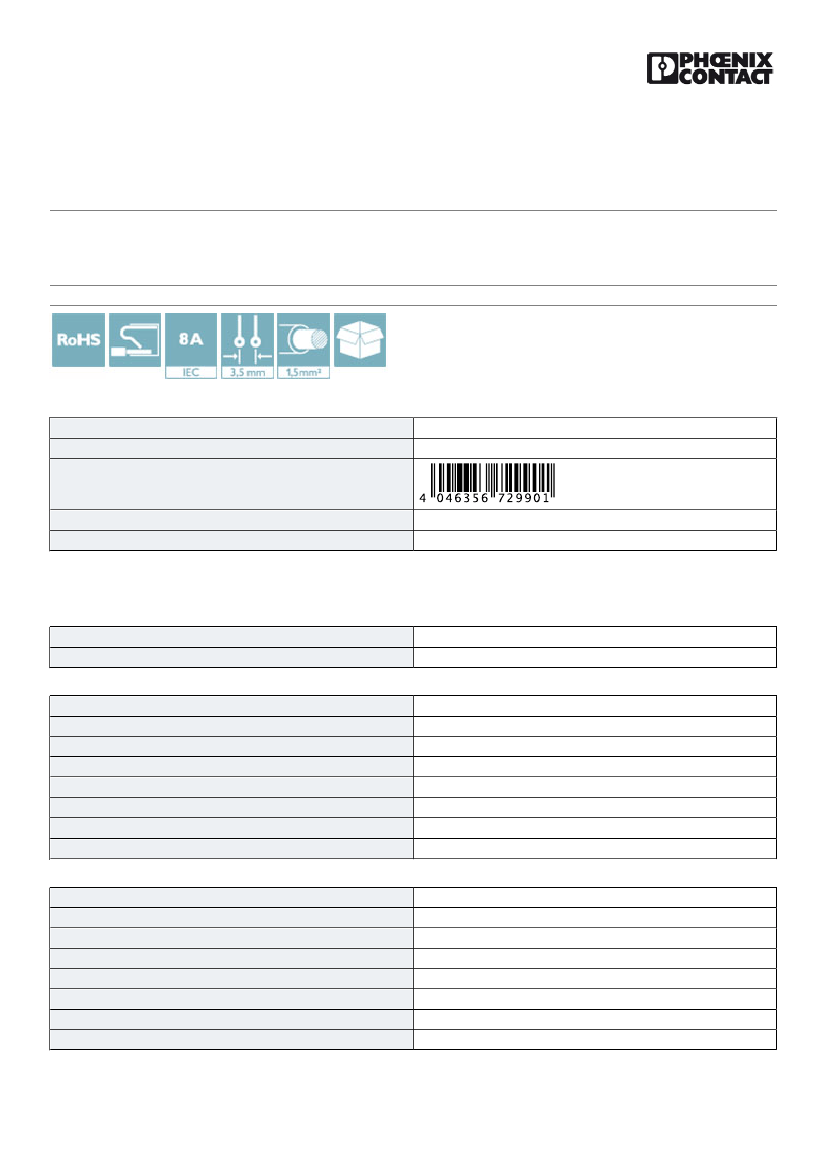

FMC 1,5/ 8-ST-3,5 CN5 BD:-A75 - 1799455

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Plug component, Nominal current: 8 A, Number of positions: 8, Pitch: 3.5 mm, Connection method: Push-in

spring connection, Color: green, Contact surface: Tin

Key Commercial Data

Packing unit

Minimum order quantity

GTIN

Custom tariff number

4046356729901

85366990

50 STK

500 STK

Technical data

Dimensions

Pitch

Dimension a

3.50 mm

24.5 mm

General

Range of articles

Type of contact

Number of positions

Connection method

Rated voltage (III/3)

Connection in acc. with standard

Nominal current I

Nominal cross section

FMC 1,5/..-ST

Female connector

Push-in spring connection

160 V

EN-VDE

1.5 mm²

Connection data

Conductor cross section solid min.

Conductor cross section solid max.

Conductor cross section flexible min.

Conductor cross section flexible max.

Conductor cross section flexible, with ferrule without plastic sleeve min.

Conductor cross section flexible, with ferrule with plastic sleeve min.

Conductor cross section flexible, with ferrule with plastic sleeve max.

0.2 mm²

1.5 mm²

0.2 mm²

1.5 mm²

0.25 mm²

0.75 mm²

11/14/2016 Page 1 / 3

Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
