7-2057360-3

Description
SM,HD,ST,080,000,00,SN,N,23
CategoryThe connector
File Size3MB,4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

7-2057360-3 Online Shopping

Suppliers Part Number Price MOQ In stock
7-2057360-3 - - View Buy Now

7-2057360-3 Overview

SM,HD,ST,080,000,00,SN,N,23

7-2057360-3 Parametric

Parameter NameAttribute value
PCB Connector Component TypesPCB mounting header
Connector SystemBoard to Board
Sealableno
Connectors and terminals terminate toA printed circuit board
lugsno
Number of signal positions8
Stackableyes
Number of terminals259
Number of pairs80
Number of power supply locations0
PCB mounting directionvertical
Number of Positions259
Board-to-board configurationvertical
Number of single-ended lines0
logarithm of each column8
Dielectric withstand voltage (VAC)750
Voltage (VDC)0
Voltage (VAC)250
Insulation resistance (MΩ)1000
Plating thickness of bus bar bonding area750
Terminal base materialcopper alloy
PCB terminal termination area plating materialstin
Solder tail terminal plating material surface coatingmatte
Terminal shaperound, round
Terminal contact plating materialgold
Terminal contact plating thickness.076 µm [ 2.99212 µin ]
Terminal typePin
Contact Current Rating (Max) (A)1.5
PCB terminal termination area plating thickness.5 – 2.54 µm [ 19.685 – 100 µin ]
Terminal layoutstaggered
PCB Termination MethodsThrough hole - solderless connection
PCB mounting fixation typeStandard pins
joint alignmentwith
Joint alignment typepolarization
PCB installation and fixationwith
PCB mounting alignmentWithout
Connector mounting typeboard mounting
Centerline (Pitch) (mm)1.27, 3.04, 6.09
Centerline (Pitch) (in).05, .12, .24
Shell materialmatte
stacking height23 mm [ .905 in ]
PCB thickness (recommended) (in).076
high22.8 mm [ .89604 in ]
Tail length (in).057
Working group temperature range-55 – 85 °C [ -67 – 185 °F ]
Assembly process characteristicsnone
pick and place coverWithout
Circuit ApplicationSignal
Applicable toFemale components
UL flammability ratingUL 94V-0
Encapsulation methodPackage
Package quantity24
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
7
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
POSITION GA1
POSITION DA1
UPPER HOUSING
D
SPACER
D
BASE HOUSING

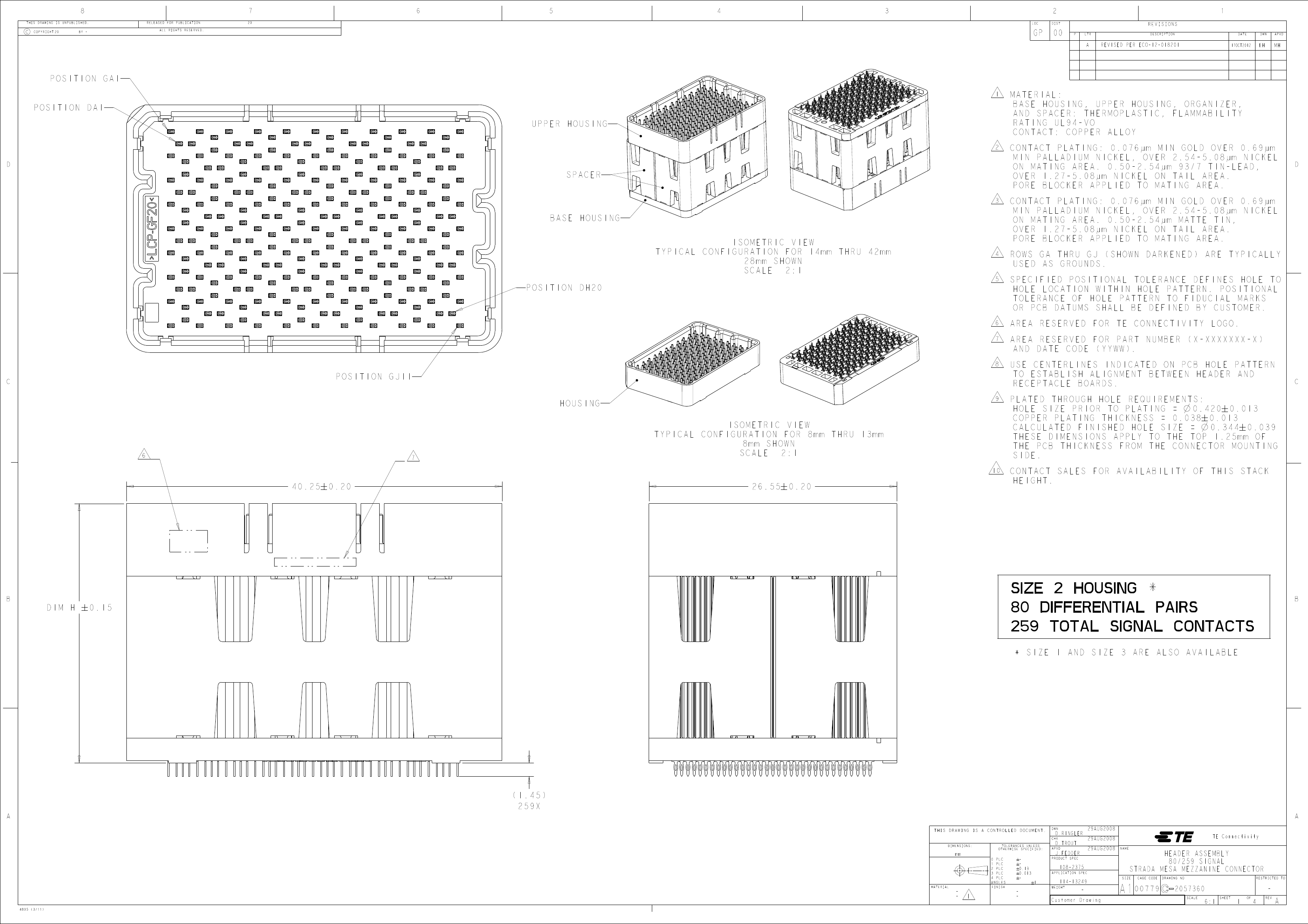

ISOMETRIC VIEW
TYPICAL CONFIGURATION FOR 14mm THRU 42mm
28mm SHOWN
SCALE
2:1
POSITION DH20
C
POSITION GJ11
HOUSING
ISOMETRIC VIEW
TYPICAL CONFIGURATION FOR 8mm THRU 13mm
8mm SHOWN
SCALE
2:1
40.25
0.20
26.55
0.20
C
B
DIM H
0.15
SIZE 2 HOUSING
*
80 DIFFERENTIAL PAIRS
259 TOTAL SIGNAL CONTACTS
* SIZE 1 AND SIZE 3 ARE ALSO AVAILABLE
B
A
( 1.45 )
259X
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
APVD
PRODUCT SPEC
NAME
A
TE Connectivity
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
APPLICATION SPEC
WEIGHT
A1
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
SCALE
SHEET
OF
REV
4805 (3/11)
