RS200H Overview

Fuse Holder RED SPOT 200A FRONT CONNECTED-BLACK

RS200H Parametric

Parameter Name	Attribute value
Product Category	Fuse Holder
Manufacturer	Eaton

Preview

Download Datasheet

View All

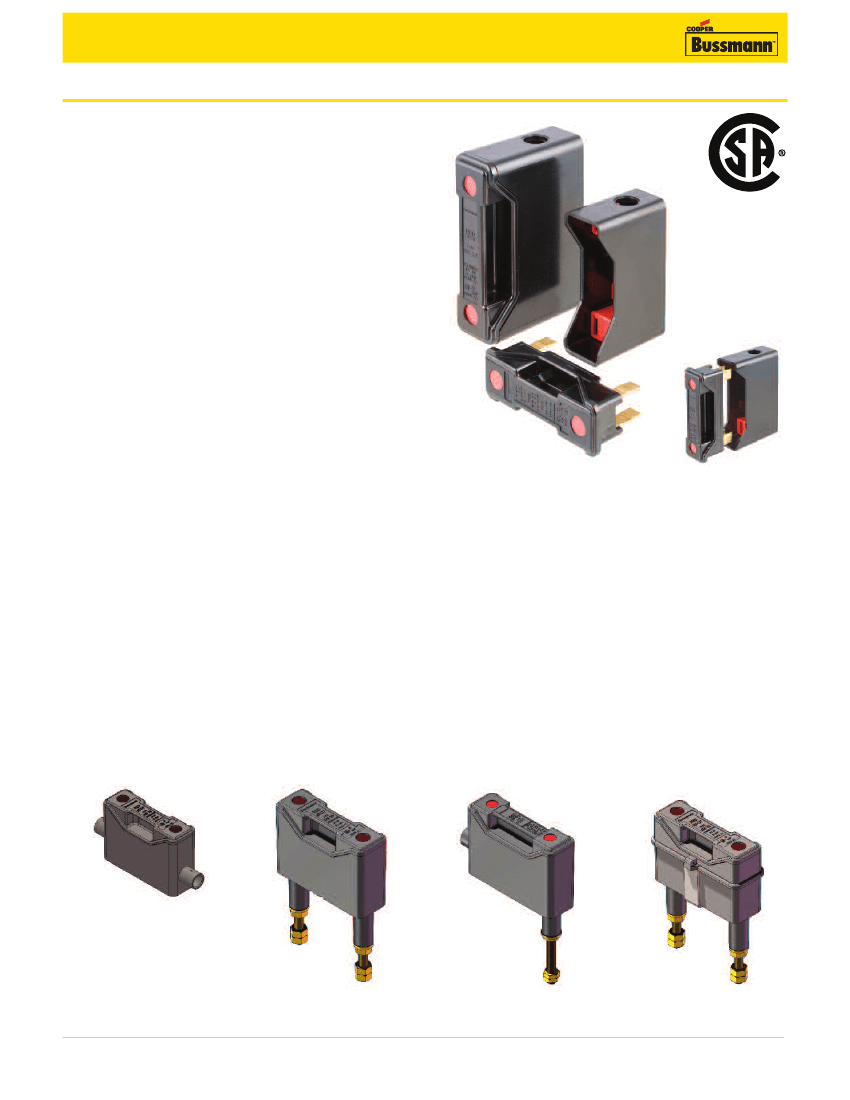

Red Spot Fuse Holders

Finger-safe Fuse Holders for BS88 HRC Industrial Fuses

Description

A range of CSA certified IP20 finger-safe fuse holders for

BS88 HRC industrial fuses in rating up to 400A.

Catalog Symbol

RS(AMP)(Connection Style/Color)

Ratings

Volts:

Amps:

SCCR:

Up to 690Vac/dc*

20, 32, 63, 100, 200 and 400

80kA

* AC Ratings vary by holder ampacity. See product tables for details.

Maximum Operating Temperature:

40°C

Wire Type:

70°C PVC/Cu

Wire Range:

8AWG to 500MCM (10 to 240mm

)

Termination/Connection Styles:

• Front connected (20-400A)

• Back stud connected (20-400A)

• Front/back stud connected (20-400A)

• Back stud connected, flush mounted (20A)

Agency Information

• CSA 22.2 No. 39, Class 6225 01, File 47235

• IEC 60269-1 & IEC 60269-2

Flammability Rating:

RS20H to RS63H, V-1

RS100H to RS400H, V-0

Protection Level:

IP20

Available Colors:

Black, white, green and grey

(available colors vary by ampacity)

Features & Benefits

• Industry standard fuse holder for protecting utility and in-

dustrial installations for over 40 years

• Large, proven contact system and anti-vibration feature

helps ensure perfect carrier contact alignment and superior

electrical contact

• Conductor insulating sleeves help prevent inadvertent

contact at the entry point while fully shrouded terminals de-

liver IP20 protection

• Molded parts made from flame-retardant, non-hygroscopic,

high dielectric strength phenolic material

• A broad range of accessories and Bussmann fuses

available for all Red Spot fuse holders

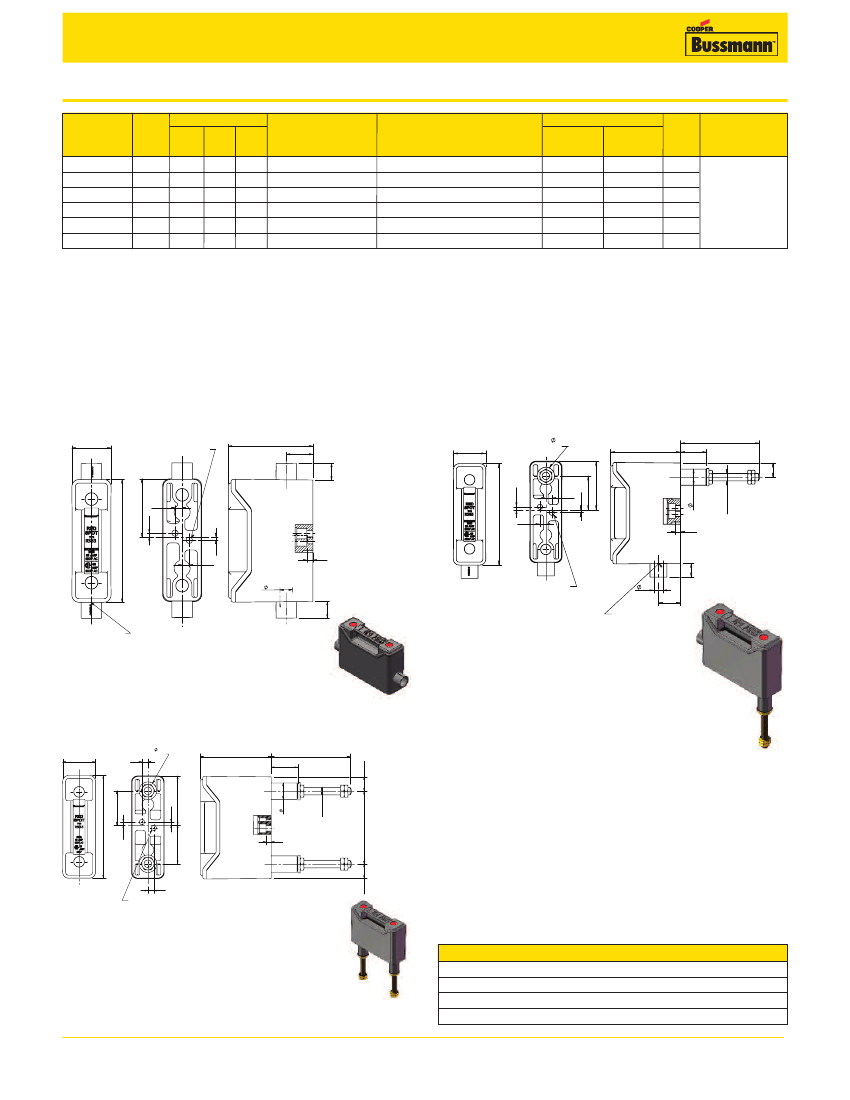

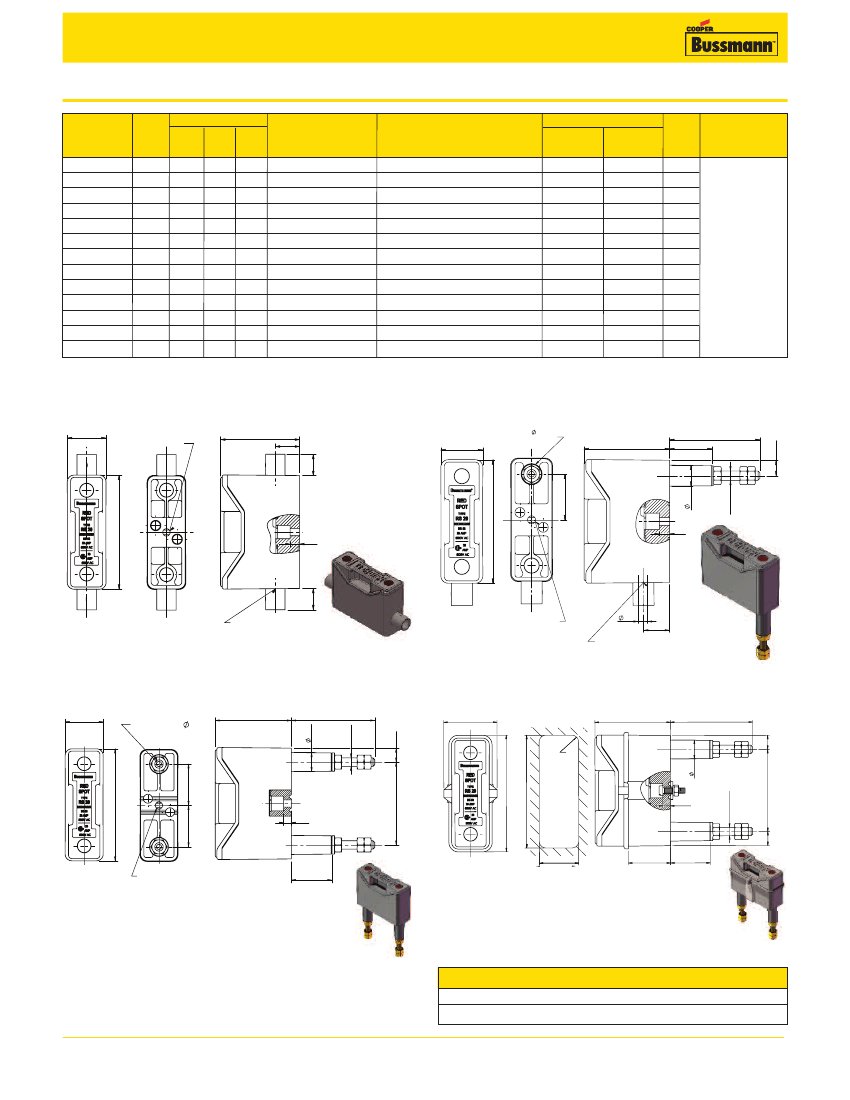

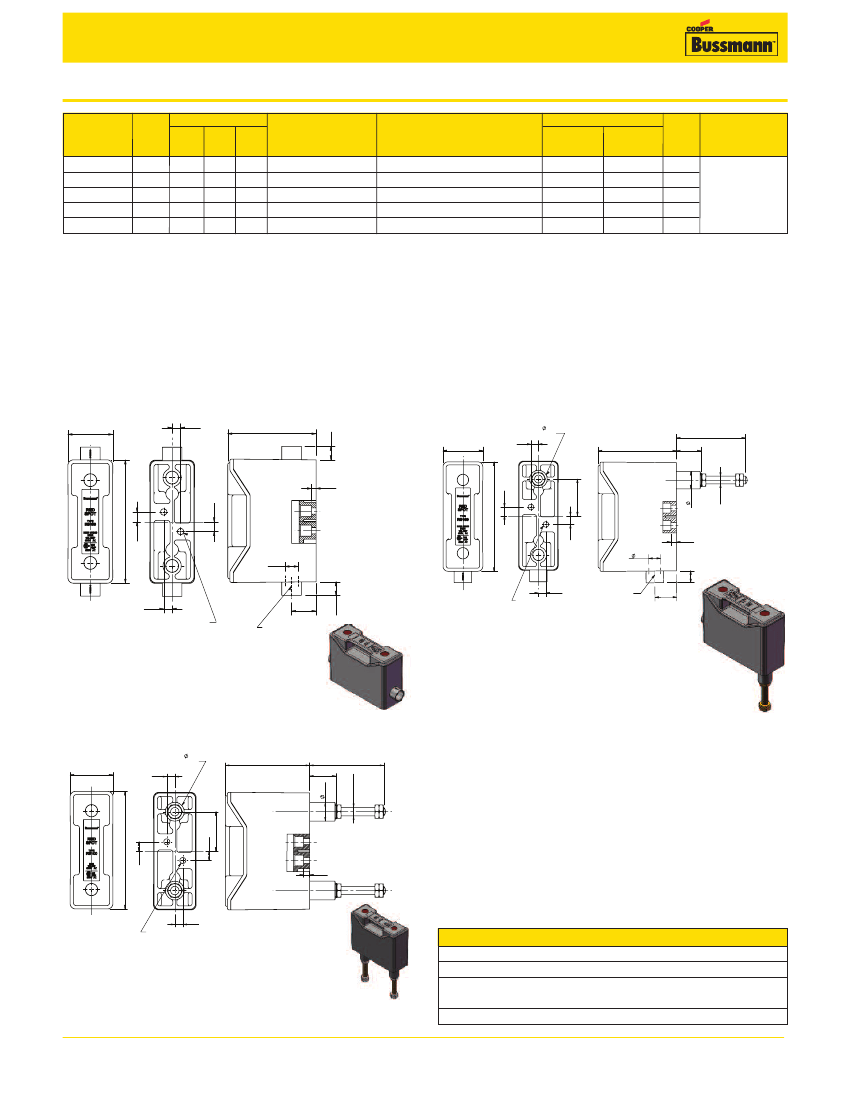

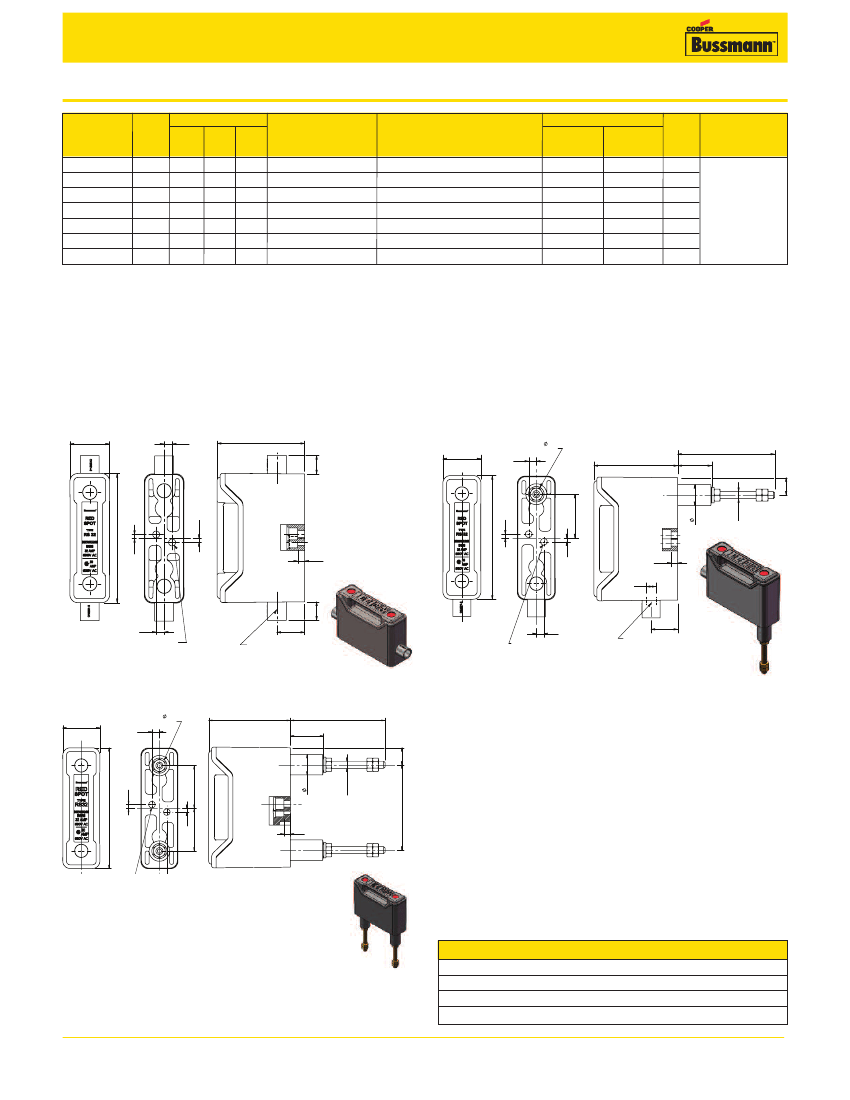

Available Termination/Connection Styles

Front Connected

Back Stud Connected

Front/Back Stud Connected

Back Stud Connected -

Flush Mounted (20A only)

0415

BU-SB13988

Page 1 of 8

Data Sheet # 10083
