DTA124XCAT116 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> DTA124XCAT116

DTA124XCAT116: DescriptionBipolar Transistors - Pre-Biased PNP -100mA -50V w/bias resistor; CategoryDiscrete semiconductor The transistor; File Size877KB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

DTA124XCAT116 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTA124XCAT116	-	-	View	Buy Now

DTA124XCAT116 Overview

Bipolar Transistors - Pre-Biased PNP -100mA -50V w/bias resistor

DTA124XCAT116 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	MINIMOLD, SST, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Other features	DIGITAL, BUILT-IN BIAS RESISTOR RATIO IS 2.136
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	68
JESD-30 code	R-PDSO-G3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
VCEsat-Max	0.3 V

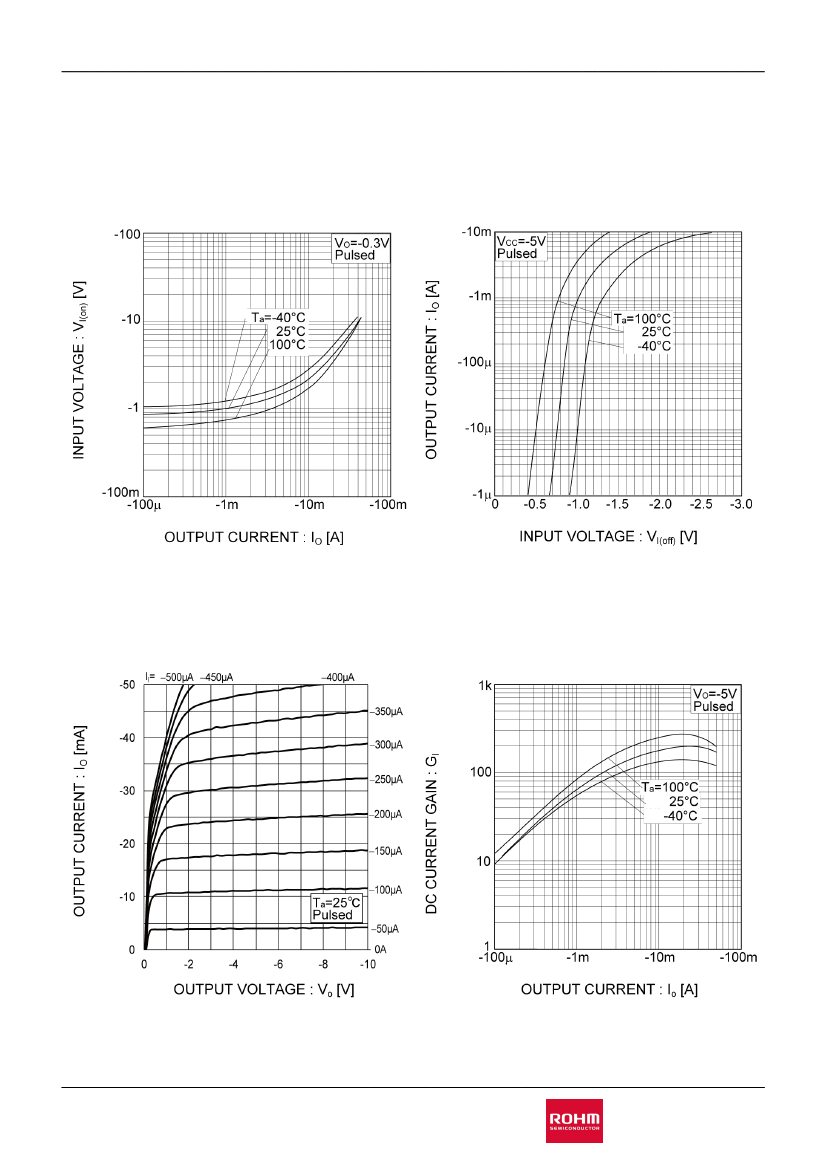

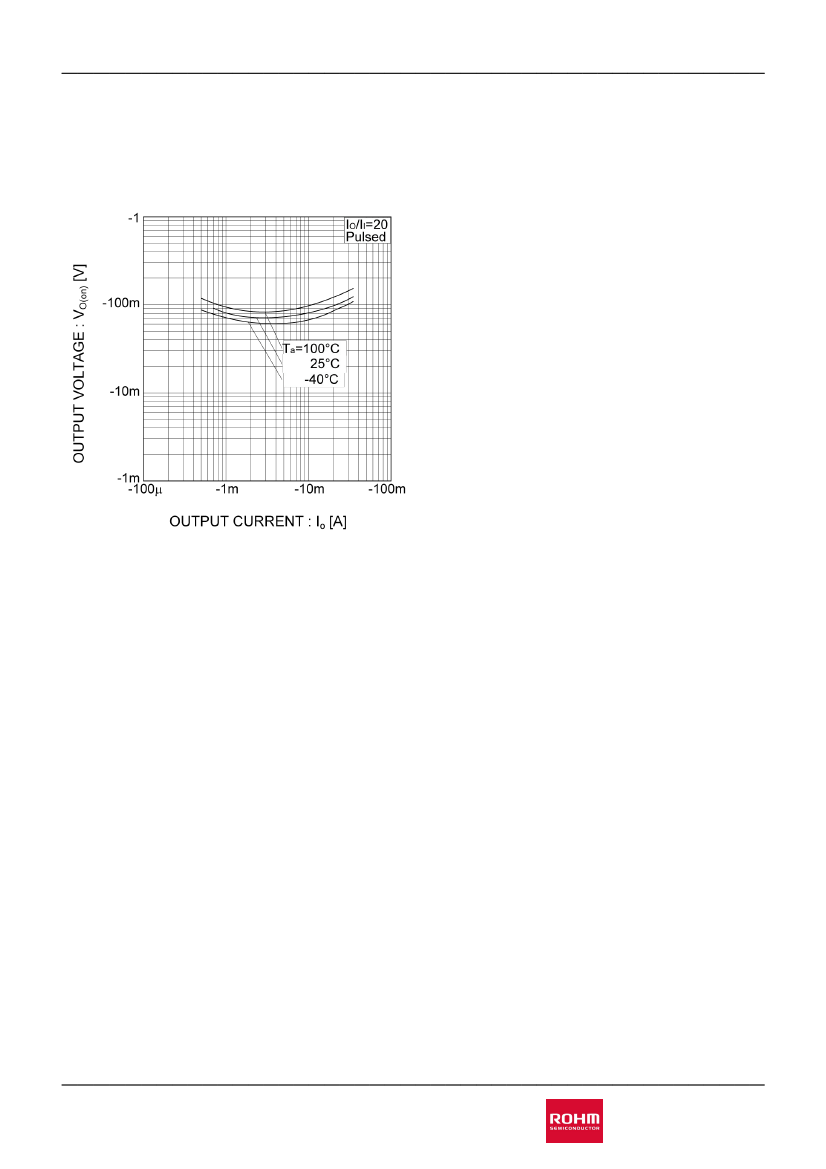

Preview

Download Datasheet

View All

DTA124XCA

PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor)

Datasheet

Outline

Parameter

C(MAX.)

Features

Value

-50V

-100mA

22kΩ

47kΩ

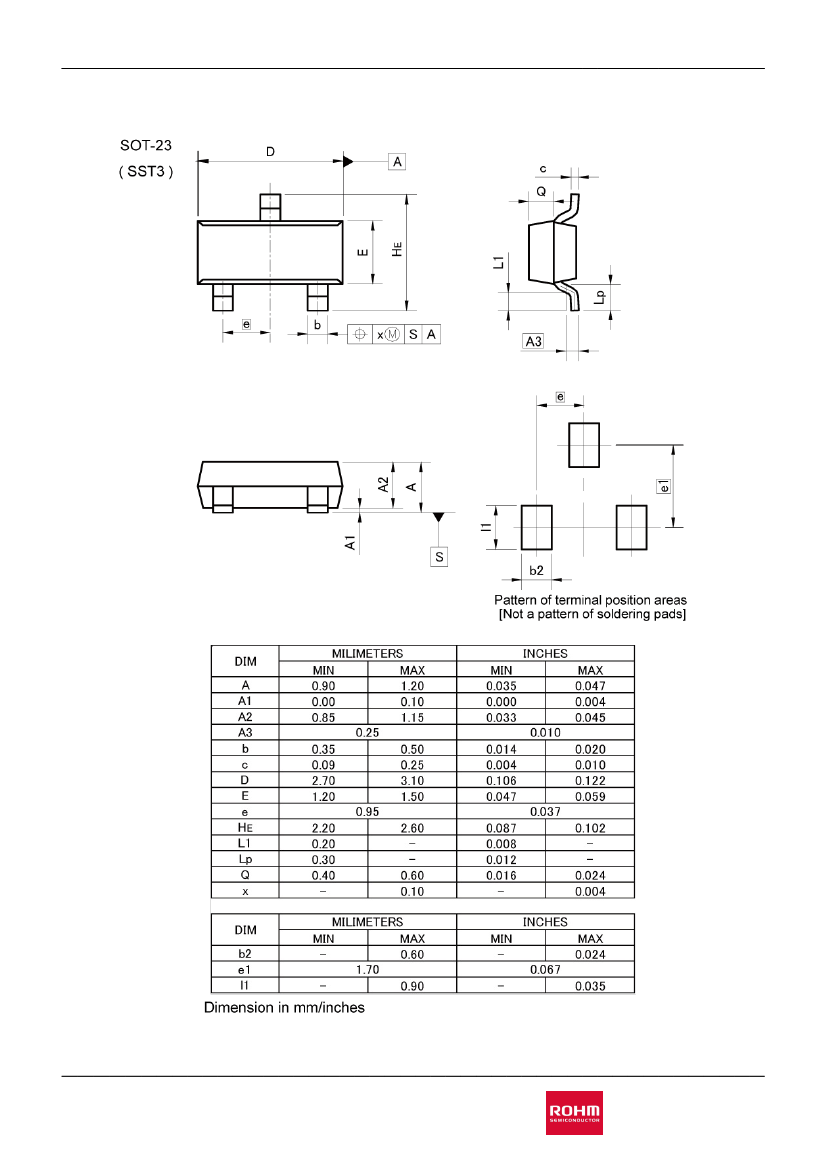

SOT-23

(SST3)

Inner circuit

1) Built-In Biasing Resistors,

= 22kΩ, R

= 47kΩ

2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit) .

3) Only the on/off conditions need to be set

for operation, making the circuit design easy.

4) Complementary NPN Types: DTC124XCA

Application

INVERTER, INTERFACE, DRIVER

Packaging specifications

Part No.

Package

SOT-23

(SST3)

Package

size

2924

Taping

code

T116

Basic

Reel size Tape width ordering

(mm)

unit.(pcs)

180

3000

Marking

DTA124XCA

www.rohm.com

1/5

20160208 - Rev.001
