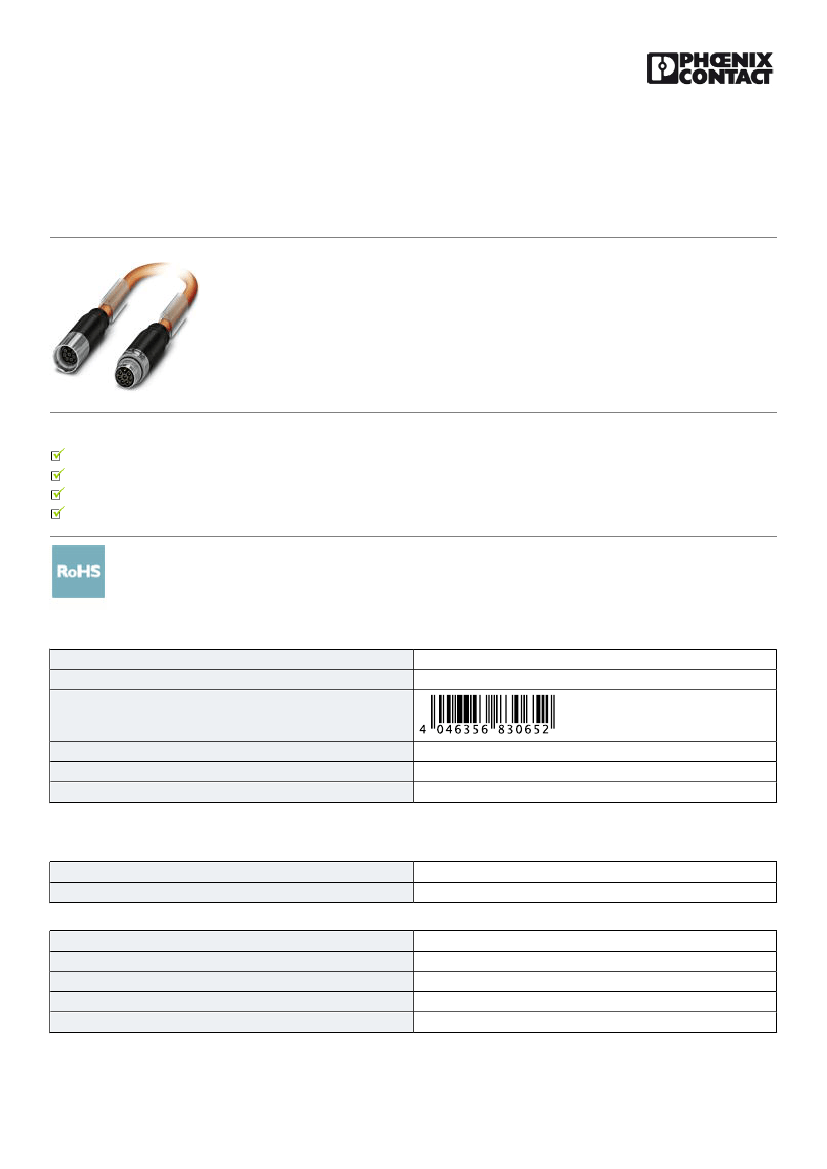

Connector in molded plastic on both sides - K-7E-M17 M9/5,0-D01/M17
F8 - 1619324
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Connector in molded plastic on both sides, Length: 5 m, Color of outer sheath: orange RAL 2003
Why buy this product
Our standard: robust halogen-free PUR cable
Simple and safe: 100% electrically tested and assembled ready for use
Designs with pre-assembled cables on one or both sides
High flexibility: customer-specific assemblies and cable lengths can be supplied
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356830652
85444290
Made to Order (non-returnable)
1 STK
2 STK
Technical data
Conductor length
Nominal current
5m
15 A
Connector specifications
Type
Housing material
Thread type
Locking type
Degree of protection
straight plastic-sheathed
Zinc die-cast
M17
Screw locking
IP67, when in locked state
11/14/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1619324
Connector in molded plastic on both sides - K-7E-M17 M9/5,0-D01/M17
F8 - 1619324
Technical data
Connector specifications
Number of positions
Direction of rotation
Type of contact
Insertion/withdrawal cycles
Contact resistance
Max. current
Voltage
Overvoltage category
Degree of pollution
Rated surge voltage
Ambient temperature (operation)
7+PE
Standard
Socket
50
< 0.3 mΩ
14 A
630 V
III
3
6 kV
-40 °C ... 105 °C
Cable specifications
Type of cable
Shielded
Cable structure
Cable structure (AWG)
External cable diameter
Outer sheath, material
Material wire insulation
External sheath, color
Nominal voltage, cable
Test voltage
Rated current
Smallest bending radius, movable installation
Ambient temperature for fixed installation
Ambient temperature for flexible installation
PSLC11Y-J
yes
4 x 1 mm² + 2 x 2 x 0.75 mm² StC
18 AWG/4c + 19 AWG/2pr
11 mm
PUR
TPM
orange RAL 2003
1000 V
4 kV (2 kV signal)
15 A
110 mm
-40 °C ... 80 °C
-20 °C ... 60 °C
Connector specifications (second page)
Type
Housing material
Thread type
Degree of protection
Number of positions
Direction of rotation
Type of contact
Insertion/withdrawal cycles
Contact resistance
Max. current
Voltage
straight plastic-sheathed
Zinc die-cast
M17
IP67, when in locked state
7+PE
Standard
Male connector
50
< 0.3 mΩ
14 A
630 V
11/14/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1619324
Connector in molded plastic on both sides - K-7E-M17 M9/5,0-D01/M17
F8 - 1619324
Technical data
Connector specifications (second page)
Overvoltage category
Degree of pollution
Rated surge voltage
Ambient temperature (operation)
III
3
6 kV
-40 °C ... 105 °C
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

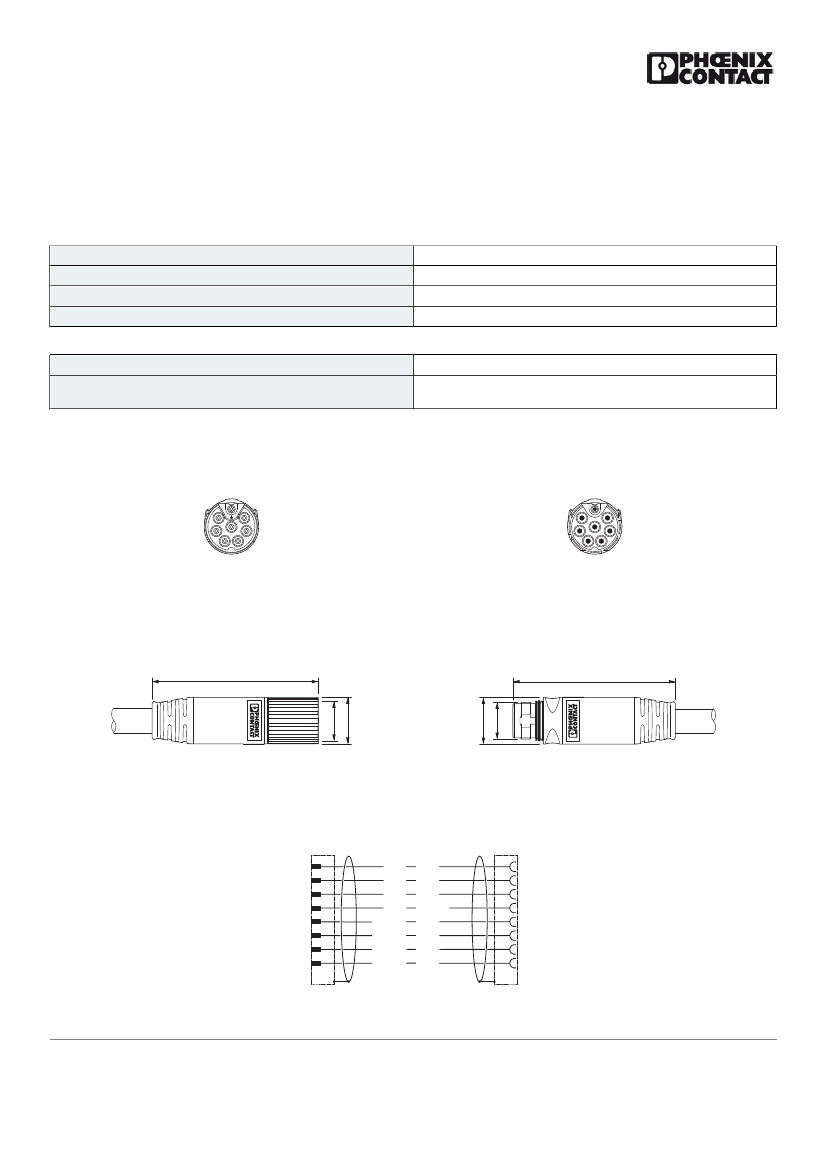

Drawings
Schematic diagram
Schematic diagram
1
2
7
3
4
6
5
6
5
P E
2
7
4
3
1
Socket pin assignment
Pin assignment of pin
Dimensional drawing
Dimensional drawing
76
74,2
M17x1
On the female side
Pin side
Circuit diagram
1
2
3
PE
A
B
C
D
1mm
1mm
1mm
1mm
0,75mm
0,75mm
0,75mm
0,75mm
2
2
2
2
2
2
2
2
M17x1
Ø21,2
Ø21,3
BK1
BK2
BK3
GN/YE
BK5
BK6
BK7
BK8
1
2
3
PE
A
B
C
D
Contact assignment of M17 plugs/sockets, cable type D01
11/14/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1619324
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 4 / 4
