ZWS75BAF-5-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> ZWS75BAF-5-L

ZWS75BAF-5-L: DescriptionSwitching Power Supplies 5V 15A, 75W W/ L bracket case; CategoryPower/power management; File Size102KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

ZWS75BAF-5-L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZWS75BAF-5-L	-	-	View	Buy Now

ZWS75BAF-5-L Overview

Switching Power Supplies 5V 15A, 75W W/ L bracket case

ZWS75BAF-5-L Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Commercial/Medical	Commercial
Approvals	EN60950-1, UL60950-1
Factory Pack Quantity	1
Unit Weight	8.113011 oz

Preview

Download Datasheet

View All

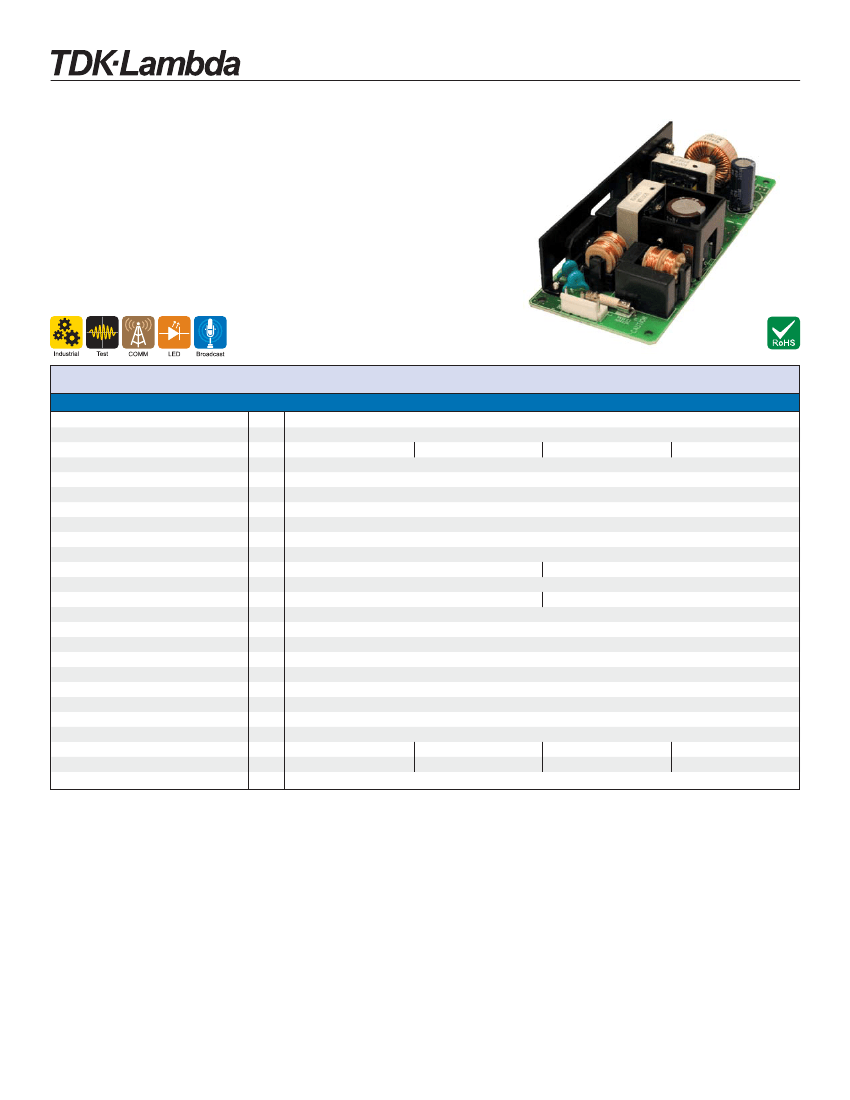

ZWS50-150BAF Series

33-150W Single Output, High Reliability AC-DC Power Supplies

Features



33W to 150W



Universal Input (85 - 265VAC)



Power factor Corrected



Convection Cooled



5 year warranty



Compact Design

Key Market Segments & Applications

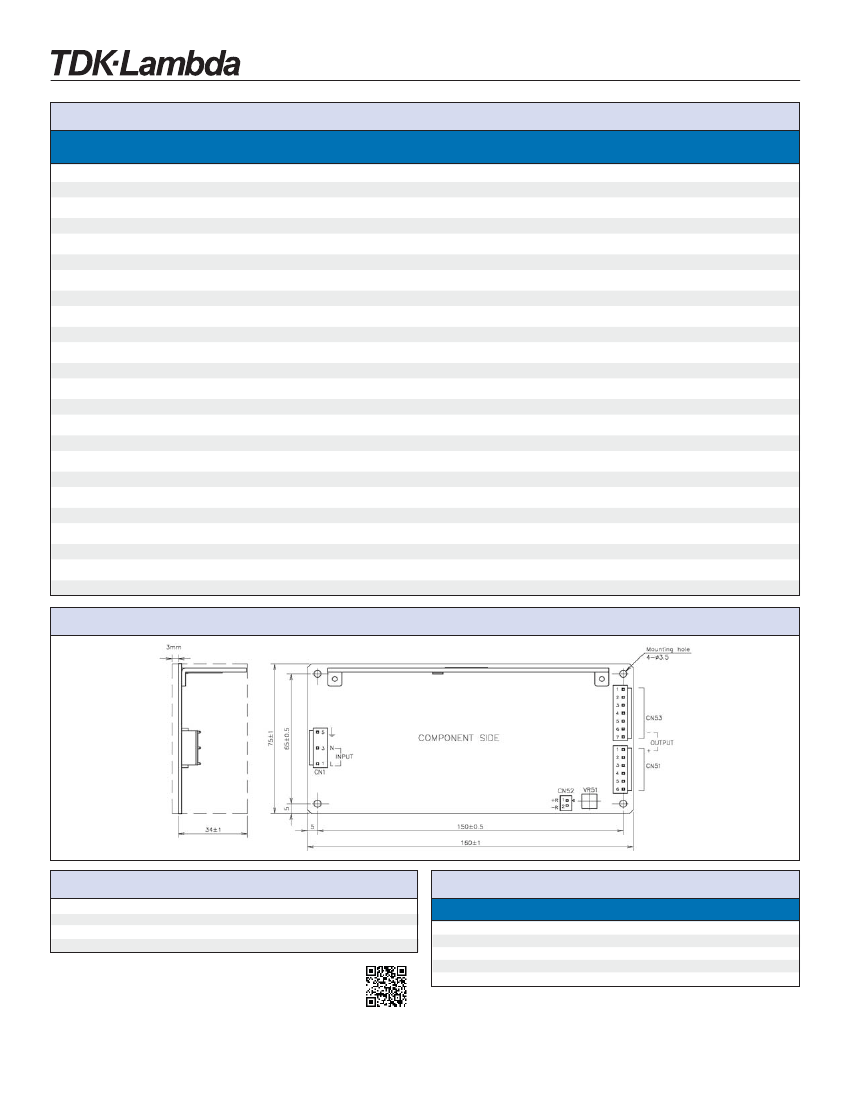

Speciﬁcations

Model

AC Input Voltage range

DC Input Voltage range

Input Current (Typical)

Inrush Current

Power Factor (Active)

Maximum Ripple and Noise

Temperature Coefﬁcient

Overcurrent Protection (1)

Hold Up Time (Typ) at 100VAC

Leakage Current

Remote On / Off

Operating Temperature (Convection)

Operating Temperature (Forced Air)

Storage Temperature

Humidity (non condensing)

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (W x H x D)

Warranty

°C

yrs

ZWS75BAF

ZWS100BAF

ZWS150BAF

85-265VAC (47-63Hz)

120 - 370VDC*

0.65 / 0.35

0.95 / 0.5

1.3 / 0.65

1.9 / 0.95

14 / 28 25°C ambient, cold start

Meets EN61000-3-2 (Typically 0.97/0.91)

3.3 & 5V: 120mV, 12 to 24V: 150mV, 48V: 200mV

<0.02%/°C

>105% of maximum output current

20ms

0.5mA max, 0.4mA typ at 230VAC

None

Optional

-10 to +70°C, derate linearly to 50% load from 50 to 70°C

N/A

-10 ~+70°C, derate linearly to 75% load from 60 ~70°C

-30 to +75°C

Operating: 30 - 90%RH, storage: 10 - 90%RH

I/P to Grnd 2kVAC (10mA), I/P to O/P 3kVAC (10mA), O/P to Grnd 500VAC (20mA) for 1 min.

>100M at 25C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178 (OV II), CE Mark

EN55011/EN55022-B, FCC-B, VCCI-B

IEC61000-4-2 (lv 2,3), -3 (lv3), -4 (lv 3), -5 (lv 3,4), -6 (lv 3), -8 (lv 4), -11

165

230

290

390

1.97 x 1.02 x 5.2”

1.97 x 1.3 x 5.9”

2.44 x 1.3 x 6.1”

2.95 x 1.46 x 6.3”

Five Years

*Safety certiﬁed for AC input only

ZWS50BAF

Notes:

(1) Avoid prolonged operartion in overload

(2) 100 / 200VAC Input

(3) 60°C: 70% load

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
