DCU0-0509D

Description
Power Transformers DC/DC Converters 2W DIL w/o Enable
CategoryPower/power management
File Size317KB,2 Pages
ManufacturerHALO Electronics
Download Datasheet Parametric Compare View All

DCU0-0509D Online Shopping

Suppliers Part Number Price MOQ In stock
DCU0-0509D - - View Buy Now

DCU0-0509D Overview

Power Transformers DC/DC Converters 2W DIL w/o Enable

DCU0-0509D Parametric

Parameter NameAttribute value
Product CategoryPower Transformers
ManufacturerHALO Electronics
RoHSNo
ProductIsolation Transformers
Primary Voltage Rating5 V
Secondary Voltage Rating9 V
Power Rating2 W
Secondary Current Rating250 mA
Mounting StyleThrough Hole
Primary WindingDual Primary Winding
Secondary WindingDual Secondary Winding
Length32.51 mm
Width14.73 mm
Height12.07 mm
Operating Temperature Range0 C to + 70 C
PackagingTube
Factory Pack Quantity15
Termination StyleThrough Hole
TypeDC/DC Converter

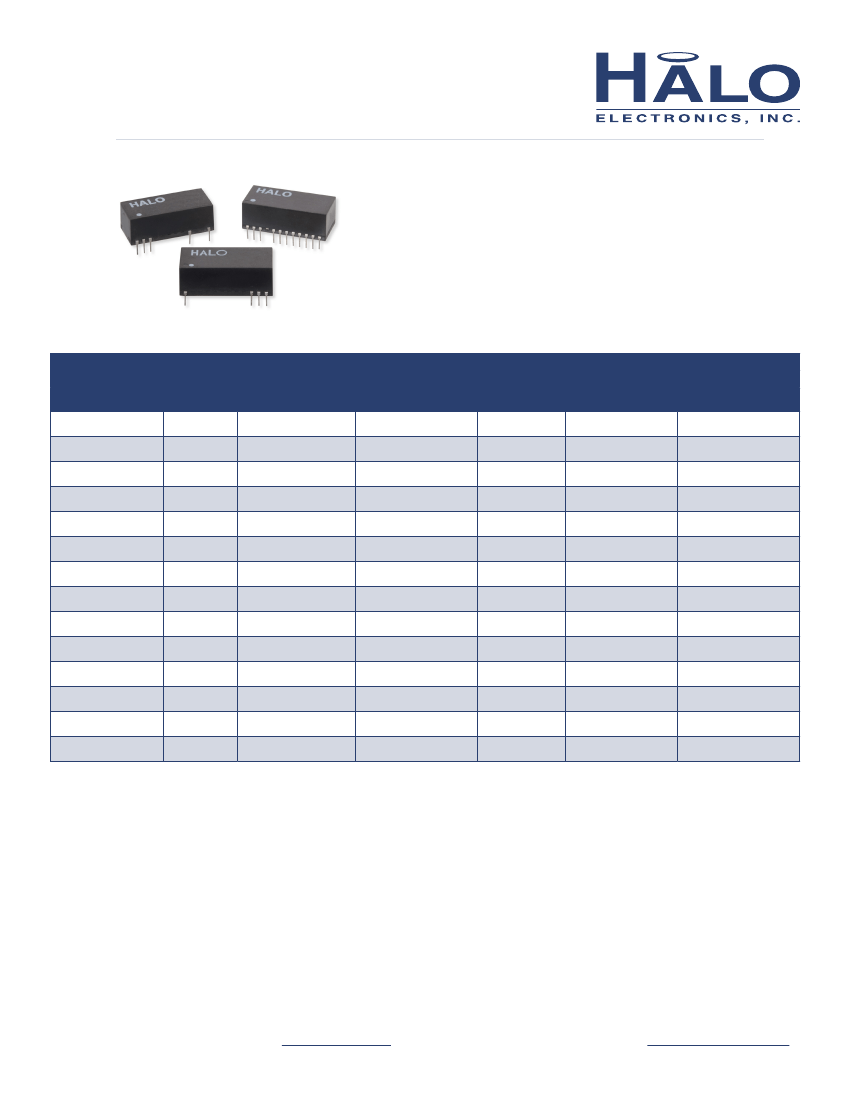

2W DC/DC Converters
DIL 2W DC/DC Converters for 10BASE2 and 10BASE5 Applications
Product Features:
2 Watt DC/DC Converter
10BASE2 and 10BASE5
100% Compliance Testing
With and Without Enable Feature
Part Number
DCU0-0509C
DCU0-0509D
DCU0-0509E
DCU0-0509E1
DCU0-0509MD
DCU0-0512C
DCU0-0512D
DCU0-0512MD
DCU0-1209C
DCU0-1209D
DCU0-1209E
DCU0-1209E1
DCU2-0509E
DCU2-1209E

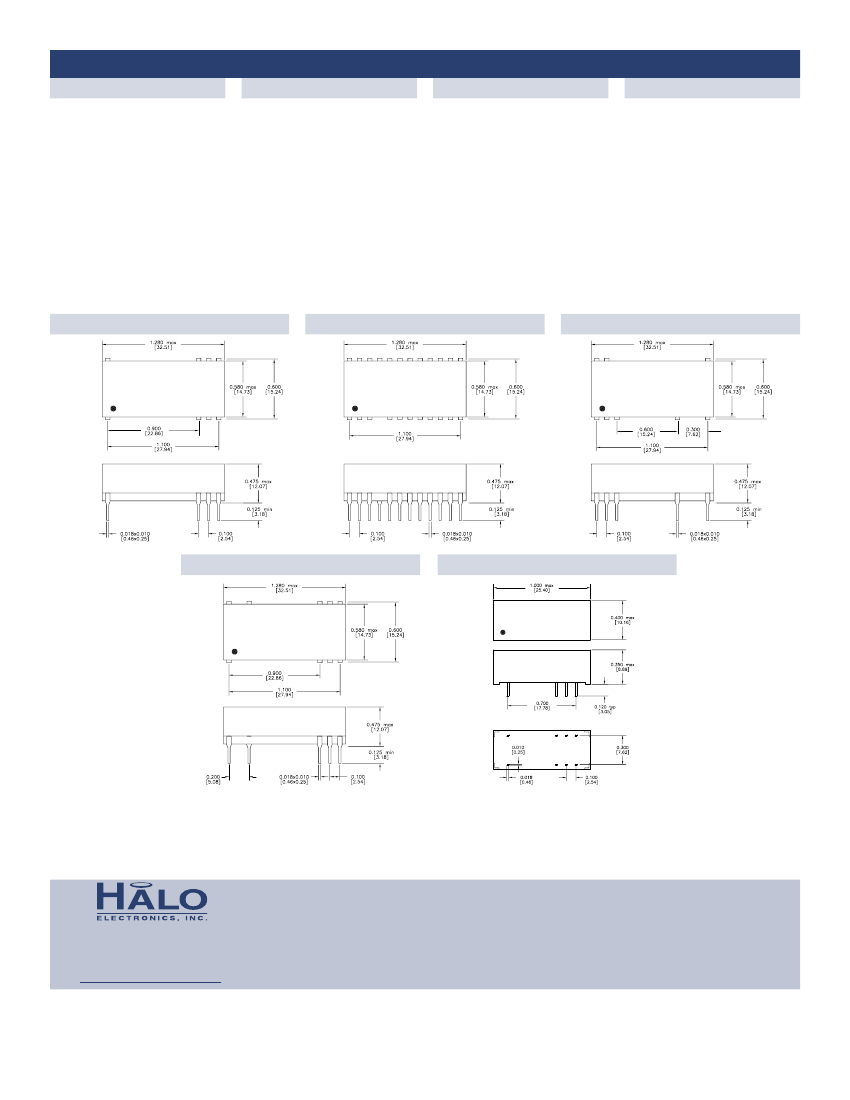

Schematic/
Input (max)
Package Voltage/Current
C
D
E
E1
MD
C
D
MD
C
D
E
E1
E
E
5Vdc @ 600mA
5Vdc @ 600mA
5Vdc @ 600mA
5Vdc @ 600mA
5Vdc @ 600mA
5Vdc @ 600mA
5Vdc @ 600mA
5Vdc @ 600mA
12Vdc @ 250mA
12Vdc @ 250mA
12Vdc @ 250mA
12Vddc @ 250mA
5Vdc @ 600mA
12Vdc @ 250mA
Output (max)
Voltage/Current
9Vdc @ 250mA
9Vdc @ 250mA
9Vdc @ 250mA
9Vdc @ 250mA
9Vdc @ 225mA
12Vdc @ 185mA
12Vdc @ 185mA
12Vdc @ 180mA
9Vdc @ 250mA
9Vdc @ 250mA
9Vdc @ 250mA
9Vdc @ 250mA
9Vdc @ 250mA
9Vdc @ 250mA
Isolation
Vrms
500
500
500
500
500
500
500
500
500
500
500
500
2,000
2,000
Enable
Function
-
-
Active Low
Active High
-
-
-
-
-
-
Active Low
Active High
Active Low
Active Low
Temp.
Range
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
0 to 70°C
Notes:
1. Please contact the factory or representative for individual datasheets or additional information
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com
